Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
MABA034250KHS CAP FILM 2.5UF 10% 500VDC RADIAL Nichicon	9,560	3.30	RFQ	Datasheet	Radial	Bulk	MAB	Active	2.5 µF	±10%	250V	500V	Polypropylene (PP), Metallized	-	-40°C ~ 100°C	Through Hole	1.260 L x 0.512 W (32.00mm x 13.00mm)	0.866 (22.00mm)	PC Pins	1.083 (27.50mm)	Motor Run	-
PWS2102680KJ 1000V, 0.068UF, 10 PERCENT, AXIA Nichicon	6,383	3.30	RFQ	Datasheet	Axial	Bulk	PWS	Active	0.068 µF	±10%	400V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.315 Dia x 0.748 L (8.00mm x 19.00mm)	-	PC Pins	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PSB2103150KHS 1000V,0.15UF,10 PERCENT, RADIAL Nichicon	8,237	3.33	RFQ	Datasheet	Radial	Bulk	PSB	Active	0.15 µF	±10%	575V	1000V (1kV)	Polypropylene (PP), Metallized	8.2 mOhms	-40°C ~ 85°C	Through Hole	1.260 L x 0.512 W (32.00mm x 13.00mm)	0.866 (22.00mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
PSB2103150KHL 1000V,0.15UF,10 PERCENT, RADIAL Nichicon	7,033	3.33	RFQ	Datasheet	Radial	Bulk	PSB	Active	0.15 µF	±10%	575V	1000V (1kV)	Polypropylene (PP), Metallized	8.2 mOhms	-40°C ~ 85°C	Through Hole	1.260 L x 0.512 W (32.00mm x 13.00mm)	0.866 (22.00mm)	PC Pins	1.083 (27.50mm)	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
MKP1848C52080JK2 CAP FILM 2UF 5% 800VDC RADIAL Vishay Beyschlag/Draloric/BC Components	5,458	3.34	RFQ	Datasheet	Radial	Bulk	MKP1848C DC-Link	Active	2 µF	±5%	-	800V	Polypropylene (PP), Metallized	35 mOhms	-55°C ~ 105°C	Through Hole	1.260 L x 0.354 W (32.00mm x 9.00mm)	0.748 (19.00mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
MKP1848510704K2 CAP FILM 1UF 5% 700VDC RADIAL Vishay Beyschlag/Draloric/BC Components	6,189	3.36	RFQ	Datasheet	Radial	Bulk	MKP1848 DC-Link	Active	1 µF	±5%	-	700V	Polypropylene (PP), Metallized	54 mOhms	-40°C ~ 105°C	Through Hole	1.260 L x 0.354 W (32.00mm x 9.00mm)	0.748 (19.00mm)	PC Pins	1.083 (27.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
ALH205K251A032 2UF 250VAC 32X22X13MM LS=27.5 Cornell Dubilier Electronics (CDE)	9,572	3.37	RFQ	Datasheet	Radial	Bulk	ALH	Active	2 µF	±10%	250V	-	Polypropylene (PP)	8.2 mOhms	-40°C ~ 105°C	Through Hole	1.260 L x 0.512 W (32.00mm x 13.00mm)	0.898 (22.80mm)	PC Pins	1.083 (27.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200
BFC233841104 CAP FILM 0.1UF 20% 800VDC RADIAL Vishay Beyschlag/Draloric/BC Components	9,292	3.38	RFQ	Datasheet	Radial	Bulk	MKP338 4	Active	0.1 µF	±20%	300V	800V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.689 L x 0.236 W (17.50mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
ECW-FG60475J CAP FILM 4.7UF 600VDC RADIAL Panasonic Electronic Components	7,746	3.39	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	4.7 µF	±5%	-	600V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.472 W (31.50mm x 12.00mm)	0.984 (25.00mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching	AEC-Q200
PPA2123100KJ 1200V, 0.1UF, 10 PERCENT, AXIAL Nichicon	5,853	3.42	RFQ	Datasheet	Axial	Bulk	PPA	Active	0.1 µF	±10%	550V	1200V (1.2kV)	Polypropylene (PP), Metallized	10.7 mOhms	-40°C ~ 85°C	Through Hole	0.984 Dia x 2.087 L (25.00mm x 53.00mm)	-	PC Pins	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
ECW-FG60505J CAP FILM 5UF 600VDC RADIAL Panasonic Electronic Components	6,029	3.46	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	5 µF	±5%	-	600V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.472 W (31.50mm x 12.00mm)	0.984 (25.00mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching	AEC-Q200
PWS2152470KJ 1500V, 0.047UF, 10 PERCENT, AXIA Nichicon	7,584	3.47	RFQ	Datasheet	Axial	Bulk	PWS	Active	0.047 µF	±10%	450V	1500V (1.5kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.591 Dia x 1.260 L (15.00mm x 32.00mm)	-	PC Pins	-	High Frequency, Switching; High Pulse, DV/DT; Snubber	-
715P472916LA3 CAP FILM 4700PF 10% 1.6KVDC RAD Cornell Dubilier Electronics (CDE)	9,836	3.48	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	4700 pF	±10%	500V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.461 Dia x 1.252 L (11.70mm x 31.80mm)	0.752 (19.10mm)	PC Pins	1.031 (26.20mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
890334027025 CAP FILM 3.3UF 10% 310VAC RADIAL Würth Elektronik	6,428	3.48	RFQ	Datasheet	Radial	Bulk	WCAP-FTXX	Active	3.3 µF	±10%	310V	-	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.220 L x 0.610 W (31.00mm x 15.50mm)	1.161 (29.50mm)	PC Pins	1.083 (27.50mm)	EMI, RFI Suppression	X2
ALH105K351A032 1UF 350VAC 32X22X13MM LS=27.5 Cornell Dubilier Electronics (CDE)	7,632	3.54	RFQ	Datasheet	Radial	Bulk	ALH	Active	1 µF	±10%	350V	-	Polypropylene (PP)	10.9 mOhms	-40°C ~ 105°C	Through Hole	1.260 L x 0.512 W (32.00mm x 13.00mm)	0.898 (22.80mm)	PC Pins	1.083 (27.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200
225P33394XD3 CAP FILM 0.033UF 10% 400VDC RAD Cornell Dubilier Electronics (CDE)	8,875	3.56	RFQ	Datasheet	Radial	Bulk	Orange Drop® 225P	Active	0.033 µF	±10%	-	400V	Polyester	-	-55°C ~ 85°C	Through Hole	0.799 L x 0.339 W (20.30mm x 8.60mm)	0.650 (16.50mm)	PC Pins	0.374 (9.50mm)	Audio; DC Link, DC Filtering	-
715P4725800LA3 CAP FILM 4700PF 5% 1.8KVDC RAD Cornell Dubilier Electronics (CDE)	6,483	3.60	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	4700 pF	±5%	800V	1800V (1.8kV)	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.429 Dia x 1.122 L (10.90mm x 28.50mm)	0.740 (18.80mm)	PC Pins	0.886 (22.50mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
ECW-FG60605J CAP FILM 6UF 600VDC RADIAL Panasonic Electronic Components	5,787	3.67	RFQ	Datasheet	Radial	Bulk	ECWFG	Active	6 µF	±5%	-	600V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.240 L x 0.472 W (31.50mm x 12.00mm)	0.984 (25.00mm)	PC Pins	1.083 (27.50mm)	Automotive; High Frequency, Switching	AEC-Q200
715P47256JA3 CAP FILM 4700PF 5% 600VDC RADIAL Cornell Dubilier Electronics (CDE)	9,489	3.75	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	4700 pF	±5%	200V	600V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.339 Dia x 0.701 L (8.60mm x 17.80mm)	0.634 (16.10mm)	PC Pins	0.500 (12.70mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-

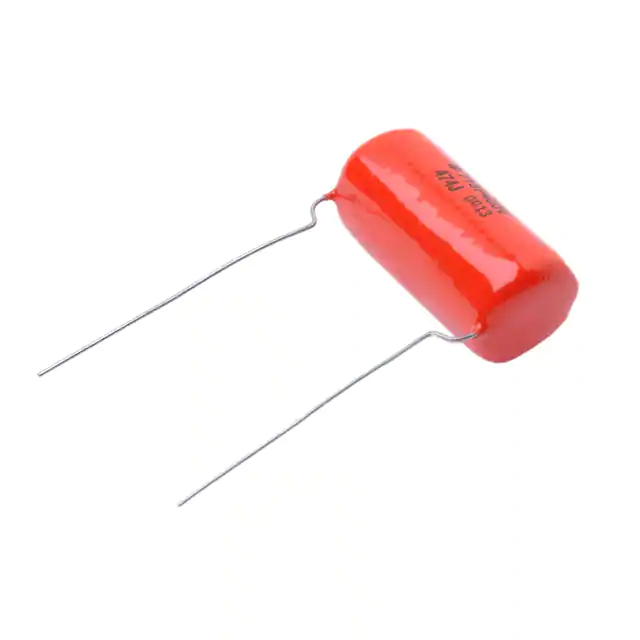

CP-OD715-47-400V CAP FILM .470UF 400V 715 SERIES Cornell Dubilier Electronics (CDE)	5,082	3.75	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.47 µF	-	-	400V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	-	-	PC Pins	-	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
