Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
B32529C0334K289 CAP FILM 0.33UF 10% 63VDC RADIAL EPCOS - TDK Electronics	10,678	0.46	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3252* - MKT General Purpose	Active	0.33 µF	±10%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.287 L x 0.118 W (7.30mm x 3.00mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
ECQ-E6103KF3 CAP FILM 10000PF 10% 630VDC RAD Panasonic Electronic Components	11,652	0.48	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	ECQ-E(F)	Active	10000 pF	±10%	-	630V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.472 L x 0.177 W (12.00mm x 4.50mm)	0.492 (12.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
MMK5103K100J01L16.5TR18 CAP FILM 10000PF 10% 100VDC RAD KEMET	11,226	0.48	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	MMK	Active	10000 pF	±10%	63V	100V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
ECQ-E6103KF9 CAP FILM 10000PF 10% 630VDC RAD Panasonic Electronic Components	11,175	0.48	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	ECQ-E(F)	Active	10000 pF	±10%	-	630V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	0.472 L x 0.177 W (12.00mm x 4.50mm)	0.492 (12.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
B32529C3333K289 CAP FILM 0.033UF 10% 250VDC RAD EPCOS - TDK Electronics	12,198	0.48	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3252* - MKT General Purpose	Active	0.033 µF	±10%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.287 L x 0.098 W (7.30mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
ECQ-U2A183ML CAP FILM 0.018UF 20% 275VAC RAD Panasonic Electronic Components	304	0.48	RFQ	Datasheet	Radial	Bulk	ECQ-UL	Obsolete	0.018 µF	±20%	275V	-	Polyester, Metallized	-	-40°C ~ 100°C	Through Hole	0.591 L x 0.197 W (15.00mm x 5.00mm)	0.472 (12.00mm)	PC Pins	0.492 (12.50mm)	EMI, RFI Suppression	X2

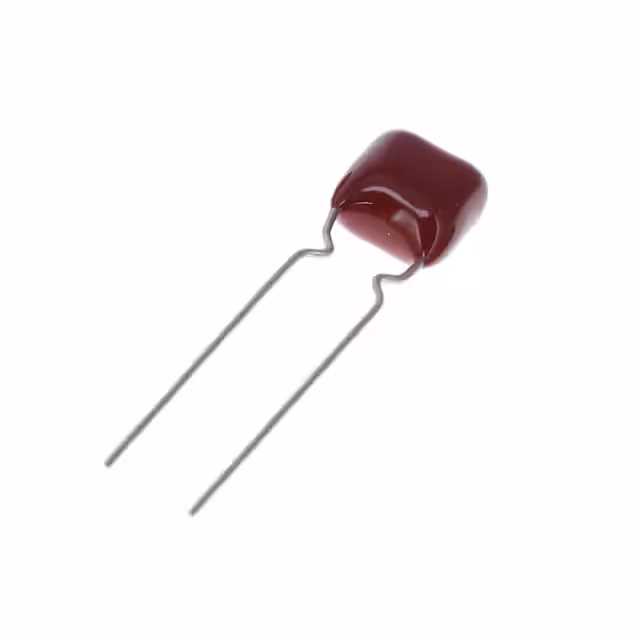

ECQ-E2104JB3 CAP FILM 0.1UF 5% 250VDC RADIAL Panasonic Electronic Components	12,466	0.49	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	ECQ-E(B)	Active	0.1 µF	±5%	-	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	-	-	PC Pins	-	General Purpose	-
B32559C8332K000 CAP FILM 3300PF 10% 630VDC RAD EPCOS - TDK Electronics	671	0.49	RFQ	Datasheet	Radial	Bulk	B32559	Obsolete	3300 pF	±10%	400V	630V	Polyester, Polyethylene Terephthalate (PET) - Stacked	-	-55°C ~ 125°C	Through Hole	0.276 L x 0.138 W (7.00mm x 3.50mm)	0.315 (8.00mm)	PC Pins	0.197 (5.00mm)	High Pulse, DV/DT	-
B32520C3104K289 CAP FILM 0.1UF 10% 250VDC RADIAL EPCOS - TDK Electronics	10,738	0.49	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3252* - MKT General Purpose	Active	0.1 µF	±10%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.394 L x 0.157 W (10.00mm x 4.00mm)	0.335 (8.50mm)	PC Pins	0.295 (7.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200
ECH-U1H271JX5 CAP FILM 270PF 5% 50VDC 0805 Panasonic Electronic Components	11,292	0.49	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	270 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.043 (1.10mm)	Solder Pads	-	General Purpose	-
ECH-U1C821JX5 CAP FILM 820PF 5% 16VDC 0603 Panasonic Electronic Components	14,246	0.50	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	820 pF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.033 (0.85mm)	Solder Pads	-	General Purpose	-
B32921C3473M289 CAP FILM 0.047UF 20% 630VDC RAD EPCOS - TDK Electronics	12,355	0.50	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3292*C/D - X2 Standard	Active	0.047 µF	±20%	305V	630V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.197 W (13.00mm x 5.00mm)	0.433 (11.00mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	X2
B32529C6333K289 CAP FILM 0.033UF 10% 400VDC RAD EPCOS - TDK Electronics	14,035	0.50	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3252* - MKT General Purpose	Not For New Designs	0.033 µF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	-	-	PC Pins	0.197 (5.00mm)	Automotive; EMI, RFI Suppression	-
QYX1H683KTP3TA CAP FILM 0.068UF 10% 50VDC RAD Nichicon	13,113	0.50	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	QYX	Active	0.068 µF	±10%	-	50V	Polyester	-	-40°C ~ 85°C	Through Hole	0.315 L x 0.197 W (8.00mm x 5.00mm)	0.433 (11.00mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
ECH-U1C681JX5 CAP FILM 680PF 5% 16VDC 0603 Panasonic Electronic Components	13,460	0.50	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	680 pF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.033 (0.85mm)	Solder Pads	-	General Purpose	-
ECH-U1C391JX5 CAP FILM 390PF 5% 16VDC 0603 Panasonic Electronic Components	12,962	0.50	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	390 pF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.033 (0.85mm)	Solder Pads	-	General Purpose	-
B32529C1224K289 CAP FILM 0.22UF 10% 100VDC RAD EPCOS - TDK Electronics	14,432	0.50	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3252* - MKT General Purpose	Active	0.22 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.287 L x 0.138 W (7.30mm x 3.50mm)	0.315 (8.00mm)	PC Pins	0.197 (5.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
ECH-U1C272JX5 CAP FILM 2700PF 5% 16VDC 0603 Panasonic Electronic Components	13,274	0.51	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	2700 pF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.033 (0.85mm)	Solder Pads	-	General Purpose	-
ECH-U1C182JX5 CAP FILM 1800PF 5% 16VDC 0603 Panasonic Electronic Components	13,072	0.51	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	1800 pF	±5%	11V	16V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.063 L x 0.031 W (1.60mm x 0.80mm)	0.033 (0.85mm)	Solder Pads	-	General Purpose	-
B32520C3104J289 CAP FILM 0.1UF 5% 250VDC RADIAL EPCOS - TDK Electronics	10,542	0.52	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3252* - MKT General Purpose	Active	0.1 µF	±5%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.394 L x 0.157 W (10.00mm x 4.00mm)	0.335 (8.50mm)	PC Pins	0.295 (7.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200
