Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
PHE845VW7100MR30L2 CAP FILM 1UF 20% 1.5KVDC RADIAL KEMET	5,643	9.37	RFQ	Datasheet	Radial	Tray	PHE845	Active	1 µF	±20%	760V	1500V (1.5kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.614 L x 0.827 W (41.00mm x 21.00mm)	1.496 (38.00mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X1
B32774D4226K000 CAP FILM 22UF 10% 450VDC RADIAL EPCOS - TDK Electronics	9,356	9.72	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	22 µF	±10%	-	450V	Polypropylene (PP), Metallized	5.4 mOhms	-40°C ~ 105°C	Through Hole	1.240 L x 0.866 W (31.50mm x 22.00mm)	1.437 (36.50mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
R60IW52205040K CAP FILM 22UF 10% 250VDC RADIAL KEMET	9,855	9.88	RFQ	Datasheet	Radial	Bulk	R60	Active	22 µF	±10%	160V	250V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	1.634 L x 0.630 W (41.50mm x 16.00mm)	1.126 (28.60mm)	PC Pins	1.476 (37.50mm)	General Purpose	-
B32776G1106K000 CAP FILM 10UF 10% 1.3KVDC RADIAL EPCOS - TDK Electronics	2,798	10.49	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	10 µF	±10%	-	1300V (1.3kV)	Polypropylene (PP), Metallized	6.5 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.102 W (42.00mm x 28.00mm)	1.457 (37.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
C4AQLBW5700A3LK CAP FILM 70UF 10% 500VDC RADIAL KEMET	3,859	10.51	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	70 µF	±10%	-	500V	Polypropylene (PP), Metallized	2.1 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.780 (45.20mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
C4AQLBW5500A3JK CAP FILM 50UF 10% 500VDC RADIAL KEMET	1,903	11.18	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	50 µF	±10%	-	500V	Polypropylene (PP), Metallized	2.8 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.102 W (42.00mm x 28.00mm)	1.465 (37.20mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200

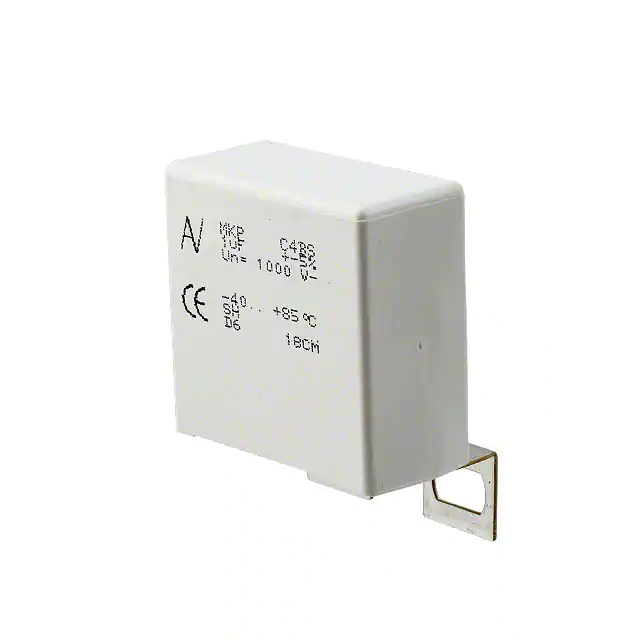

C4BSNBX4100ZAFJ CAP FILM 1UF 5% 1KVDC SCREW KEMET	4,937	11.95	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	1 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	3.7 mOhms	-40°C ~ 85°C	Chassis Mount	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	Screw Terminals	1.004 (25.50mm)	DC Link, DC Filtering; Snubber	-

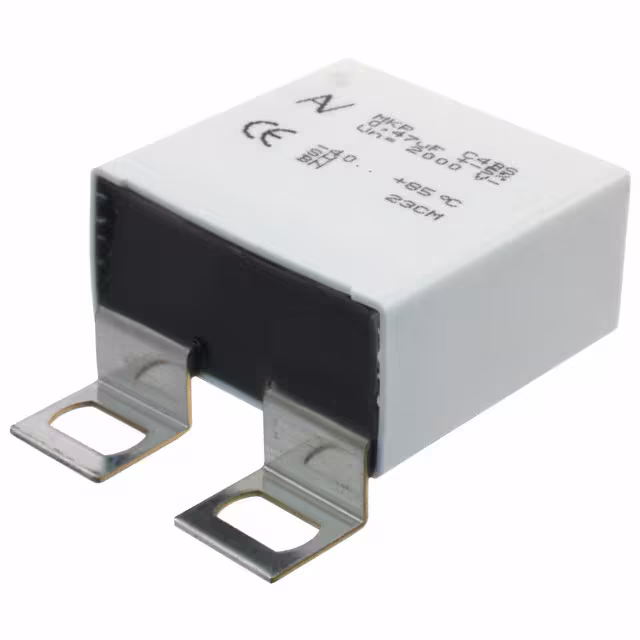

C4BSWBX3470ZAFJ CAP FILM 0.47UF 5% 2KVDC SCREW KEMET	1,976	11.95	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	0.47 µF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	5.1 mOhms	-40°C ~ 85°C	Chassis Mount	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	Screw Terminals	1.004 (25.50mm)	DC Link, DC Filtering; Snubber	-
C4BSTBX3470ZAFJ CAP FILM 0.47UF 5% 1.6KVDC SCREW KEMET	2,068	11.95	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	0.47 µF	±5%	-	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-40°C ~ 85°C	Chassis Mount	-	-	Screw Terminals	-	DC Link, DC Filtering; Snubber	-
B32564J1336K000 CAP FILM 33UF 10% 100VDC 2DIP EPCOS - TDK Electronics	3,415	11.96	RFQ	Datasheet	2-DIP	Bulk	B3256* - MKT SilverCap™	Not For New Designs	33 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	1.142 L x 0.512 W (29.00mm x 13.00mm)	0.780 (19.80mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
C4AEOBW5200A3LJ CAP FILM 20UF 5% 900VDC RADIAL KEMET	1,872	12.80	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AE	Active	20 µF	±5%	-	900V	Polypropylene (PP), Metallized	3.9 mOhms	-40°C ~ 85°C	Through Hole	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-
C4AQLBW5900A3OK CAP FILM 90UF 10% 500VDC RADIAL KEMET	2,116	13.54	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	90 µF	±10%	-	500V	Polypropylene (PP), Metallized	1.5 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.378 W (42.00mm x 35.00mm)	1.976 (50.20mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
564PMB122KSP2 CAP FILM 0.56UF 1.2KVDC CHAS MT Cornell Dubilier / Illinois Capacitor	3,963	14.80	RFQ	Datasheet	Rectangular Box	Bulk	PMB	Active	0.56 µF	±10%	630V	1200V (1.2kV)	Polypropylene (PP), Metallized	3.7 mOhms	-40°C ~ 85°C	Chassis Mount	1.673 L x 0.965 W (42.50mm x 24.50mm)	1.083 (27.50mm)	Screw Terminals	-	DC Link, DC Filtering; High Frequency, Switching; Snubber	-
C4BSNBX4200ZALJ CAP FILM 2UF 5% 1KVDC SCREW KEMET	4,468	14.93	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	2 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	2 mOhms	-40°C ~ 85°C	Chassis Mount	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	Screw Terminals	1.004 (25.50mm)	DC Link, DC Filtering; Snubber	-

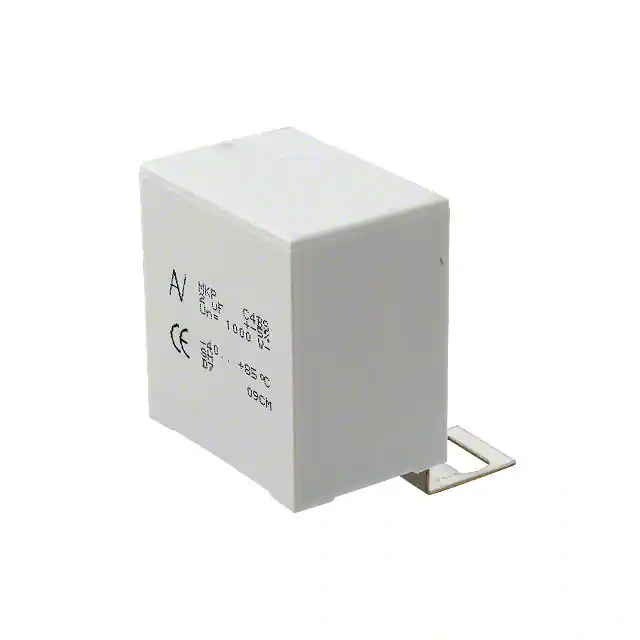

C4BSNBX4200ZBLJ CAP FILM 2UF 5% 1KVDC SCREW KEMET	1,453	14.93	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	2 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	2 mOhms	-40°C ~ 85°C	Chassis Mount	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	Screw Terminals	0.866 (22.00mm)	DC Link, DC Filtering; Snubber	-
R76TW412050H3J CAP FILM 1.2UF 5% 1.6KVDC RADIAL KEMET	4,860	15.62	RFQ	Datasheet	Radial	Tray	R76	Active	1.2 µF	±5%	650V	1600V (1.6kV)	Polypropylene (PP), Metallized	3.2 mOhms	-55°C ~ 125°C	Through Hole	1.634 L x 1.181 W (41.50mm x 30.00mm)	1.776 (45.10mm)	PC Pins	1.476 (37.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200
B32776G0206K000 CAP FILM 20UF 10% 1.1KVDC RADIAL EPCOS - TDK Electronics	2,940	15.74	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	20 µF	±10%	-	1100V (1.1kV)	Polypropylene (PP), Metallized	3 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-

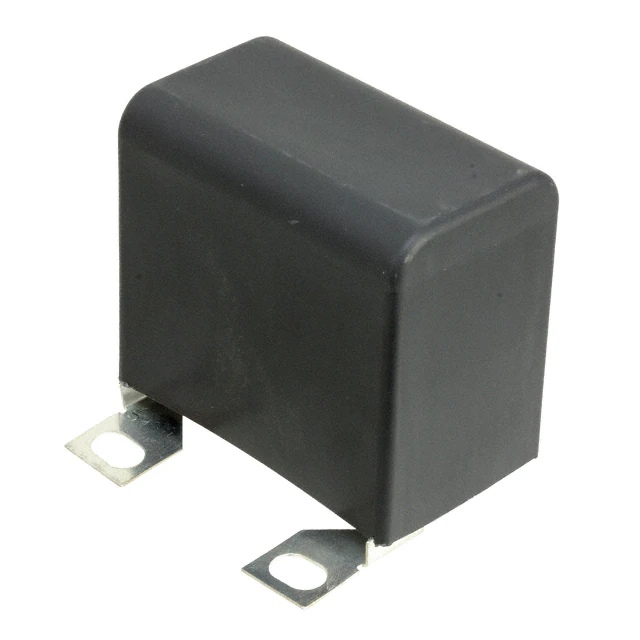

MKP386M550125YT4 CAP FILM 5UF 5% 1.25KVDC SCREW Vishay Beyschlag/Draloric/BC Components	3,122	17.48	RFQ	Datasheet	Rectangular Box	Bulk	MKP386M	Active	5 µF	±5%	550V	1250V (1.25kV)	Polypropylene (PP), Metallized	2.5 mOhms	-55°C ~ 105°C	Chassis Mount	2.283 L x 1.378 W (58.00mm x 35.00mm)	1.969 (50.00mm)	Screw Terminals	1.457 (37.00mm)	Snubber	-
MKP386M515200YT4 CAP FILM 1.5UF 5% 2KVDC SCREW Vishay Beyschlag/Draloric/BC Components	1,789	17.48	RFQ	Datasheet	Rectangular Box	Bulk	MKP386M	Active	1.5 µF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	2.5 mOhms	-55°C ~ 105°C	Chassis Mount	2.283 L x 1.378 W (58.00mm x 35.00mm)	1.969 (50.00mm)	Screw Terminals	1.457 (37.00mm)	Snubber	-
R60EW61005000K CAP FILM 100UF 10% 100VDC RADIAL KEMET	2,579	19.65	RFQ	Datasheet	Radial	Bulk	R60	Active	100 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 105°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.579 (40.10mm)	PC Pins	1.476 (37.50mm)	General Purpose	-
