Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
PFR5102J250J11L4BULK CAP FILM 1000PF 5% 250VDC RADIAL KEMET	6,264	1.19	RFQ	Datasheet	Radial	Bulk	PFR	Active	1000 pF	±5%	160V	250V	Polypropylene (PP)	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.177 W (7.20mm x 4.50mm)	0.236 (6.00mm)	PC Pins	0.197 (5.00mm)	High Frequency, Switching; High Pulse, DV/DT	-

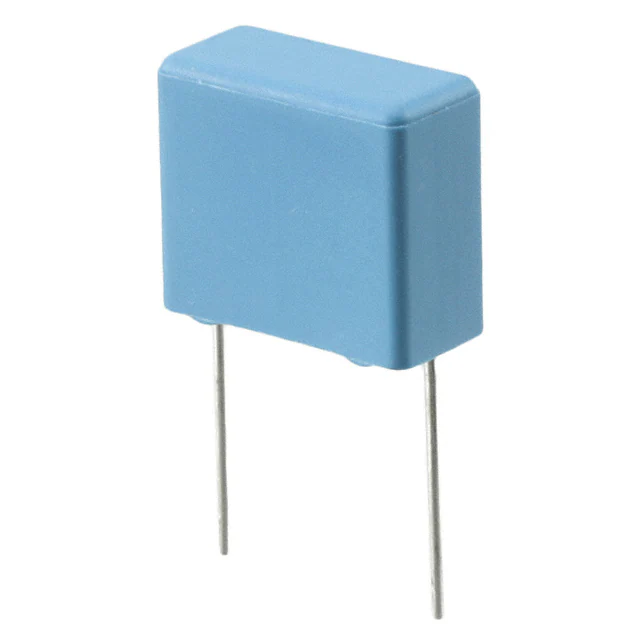

PHE820EB6100KR17 CAP FILM 0.1UF 10% 300VDC RADIAL KEMET	8,563	1.19	RFQ	Datasheet	Radial	Bulk	PHE820	Active	0.1 µF	±10%	275V	300V	Polyester, Metallized	-	-40°C ~ 100°C	Through Hole	0.709 L x 0.335 W (18.00mm x 8.50mm)	0.630 (16.00mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
PHE450PB5220JR06 CAP FILM 0.022UF 5% 1KVDC RADIAL KEMET	9,023	1.20	RFQ	Datasheet	Radial	Box	PHE450	Active	0.022 µF	±5%	600V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.709 L x 0.217 W (18.00mm x 5.50mm)	0.413 (10.50mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
BFC237012474 CAP FILM 0.47UF 5% 63VDC RADIAL Vishay Beyschlag/Draloric/BC Components	9,428	1.20	RFQ	Datasheet	Radial	Bulk	MKT370	Active	0.47 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.138 W (7.20mm x 3.50mm)	0.315 (8.00mm)	PC Pins	0.200 (5.08mm)	Automotive	AEC-Q200
ECQ-E2225JF CAP FILM 2.2UF 5% 250VDC RADIAL Panasonic Electronic Components	5,071	1.20	RFQ	Datasheet	Radial	Bulk	ECQ-E(F)	Active	2.2 µF	±5%	150V	250V	Polyester, Metallized	-	-40°C ~ 105°C	Through Hole	1.024 L x 0.335 W (26.00mm x 8.50mm)	0.681 (17.30mm)	PC Pins	0.886 (22.50mm)	General Purpose	-
105MWR250K CAP FILM 1UF 10% 250VDC AXIAL Cornell Dubilier / Illinois Capacitor	7,069	1.40	RFQ	Datasheet	Axial	Bulk	MWR	Active	1 µF	±10%	160V	250V	Polyester, Metallized	1.415 Ohms	-40°C ~ 105°C	Through Hole	0.413 Dia x 1.063 L (10.50mm x 27.00mm)	-	PC Pins	-	General Purpose	-
472MPW630K CAP FILM 4700PF 10% 630VDC AXIAL Cornell Dubilier / Illinois Capacitor	5,136	1.41	RFQ	Datasheet	Axial	Bulk	MPW	Active	4700 pF	±10%	250V	630V	Polypropylene (PP), Metallized	37.625 Ohms	-55°C ~ 105°C	Through Hole	0.236 Dia x 0.571 L (6.00mm x 14.50mm)	-	PC Pins	-	DC Link, DC Filtering	-
BFC237524121 CAP FILM 120PF 5% 1KVDC RADIAL Vishay Beyschlag/Draloric/BC Components	9,470	1.41	RFQ	Datasheet	Radial	Bulk	KP/MKP 375	Active	120 pF	±5%	400V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.571 L x 0.197 W (14.50mm x 5.00mm)	0.532 (13.50mm)	PC Pins	0.394 (10.00mm)	High Pulse, DV/DT	-

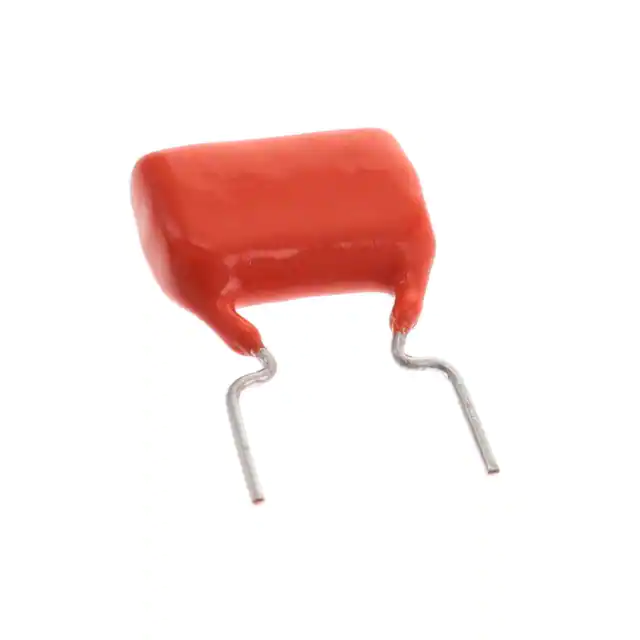

BFC237524101 CAP FILM 100PF 5% 1KVDC RADIAL Vishay Beyschlag/Draloric/BC Components	6,944	1.41	RFQ	Datasheet	Radial	Bulk	KP/MKP 375	Active	100 pF	±5%	400V	1000V (1kV)	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.571 L x 0.197 W (14.50mm x 5.00mm)	0.532 (13.50mm)	PC Pins	0.394 (10.00mm)	High Pulse, DV/DT	-

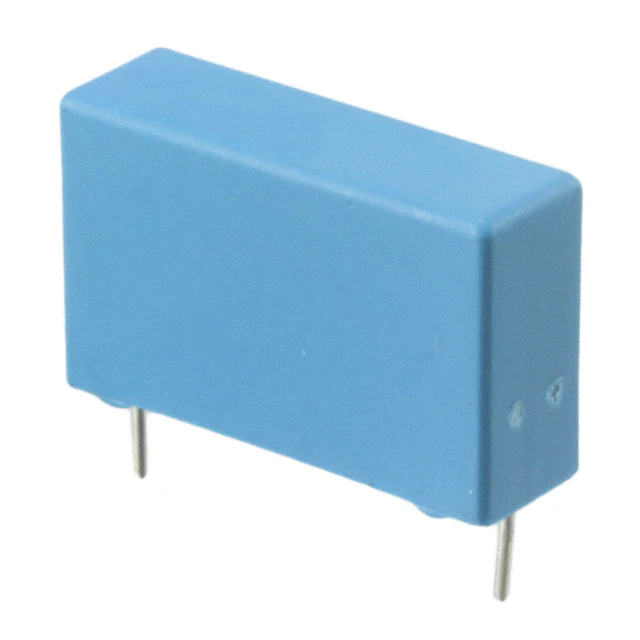

PHE840MY6470MD14R06L2 CAP FILM 0.47UF 20% 760VDC RAD KEMET	6,311	1.42	RFQ	Datasheet	Radial	Bulk	PHE840M	Active	0.47 µF	±20%	275V	760V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.024 L x 0.315 W (26.00mm x 8.00mm)	0.630 (16.00mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2
222MPW630K CAP FILM 2200PF 10% 630VDC AXIAL Cornell Dubilier / Illinois Capacitor	5,722	1.11	RFQ	Datasheet	Axial	Bulk	MPW	Active	2200 pF	±10%	250V	630V	Polypropylene (PP), Metallized	80.381 Ohms	-55°C ~ 105°C	Through Hole	0.256 Dia x 0.571 L (6.50mm x 14.50mm)	-	PC Pins	-	DC Link, DC Filtering	-
SMDTC04220TB00KQ00 CAP FILM 2.2UF 10% 63VDC 2824 WIMA	9,677	2.53	RFQ	Datasheet	2824 (7260 Metric)	Tape & Reel (TR),Cut Tape (CT)	-	Active	2.2 µF	±10%	40V	63V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 100°C	Surface Mount	0.283 L x 0.240 W (7.20mm x 6.10mm)	0.209 (5.30mm)	Solder Pads	-	General Purpose	-
472MPW400K CAP FILM 4700PF 10% 400VDC AXIAL Cornell Dubilier / Illinois Capacitor	6,222	1.12	RFQ	Datasheet	Axial	Bulk	MPW	Active	4700 pF	±10%	220V	400V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.256 Dia x 0.571 L (6.50mm x 14.50mm)	-	PC Pins	-	DC Link, DC Filtering	-

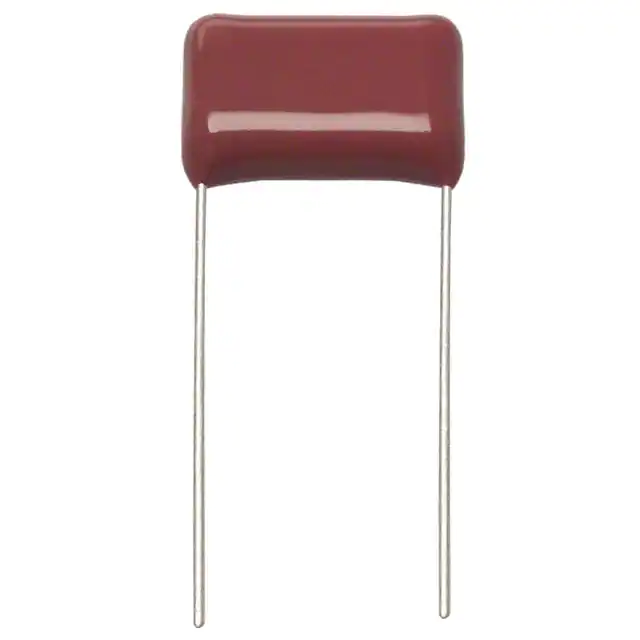

ECW-H12102JV CAP FILM 1000PF 5% 1.25KVDC RAD Panasonic Electronic Components	7,077	1.12	RFQ	Datasheet	Radial	Bulk	ECW-H(V)	Active	1000 pF	±5%	354V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.709 L x 0.256 W (18.00mm x 6.50mm)	0.591 (15.00mm)	PC Pins	0.591 (15.00mm)	High Frequency, Switching	-
103MPW630K CAP FILM 10000PF 630VDC AXIAL Cornell Dubilier / Illinois Capacitor	6,721	1.12	RFQ	Datasheet	Axial	Bulk	MPW	Active	10000 pF	±10%	250V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	0.256 Dia x 0.571 L (6.50mm x 14.50mm)	-	PC Pins	-	DC Link, DC Filtering	-

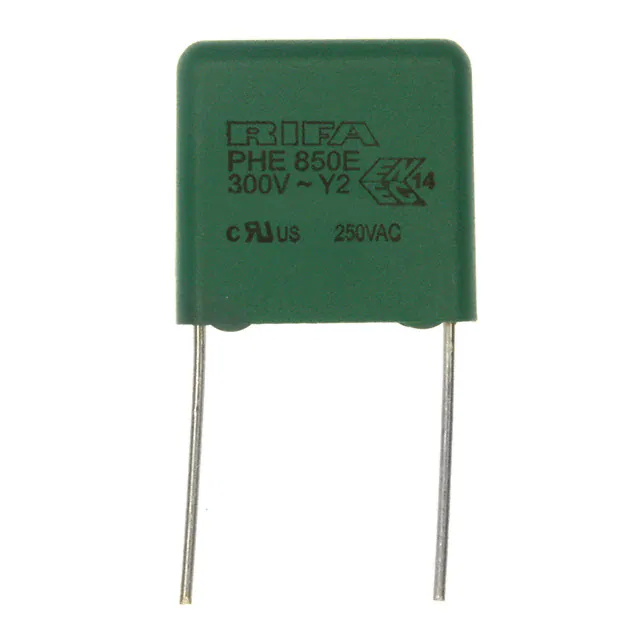

PHE850EB5470MB14R17 CAP FILM 0.047UF 1.25KVDC RAD KEMET	7,375	1.14	RFQ	Datasheet	Radial	Bulk	PHE850	Active	0.047 µF	±20%	300V	1250V (1.25kV)	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	0.709 L x 0.374 W (18.00mm x 9.50mm)	0.689 (17.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	Y2

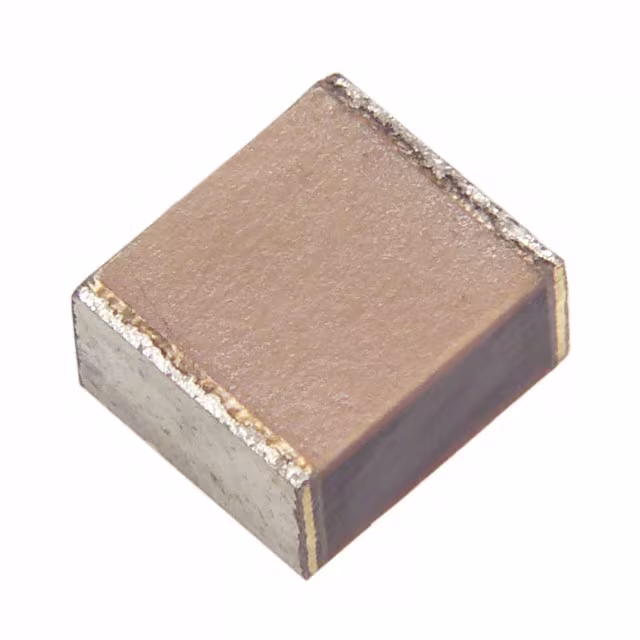

ECH-U1224JCV CAP FILM 0.22UF 5% 100VDC 2825 Panasonic Electronic Components	6,711	2.77	RFQ	Datasheet	2825 (7163 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(C)	Active	0.22 µF	±5%	40V	100V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 105°C	Surface Mount	0.280 L x 0.248 W (7.10mm x 6.30mm)	0.201 (5.10mm)	Solder Pads	-	General Purpose	-
105MSR100K CAP FILM 1UF 10% 100VDC RADIAL Cornell Dubilier / Illinois Capacitor	6,430	1.15	RFQ	Datasheet	Radial	Bulk	MSR	Active	1 µF	±10%	63V	100V	Polyester, Metallized	-	-55°C ~ 125°C	Through Hole	0.728 L x 0.335 W (18.50mm x 8.50mm)	0.532 (13.50mm)	PC Pins	0.591 (15.00mm)	General Purpose	-

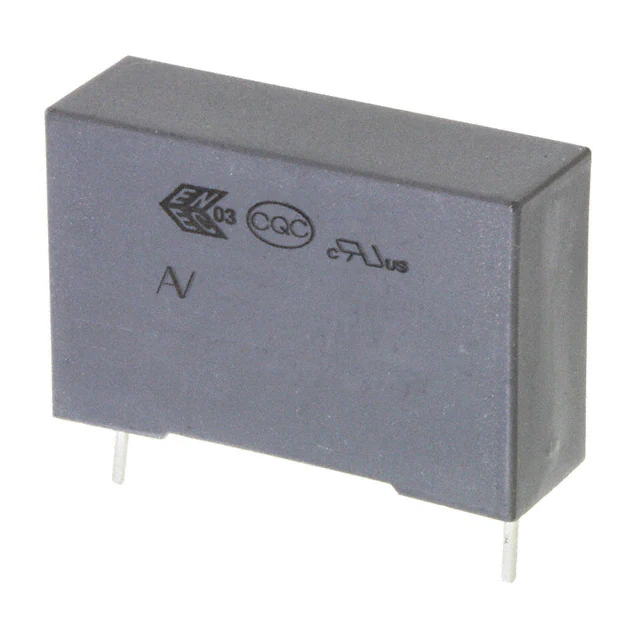

R46KN410000P1M CAP FILM 1UF 20% 560VDC RADIAL KEMET	7,019	1.15	RFQ	Datasheet	Radial	Bulk	R46	Active	1 µF	±20%	275V	560V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.043 L x 0.335 W (26.50mm x 8.50mm)	0.673 (17.10mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2

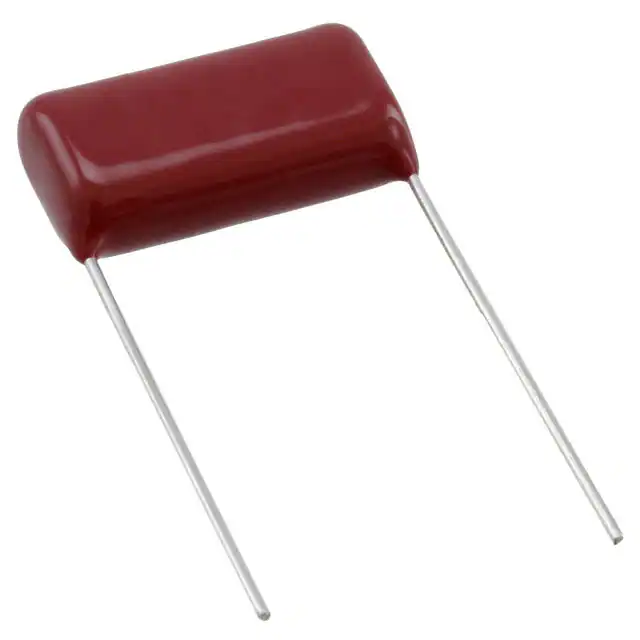

ECW-FD2W275J CAP FILM 2.7UF 5% 450VDC RADIAL Panasonic Electronic Components	5,806	1.16	RFQ	Datasheet	Radial	Bulk	ECW-F(D)	Active	2.7 µF	±5%	84V	450V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.996 L x 0.354 W (25.30mm x 9.00mm)	-	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
