Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
R75TW412050H3J CAP FILM 1.2UF 5% 1.6KVDC RADIAL KEMET	2,073	10.63	RFQ	Datasheet	Radial	Tray	R75H	Active	1.2 µF	±5%	650V	1600V (1.6kV)	Polypropylene (PP), Metallized	4 mOhms	-55°C ~ 125°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.736 (44.10mm)	PC Pins	1.476 (37.50mm)	Automotive; High Frequency, Switching; High Pulse, DV/DT	AEC-Q200

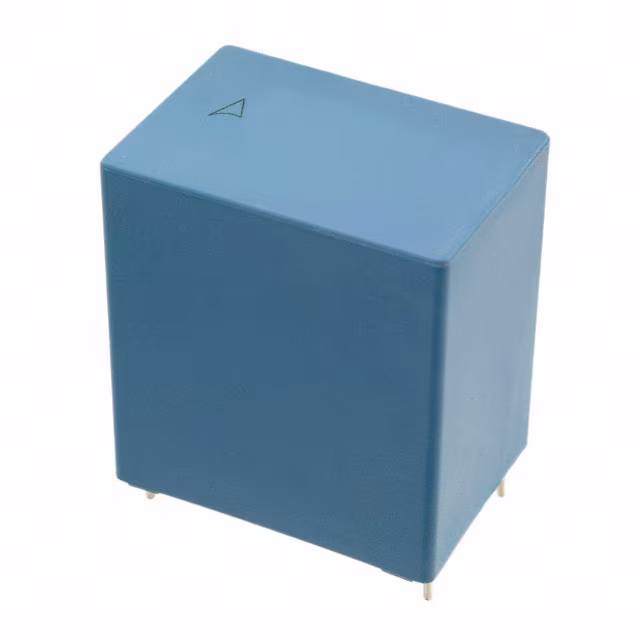

B32676G1106K000 CAP FILM 10UF 10% 750VDC RADIAL EPCOS - TDK Electronics	2,046	10.69	RFQ	Datasheet	Radial	Bulk	B3267* - MKP DC-Link High Power	Active	10 µF	±10%	-	750V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	AEC-Q200
EZP-E1B106MTA CAP FILM 10UF 10% 1.1KVDC RADIAL Panasonic Electronic Components	3,012	10.76	RFQ	Datasheet	Radial - 4 Leads	Bulk	EZPE	Active	10 µF	±10%	-	1100V (1.1kV)	Polypropylene (PP), Metallized	12.3 mOhms	-40°C ~ 85°C	Through Hole	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.654 (42.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
B32776E8206K000 CAP FILM 20UF 10% 800VDC RADIAL EPCOS - TDK Electronics	3,922	10.76	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	20 µF	±10%	-	800V	Polypropylene (PP), Metallized	7.8 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.102 W (42.00mm x 28.00mm)	1.457 (37.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
B33331V7306J080 CAP FILM 30UF 5% 460VAC RADIAL EPCOS - TDK Electronics	1,574	10.78	RFQ	Datasheet	Radial, Can	Bulk	B3333* - MKP AC Round Can	Active	30 µF	±5%	460V	-	Polypropylene (PP), Metallized	10 mOhms	-40°C ~ 85°C	Chassis Mount	1.969 Dia (50.00mm)	3.425 (87.00mm)	Quick Connect - 0.250 (6.3mm)	-	General Purpose	-
B32926H3156M CAP FILM 15UF 20% 630VDC RADIAL EPCOS - TDK Electronics	3,107	10.79	RFQ	Datasheet	Radial	Bulk	B3292*H/J - X2 High Humidity	Active	15 µF	±20%	305V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	1.654 L x 1.299 W (42.00mm x 33.00mm)	1.890 (48.00mm)	PC Pins	1.476 (37.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200, X2
C4BSWBX3100ZBFJ CAP FILM 0.1UF 5% 2KVDC SCREW KEMET	1,810	10.83	RFQ	Datasheet	Rectangular Box	Bulk	C4BS	Active	0.1 µF	±5%	700V	2000V (2kV)	Polypropylene (PP), Metallized	23.3 mOhms	-40°C ~ 85°C	Chassis Mount	1.634 L x 0.787 W (41.50mm x 20.00mm)	1.575 (40.00mm)	Screw Terminals	0.866 (22.00mm)	DC Link, DC Filtering; Snubber	-

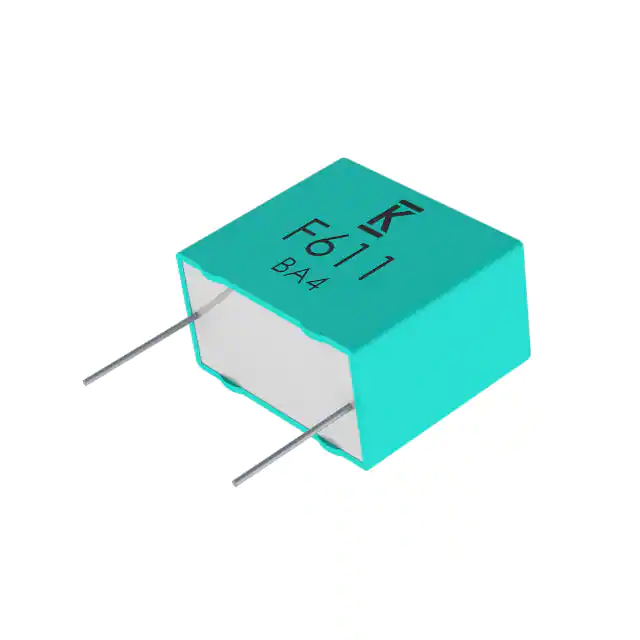

F611DY336K063ZLH0J CAP FILM 33UF 10% 63VDC RADIAL KEMET	2,732	10.91	RFQ	Datasheet	Radial	Box	F611	Active	33 µF	±10%	40V	63V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	1.024 L x 0.610 W (26.00mm x 15.50mm)	0.965 (24.50mm)	PC Pins	0.886 (22.50mm)	General Purpose	-
B32756G7206K000 CAP FILM 20UF 10% 560VDC RADIAL EPCOS - TDK Electronics	3,231	10.94	RFQ	Datasheet	Radial - 4 Leads	Bulk	B3275* - MKP AC-Filter	Active	20 µF	±10%	275V	560V	Polypropylene (PP), Metallized	3.6 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.181 W (42.00mm x 30.00mm)	1.772 (45.00mm)	PC Pins	1.476 (37.50mm)	General Purpose	-
C4AQIBW5200A3JJ CAP FILM 20UF 5% 800VDC RADIAL KEMET	2,960	10.97	RFQ	Datasheet	Radial - 4 Leads	Bulk	C4AQ	Active	20 µF	±5%	-	800V	Polypropylene (PP), Metallized	4.7 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.102 W (42.00mm x 28.00mm)	1.465 (37.20mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
DCP4L053007HD4KSSD CAP FILM 30UF 10% 800VDC RAD WIMA	4,107	11.08	RFQ	Datasheet	Radial - 4 Leads	Bulk	-	Active	30 µF	±10%	-	800V	Polypropylene (PP), Metallized	4.1 mOhms	-55°C ~ 105°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.791 (45.50mm)	PC Pins	1.476 (37.50mm)	Automotive; DC Link, DC Filtering	AEC-Q200
B32926D3156M000 CAP FILM 15UF 20% 630VDC RADIAL EPCOS - TDK Electronics	2,656	11.08	RFQ	Datasheet	Radial	Bulk	B3292*C/D - X2 Standard	Active	15 µF	±20%	305V	630V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	1.654 L x 1.299 W (42.00mm x 33.00mm)	1.890 (48.00mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X2

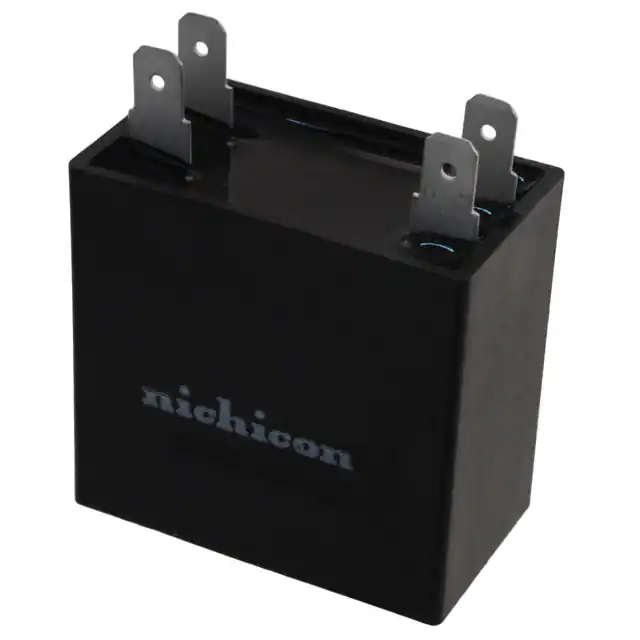

EEC2E126HQA406 CAP FILM 12UF 250VAC QC TERM Nichicon	3,958	11.11	RFQ	Datasheet	Rectangular Box	Bulk	EEC	Active	12 µF	-5%, +10%	250V	-	Polypropylene (PP), Metallized	-	-25°C ~ 85°C	Chassis Mount	1.457 L x 0.846 W (37.00mm x 21.50mm)	1.417 (36.00mm)	Quick Connect, Disconnect	-	Motor Run	-

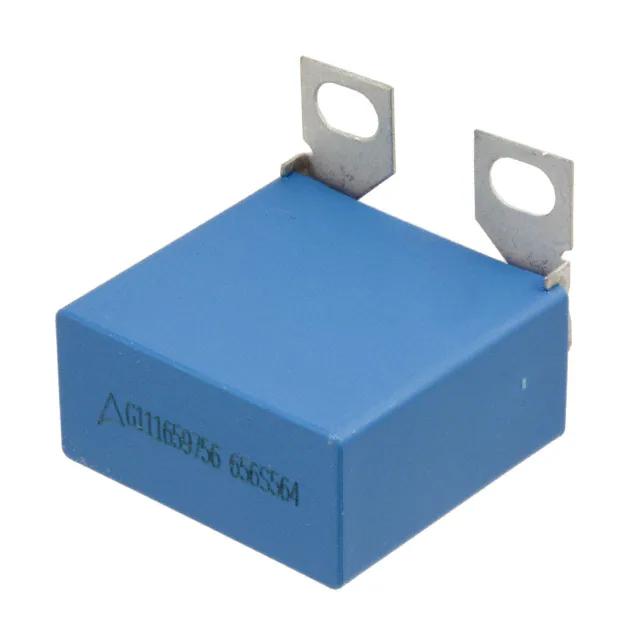

B32656S0105J564 CAP FILM 1UF 5% 1KVDC SCREW EPCOS - TDK Electronics	2,824	11.11	RFQ	Datasheet	Rectangular Box	Bulk	B3265* - MKP General Purpose	Active	1 µF	±5%	480V	1000V (1kV)	Polypropylene (PP), Metallized	6 mOhms	-55°C ~ 100°C	Chassis Mount	-	-	Screw Terminals	0.984 (25.00mm)	Snubber	-

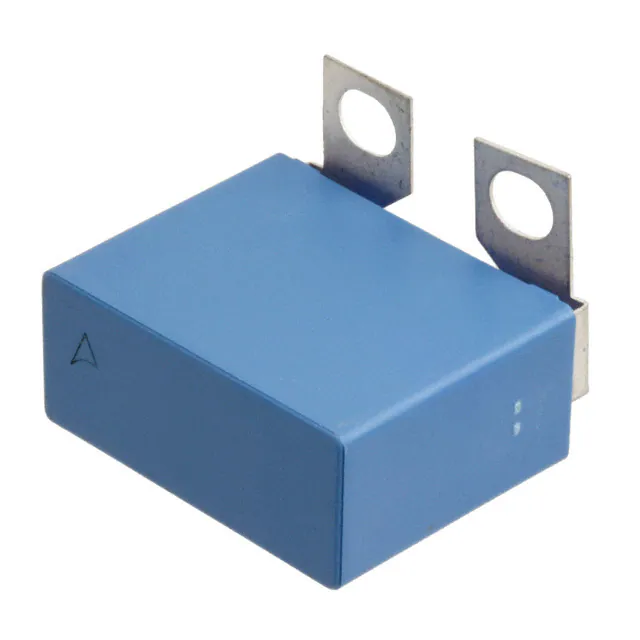

B32656S7474J565 CAP FILM 0.47UF 5% 1.25KVDC SCRW EPCOS - TDK Electronics	1,245	11.11	RFQ	Datasheet	Rectangular Box	Bulk	B3265* - MKP General Purpose	Active	0.47 µF	±5%	500V	1250V (1.25kV)	Polypropylene (PP), Metallized	8 mOhms	-55°C ~ 100°C	Chassis Mount	-	-	Screw Terminals	0.866 (22.00mm)	Snubber	-

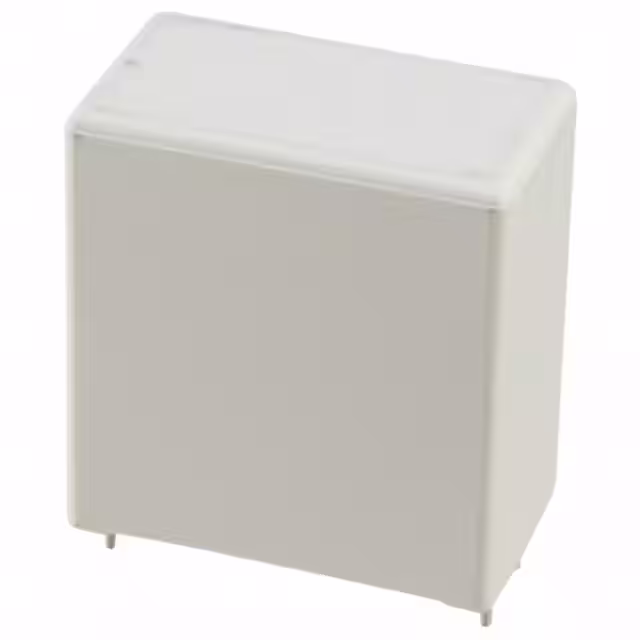

4AEOBW5160A3HJ CAP FILM 16UF 5% 900VDC RADIAL KEMET	4,756	11.12	RFQ	Datasheet	Radial	Bulk	C4AE	Active	16 µF	±5%	-	900V	Polypropylene (PP), Metallized	4.9 mOhms	-40°C ~ 85°C	Through Hole	1.634 L x 0.945 W (41.50mm x 24.00mm)	1.732 (44.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; High Frequency, Switching	-

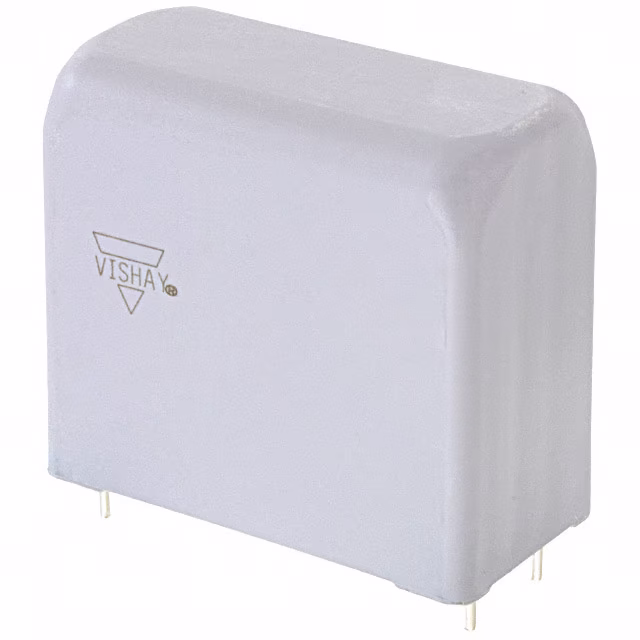

MKP1847580354P4 CAP FILM 8UF 5% 700VDC RADIAL Vishay Beyschlag/Draloric/BC Components	3,044	11.31	RFQ	Datasheet	Radial - 4 Leads	Bulk	MKP1847	Active	8 µF	±5%	350V	700V	Polypropylene (PP), Metallized	-	-40°C ~ 85°C	Through Hole	1.693 L x 0.846 W (43.00mm x 21.50mm)	1.516 (38.50mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT	-
935C2W5K-F CAP FILM 5UF 10% 200VDC AXIAL Cornell Dubilier Electronics (CDE)	3,954	11.33	RFQ	Datasheet	Axial	Bulk	935C	Active	5 µF	±10%	140V	200V	Polypropylene (PP), Metallized	11 mOhms	-55°C ~ 105°C	Through Hole	0.768 Dia x 1.748 L (19.50mm x 44.40mm)	-	PC Pins	-	High Frequency, Switching	-
FFB44I0156K-- CAP FILM 15UF 10% 400VDC RADIAL KYOCERA AVX	1,638	11.34	RFQ	Datasheet	Radial	Bulk	FFB	Active	15 µF	±10%	105V	400V	Polyester, Metallized	-	-55°C ~ 105°C	Through Hole	1.224 L x 0.819 W (31.10mm x 20.80mm)	1.232 (31.30mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	-
B32776G0146K000 CAP FILM 14UF 10% 1.1KVDC RADIAL EPCOS - TDK Electronics	3,329	11.42	RFQ	Datasheet	Radial	Bulk	B3277* - MKP DC-Link	Active	14 µF	±10%	-	1100V (1.1kV)	Polypropylene (PP), Metallized	5.5 mOhms	-40°C ~ 105°C	Through Hole	1.654 L x 1.102 W (42.00mm x 28.00mm)	1.457 (37.00mm)	PC Pins	1.476 (37.50mm)	DC Link, DC Filtering	-
