Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
225MWR250K CAP FILM 2.2UF 10% 250VDC AXIAL Cornell Dubilier / Illinois Capacitor	7,765	2.57	RFQ	Datasheet	Axial	Bulk	MWR	Active	2.2 µF	±10%	160V	250V	Polyester, Metallized	804 mOhms	-40°C ~ 105°C	Through Hole	0.531 Dia x 1.339 L (13.50mm x 34.00mm)	-	PC Pins	-	General Purpose	-

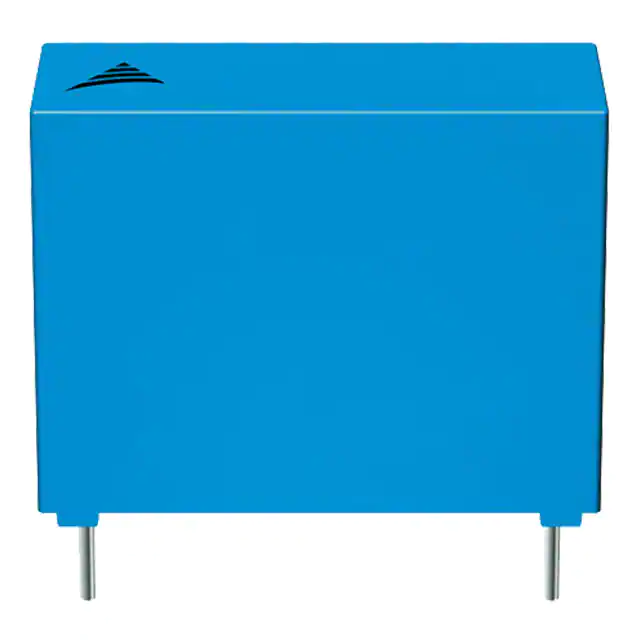

B32912A5104M000 CAP FILM 0.1UF 20% 1KVDC RADIAL EPCOS - TDK Electronics	8,755	2.58	RFQ	Datasheet	Radial	Bulk	B3291*A/B5 - X1 530V	Active	0.1 µF	±20%	530V	1000V (1kV)	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.433 W (18.00mm x 11.00mm)	0.728 (18.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X1

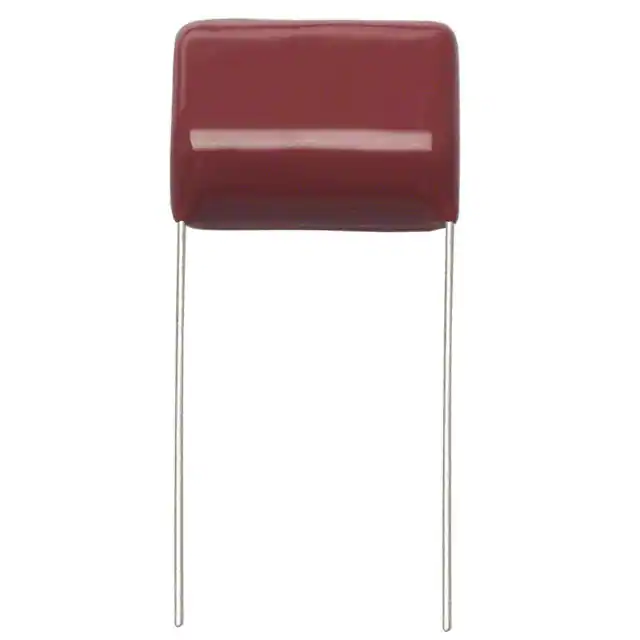

ECW-F4105JL CAP FILM 1UF 5% 400VDC RADIAL Panasonic Electronic Components	5,483	2.60	RFQ	Datasheet	Radial	Bulk	ECW-F(L)	Active	1 µF	±5%	141V	400V	Polypropylene (PP), Metallized	-	-40°C ~ 105°C	Through Hole	0.906 L x 0.512 W (23.00mm x 13.00mm)	0.839 (21.30mm)	PC Pins	0.787 (20.00mm)	High Frequency, Switching	-
MKP1T031506D00KSSD CAP FILM 0.15UF 10% 1.6KVDC RAD WIMA	6,150	2.60	RFQ	Datasheet	Radial	Bulk	-	Active	0.15 µF	±10%	650V	1600V (1.6kV)	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	1.240 L x 0.512 W (31.50mm x 13.00mm)	0.945 (24.00mm)	PC Pins	1.083 (27.50mm)	High Pulse, DV/DT	-
B32674D1105K000 CAP FILM 1UF 10% 750VDC RADIAL EPCOS - TDK Electronics	9,301	2.62	RFQ	Datasheet	Radial	Bulk	B3267* - MKP DC-Link High Power	Active	1 µF	±10%	-	750V	Polypropylene (PP), Metallized	24.2 mOhms	-40°C ~ 105°C	Through Hole	1.240 L x 0.492 W (31.50mm x 12.50mm)	0.846 (21.50mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	AEC-Q200
B32674D6155K000 CAP FILM 1.5UF 10% 630VDC RADIAL EPCOS - TDK Electronics	8,057	2.62	RFQ	Datasheet	Radial	Bulk	B3267* - MKP DC-Link High Power	Active	1.5 µF	±10%	-	630V	Polypropylene (PP), Metallized	17.9 mOhms	-40°C ~ 105°C	Through Hole	1.240 L x 0.492 W (31.50mm x 12.50mm)	0.846 (21.50mm)	PC Pins	1.083 (27.50mm)	DC Link, DC Filtering	AEC-Q200
MKP1G041006D00KSSD CAP FILM 1UF 10% 400VDC RAD WIMA	7,381	2.62	RFQ	Datasheet	Radial	Bulk	-	Active	1 µF	±10%	250V	400V	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	1.240 L x 0.512 W (31.50mm x 13.00mm)	0.945 (24.00mm)	PC Pins	1.083 (27.50mm)	High Pulse, DV/DT	-
334MPW630K CAP FILM 0.33UF 10% 630VDC AXIAL Cornell Dubilier / Illinois Capacitor	7,737	2.63	RFQ	Datasheet	Axial	Bulk	MPW	Active	0.33 µF	±10%	250V	630V	Polypropylene (PP), Metallized	536 mOhms	-55°C ~ 105°C	Through Hole	0.610 Dia x 1.339 L (15.50mm x 34.00mm)	-	PC Pins	-	DC Link, DC Filtering	-
PHE840ED7150MD19R06L2 CAP FILM 1.5UF 20% 760VDC RADIAL KEMET	6,540	2.64	RFQ	Datasheet	Radial	Tray	PHE840E	Active	1.5 µF	±20%	300V	760V	Polypropylene (PP), Metallized	-	-55°C ~ 105°C	Through Hole	1.024 L x 0.610 W (26.00mm x 15.50mm)	0.965 (24.50mm)	PC Pins	0.886 (22.50mm)	EMI, RFI Suppression	X2

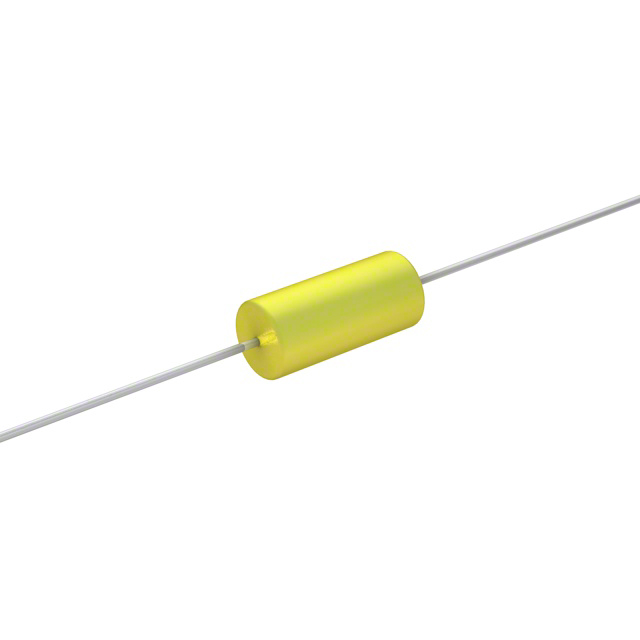

WMC08S1K-F CAP FILM 10000PF 10% 80VDC AXIAL Cornell Dubilier Electronics (CDE)	9,489	2.71	RFQ	Datasheet	Axial	Bulk	WMC	Active	10000 pF	±10%	50V	80V	Polyester	-	-55°C ~ 125°C	Through Hole	0.185 Dia x 0.406 L (4.70mm x 10.30mm)	-	PC Pins	-	High Pulse, DV/DT	-
BFC241642204 CAP FILM 0.22UF 2% 63VDC RADIAL Vishay Beyschlag/Draloric/BC Components	7,826	2.82	RFQ	Datasheet	Radial	Bulk	MKP416	Active	0.22 µF	±2%	25V	63V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.492 L x 0.236 W (12.50mm x 6.00mm)	0.472 (12.00mm)	PC Pins	0.394 (10.00mm)	High Frequency, Switching	-

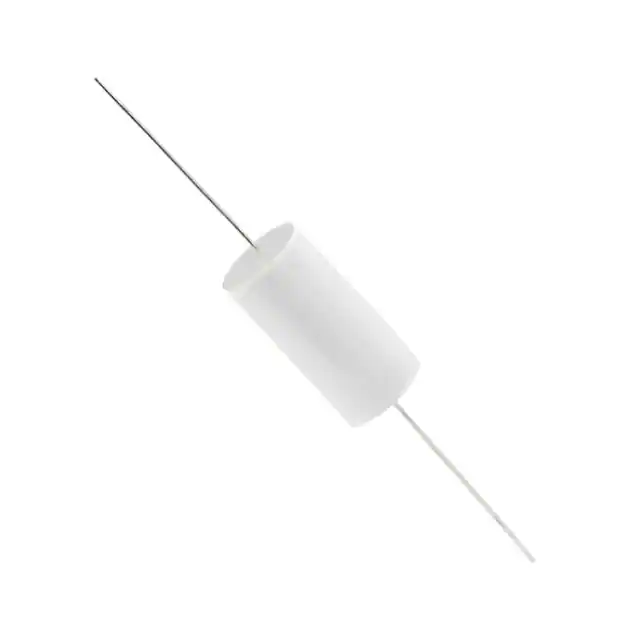

MKP1839410634HQ CAP FILM 0.1UF 5% 630VDC AXIAL Vishay Beyschlag/Draloric/BC Components	5,664	2.89	RFQ	Datasheet	Axial	Bulk	MKP1839 HQ	Active	0.1 µF	±5%	300V	630V	Polypropylene (PP), Metallized	-	-55°C ~ 110°C	Through Hole	0.276 Dia x 1.043 L (7.00mm x 26.50mm)	-	PC Pins	-	High Pulse, DV/DT	-
MMK15475K63B06L4BULK CAP FILM 4.7UF 10% 63VDC RADIAL KEMET	9,842	2.93	RFQ	Datasheet	Radial	Box	MMK	Active	4.7 µF	±10%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.709 L x 0.295 W (18.00mm x 7.50mm)	0.571 (14.50mm)	PC Pins	0.591 (15.00mm)	General Purpose	-
B32926C3225M000 CAP FILM 2.2UF 20% 630VDC RADIAL EPCOS - TDK Electronics	7,218	2.97	RFQ	Datasheet	Radial	Bulk	B3292*C/D - X2 Standard	Active	2.2 µF	±20%	305V	630V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	1.634 L x 0.551 W (41.50mm x 14.00mm)	0.984 (25.00mm)	PC Pins	1.476 (37.50mm)	EMI, RFI Suppression	X2
715P22396KA2 CAP FILM 0.022UF 10% 600VDC RAD Cornell Dubilier Electronics (CDE)	6,564	3.01	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.022 µF	±10%	200V	600V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.480 Dia x 0.902 L (12.20mm x 22.90mm)	0.772 (19.60mm)	PC Pins	0.689 (17.50mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-
MKS2B046801M00JSSD CAP FILM 6.8UF 5% 50VDC RAD WIMA	6,169	3.18	RFQ	Datasheet	Radial	Bulk	-	Active	6.8 µF	±5%	30V	50V	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.335 W (7.20mm x 8.50mm)	0.551 (14.00mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200

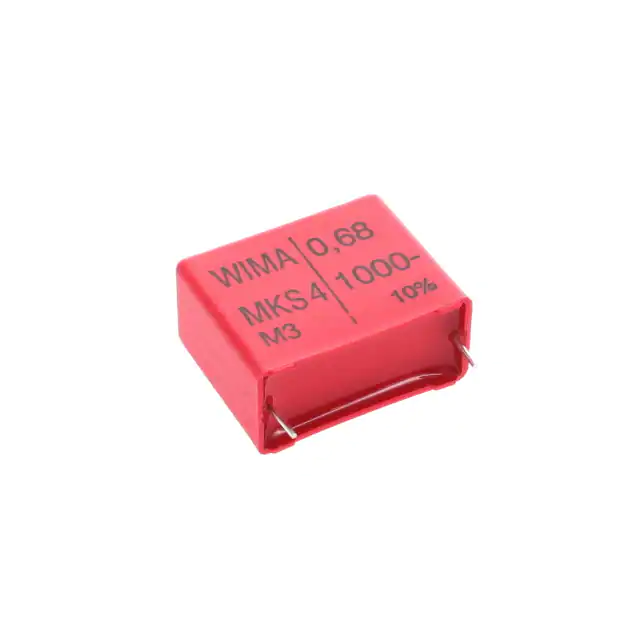

MKS4O136806F00KSSD CAP FILM 0.68UF 10% 1KVDC RAD WIMA	6,152	3.18	RFQ	Datasheet	Radial	Bulk	-	Active	0.68 µF	±10%	400V	1000V (1kV)	Polyester, Polyethylene Terephthalate (PET), Metallized	-	-55°C ~ 125°C	Through Hole	1.240 L x 0.591 W (31.50mm x 15.00mm)	1.024 (26.00mm)	PC Pins	1.083 (27.50mm)	General Purpose	-
715P22352JD3 CAP FILM 0.022UF 5% 200VDC RAD Cornell Dubilier Electronics (CDE)	7,254	3.19	RFQ	Datasheet	Radial	Bulk	Orange Drop® 715P	Active	0.022 µF	±5%	155V	200V	Polypropylene (PP), Metallized	-	-55°C ~ 85°C	Through Hole	0.311 Dia x 0.701 L (7.90mm x 17.80mm)	0.622 (15.80mm)	PC Pins	0.375 (9.52mm)	Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber	-

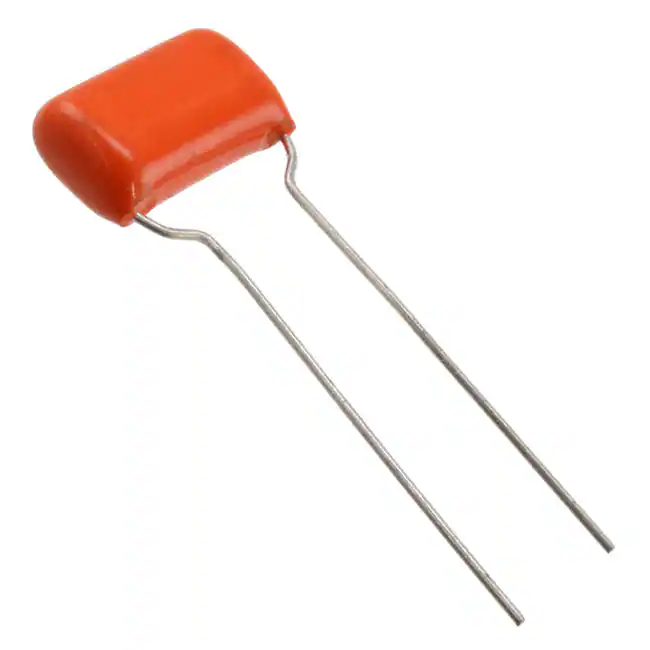

225P10492XD3 CAP FILM 0.1UF 10% 200VDC RADIAL Cornell Dubilier Electronics (CDE)	7,814	3.19	RFQ	Datasheet	Radial	Bulk	Orange Drop® 225P	Active	0.1 µF	±10%	140V	200V	Polyester	-	-55°C ~ 85°C	Through Hole	0.799 L x 0.370 W (20.30mm x 9.40mm)	0.709 (18.00mm)	PC Pins	0.375 (9.52mm)	Audio; DC Link, DC Filtering	-

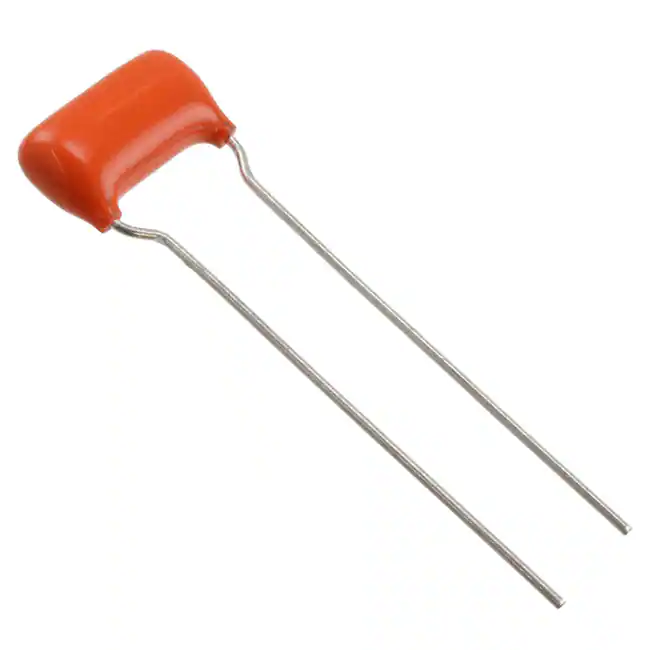

225P10291WD3 CAP FILM 1000PF 10% 100VDC RAD Cornell Dubilier Electronics (CDE)	7,310	3.19	RFQ	Datasheet	Radial	Bulk	Orange Drop® 225P	Active	1000 pF	±10%	70V	100V	Polyester	-	-55°C ~ 85°C	Through Hole	0.700 L x 0.252 W (17.78mm x 6.40mm)	0.350 (8.90mm)	PC Pins	0.375 (9.52mm)	Audio; DC Link, DC Filtering	-
