Film Capacitors

Manufacturer	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	VoltageRating-AC	VoltageRating-DC	DielectricMaterial	ESR(EquivalentSeriesResistance)	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Termination	LeadSpacing	Applications	Ratings
ECW-U1182JX5 CAP FILM 1800PF 5% 100VDC 1206 Panasonic Electronic Components	14,403	0.82	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECW-U(X)	Active	1800 pF	±5%	40V	100V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 105°C	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	0.051 (1.30mm)	Solder Pads	-	General Purpose	-
FCP0805H331J-J1 CAP FILM 330PF 5% 50VDC 0805 Cornell Dubilier Electronics (CDE)	14,910	0.72	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	FCP	Active	330 pF	±5%	-	50V	Polyphenylene Sulfide (PPS)	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.043 (1.09mm)	Solder Pads	-	High Frequency, Switching	-

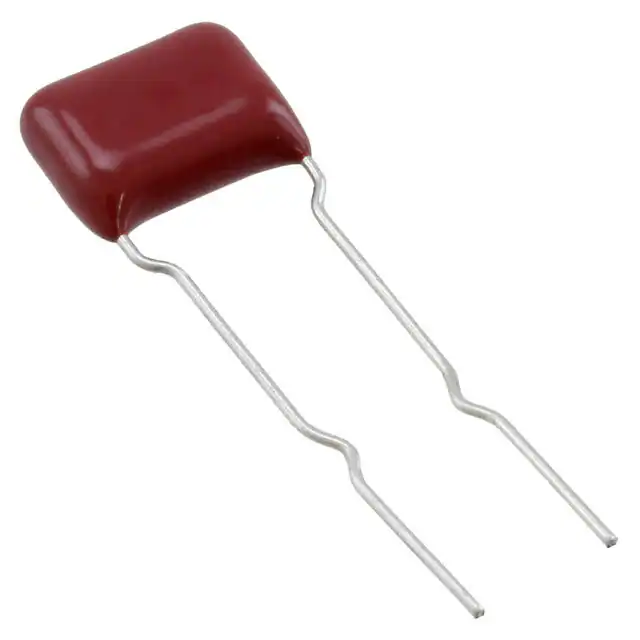

ECW-FD2W274J4 CAP FILM 0.27UF 5% 450VDC RADIAL Panasonic Electronic Components	11,341	0.79	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	ECW-F(D)	Active	0.27 µF	±5%	84V	450V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.496 L x 0.209 W (12.60mm x 5.30mm)	0.591 (15.00mm)	PC Pins	0.295 (7.50mm)	EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT	-
R413F1470CKM1M CAP FILM 4700PF 20% 1KVDC RADIAL KEMET	11,977	0.69	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	R41	Active	4700 pF	±20%	300V	1000V (1kV)	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.197 W (13.00mm x 5.00mm)	0.437 (11.10mm)	PC Pins	0.394 (10.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200, X1, Y2
ECH-U1H273JX5 CAP FILM 0.027UF 5% 50VDC 1210 Panasonic Electronic Components	10,863	0.75	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	0.027 µF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.067 (1.70mm)	Solder Pads	-	General Purpose	-
ECH-U1H222JB5 CAP FILM 2200PF 5% 50VDC 0805 Panasonic Electronic Components	13,385	0.75	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	2200 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
B32922C3473K189 CAP FILM 0.047UF 10% 630VDC RAD EPCOS - TDK Electronics	14,335	0.71	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3292*C/D - X2 Standard	Active	0.047 µF	±10%	305V	630V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.197 W (18.00mm x 5.00mm)	0.413 (10.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
B32520C1474K189 CAP FILM 0.47UF 10% 100VDC RAD EPCOS - TDK Electronics	11,522	0.71	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3252* - MKT General Purpose	Active	0.47 µF	±10%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.394 L x 0.197 W (10.00mm x 5.00mm)	0.413 (10.50mm)	PC Pins	0.295 (7.50mm)	Automotive; EMI, RFI Suppression	AEC-Q200
LDECA1220JA0N00 CAP FILM 2200PF 5% 50VDC 1206 KEMET	14,604	0.77	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR),Cut Tape (CT)	LDE	Active	2200 pF	±5%	40V	50V	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.130 L x 0.067 W (3.30mm x 1.70mm)	0.043 (1.10mm)	Solder Pads	-	Automotive	AEC-Q200
B32021A3222K189 CAP FILM 2200PF 10% 300VAC RAD EPCOS - TDK Electronics	13,457	0.72	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3202* - Y2 Standard	Active	2200 pF	±10%	300V	-	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.354 (9.00mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	Y2
R463F2680DQM1M CAP FILM 0.068UF 20% 630VDC RAD KEMET	13,471	0.72	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	R46	Active	0.068 µF	±20%	310V	630V	Polypropylene (PP), Metallized	-	-40°C ~ 110°C	Through Hole	0.512 L x 0.236 W (13.00mm x 6.00mm)	0.476 (12.10mm)	PC Pins	0.394 (10.00mm)	EMI, RFI Suppression	X2
B32621A6103K189 CAP FILM 10000PF 10% 630VDC RAD EPCOS - TDK Electronics	11,986	0.74	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3262* - MKP High Pulse (stacked)	Active	10000 pF	±10%	400V	630V	Polypropylene (PP), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.512 L x 0.157 W (13.00mm x 4.00mm)	0.354 (9.00mm)	PC Pins	0.394 (10.00mm)	High Pulse, DV/DT	-
B32620A4223J289 CAP FILM 0.022UF 5% 400VDC RAD EPCOS - TDK Electronics	14,518	0.74	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3262* - MKP High Pulse (stacked)	Active	0.022 µF	±5%	200V	400V	Polypropylene (PP), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.394 L x 0.197 W (10.00mm x 5.00mm)	0.413 (10.50mm)	PC Pins	0.295 (7.50mm)	High Pulse, DV/DT	-
B32922C3333K289 CAP FILM 0.033UF 10% 630VDC RAD EPCOS - TDK Electronics	11,633	0.76	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	B3292*C/D - X2 Standard	Active	0.033 µF	±10%	305V	630V	Polypropylene (PP)	-	-40°C ~ 110°C	Through Hole	0.709 L x 0.197 W (18.00mm x 5.00mm)	0.413 (10.50mm)	PC Pins	0.591 (15.00mm)	EMI, RFI Suppression	X2
B32522E6104K189 CAP FILM 0.1UF 10% 400VDC RADIAL EPCOS - TDK Electronics	14,612	0.76	RFQ	Datasheet	Radial	Tape & Reel (TR),Cut Tape (CT)	B3252* - MKT General Purpose	Not For New Designs	0.1 µF	±10%	200V	400V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 125°C	Through Hole	0.709 L x 0.197 W (18.00mm x 5.00mm)	0.413 (10.50mm)	PC Pins	0.591 (15.00mm)	Automotive; EMI, RFI Suppression	AEC-Q200
ECH-U1H393JX5 CAP FILM 0.039UF 5% 50VDC 1210 Panasonic Electronic Components	13,160	0.84	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(X)	Active	0.039 µF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.091 (2.30mm)	Solder Pads	-	General Purpose	-
MMK5563J63J01L16.5TA18 CAP FILM 0.056UF 5% 63VDC RADIAL KEMET	11,966	0.26	RFQ	Datasheet	Radial	Tape & Box (TB)	MMK	Active	0.056 µF	±5%	40V	63V	Polyester, Metallized	-	-55°C ~ 100°C	Through Hole	0.283 L x 0.098 W (7.20mm x 2.50mm)	0.256 (6.50mm)	PC Pins	0.197 (5.00mm)	General Purpose	-
ECH-U1H331JB5 CAP FILM 330PF 5% 50VDC 0805 Panasonic Electronic Components	10,349	0.84	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	330 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
ECH-U1H272JB5 CAP FILM 2700PF 5% 50VDC 0805 Panasonic Electronic Components	10,849	0.84	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	ECH-U(B)	Active	2700 pF	±5%	30V	50V	Polyphenylene Sulfide (PPS), Metallized - Stacked	-	-55°C ~ 125°C	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	0.039 (1.00mm)	Solder Pads	-	General Purpose	-
R82EC4100SH70J CAP FILM 1UF 5% 100VDC RADIAL KEMET	13,196	0.85	RFQ	Datasheet	Radial	Cut Tape (CT),Tape & Box (TB)	R82	Active	1 µF	±5%	63V	100V	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked	-	-55°C ~ 105°C	Through Hole	0.283 L x 0.236 W (7.20mm x 6.00mm)	0.437 (11.10mm)	PC Pins	0.197 (5.00mm)	Automotive	AEC-Q200
