| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PS9331L-V-E3-AXOPTOISO 5KV GATE DRIVER 6SDIP GW |
13,401 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
TLP2451A(TP,F)OPTOISO 3.75KV 1CH GATE DRVR 8SO |
12,397 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 25 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2451A(F)OPTOISO 3.75KV 1CH GATE DRVR 8SO |
11,781 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 25 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
PS9307AL2-AXOPTOISO 5KV 1CH GATE DRIVER 6SMD |
11,715 | 0.00 |
RFQ |
Datasheet |
Strip | - | Discontinued at Mosen | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 150ns, 150ns | 50ns | 30ns, 30ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
PS9307AL2-E3-AXOPTOISO 5KV 1CH GATE DRIVER 6SMD |
13,232 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 150ns, 150ns | 50ns | 30ns, 30ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
PS9531L3-E3-AXOPTOISO 5KV 1CH GATE DRIVER 8SMD |
11,017 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
PS9531L3-V-E3-AXOPTOISO 5KV 1CH GATE DRIVER 8SMD |
10,388 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
SI8286BD-ISDGTL ISO 5KV 1CH GATE DVR 16SOIC |
2,432 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 9.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|

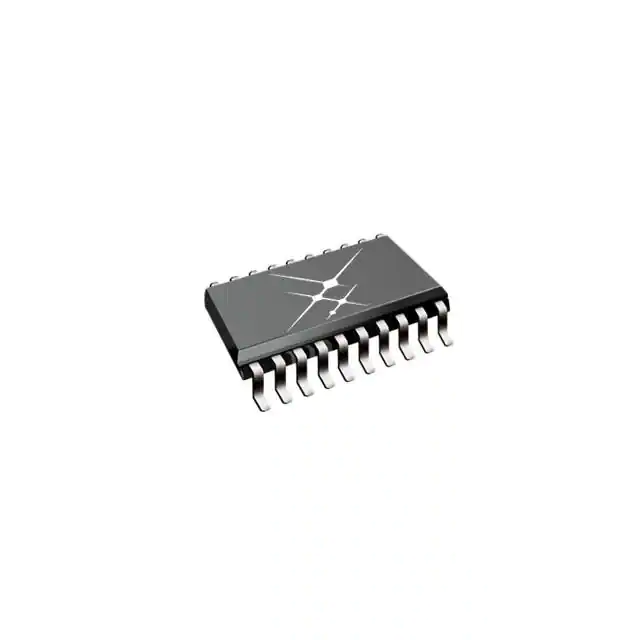

SI8281BD-ISDGTL ISO 5KV 1CH GATE DVR 20SOIC |
2,501 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 9.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8281CD-ISDGTL ISO 5KV 1CH GATE DVR 20SOIC |
3,206 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 12V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8282BD-ISDGTL ISO 5KV 1CH GATE DVR 20SOIC |
2,530 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 9.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|

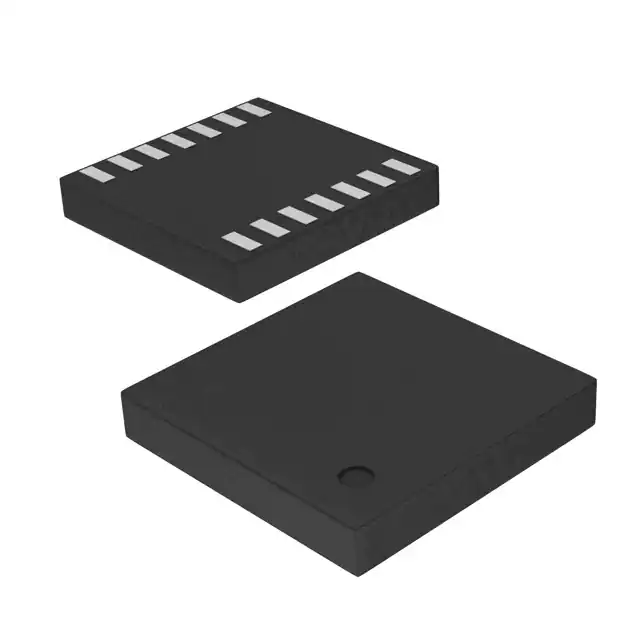

SI8273AB-IMDGTL ISO 2.5KV GATE DRIVER 14LGA |
3,030 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8273ABD-IMDGTL ISO 2.5KV GATE DRIVER 14LGA |
3,559 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8274AB1-IMDGTL ISO 2.5KV GATE DRIVER 14LGA |
2,707 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8274GB1-IMDGTL ISO 2.5KV GATE DRIVER 14LGA |
2,855 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8274GB4D-IMDGTL ISO 2.5KV GATE DRIVER 14LGA |
2,156 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8275AB-IMDGTL ISO 2.5KV GATE DRIVER 14LGA |
2,216 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
STGAP1STRDGTL ISO 2.5KV 1CH GATE DVR 24SO |
2,610 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, gapDRIVE™ | Obsolete | Magnetic Coupling | 1 | 2500Vrms | - | 130ns, 130ns | 10ns | 25ns, 25ns (Max) | 2.5A, 2.5A | - | - | - | 4.5V ~ 36V | -40°C ~ 125°C | Surface Mount |
|
BM60052FV-CE2DGTL ISO 2.5KV GATE DRVR 28SSOP |
2,403 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100 | Obsolete | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | - | - | 50ns, 50ns | - | 5A | - | - | 10V ~ 20V | -40°C ~ 125°C | Surface Mount |
|
|
BM60054FV-CE2DGTL ISO 2.5KV GATE DRVR 28SSOP |
2,183 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100 | Obsolete | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | - | - | 50ns, 50ns | - | 5A | - | - | 10V ~ 20V | -40°C ~ 125°C | Surface Mount |
