| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8234AB-D-IM1ISOLATED GATE DRIVER |
6,707 | 5.70 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 2500Vrms | 45kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns | 2A, 4A | 4A | - | - | 6.5V ~ 24V | -40°C ~ 125°C | Surface Mount |
|
SI8275ABD-IM1DGTL ISO 2.5KV GATE DRIVER 14LGA |
5,004 | 6.12 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
SI8275BBD-IM14A 2.5 KV HIGH CMTI DUAL GATE DR |
9,900 | 6.12 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
ACPL-312T-300EOPTOISO 3.75KV GATE DRVR 8DIP GW |
9,490 | 6.23 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
1ED3125MU12FXUMA1ISOLATED DRIVER |
7,748 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Capacitive Coupling | 1 | 3000Vrms | 200kV/µs | - | 5ns | 30ns, 30ns (Max) | 4A, 4A | 14A | - | - | 10V ~ 35V | -40°C ~ 150°C | Surface Mount |
|
ACPL-P343-500EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
5,273 | 3.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 3A, 3A | 4A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
UCC23514EDWVR4-A, 12-V UVLO 5-KVRMS OPTO COMP |
8,121 | 2.83 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 150kV/µs | 70ns, 70ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A | 2.1V | 16 mA | 14V ~ 33V | -40°C ~ 125°C | Surface Mount | |
|
|
UCC23514VDWVR4-A, 12-V UVLO 5-KVRMS OPTO COMP |
9,785 | 2.83 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 1 | 5000Vrms | 150kV/µs | 70ns, 70ns | 35ns | 28ns, 25ns (Max) | 3A, 3.5A | 4.5A | 2.1V | 16 mA | 14V ~ 33V | -40°C ~ 125°C | Surface Mount | |
.jpg)
|
HCNW3120-000EOPTOISO 5KV 1CH GATE DRIVER 8DIP |
9,563 | 4.47 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Through Hole |
|
UCC21732QDWRQ1IC POWER MANAGEMENT |
8,460 | 7.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 28ns, 24ns (Max) | 10A, 10A | 10A | - | - | 13V ~ 33V | -40°C ~ 125°C | Surface Mount |
|
FDA217SOPTOISO 3.75KV 2CH GATE DVR 8SMD |
8,610 | 4.52 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 2 | 3750Vrms | - | 2ms, 0.5ms | - | - | - | - | 1.26V | 5 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCNW3120-300EOPTOISO 5KV GATE DRIVER 8DIP GW |
7,671 | 4.54 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
ACPL-339J-500EOPTOISO 5KV 1CH GATE DRIVER 16SO |
7,527 | 9.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 300ns, 300ns | 150ns | - | 1A, 1A | 5.5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-P346-000EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
9,620 | 4.85 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | -40°C ~ 105°C | Surface Mount |
|

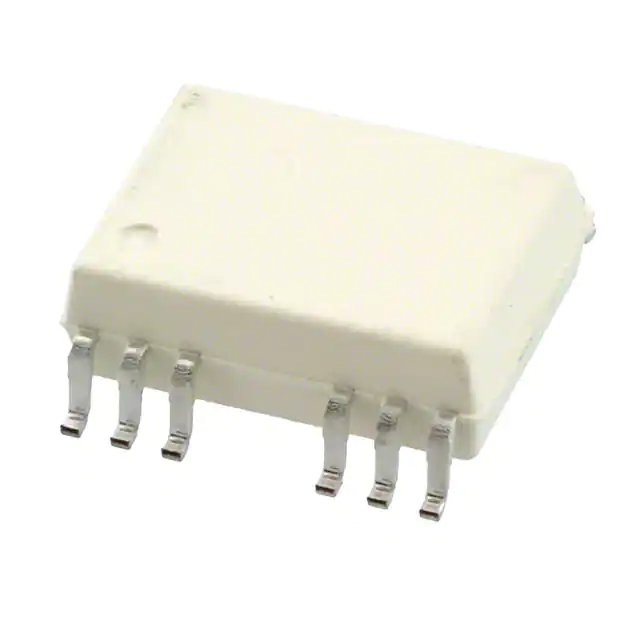

HCPL-314J-000EOPTOISO 5KV 2CH GATE DRIVER 16SO |
5,523 | 5.10 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 2 | 5000Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 500mA, - | 600mA | 1.5V | 25 mA | 10V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
SI8233BB-D-ISDGTL ISO 2.5KV GATE DRVR 16SOIC |
8,752 | 5.34 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | -40°C ~ 125°C | Surface Mount |
|
SI8234BB-D-IS1DGTL ISO 2.5KV GATE DRVR 16SOIC |
7,192 | 5.53 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | -40°C ~ 125°C | Surface Mount |
|
|
SI8235BB-D-IS1DGTL ISO 2.5KV GATE DRVR 16SOIC |
9,706 | 5.53 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | -40°C ~ 125°C | Surface Mount |
|
|
SI8273GB-IS1DGTL ISO 2.5KV GATE DRVR 16SOIC |
6,956 | 5.53 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
UCC21521DWDGTL ISO 5.7KV GATE DRVR 16SOIC |
5,659 | 5.62 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 9.2V ~ 25V | -40°C ~ 125°C | Surface Mount |
