| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI82393CD-IS35 KV 12 V UVLO HS/LS ISOLATED GA |
5,211 | 6.80 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | -40°C ~ 125°C | Surface Mount |
|
SI82390BD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
9,168 | 6.80 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | -40°C ~ 125°C | Surface Mount |
|
|
SI82394BD4-IS35 KV 8 V UVLO HS/LS ISOLATED GAT |
5,208 | 6.80 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | -40°C ~ 125°C | Surface Mount |
|

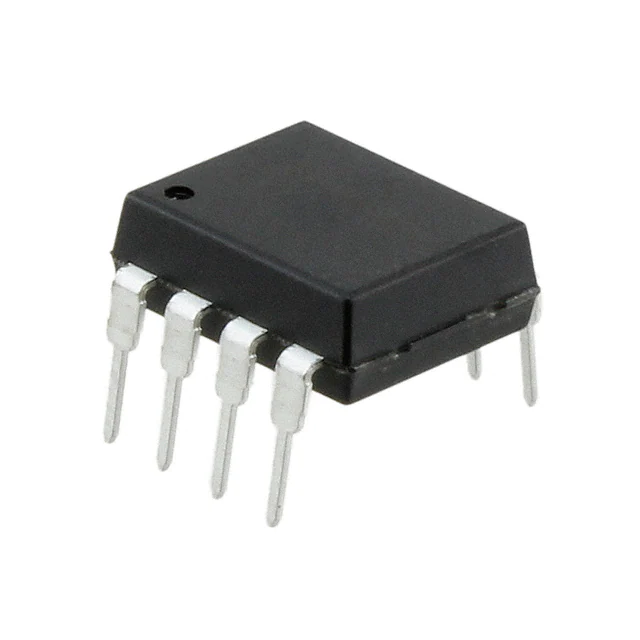

ACNW3190-000EOPTOISO 5KV 1CH GATE DRIVER 8DIP |
8,535 | 7.08 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Through Hole |
|

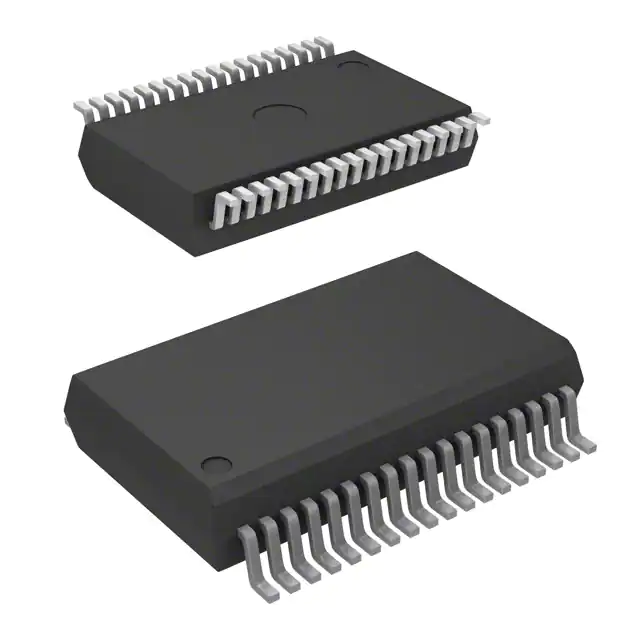

1EDI2010ASXUMA1IC GATE DRIVER HVIC DSO36 |
2,393 | 11.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, EiceDriver™ | Active | Magnetic Coupling | 1 | 3750Vrms | - | - | - | 120ns, 150ns | - | - | - | - | 13V ~ 18V | -40°C ~ 150°C (TJ) | Surface Mount |
|
ACPL-351J-000EGATE DRIVE OPTOCOUPLER,LF |
7,054 | 8.57 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 50ns | 37ns, 30ns | 4.5A, 4.5A | 5A | 1.55V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount |
|
SIC1182KDGTL ISO 1.2KV SIC DRVR ESOP-R16 |
1,588 | 10.71 |
RFQ |
Datasheet |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
CPC1580PTROPTOISO 3.75KV GATE DRVR 8FLTPCK |
9,667 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | - | - | - | - | - | - | 1.27V | 50 mA | - | -40°C ~ 110°C | Surface Mount |
|
SID1102KDGTL ISO GATE DRVR |
7,170 | 3.51 |
RFQ |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 1000Vrms | 100kV/µs | 350ns, 350ns | - | 29ns, 14ns | 5A, 5A | - | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount | |
|
|
SID1112KDGTL ISO GATE DRVR |
6,852 | 4.44 |
RFQ |
Datasheet |
Tube | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 1125ns, 1125ns (Max) | 480mA, 520mA | 1A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
SIC1181KQ-TL8A 750V ESOP IGBT SIC IN T/R |
7,750 | 7.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 35kV/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM3224WBRZDGTL ISO 3KV 2CH GATE DVR 16SOIC |
8,194 | 6.71 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 7.5V ~ 18V | -40°C ~ 125°C | Surface Mount |
|
|
SI82390CD-ISDGTL ISO 5KV 2CH GATE DVR 16SOIC |
7,722 | 6.80 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 5000Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | -40°C ~ 125°C | Surface Mount |
|
PS9332L2-AXSDIP |
9,029 | 9.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 75ns | 17ns, 17ns | 1.5A, 1.5A | 2A | 1.56V | 25 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|

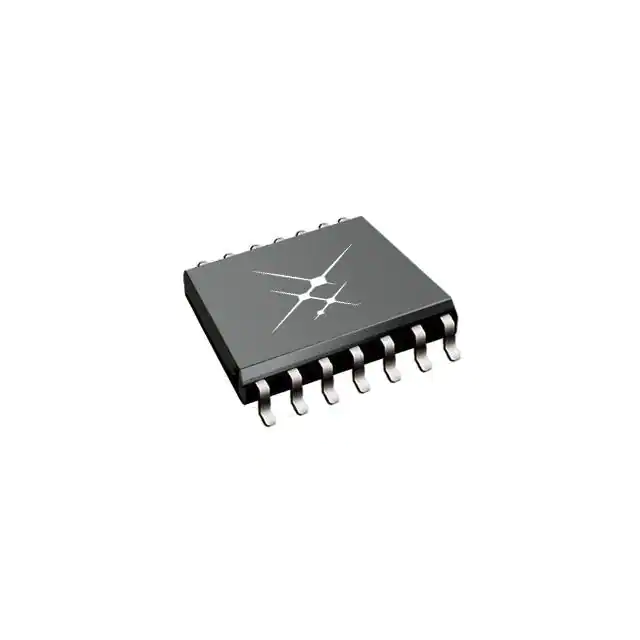

SI823H7CD-IS35KV GATE DRIVER 14-WBSOIC |
6,976 | 7.19 |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
SI8234AB-D-IMDGTL ISO 2.5KV GATE DRIVER 14LGA |
7,797 | 5.70 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | -40°C ~ 125°C | Surface Mount |
|

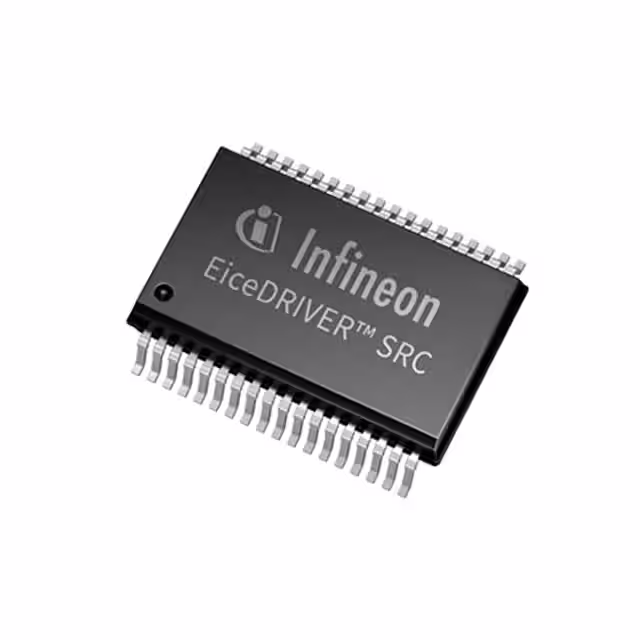

1EDU20I12SVXUMA1IC IGBT GATE DRIVER 36DSOP |
8,057 | 9.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
SID1181KQ-TL8A 750V ESOP IGBT T/R |
6,894 | 8.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Capacitive Coupling | 1 | 5000Vrms | 50kV/µs | 340ns, 330ns | - | 465ns, 460ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SIC1182K-TLDGTL ISO 1.2KV SIC DRVR ESOP-R16 |
3,762 | 10.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 500V/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | -40°C ~ 125°C | Surface Mount |
|
|
SID1182KQ-TL8A, 1200V REINFORCED ISOLATION |
12,603 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, SCALE-iDriver™ | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 150ns, 150ns | 3.6A, 4A | 8A | - | - | 22V ~ 28V | -40°C ~ 125°C | Surface Mount |
