Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Color	Wavelength	Current-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	LuminousFlux@Current/Temperature	Temperature-Test	ViewingAngle	MountingType	Size/Dimension
SPHRD2L3DH01A844B0 LED LH351H RED 730NM 3535 Samsung Semiconductor, Inc.	13,777	0.86	RFQ	Datasheet	Tape & Reel (TR)	LH351H	Active	Red	730nm (720nm ~ 740nm)	350mA	1.9V	-	1A	-	25°C	120°	Surface Mount	1414 (3535 Metric)
GA CSHPM1.23-KULQ-W3-0-350-R18 LED OSLON SSL150 AMBER 617NM SMD ams-OSRAM USA Inc.	11,337	0.86	RFQ	Datasheet	Tape & Reel (TR)	OSLON® SSL 150	Active	Amber	617nm	350mA	2.1V	159 lm/W	1A	117lm (104lm ~ 130lm)	25°C	150°	Surface Mount	1212 (3030 Metric)
XBDROY-00-0000-000000J02 LED XLAMP XBD BLUE 455NM SMD CreeLED, Inc.	10,353	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XB-D	Active	Blue	455nm (450nm ~ 460nm)	350mA	3.1V	-	1A	463mW (450mW ~ 475mW)	25°C	135°	Surface Mount	1010 (2525 Metric)
XBDROY-00-0000-000000J03 LED XLAMP XBD BLUE 460NM SMD CreeLED, Inc.	12,754	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XB-D	Active	Blue	460nm (455nm ~ 465nm)	350mA	3.1V	-	1A	463mW (450mW ~ 475mW)	25°C	135°	Surface Mount	1010 (2525 Metric)
XBDROY-00-0000-000000K01 LED XLAMP XBD BLUE 458NM SMD CreeLED, Inc.	12,712	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XB-D	Active	Blue	458nm (450nm ~ 465nm)	350mA	3.1V	-	1A	488mW (475mW ~ 500mW)	25°C	135°	Surface Mount	1010 (2525 Metric)
XPEBRO-L1-0000-00901 LED XLAMP XPE2 RED-ORG 615NM SMD CreeLED, Inc.	10,298	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Red-Orange	615nm (610nm ~ 620nm)	350mA	2.2V	109 lm/W	1A	84lm (81lm ~ 87lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEBAM-L1-0000-00603 LED XLAMP XPE2 AMBER 593NM SMD CreeLED, Inc.	13,356	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Amber	593nm (590nm ~ 595nm)	350mA	2.2V	84 lm/W	1A	65lm (62lm ~ 67lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEBGR-L1-0000-00A03 LED XLAMP XPE2 GREEN 530NM SMD CreeLED, Inc.	10,885	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Green	530nm (525nm ~ 535nm)	350mA	2.85V	81 lm/W	1A	91lm (87lm ~ 94lm)	25°C	135°	Surface Mount	1414 (3535 Metric)
XPEBGR-L1-0000-00C01 LED XLAMP XPE2 GREEN 528NM SMD CreeLED, Inc.	14,357	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Green	528nm (520nm ~ 535nm)	350mA	2.85V	93 lm/W	1A	104lm (100lm ~ 107lm)	25°C	135°	Surface Mount	1414 (3535 Metric)
XPEBRY-L1-0000-00J03 LED XLAMP XPE2 BLU 460NM SMD CreeLED, Inc.	14,130	0.87	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Blue	460nm (455nm ~ 465nm)	350mA	3.1V	-	1A	463mW (450mW ~ 475mW)	25°C	135°	Surface Mount	1414 (3535 Metric)
LV CRBP.01-JZLZ-BD-S545-350-R18 LED GREEN SMD ams-OSRAM USA Inc.	12,580	0.88	RFQ		Tape & Reel (TR)	-	Active	Green	-	350mA	-	-	-	82lm	-	-	Surface Mount	1212 (3030 Metric)
XPEBRY-L1-0000-00K02 LED XLAMP XPE2 BLU 455NM SMD CreeLED, Inc.	10,510	0.88	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Blue	455nm (450nm ~ 460nm)	350mA	3.1V	-	1A	488mW (475mW ~ 500mW)	25°C	135°	Surface Mount	1414 (3535 Metric)
XQEGRN-H0-0000-000000B01 LED XLAMP XQE GREEN 528NM SMD CreeLED, Inc.	14,813	0.88	RFQ		Tape & Reel (TR)	XLamp® XQ-E	Active	Green	528nm (520nm ~ 535nm)	350mA	2.85V	87 lm/W	1A	97lm (94lm ~ 100lm)	25°C	130°	Surface Mount	0606 (1616 Metric)
XQEGRN-H0-0000-000000A03 LED XLAMP XQE GREEN 530NM SMD CreeLED, Inc.	12,533	0.88	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XQ-E	Active	Green	530nm (525nm ~ 535nm)	350mA	2.85V	81 lm/W	1A	91lm (87lm ~ 94lm)	25°C	130°	Surface Mount	0606 (1616 Metric)
XQEROY-00-0000-000000K02 LED XLAMP XQE BLUE 455NM SMD CreeLED, Inc.	13,228	0.88	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XQ-E	Active	Blue	455nm (450nm ~ 460nm)	350mA	3.1V	-	1A	488mW (475mW ~ 500mW)	25°C	125°	Surface Mount	0606 (1616 Metric)

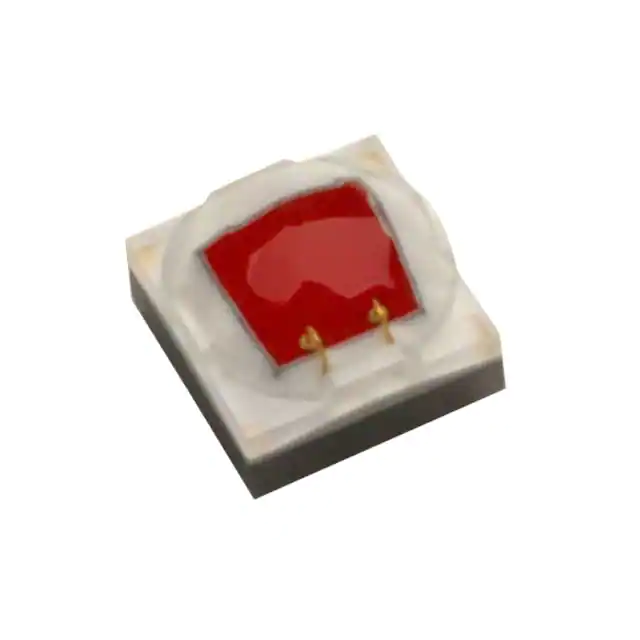

L1C1-RNG1000000000 LED LUXEON C RED-ORG 619NM SMD Lumileds	13,541	0.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LUXEON C	Active	Red-Orange	619nm (614nm ~ 624nm)	350mA	2.05V	72 lm/W	1.05A	52lm (Typ)	85°C	150°	Surface Mount	0707 (1919 Metric)

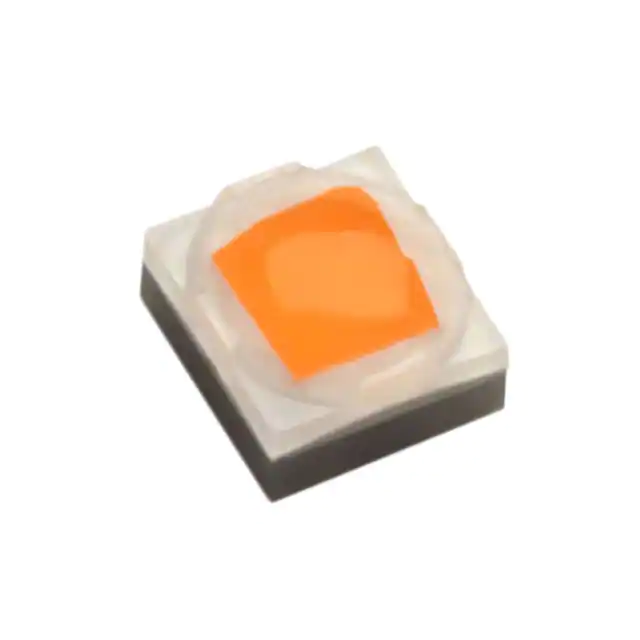

L1C1-AMB1000000000 LED LUXEON C AMBER 593NM SMD Lumileds	9,967	2.21	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LUXEON C	Active	Amber	593nm (585nm ~ 600nm)	350mA	2.05V	35 lm/W	1.05A	25lm (20lm ~ 30lm)	85°C	162°	Surface Mount	0707 (1919 Metric)
L1C1-MNT1000000000 LED LUXEON C GREEN SMD Lumileds	13,023	0.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LUXEON C	Active	Green	-	350mA	2.75V	152 lm/W	1.225A	146lm (140lm ~ 152lm)	85°C	150°	Surface Mount	0707 (1919 Metric)

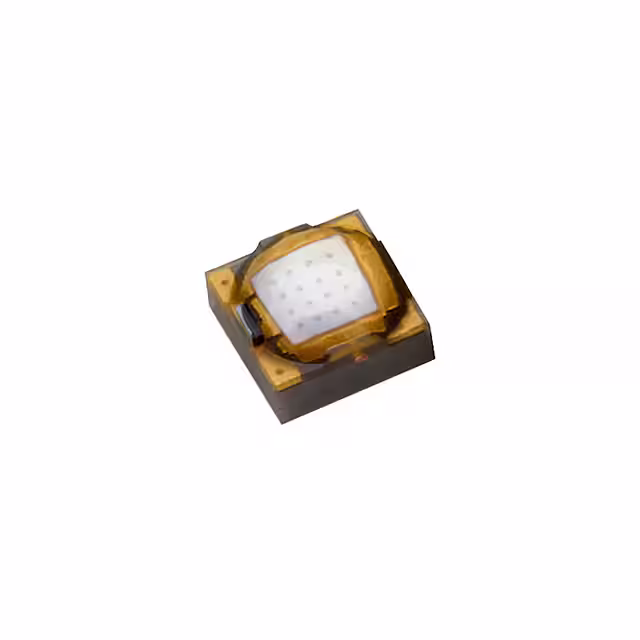

L1SP-RYL0002000000 LED SUNPLUS 20 BLU 450NM SMD Lumileds	14,493	0.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LUXEON SunPlus 20 Horticulture	Active	Blue	450nm (Typ)	350mA	2.75V	-	1.05A	-	85°C	165°	Surface Mount	0707 (1919 Metric)
L1CU-BLU1000000000 LED LUXEON CZ BLU 475NM 3SMD Lumileds	13,397	0.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	LUXEON CZ	Active	Blue	475nm (465nm ~ 485nm)	350mA	2.83V	33 lm/W	1.05A	33lm (Typ)	85°C	120°	Surface Mount	3-SMD, No Lead
