LED Lighting - Color

Manufacturer	Packaging	Series	ProductStatus	Color	Wavelength	Current-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	LuminousFlux@Current/Temperature	Temperature-Test	ViewingAngle	MountingType	Size/Dimension
American Bright Optoelectronics Corporation American Opto Plus LED ams-OSRAM USA Inc. APEM Inc. Broadcom Limited CreeLED, Inc. Dialight Everlight Electronics Co Ltd Fairchild Semiconductor Inolux Kingbright Light-Avenue Lite-On Inc. Lumex Opto/Components Inc. Lumileds Luminus Devices Inc. OSRAM SYLVANIA Inc. QT Brightek (QTB) Quelighting Corp Samsung Semiconductor, Inc. Seoul Semiconductor Inc. Sharp Microelectronics Solidlite Stanley Electric Co SunLED Tec Niq TT Electronics/Optek Technology Vishay Semiconductor Opto Division Würth Elektronik	- Bag Box Bulk Cut Tape (CT) Cut Tape (CT),Digi-Reel® Cut Tape (CT),Tape & Box (TB) Strip Tape & Reel (TR) Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tray Tube	* - 2525 5630 AA3529 AAD1-9090 AB-10T AB-EZD AB-EZP Advanced Power TOPLED® Advanced Power TOPLED® Plus ASM6-Sxxx-xxxxH ASMT-Ax00 ASMT-Ax03 ASMT-Ax3x ASMT-Jx1x ASMT-Jx3x ASMT-QxBD-Axxx CERAMOS Cube-1616 Diamond Dragon DISPLIX Oval DURIS® P 5 DURIS® S 5 EAHP2835 EAHP3045 EAHP3535 EAHP5630 Envisium™ Golden DRAGON® Golden DRAGON® ARGUS® Golden DRAGON® Plus High Power HL3P Horticulture IN-505 IN-C33 J LH351H LH351H 2W Little Star® LOPL LTPL LUXEON 3535L LUXEON C LUXEON CZ LUXEON M LUXEON MZ LUXEON Rebel Color LUXEON Rebel Color ES LUXEON Rubix Color LUXEON SunPlus 20 Horticulture LUXEON SunPlus 2835 Horticulture LUXEON SunPlus 35 Horticulture LUXEON T LUXEON Z LUXEON Z ES LuxiGen™ LuxiGen™ LZ4 LuxLED™ LZ1 LZ4 LZ7 LZC LZP Mini TOPLED Mini TOPLED® Moonstone™ MP-2835 Horticulture OSCONIQ® P 2226 OSCONIQ® P 3030 OSLON Signal 80 OSLON SSL OSLON® Black OSLON® Black Flat OSLON® Compact CL OSLON® Compact PL OSLON® Optimal OSLON® Optimal Horticulture OSLON® Pure 1010 OSLON® Signal OSLON® Square OSLON® Square Horticulture OSLON® SSL 120 OSLON® SSL 120 Horticulture OSLON® SSL 150 OSLON® SSL 150 Horticulture OSLON® SSL 80 OSLON® SX OSRAM OSTAR OSRAM OSTAR® OSRAM OSTAR® Projection Compact Ostar OSTAR Projection Compact OVS5MxBCR4x Platinum DRAGON PLCC6 PointLED Power TOPLED® QBHP684U-XXU QBHP684U-XXV SBM-160 SBM-40 SBM-40-LC SBM-40-SC SBT-16 SBT-70 SBT-90 SFT-10 SFT-20 SHUEN SHWO SIDELED SST-10 Horticulture SST-10-DR Horticulture SST-10-G Horticulture SST-10-R Horticulture SST-10-SB Horticulture SST-20-B Horticulture SST-20-DR Gen 2 Horticulture SST-20-DR Horticulture SST-90 SYNIOS SYNIOS® P2720 TitanBrite™ TOPLED TOPLED® E1608 WL-SMDC XI3030P XLamp® MC-E XLamp® ML-E XLamp® XB-D XLamp® XE-G XLamp® XM-L XLamp® XM-L® Gen 2 XLamp® XP-C XLamp® XP-E XLamp® XP-E Horticulture XLamp® XP-E2 Xlamp® XP-G3 Xlamp® XP-G3 Horticulture Xlamp® XQ-A XLamp® XQ-E XLamp® XQ-E Horticulture XLamp® XR-C XLamp® XR-E XLamp® XT-E XLamp® XT-E Horticulture Z Power Z Power P3-II Z Power P5-II Z-Power	Active Discontinued at Mosen Last Time Buy Not For New Designs Obsolete	- Amber Amber, Blue Amber, Blue, Cyan, Green, Red, Violet, White - Cool Amber, Blue, Green Amber, Green, Blue Amber-Red Blue Blue, Red Cyan Cyan Blue Deep Red Far Red Green Lime Mint Orange Orange-Red Pink Purple Purple, Ultraviolet (UV) Red Red, Green, Blue (RGB) Red, Green, Blue, Amber (RGBA) Red, Green, Blue, Amber, Cyan, Lime Red, Green, Blue, White (RGBW) Red, Green, Blue, White - Cool (RGBW) Red, Green, Blue, White - Neutral (RGBW) Red, Green, Blue, White - Warm (RGBW) Red, Green, Blue, Yellow Red-Orange Royal Blue Ultraviolet Violet White Yellow Yellow-Green	- 1300K 1800K 359nm (252nm ~ 465nm) 405nm (Typ) 445nm (435nm ~ 455nm) 445nm (440nm ~ 450nm) 448nm (440nm ~ 455nm) 448nm (Typ) 449nm (Typ) 450nm (439nm ~ 461nm) 450nm (440nm ~ 460nm) 450nm (445nm ~ 455nm) 450nm (448nm ~ 452nm) 450nm (Typ) 451nm 451nm (444nm ~ 457nm) 451nm (Typ) 453nm (444nm ~ 461nm) 453nm (445nm ~ 460nm) 453nm (449nm ~ 458nm) 453nm (450nm ~ 455nm) 454nm 454nm (448nm ~ 460nm) 454nm (Typ) 455nm 455nm (449nm ~ 461nm) 455nm (439nm ~ 457nm) 455nm (439nm ~ 461nm) 455nm (445nm ~ 465nm) 455nm (449nm ~ 461nm) 455nm (450nm ~ 460nm) 455nm (453nm ~ 458nm) 455nm (Typ) 456nm (453nm ~ 458nm) 457nm (448nm ~ 466nm) 457nm (453nm ~ 460nm) 457nm (455nm ~ 460nm) 457nm Blue, 500nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 458nm 458nm (450nm ~ 465nm) 458nm (453nm ~ 463nm) 458nm (455nm ~ 460nm) 458nm (Typ) 459nm 459nm (453nm ~ 465nm) 459nm (Typ) 460nm 460nm (454nm ~ 466nm) 460nm (455nm ~ 465nm) 460nm (457nm ~ 463nm) 460nm (458nm ~ 463nm) 460nm (Typ) 461nm 461nm (Typ) 463nm 463nm (450nm ~ 475nm) 463nm (455nm ~ 470nm) 463nm (460nm ~ 465nm) 464nm (458nm ~ 470nm) 464nm (459nm ~ 468nm) 465nm (455nm ~ 475nm) 465nm (460nm ~ 470nm) 465nm (Typ) 465nm Amber, 617nm Blue 465nm Blue, 617nm Red 466nm 466nm (459nm ~ 472nm) 466nm (Typ) 467nm (Typ) 468nm (459nm ~ 476nm) 468nm (460nm ~ 476nm) 468nm (465nm ~ 470nm) 468nm (Typ) 469nm (463nm ~ 475nm) 470nm 470nm (460nm ~ 480nm) 470nm (464nm ~ 476nm) 470nm (465nm ~ 475nm) 470nm (468nm ~ 472nm) 470nm (Typ) 472nm (468nm ~ 476nm) 473nm 473nm (465nm ~ 480nm) 474nm (468nm ~ 480nm) 475nm 475nm (465nm ~ 485nm) 475nm (469nm ~ 480nm) 475nm (470nm ~ 480nm) 475nm (Typ) 476nm (468nm ~ 484nm) 476nm (472nm ~ 480nm) 478nm 480nm 485nm 488nm 490nm 490nm (Typ) 500nm 500nm (490nm ~ 510nm) 500nm (Typ) 502nm (495nm ~ 510nm) 504nm 505nm 505nm (490nm ~ 520nm) 505nm (495nm ~ 515nm) 505nm (499nm ~ 511nm) 505nm (Typ) 506nm 508nm 515nm (510nm ~ 520nm) 520nm 522nm (Typ) 523nm (515nm ~ 530nm) 525nm 525nm (513nm ~ 537nm) 525nm (515nm ~ 535nm) 525nm (519nm ~ 531nm) 525nm (520nm ~ 530nm) 525nm (Typ) 526nm 527nm 527nm (Typ) 528nm 528nm (519nm ~ 543nm) 528nm (513nm ~ 537nm) 528nm (513nm ~ 543nm) 528nm (519nm ~ 537nm) 528nm (519nm ~ 543nm) 528nm (520nm ~ 535nm) 528nm (Typ) 529nm 529nm (521nm ~ 537nm) 530nm 530nm (520nm ~ 540nm) 530nm (525nm ~ 535nm) 530nm (Typ) 531nm (519nm ~ 543nm) 531nm (525nm ~ 537nm) 532nm (523nm ~ 541nm) 533nm (525nm ~ 540nm) 535nm (530nm ~ 540nm) 540nm 540nm (Typ) 543nm 548nm (540nm ~ 555nm) 550nm (500nm ~ 600nm) 555nm (Typ) 559nm (554nm ~ 563nm) 562nm (557nm ~ 566nm) 568nm (566nm ~ 569nm) 570nm 570nm (564nm ~ 576nm) 573nm 585nm (583nm ~ 586nm) 586nm (582nm ~ 590nm) 586nm (583nm ~ 589nm) 587nm 587nm (580nm ~ 595nm) 588nm 588nm (580nm ~ 595nm) 588nm (583nm ~ 592nm) 588nm (585nm ~ 590nm) 588nm (586nm ~ 589nm) 588nm (Typ) 589nm 589nm (582nm ~ 595nm) 589nm (583nm ~ 595nm) 589nm (585nm ~ 593nm) 589nm (586nm ~ 592nm) 589nm (Typ) 590nm 590nm (583nm ~ 592nm) 590nm (583nm ~ 595nm) 590nm (585nm ~ 594nm) 590nm (585nm ~ 595nm) 590nm (587nm ~ 597nm) 590nm (588nm ~ 592nm) 590nm (Typ) 591nm 591nm (583nm ~ 598nm) 591nm (585nm ~ 597nm) 591nm (586nm ~ 595nm) 591nm (587nm ~ 595nm) 591nm (588nm ~ 594nm), 590nm (588nm ~ 592nm) 591nm (588nm ~ 595nm) 591nm (Typ) 592nm 592nm (587nm ~ 597nm) 592nm (588nm ~ 595nm) 592nm (589nm ~ 595nm) 592nm (Typ) 593nm (585nm ~ 600nm) 593nm (588nm ~ 598nm) 593nm (590nm ~ 595nm) 593nm (Typ) 594nm (588nm ~ 600nm) 595nm (590nm ~ 600nm) 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 598nm (Typ) 599nm 605nm 605nm (600nm ~ 609nm) 605nm (Typ) 606nm 606nm (Typ) 610nm (Typ) 613nm (610nm ~ 615nm) 613nm (Typ) 614nm (612nm ~ 616nm) 615nm 615nm (609nm ~ 620nm) 615nm (610nm ~ 620nm) 615nm (Typ) 616nm 616nm (610nm ~ 621nm) 616nm (612nm ~ 620nm) 616nm Amber, 460nm Blue, 530nm Green 617nm 617nm (609nm ~ 620nm) 617nm (609nm ~ 624nm) 617nm (612nm ~ 624nm) 617nm (Typ) 617nm Amber, 460nm Blue 617nm Amber, 529nm Green, 464nm Blue 618nm 618nm (610nm ~ 625nm) 618nm (611nm ~ 625nm) 618nm (612nm ~ 624nm) 618nm (615nm ~ 620nm) 618nm (616nm ~ 620nm) 618nm (Typ) 619nm (611nm ~ 627nm) 619nm (614nm ~ 624nm) 619nm (615nm ~ 623nm) 619nm (Typ) 619nm Amber, 524nm Green, 464nm Blue 620nm (612nm ~ 628nm) 620nm (615nm ~ 625nm) 620nm (616nm ~ 624nm) 620nm (Typ) 620nm Red, 525nm Green, 465nm Blue 621nm (612nm ~ 630nm) 621nm (615nm ~ 627nm) 621nm (619nm ~ 623nm) 621nm (Typ) 622nm 622nm (613nm ~ 625nm) 622nm (616nm ~ 628nm) 622nm (618nm ~ 625nm) 622nm (620nm ~ 624nm) 622nm (Typ) 622nm Red, 525nm Green, 455nm Blue, 6100K White 622nm Red, 527nm Green, 455nm Blue 623nm (615nm ~ 630nm) 623nm (619nm ~ 627nm) 623nm (620nm ~ 625nm) 623nm (Typ) 623nm Red, 520nm Green, 451nm Blue, 590nm Amber, 500nm Cyan 623nm Red, 523nm Green, 457nm Blue, 6500K White 623nm Red, 525nm Green, 454nm Blue 623nm Red, 525nm Green, 465nm Blue 623nm Red, 530nm Green, 458nm Blue 623nm Red, 530nm Green, 458nm Blue, 7100K White 624nm 624nm (612nm ~ 636nm) 624nm (616nm ~ 632nm) 624nm (618nm ~ 630nm) 624nm (620nm ~ 627nm) 624nm (620nm ~ 628nm) 624nm (Typ) 624nm Red, 525nm Green, 454nm Blue, 6500K White 624nm Red, 525nm Green, 457nm Blue 624nm Red, 525nm Green, 457nm Blue, 593nm Amber 624nm Red, 525nm Green, 457nm Blue, 6000K White 624nm Red, 525nm Green, 457nm Blue, 6100K White 624nm Red, 525nm Green, 457nm Blue, 6335K White 624nm Red, 525nm Green, 457nm Blue, 6450K White 624nm Red, 525nm Green, 457nm Blue, 6500K White 624nm Red, 525nm Green, 457nm Blue, 6658K White 624nm Red, 525nm Green, 457nm Blue, 7000K White 625nm 625nm (617nm ~ 635nm) 625nm (618nm ~ 632nm) 625nm (620nm ~ 629nm) 625nm (620nm ~ 630nm) 625nm (Typ) 625nm Red, 515nm Green, 460nm Blue 625nm Red, 522nm Green, 451nm Blue 625nm Red, 522nm Green, 453nm Blue 625nm Red, 522nm Green, 454nm Blue 625nm Red, 525nm Green, 451nm Blue 625nm Red, 525nm Green, 453nm Blue 625nm Red, 525nm Green, 455nm Blue, 5700K White 625nm Red, 525nm Green, 456nm Blue 625nm Red, 525nm Green, 460nm Blue 625nm Red, 525nm Green, 463nm Blue, 6650K White 625nm Red, 527nm Green, 453nm Blue 625nm Red, 528nm Green, 451nm Blue 625nm Red, 528nm Green, 453nm Blue 625nm Red, 528nm Green, 458nm Blue, 2950K White 625nm Red, 528nm Green, 458nm Blue, 3200K White 625nm Red, 528nm Green, 458nm Blue, 4000K White 625nm Red, 528nm Green, 458nm Blue, 6350K White 625nm Red, 528nm Green, 458nm Blue, 6850K White 625nm Red, 528nm Green, 470nm Blue 625nm Red, 530nm Green, 451nm Blue 625nm Red, 530nm Green, 453nm Blue 625nm Red, 530nm Green, 458nm Blue 625nm Red, 531nm Green, 453nm Blue 625nm Red, 533nm Green, 451nm Blue 626nm 626nm (620nm ~ 632nm) 626nm (Typ) 626nm Red, 525nm Green, 470nm Blue 626nm Red, 527nm Green, 453nm Blue 627nm 627nm (Typ) 628nm (620nm ~ 635nm) 628nm (620nm ~ 636nm) 628nm (624nm ~ 632nm) 628nm (625nm ~ 630nm) 629nm (624nm ~ 634nm) 630nm 630nm (620nm ~ 740nm) 630nm (Typ) 630nm Red, 520nm Green, 460nm Blue 631nm (620nm ~ 632nm) 631nm (627nm ~ 634nm) 632nm 632nm (627nm ~ 637nm) 632nm (628nm ~ 636nm) 632nm (630nm ~ 634nm) 632nm (Typ) 633nm (620nm ~ 645nm) 633nm (627nm ~ 639nm) 634nm (630nm ~ 637nm) 634nm (632nm ~ 636nm) 635nm 635nm (Typ) 636nm (Typ) 638nm 640nm 640nm (620nm ~ 635nm) 640nm (Typ) 642nm (Typ) 643nm (Typ) 645nm (Typ) 655nm (650nm ~ 670nm) 655nm (Typ) 656nm (646nm ~ 666nm) 656nm (650nm ~ 670nm) 656nm (Typ) 657nm 657nm (646nm ~ 666nm) 660nm 660nm (640nm ~ 670nm) 660nm (645nm ~ 675nm) 660nm (650nm ~ 670nm) 660nm (650nm ~ 670nm), 623nm (615nm ~ 630nm) 660nm (655nm ~ 665nm) 660nm Red, 740nm Red, 520nm Green, 450nm Blue 663nm (655nm ~ 670nm) 665nm (650nm ~ 680nm) 665nm Red, 730nm Red, 525nm Green, 400nm Blue, 450nm Blue, 590nm Amber 720nm (710nm ~ 730nm) 727nm (710nm ~ 740nm) 727nm (Typ) 730nm (715nm ~ 745nm) 730nm (720nm ~ 740nm) 730nm (Typ) 731nm (720nm ~ 745nm) 733nm (725nm ~ 740nm) 734nm (723nm ~ 745nm) 735nm (720nm ~ 745nm) 735nm (720nm ~ 750nm)	- 1.05A 1.05A Red, 1.05A Green, 1.05A Blue 1.2A 1.4A 1.4A Red, 1.4A Green, 1.4A Blue, 1.4A White 1.5A 10.5A 100mA 10mA 110mA 120mA 13.5A 140mA 140mA Red, 140mA Green, 140mA Blue 150mA 150mA Red, 150mA Green, 150mA Blue 175mA 1A 1A Red, 1A Green, 1A Blue, 1A White 1A Red, 1A Green, 1A Blue, 1A Yellow 1A Red, 1A Green, 1A Red, 1A Amber, 1A Cyan, 1A Lime 2.8A 200mA 20mA 250mA 3.15A 300mA 300mA Red, 350mA Green, 350mA Blue 30mA 350mA 350mA Amber, 350mA Blue 350mA Amber, 350mA Blue, 350mA Green 350mA Blue, 350mA Red 350mA Deep Red, 350mA Red 350mA Red, 350mA Green, 350mA Blue 350mA Red, 350mA Green, 350mA Blue, 350mA White 38mA 400mA 450mA 4A 4A Red, 4A Green, 4A Blue, 4A White 500mA 50mA 600mA 60mA 65mA 700mA 700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White 700mA Amber, 700mA Green, 700mA Blue 700mA Red, 700mA Green, 700mA Blue 700mA Red, 700mA Green, 700mA Blue, 700mA Amber 700mA Red, 700mA Green, 700mA Blue, 700mA White 70mA 90mA	- 1.73V 1.75V 1.85V 1.8V 1.95V 1.98V 1.99V 1.9V 10.2V 10.5V 10.8V 10V 11.2V 11V 12.8V 12V 13.9V 15V Red, 21.6V Green, 19.2V Blue, 22.4V White 18.8V Red, 8.2V Red, 14.4V Green, 25.6V Blue 2.02V 2.03V 2.05V 2.06V 2.07V 2.11V 2.125V 2.15V 2.16V 2.17V 2.1V 2.1V Red, 2.6V Green, 2.9V Blue, 2.9V White 2.1V Red, 3.2V Green, 3.2V Blue 2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White 2.1V Red, 3.4V Green, 3.3V Blue 2.1V Red, 3.5V Green, 3.5V Blue 2.21V 2.225V 2.24V 2.24V Red, 3.65V Green, 3.5V Blue, 3.51V White 2.25V 2.25V Red, 2.65V Red, 4.2V Green, 3.3V Blue, 2.45V Amber 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White 2.26V 2.275V 2.29V 2.2V 2.2V Amber, 3.4V Blue 2.2V Amber, 3.4V Blue, 3.5V Green 2.2V Red, 3.1V Green, 3.0V Blue 2.2V Red, 3.2V Green, 3.2V Blue, 3.2V White 2.2V Red, 3.35V Green, 3.2V Blue, 3.2V White 2.2V Red, 3.4V Green, 3.4V Blue 2.2V Red, 3.5V Green, 3.5V Blue, 2.5V Amber 2.2V Red, 3.5V Green, 3V Blue, 3V White 2.2V Red, 7V Green, 3.5V Blue 2.325V 2.32V 2.35V 2.35V Red, 3.48V Green, 3V Blue, 3V White 2.35V Red, 3.6V Green, 3V Blue, 3V White 2.35V Red, 3.6V Green, 3V Blue, 3V Yellow 2.375V 2.37V 2.3V 2.3V Red, 3.2V Green, 3.2V Blue, 3.2V White 2.3V Red, 3.55V Green, 3.05V Blue, 3.3V Amber, 3.45V Cyan, 6.1V Lime 2.3V Red, 3.55V Green, 3.2V Blue, 3.2V White 2.43V 2.45V 2.4V 2.4V Red, 3.2V Green, 3.2V Blue 2.4V Red, 3.2V Green, 3.2V Blue, 3.2V White 2.4V Red, 3.5V Green, 3.1V Blue 2.4V Red, 3.6V Green, 3.05V Blue, 3.05V White 2.51V Red, 3.53V Green, 3.35V Blue, 3.34V White 2.52V 2.55V 2.57V 2.59V Red, 3.74V Green, 3.8V Blue, 3.79V White 2.5V 2.5V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White 2.5V Amber, 3.6V Green, 3.6V Blue 2.5V Red, 3.3V Green, 3.2V Blue 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White 2.5V Red, 3.6V Green, 3.45V Blue, 3.45V White 2.5V Red, 3.7V Green, 3.3V Blue, 3.3V White 2.5V Red, 3.8V Green, 3.6V Blue 2.5V Red, 4.5V Green, 3.4V Blue, 3.4V White 2.64V 2.65V 2.65V Red, 3.7V Green, 3.6V Blue, 3.6V White 2.6V 2.6V Red, 4.6V Green, 3.8V Blue, 3.8V White 2.75V 2.7V 2.82V 2.83V 2.84V 2.85V 2.86V 2.89V 2.8V 2.92V 2.94V 2.95V 2.95V Red, 3.45V Green, 3.45V Blue, 3.45V White 2.96V 2.97V 2.9V 24V 2V 3.05V 3.075V 3.08V 3.125V 3.15V 3.16V 3.1V 3.1V, 3.2V 3.25V 3.26V 3.2V 3.35V 3.3V 3.3V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White 3.45V 3.4V 3.4V Amber, 2.3V Blue 3.4V Blue, 2.3V Red 3.55V 3.5V 3.67V 3.6V 3.75V 3.7V 3.8V 3.9V 3V 4.5V 4.6V 4.9V 4V 5.6V 6.25V 6.2V 6.4V 6.9V 6V 7V 7V Red, 10.5V Green, 10.5V Blue, 10.5V White 7V Red, 10.5V Green, 10.5V Blue, 7V Amber 9.2V Red, 9.2V Green, 9.2V Blue 9.4V Red, 16.8V Green, 14V Blue 9.6V 9.9V 9V	- 1 lm/W 10 lm/W 100 lm/W 101 lm/W 102 lm/W 103 lm/W 104 lm/W 105 lm/W 106 lm/W 107 lm/W 108 lm/W 109 lm/W 109 lm/W Red, 170 lm/W Green, 23 lm/W Blue, 128 lm/W White 109 lm/W Red, 170 lm/W Green, 23 lm/W Blue, 143 lm/W White 109 lm/W Red, 170 lm/W Green, 23 lm/W Blue, 153 lm/W White 109 lm/W Red, 53 lm/W Green, 81 lm/W White 11 lm/W 110 lm/W 112 lm/W 113 lm/W 114 lm/W 116 lm/W 117 lm/W 118 lm/W 12 lm/W 120 lm/W 121 lm/W 122 lm/W 123 lm/W 124 lm/W 125 lm/W 126 lm/W 127 lm/W 129 lm/W 13 lm/W 130 lm/W 132 lm/W 133 lm/W 135 lm/W 137 lm/W 139 lm/W 14 lm/W 140 lm/W 143 lm/W 144 lm/W 145 lm/W 146 lm/W Amber, 187 lm/W Green, 46 lm/W Blue 148 lm/W 15 lm/W 151 lm/W 152 lm/W 156 lm/W 158 lm/W 159 lm/W 16 lm/W 162 lm/W 17 lm/W 171 lm/W 18 lm/W 184 lm/W 19 lm/W 191 lm/W 199 lm/W 2 lm/W 20 lm/W 21 lm/W 212 lm/W 22 lm/W 224 lm/W 23 lm/W 24 lm/W 25 lm/W 26 lm/W 27 lm/W 28 lm/W 29 lm/W 3 lm/W 30 lm/W 31 lm/W 31 lm/W Red, 31 lm/W Green, 31 lm/W Blue 31 lm/W Red, 40 lm/W Green, 7 lm/W Blue, 39 lm/W White 31 lm/W Red, 45 lm/W Green, 10 lm/W Blue, 48 lm/W White 32 lm/W 33 lm/W 33 lm/W Amber, 83 lm/W Green, 13 lm/W Blue 34 lm/W 34 lm/W Red, 29 lm/W Green, 7 lm/W Blue 34 lm/W Red, 43 lm/W Green, 18 lm/W Blue 35 lm/W 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W 36 lm/W 36 lm/W Red, 53 lm/W Green, 17 lm/W Blue 37 lm/W 38 lm/W 39 lm/W 39 lm/W Amber, 14 lm/W Blue, 42 lm/W Cyan, 54 lm/W Green, 44 lm/W Red, 91 lm/W White 39 lm/W Red, 72 lm/W Green, 80 lm/W White 4 lm/W 40 lm/W 40 lm/W Red, 20 lm/W Green, 7 lm/W Blue 40 lm/W Red, 43 lm/W Green, 10 lm/W Blue 41 lm/W 41 lm/W Red, 51 lm/W Green, 14 lm/W Blue, 42 lm/W Amber, 39 lm/W Cyan, 102 lm/W Lime 42 lm/W 42 lm/W Amber, 10 lm/W Blue, 42 lm/W Cyan, 51 lm/W Green, 47 lm/W Red, 90 lm/W White 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 71 lm/W White, Neutral 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 89 lm/W White, Cool 42 lm/W Red, 67 lm/W Green, 13 lm/W Blue 42 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 179 lm/W White 42 lm/W Red, 75 lm/W Green, 182 lm/W White 43 lm/W 43 lm/W Red, 63 lm/W Green, 75 lm/W White 44 lm/W 44 lm/W Red, 62 lm/W Green, 77 lm/W White 45 lm/W 45 lm/W Red, 54 lm/W Green, 75 lm/W White 46 lm/W 47 lm/W 47 lm/W Red, 51 lm/W Green, 10 lm/W Blue, 79 lm/W White 47 lm/W Red, 53 lm/W Green, 13 lm/W Blue, 93 lm/W White 47 lm/W Red, 57.75 lm/W Green, 80 lm/W White 48 lm/W 48 lm/W Red, 53 lm/W Green, 76 lm/W White 49 lm/W 49 lm/W Amber 49 lm/W Red, 106 lm/W White 49 lm/W Red, 122 lm/W White 49 lm/W Red, 36 lm/W Green, 12 lm/W Blue 49 lm/W Red, 43 lm/W Green, 12 lm/W Blue, 49 lm/W Amber 49 lm/W Red, 64 lm/W Green 49 lm/W Red, 74 lm/W Green 49 lm/W Red, 74 lm/W Green, 122 lm/W White 49 lm/W Red, 74 lm/W Green, 126 lm/W White 49 lm/W Red, 74 lm/W Green, 70 lm/W Yellow 49 lm/W Red, 97 lm/W White 5 lm/W 50 lm/W 50 lm/W Red, 62 lm/W Green, 93 lm/W White 50 lm/W Red, 64 lm/W Green, 97 lm/W White 51 lm/W 51 lm/W Red, 74 lm/W Green, 109 lm/W White 52 lm/W 52 lm/W Red, 67 lm/W Green, 13 lm/W Blue, 79 lm/W White 53 lm/W 54 lm/W 54 lm/W Red, 76 lm/W Green, 20 lm/W Blue 55 lm/W 55 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White 56 lm/W 56 lm/W Amber, 55 lm/W Green 57 lm/W 58 lm/W 59 lm/W 6 lm/W 60 lm/W 60 lm/W Red, 86 lm/W Green, 127 lm/W White 61 lm/W 62 lm/W 63 lm/W 64 lm/W 65 lm/W 66 lm/W 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White 67 lm/W 68 lm/W 68 lm/W Red, 74 lm/W Green, 17 lm/W Blue 69 lm/W 69 lm/W Red, 53 lm/W Green, 12 lm/W Blue, 71 lm/W White 7 lm/W 70 lm/W 71 lm/W 71 lm/W Red, 80 lm/W Green, 17 lm/W Blue 71 lm/W Red, 98 lm/W Green, 20 lm/W Blue, 94 lm/W White 72 lm/W 73 lm/W 73 lm/W Red, 61 lm/W Green, 16 lm/W Blue, 102 lm/W White 74 lm/W 75 lm/W 75 lm/W Red, 59 lm/W Green, 13 lm/W Blue 75 lm/W Red, 65 lm/W Green, 12 lm/W Blue, 45 lm/W Amber 75 lm/W Red, 68 lm/W Green, 13 lm/W Blue, 85 lm/W White 76 lm/W 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White 77 lm/W 78 lm/W 79 lm/W 8 lm/W 80 lm/W 81 lm/W 82 lm/W 83 lm/W 84 lm/W 85 lm/W 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 83 lm/W White 86 lm/W 87 lm/W 88 lm/W 88 lm/W Red, 154 lm/W Green, 17 lm/W Blue, 133 lm/W White 88 lm/W Red, 154 lm/W Green, 17 lm/W Blue, 138 lm/W White 89 lm/W 9 lm/W 90 lm/W 91 lm/W 92 lm/W 93 lm/W 94 lm/W 95 lm/W 96 lm/W 97 lm/W 98 lm/W 99 lm/W	- 1.02A 1.05A 1.05A Red, 1.05A Green, 1.05A Blue 1.225A 1.2A 1.4A 1.5A 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White 1.75A Red, 1.75A Green, 1.75A Blue, 1.75A White 1.8A 10.5A 100mA 120mA 125mA 13.5A 14.0A 150mA 15mA 160mA Red, 160mA Green, 160mA Blue 175mA 180mA 18A 1A 1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White 1A Amber, 1A Green, 1A Blue 1A Red, 1.5A Green, 1.5A Blue, 1.5A White 1A Red, 1A Blue, 1A Green, 1A White 1A Red, 1A Green, 1A Blue 1A Red, 1A Green, 1A Blue, 1A Amber 1A Red, 1A Green, 1A Blue, 1A White 2.1A 2.2A 2.4A 2.5A 2.5A Red, 3A Green, 3A Blue, 1.5A Amber, 1A Cyan, 2.5A Lime 2.5A Red, 3A Green, 3A Blue, 3A White 2.5A Red, 3A Green, 3A Blue, 3A Yellow 200mA 20mA 240mA 250mA 250mA Red, 250mA Green, 250mA Blue 270mA 2A 2A Red, 2A Green, 2A Blue, 2A White 3.5A 300mA 300mA Red, 350mA Green, 350mA Blue 30mA 350mA 350mA Red, 350mA Green, 350mA Blue 350mA Red, 350mA Green, 350mA Blue, 350mA White 375mA 3A 4.2A 4.5A 4.8A 400mA 400mA Red, 400mA Green, 400mA Blue 450mA 480mA 4A 4A Red, 4A Green, 4A Blue, 4A White 500mA 500mA Amber, 500mA Blue 500mA Amber, 500mA Blue, 500mA Green 500mA Blue, 500mA Red 50mA 5A 5A Red, 5A Green, 5A Blue, 5A White 600mA 60mA 65mA 6A 700mA 700mA Deep Red, 700mA Red 700mA Red, 700mA Green, 700mA Blue 700mA Red, 700mA Green, 700mA Blue, 700mA White 70mA 70mA, 75mA 750mA 800mA 85mA 88mA 90mA	- 0.02lm (0.01lm ~ 0.04lm) 0.03lm (0.02lm ~ 0.04lm) 0.05lm (0.03lm ~ 0.06lm) 0.20lm (0.09lm ~ 0.30lm) 0.30lm (0.15lm ~ 0.48lm) 0.40lm (0.20lm ~ 0.60lm) 0.50lm (0.30lm ~ 0.60lm) 1.6mW 100lm 100lm (90lm ~ 110lm) 100lm (Typ) 100mW 100mW (40mW ~ 160mW) 100mW (Typ) 101lm (71lm ~ 130lm) 101lm (87lm ~ 114lm) 101lm (89lm ~ 112lm) 101mW (97mW ~ 104mW) 1025mW (800mW ~ 1250mW) 102lm (Typ) 1040mW (960mW ~ 1120mW) 1040mW (Typ) 104lm (100lm ~ 107lm) 1058mW (995mW ~ 1120mW) 105lm 105lm (100lm ~ 110lm) 105lm (97lm ~ 112lm) 105lm (Typ) 105mW (Typ) 106lm (82lm ~ 130lm) 107lm 107lm (Typ) 108lm (87lm ~ 130lm) 108lm (90lm ~ 125lm) 109lm (97lm ~ 121lm) 10lm (6lm ~ 13lm) 10mW (Typ) 1100mW (Typ) 110lm (Typ) 110mW (89mW ~ 130mW) 111lm (107lm ~ 114lm) 111lm (63lm ~ 159lm) 111lm (75lm ~ 146lm) 111mW (100mW ~ 122mW) 1130mW (960mW ~ 1300mW) 114lm 114lm (97lm ~ 130lm) 115lm (Typ) 115lm Red, 1310mW Blue, 318lm White 115lm Red, 1310mW Blue, 365lm White 115lm Red, 160lm Green, 30lm Blue, 190lm White 115lm Red, 160lm Green, 30lm Blue, 78lm Amber 115lm Red, 220lm Green, 1250mW Blue, 298lm White 115lm Red, 230lm Green, 1310mW Blue 115lm Red, 248lm Green, 1200mW Blue, 278lm White 115lm Red, 268lm Green, 1310mW Blue 115lm Red, 268lm Green, 1460mW Blue, 210lm Yellow 115lm Red, 268lm Green, 1460mW Blue, 365lm White 115lm Red, 268lm Green, 1460mW Blue, 377lm White 115lm Red, 290lm Green, 31lm Blue 115lm Red, 290lm White 115mW (85mW ~ 180mW) 115mW (Typ) 1168mW (1035mW ~ 1300mW) 116lm (82lm ~ 150lm) 117lm (104lm ~ 130lm) 118lm (114lm ~ 122lm) 118lm (Typ) 11lm (6lm ~ 15lm) 11lm (7lm ~ 15lm) 11lm (Typ) 11mW (Typ) 120lm (Typ) 122lm (Typ) 122lm Red, 216lm Green, 1321mW Blue, 302lm White 124lm (97lm ~ 150lm) 125mW 125mW (Typ) 1260mW (1120mW ~ 1400mW) 126lm (112lm ~ 140lm) 126lm (122lm ~ 130lm) 126lm (71lm ~ 180lm) 126lm (72lm ~ 180lm) 126lm Red, 230lm Green, 1310mW Blue, 290lm White 127lm (95lm ~ 159lm) 128mW (125mW ~ 130mW) 12lm (10lm ~ 14lm) 12lm (10lm ~ 15lm) 12lm (11lm ~ 14lm) 12lm (9lm ~ 15lm) 12lm (Typ) 130mW (80mW ~ 180mW) 1310mW Blue, 318lm White 131lm (112lm ~ 150lm) 131lm (121lm ~ 140lm) 131lm (82lm ~ 180lm) 132lm (Typ) 133lm Red, 160lm Green, 33lm Blue, 234lm White 1350lm (Typ) 1350mW (1300mW ~ 1400mW) 1350mW (900mW ~ 1800mW) 135lm (130lm ~ 139lm) 135mW (Typ) 136lm (121lm ~ 150lm) 137lm (Typ) 137lm Red, 316lm Green, 1770mW Blue, 375lm White 138lm (Typ) 139lm 139lm (97lm ~ 180lm) 13lm (10lm ~ 16lm) 13lm (11lm ~ 14lm) 13lm Red, 28lm Green, 8lm Blue 1400mW 140lm (100lm ~ 180lm) 140mW (100mW ~ 180mW) 143lm (106lm ~ 180lm) 143lm (121lm ~ 164lm) 143mW (121mW ~ 164mW) 143mW (130mW ~ 155mW) 144lm (130lm ~ 164lm) 145lm (127lm ~ 186lm) 1467.5mW (1300mW ~ 1650mW) 146lm (112lm ~ 180lm) 146lm (140lm ~ 152lm) 1470mW (1300mW ~ 1640mW) 147lm (130lm ~ 164lm) 148lm 14lm 14lm (10lm ~ 19lm) 14lm (12lm ~ 15lm) 14lm (13lm ~ 16lm) 14lm (Typ) 1500mW 150lm (Typ) 150mW (125mW ~ 175mW) 154lm (97lm ~ 210lm) 155lm (130lm ~ 180lm) 156lm 156mW 157lm (90lm ~ 224lm) 157mW (112mW ~ 201mW) 15lm (13lm ~ 16lm) 15lm (13lm ~ 17lm) 15lm (14lm ~ 16lm) 15lm (8lm ~ 21lm) 15lm (8lm ~ 22lm) 15lm (Typ) 160lm (Typ) 161lm (93lm ~ 228lm) 161mW (147mW ~ 175mW) 1625mW (1450mW ~ 1800mW) 164lm 1650mW (1500mW ~ 1800mW) 168lm (112lm ~ 224lm) 168lm Red, 365lm Green, 1820mW Blue, 458lm White 16lm (12lm ~ 20lm) 16lm (14lm ~ 18lm) 16lm (Typ) 170lm (Typ) 172lm 173lm (117lm ~ 228lm) 175lm (125lm ~ 224lm) 175lm (Typ) 176lm (112lm ~ 240lm) 1770mW 17lm (11lm ~ 22lm) 17lm (15lm ~ 19lm) 17lm (16lm ~ 17lm) 17lm (16lm ~ 18lm) 17lm (Typ) 1800mW (1590mW ~ 2010mW) 180lm 180lm (160lm ~ 200lm) 180lm (Typ) 184lm (Typ) 185lm (Typ) 185mW (180mW ~ 190mW) 187lm (164lm ~ 210lm) 188lm 18lm (12lm ~ 24lm) 18lm (14lm ~ 22lm) 18lm (15lm ~ 21lm) 18lm (Typ) 190mW 193mW (175mW ~ 210mW) 196lm 196lm Red, 420lm Green, 2100mW Blue, 533lm White 19lm 19lm (12lm ~ 26lm) 19lm (13lm ~ 24lm) 19lm (16lm ~ 21lm) 19lm (17lm ~ 20lm) 1lm (Typ) 2.7mW (2.4mW ~ 3mW) 2000mW (1600mW ~ 2400mW) 200lm (Typ) 200mW 2045mW (1590mW ~ 2500mW) 205lm (130lm ~ 280lm) 20lm (11lm ~ 28lm) 20lm (13lm ~ 27lm) 20lm (15lm ~ 24lm) 20lm (16lm ~ 25lm) 20lm (Typ) 21.5lm (Typ) 2100lm (Typ) 210lm (Typ) 210mW (190mW ~ 230mW) 215lm (145lm ~ 285lm) 215lm Red, 235lm Green, 56lm Blue, 360lm White 21lm (12lm ~ 30lm) 21lm (14lm ~ 28lm) 21lm (18lm ~ 24lm) 21lm (Typ) 220lm 220mW (200mW ~ 240mW) 2250mW (1750mW ~ 2750mW) 226mW (201mW ~ 250mW) 22lm (14lm ~ 31lm) 22lm (19lm ~ 24lm) 22lm (20lm ~ 23lm) 22lm (21lm ~ 23lm) 22lm (Typ) 230lm (180lm ~ 280lm) 230mW (210mW ~ 250mW) 23lm 23lm (13lm ~ 33lm) 23lm (15lm ~ 30lm) 23lm (18lm ~ 28lm) 23lm (21lm ~ 26lm) 23lm (22lm ~ 24lm) 23lm (Typ) 240lm 240lm (Typ) 240lm Red, 315lm Green, 89lm Blue, 240lm Amber 240mW (180mW ~ 330mW) 247lm (Typ) 24lm (15lm ~ 33lm) 24lm (16lm ~ 32lm) 24lm (18lm ~ 31lm) 24lm (20lm ~ 27lm) 24lm (21lm ~ 26lm) 24lm (Typ) 2500mW (2000mW ~ 3000mW) 250mW (230mW ~ 270mW) 250mW (Typ) 252mW (224mW ~ 280mW) 255lm Amber, 470lm Green, 116lm Blue 259lm (Typ) 25lm 25lm (12lm ~ 38lm) 25lm (19lm ~ 30lm) 25lm (20lm ~ 30lm) 25lm (21lm ~ 28lm) 25lm (22lm ~ 28lm) 25lm (23lm ~ 27lm) 25lm (24lm ~ 27lm) 25lm (Typ) 25lm Red, 25lm Green, 8lm Blue 25lm Red, 35lm Green, 8lm Blue 260mW 265mW (260mW ~ 270mW) 269mW (224mW ~ 315mW) 26lm (18lm ~ 33lm) 26lm (25lm ~ 27lm) 26lm (Typ) 275lm 275mW (250mW ~ 300mW) 27lm (18lm ~ 36lm) 27lm (21lm ~ 33lm) 27lm (24lm ~ 30lm) 27lm (24lm ~ 31lm) 27lm (26lm ~ 28lm) 27lm (Typ) 280lm 285lm (260lm ~ 310lm) 285mW (230mW ~ 380mW) 288mW (275mW ~ 300mW) 28lm (Typ) 2900mW (2000mW ~ 3800mW) 290lm (Typ) 290mW (270mW ~ 310mW) 29lm (18lm ~ 39lm) 29lm (18lm ~ 40lm) 29lm (22lm ~ 36lm) 29lm (24lm ~ 33lm) 29lm (25lm ~ 32lm) 29lm (27lm ~ 31lm) 29lm (28lm ~ 30lm) 29lm (Typ) 2lm (Typ) 2mW (Typ) 300lm 300lm (210lm ~ 390lm) 300lm Red, 300lm Green, 300lm Blue 300mW Deep Red, 70lm Red 303mW (250mW ~ 355mW) 305lm (Typ) 305mW (260mW ~ 350mW) 30lm (21lm ~ 39lm) 30lm (25lm ~ 35lm) 30lm (Typ) 30lm Red, 46lm Green, 10lm Blue 30lm Red, 50lm Green, 20lm Blue 3100mW (2400mW ~ 3800mW) 313mW (275mW ~ 350mW) 313mW (300mW ~ 325mW) 317mW (200mW ~ 440mW) 31lm (22lm ~ 40lm) 31lm (23lm ~ 39lm) 31lm (Typ) 31lm Red, 67lm Green, 8lm Blue, 100lm White 31lm Red, 67lm Green, 8lm Blue, 80lm White 320lm 320lm Red, 425lm Green, 120lm Blue 320lm Red, 740lm Green, 110lm Blue, 590lm White 320lm Red, 820lm Green, 150lm Blue, 730lm White 320mW 325mW (250mW ~ 400mW) 325mW (300mW ~ 350mW) 32lm (18lm ~ 45lm) 32lm (24lm ~ 39lm) 32lm (24lm ~ 40lm) 32lm (Typ) 330lm (Typ) 330mW (225mW ~ 435mW) 330mW (310mW ~ 350mW) 337lm (224lm ~ 450lm) 338mW (325mW ~ 350mW) 33lm (21lm ~ 45lm) 33lm (31lm ~ 35lm) 33lm (Typ) 33mW (15mW ~ 50mW) 340lm Red, 390lm Green, 89lm Blue, 525lm White 340mW (280mW ~ 400mW) 345lm (Typ) 34lm (26lm ~ 43lm) 34lm (28lm ~ 39lm) 34lm (30lm ~ 37lm) 34lm (Typ) 350lm 350mW (300mW ~ 400mW) 350mW (330mW ~ 430mW) 350mW (330mW ~ 480mW) 350mW (Typ) 355mW (275mW ~ 435mW) 358mW (315mW ~ 400mW) 35lm 35lm (24lm ~ 45lm) 35lm (27lm ~ 42lm) 35lm (31lm ~ 40lm) 35lm (Typ) 35lm Red, 57lm Green, 13lm Blue 35lm Red, 75lm Green, 15lm Blue 35lm Red, 75lm Green, 15lm Blue, 200lm Blue 3600mW (Typ) 360lm 363mW (350mW ~ 375mW) 3650mW (2800mW ~ 4500mW) 365lm (285lm ~ 445lm) 365mW (280mW ~ 450mW) 36lm (27lm ~ 45lm) 36lm (Typ) 370mW (350mW ~ 390mW) 375mW (Typ) 37lm 37lm (21lm ~ 52lm) 37lm (28lm ~ 45lm) 37lm (30lm ~ 48lm) 37lm (35lm ~ 39lm) 37lm (Typ) 380lm 383mW (315mW ~ 450mW) 388mW (350mW ~ 425mW) 38lm (24lm ~ 52lm) 38lm (33lm ~ 42lm) 38lm (35lm ~ 40lm) 38lm (Typ) 390lm (280lm ~ 500lm) 390lm (Typ) 393mW (360mW ~ 425mW) 395mW (275mW ~ 515mW) 39lm (26lm ~ 52lm) 39lm (33lm ~ 45lm) 39lm (Typ) 3lm 3lm (Typ) 400lm 400lm (280lm ~ 520lm) 400lm (Typ) 400mW (Typ) 403mW (355mW ~ 450mW) 40lm 40lm (28lm ~ 52lm) 40lm (Typ) 40lm Red, 85lm Green, 22lm Blue 40mW (Typ) 410mW (280mW ~ 520mW) 410mW (390mW ~ 430mW) 413mW (400mW ~ 425mW) 41lm (Typ) 420lm 420mW (280mW ~ 560mW) 425mW (400mW ~ 450mW) 425mW (Typ) 42lm (24lm ~ 60lm) 42lm (39lm ~ 44lm) 42lm (39lm ~ 45lm) 42lm (Typ) 4350mW (4200mW ~ 4500mW) 435mW (355mW ~ 515mW) 438mW (425mW ~ 450mW) 43lm (24lm ~ 61lm) 43lm (33lm ~ 52lm) 43lm (40lm ~ 46lm) 43lm (Typ) 43lm Amber, 325mW Blue, 67lm Green 44lm (33lm ~ 54lm) 44lm (40lm ~ 48lm) 44lm (Typ) 450mW (430mW ~ 530mW) 456lm (356lm ~ 556lm) 458mW (355mW ~ 560mW) 45lm (28lm ~ 61lm) 45lm (33lm ~ 56lm) 45lm (Typ) 45mW (Typ) 463mW (450mW ~ 475mW) 46lm 46lm (36lm ~ 55lm) 46lm (39lm ~ 52lm) 46lm (40lm ~ 52lm) 46lm (Typ) 470lm (330lm ~ 610lm) 473mW (380mW ~ 565mW) 475lm 475mW (355mW ~ 595mW) 47lm (33lm ~ 60lm) 47lm (33lm ~ 61lm) 47lm (Typ) 480mW (400mW ~ 560mW) 488mW (475mW ~ 500mW) 48lm (24lm ~ 71lm) 48lm (40lm ~ 56lm) 48lm (42lm ~ 54lm) 48lm (Typ) 493lm Red, 800lm Green, 170lm Blue, 1453lm White 493mW (355mW ~ 630mW) 49lm (38lm ~ 60lm) 49lm (45lm ~ 52lm) 49lm (46lm ~ 52lm) 4lm (2lm ~ 5lm) 4lm (Typ) 500mW 505mW (450mW ~ 560mW) 506mW (480mW ~ 532mW) 50lm (39lm ~ 61lm) 50lm (40lm ~ 60lm) 50lm (Typ) 513mW (500mW ~ 525mW) 515lm (430lm ~ 600lm) 515mW (Typ) 51lm (42lm ~ 59lm) 51lm (Typ) 520lm (Typ) 520mW (450mW ~ 610mW) 520mW (Typ) 522lm (Typ) 525mW 52lm (33lm ~ 71lm) 52lm (Typ) 530mW (400mW ~ 560mW) 530mW (510mW ~ 550mW) 531mW (262mW ~ 800mW) 533mW (355mW ~ 710mW) 538mW (525mW ~ 550mW) 538mW (538mW ~ 550mW) 53lm (45lm ~ 61lm) 53lm (Typ) 540mW (450mW ~ 630mW) 54lm (40lm ~ 62lm) 54lm (40lm ~ 67lm) 54lm (52lm ~ 57lm) 54lm (67lm ~ 74lm) 54lm (Typ) 550mW (500mW ~ 600mW) 55lm (39lm ~ 71lm) 55lm (45lm ~ 65lm) 55lm (Typ) 55lm Red, 110lm Green, 22lm Blue, 105lm White 55lm Red, 95lm Green, 20lm Blue 563mW (550mW ~ 575mW) 565mW (500mW ~ 630mW) 56lm (48lm ~ 64lm) 56lm (52lm ~ 60lm) 56lm (Typ) 570mW (550mW ~ 590mW) 57lm (42lm ~ 71lm) 580mW (450mW ~ 710mW) 580mW (530mW ~ 705mW) 588mW (575mW ~ 600mW) 58lm (33lm ~ 82lm) 58lm (43lm ~ 73lm) 58lm (45lm ~ 71lm) 58lm (52lm ~ 87lm) 58lm (56lm ~ 60lm) 58lm (Typ) 58lm Amber, 210lm Green, 32lm Blue 58lm Amber, 345mW Blue 59lm (38lm ~ 79lm) 59lm (52lm ~ 66lm) 59lm (52lm ~ 67lm) 59lm (57lm ~ 62lm) 5lm (3lm ~ 7lm) 5lm (Typ) 5mW (Typ) 600mW (515mW ~ 685mW) 60lm (50lm ~ 70lm) 60lm (52lm ~ 87lm) 60lm (57lm ~ 62lm) 60lm (Typ) 613mW (600mW ~ 625mW) 61lm (39lm ~ 82lm) 61lm (50lm ~ 71lm) 62lm (50lm ~ 78lm) 62lm (52lm ~ 71lm) 62lm (52lm ~ 87lm) 62lm (54lm ~ 70lm) 62lm (60lm ~ 64lm) 62lm (Typ) 62lm Red, 133lm Green, 24lm Blue, 183nm White 62mW (Typ) 638mW (625mW ~ 650mW) 63lm (Typ) 64lm (45lm ~ 82lm) 64lm (56lm ~ 71lm) 64lm (56lm ~ 72lm) 64lm (60lm ~ 67lm) 64lm (Typ) 64mW 656mW (512mW ~ 800mW) 657lm (445lm ~ 868lm) 658mW (635mW ~ 680mW) 65lm (33lm ~ 97lm) 65lm (51.7lm ~ 87.4lm) 65lm (60lm ~ 70lm) 65lm (62lm ~ 67lm) 65lm (Typ) 65lm Red, 140lm Green, 17lm Blue, 135lm White 65lm Red, 140lm Green, 17lm Blue, 140lm White 660mW (600mW ~ 760mW) 663mW (650mW ~ 675mW) 668mW (600mW ~ 760mW) 66lm (61lm ~ 71lm) 675mW (450mW ~ 900mW) 67lm (50lm ~ 83lm) 67lm (52lm ~ 82lm) 67lm (Typ) 67lm Red, 101lm Green, 27lm Blue, 110lm White 67lm Red, 101lm Green, 27lm Blue, 90lm White 680lm (560lm ~ 800lm) 68lm (39lm ~ 97lm) 68lm (61lm ~ 76lm) 68lm Red, 168lm Green, 765mW Blue, 182lm White 68lm Red, 168lm Green, 865mW Blue, 182lm White 690mW (670mW ~ 710mW) 69lm (47lm ~ 90lm) 69lm (61lm ~ 76lm) 69mW (61mW ~ 76mW) 6lm (3lm ~ 8lm) 6lm (5lm ~ 7lm) 6lm (Typ) 705mW (680mW ~ 730mW) 70lm (40lm ~ 100lm) 70lm (52lm ~ 87lm) 70lm (Typ) 70lm Amber, 33lm Blue, 101lm Cyan, 140lm Green, 80lm Red, 900mW Violet, 210lm White 70mW 70mW (40mW ~ 100mW) 711mW (658mW ~ 763mW) 71lm (45lm ~ 97lm) 71lm (66lm ~ 76lm) 71lm (67lm ~ 74lm) 71lm (Typ) 72lm (61lm ~ 82lm) 72lm (Typ) 730mW (610mW ~ 930mW) 735mW (Typ) 73lm (Typ) 743mW (660mW ~ 825mW) 74lm 74lm (66lm ~ 82lm) 74lm (72lm ~ 76lm) 74lm (Typ) 755mW (730mW ~ 780mW) 75lm 75lm (52lm ~ 97lm) 75lm (70lm ~ 80lm) 75lm (71lm ~ 79lm) 75lm (Typ) 75lm Red, 155lm Green, 861mW Blue, 176lm White 768mW (710mW ~ 825mW) 76lm (24lm ~ 52lm) 76lm (39lm ~ 112lm) 76lm (52lm ~ 100lm) 76lm (61lm ~ 71lm) 76lm (Typ) 770lm Red, 925lm Green, 221lm Blue, 1605lm White 77lm (63lm ~ 90lm) 77lm (67lm ~ 87lm) 77lm (71lm ~ 82lm) 77lm (74lm ~ 81lm) 78lm (66lm ~ 89lm) 78lm (Typ) 79lm (45lm ~ 112lm) 79lm (61lm ~ 97lm) 79lm Red, 135lm Green, 765mW Blue, 182lm White 7lm (4lm ~ 9lm) 7lm (5lm ~ 8lm) 7lm (6lm ~ 8lm) 7lm (7lm ~ 8lm) 7lm (Typ) 800mW 80lm (71lm ~ 89lm) 80lm (75lm ~ 85lm) 80lm (Typ) 80lm Red, 155lm Green, 23lm Blue, 130lm White 80lm Red, 155lm Green, 23lm Blue, 145lm White 80lm Red, 155lm Green, 23lm Blue, 155lm White 80mW (130mW ~ 180mW) 80mW (Typ) 810mW (790mW ~ 830mW) 81lm 81lm (50lm ~ 112lm) 820mW (640mW ~ 1000mW) 825mW (800mW ~ 850mW) 82lm 82lm (52lm ~ 112lm) 82lm (76lm ~ 97lm) 82lm Red, 133lm Green, 24lm Blue, 183lm White 83lm (61lm ~ 104lm) 83lm (67lm ~ 100lm) 83lm (Typ) 84lm (71lm ~ 97lm) 84lm (81lm ~ 87lm) 84lm Red, 168lm Green, 765mW Blue, 182lm White 85lm (80lm ~ 90lm) 85lm (Typ) 85lm Red, 148lm Green, 30lm Blue, 190lm White 85mW (75mW ~ 121mW) 86lm (71lm ~ 100lm) 86lm (Typ) 87lm (61lm ~ 112lm) 87lm (76lm ~ 97lm) 88lm (80lm ~ 96lm) 88lm (85lm ~ 90lm) 890mW (870mW ~ 910mW) 89lm (59lm ~ 118lm) 8lm 8lm (5lm ~ 11lm) 8lm (Typ) 90lm (82lm ~ 97lm) 90lm (Typ) 91lm (87lm ~ 94lm) 925mW (890mW ~ 960mW) 92lm (71lm ~ 112lm) 93lm (90lm ~ 95lm) 94lm (Typ) 95lm (90lm ~ 100lm) 95lm (Typ) 95lm Red, 180lm Green, 42lm Blue, 140lm Amber, 135lm Cyan, 620lm Lime 95mW (65mW ~ 140mW) 965mW (900mW ~ 1030mW) 965mW (990mW ~ 1030mW) 96lm (61lm ~ 130lm) 96lm (80lm ~ 112 lm) 96lm (80lm ~ 112lm) 96lm Amber, 24lm Blue, 101lm Cyan, 133lm Green, 83lm Red, 900mW Violet, 208lm White 97lm (82lm ~ 112lm) 97lm (89lm ~ 104lm) 97lm (94lm ~ 100lm) 97lm Red (80lm ~ 114lm), 173lm Green (150lm ~ 195lm), 33lm Blue (25lm ~ 40lm), 200lm White (180lm ~ 220lm) 980mW (925mW ~ 1035mW) 998mW (960mW ~ 1035mW) 99lm (Typ) 9lm (5lm ~ 13lm) 9lm (6lm ~ 12lm) 9lm (7lm ~ 11lm) 9lm (7lm ~ 12lm) 9lm (Typ)	- 25°C 40°C 85°C	- 100° 105° 10° 110° 110° x 60° 113° 114° 115° 117° 118° 120° 120° Red, 120° Green, 120° Blue, 130° White 120° Red, 120° Green, 120° Blue, 130° Yellow 121° 122° 123° 124° 125° 126° 127° 128° 130° 135° 135° Red, 170° Green, 135° Blue 140° 145° 150° 155° 160° 162° 165° 170° 17° Red, 32° Green, 21° Blue 20° 25° 28° 30° 40° 45° 60° 60°, 90°, 120° 70° 76° 80° 90° 95°	- Surface Mount Surface Mount, Right Angle Through Hole	- 0404 (1010 Metric) 0505 (1313 Metric) 0606 (1616 Metric) 0705 (1713 Metric) 0707 (1919 Metric) 0806 (2016 Metric) 1008 (2520 Metric) 1008 (2721 Metric) 1009 (2622 Metric) 1010 (2525 Metric) 1108 (2720 Metric) 1113 (2835 Metric) 1211 (3228 Metric) 1212 (3030 Metric) 1218 (3246 Metric) 1313 (3333 Metric) 1411 (3528 Metric) 1414 (3535 Metric) 1515 (3838 Metric) 1616 (4040 Metric) 1716 (4240 Metric) 1812 (4532 Metric) 1816 (4540 Metric) 2-PLCC 2-SMD, Boomerang 2-SMD, Flat Lead 2-SMD, Gull Wing 2-SMD, Gull Wing Exposed Pad 2-SMD, J-Lead 2-SMD, No Lead 2-SMD, No Lead Exposed Pad 2020 (5050 Metric) 2212 (5630 Metric) 2318 (5847 Metric) 24-SMD Module, No Lead 2420 (6050 Metric) 2424 (6060 Metric) 2828 (7070 Metric) 3-SMD, No Lead 3026 (7767 Metric) 3529 (9073 Metric) 3535 (9090 Metric) 4-DIP (0.200, 5.08mm) 4-PLCC 4-SMD, Flat Lead Exposed Pad 4-SMD, Gull Wing 4-SMD, J-Lead 4-SMD, J-Lead Exposed Pad 6-PLCC 6-SMD 6-SMD, Flat Lead Exposed Pad 6-SMD, Flat Leads 6-SMD, Gull Wing 6-SMD, J-Lead 6-SMD, No Lead 6-SMD, No Lead Exposed Pad 8-SMD (7 Leads), Gull Wing 8-SMD Module 8-SMD, Gull Wing Exposed Pad 8-SMD, No Lead Exposed Pad Die Nonstandard SMD Radial Star Array TO-252-3, DPak (2 Leads + Tab), SC-63

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Color	Wavelength	Current-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	LuminousFlux@Current/Temperature	Temperature-Test	ViewingAngle	MountingType	Size/Dimension
XPEBPA-L1-R250-00D01 LED XLAMP XPE2 AMBER SMD CreeLED, Inc.	6,972	2.18	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Amber	-	350mA	2.94V	104 lm/W	1A	111lm (107lm ~ 114lm)	25°C	110°	Surface Mount	1414 (3535 Metric)
XEGABL-H2-0000-000-000000P3003 XLAMP XEG BLUE LED CreeLED, Inc.	7,943	2.18	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-	-	-	-	-
XEGABL-H2-0000-000-000000P3002 XLAMP XEG BLUE LED CreeLED, Inc.	8,801	2.18	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-	-	-	-	-
XEGARY-H2-0000-000-000000K4002 XLAMP XEG ROYAL BLUE LED CreeLED, Inc.	5,173	2.18	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-	-	-	-	-
XEGARY-H2-0000-000-000000K4003 XLAMP XEG ROYAL BLUE LED CreeLED, Inc.	9,465	2.18	RFQ		Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-	-	-	-	-
ASMT-JB31-NNP01 LED BLUE 465NM 3W Broadcom Limited	6,805	2.19	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Blue	465nm (455nm ~ 475nm)	350mA	3.2V	21 lm/W	700mA	24lm (18lm ~ 31lm)	25°C	165°	Surface Mount	6-SMD, Flat Lead Exposed Pad
XPERDO-L1-R250-00903 LED XLAMP XPE RED-ORG 618NM SMD CreeLED, Inc.	5,633	2.20	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Red-Orange	618nm (615nm ~ 620nm)	350mA	2.1V	114 lm/W	700mA	84lm (81lm ~ 87lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPERED-L1-R250-00702 LED XLAMP XPE RED 623NM SMD CreeLED, Inc.	7,747	2.20	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Red	623nm (620nm ~ 625nm)	350mA	2.1V	97 lm/W	700mA	71lm (67lm ~ 74lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XRCAMB-L1-R250-00K03 LED XLAMP XRC AMB 593NM SMD CreeLED, Inc.	6,840	2.23	RFQ		Tape & Reel (TR)	XLamp® XR-C	Active	Amber	593nm (590nm ~ 595nm)	350mA	2.2V	43 lm/W	350mA	33lm (31lm ~ 35lm)	25°C	90°	Surface Mount	3529 (9073 Metric)
XTEARY-02-0000-000000Q02 LED XLAMP XTE BLUE 455NM SMD CreeLED, Inc.	5,958	2.23	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XT-E	Active	Blue	455nm (450nm ~ 460nm)	350mA	2.85V	-	1.5A	613mW (600mW ~ 625mW)	85°C	140°	Surface Mount	1414 (3535 Metric)
XPEGRN-L1-R250-00E02 LED XLAMP XPE GREEN 525NM SMD CreeLED, Inc.	9,268	2.23	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Green	525nm (520nm ~ 530nm)	350mA	3.3V	102 lm/W	1A	118lm (114lm ~ 122lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEGRN-L1-R250-00E03 LED XLAMP XPE GREEN 530NM SMD CreeLED, Inc.	8,470	2.23	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Green	530nm (525nm ~ 535nm)	350mA	3.3V	102 lm/W	1A	118lm (114lm ~ 122lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEAMB-L1-R250-00803 LED XLAMP XPE AMB 593NM SMD CreeLED, Inc.	9,545	2.23	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Amber	593nm (590nm ~ 595nm)	350mA	2.1V	105 lm/W	500mA	77lm (74lm ~ 81lm)	25°C	130°	Surface Mount	1414 (3535 Metric)

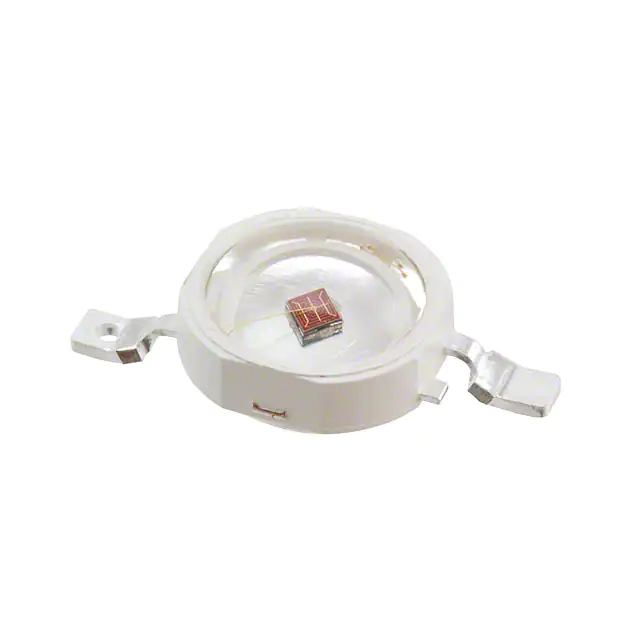

ASMT-AR00-ARS00 LED RED 628NM 1W 2SMD Broadcom Limited	7,318	2.24	RFQ	Datasheet	Tube	-	Last Time Buy	Red	628nm (620nm ~ 635nm)	350mA	2.1V	73 lm/W	500mA	54lm (40lm ~ 62lm)	25°C	140°	Surface Mount	2-SMD, Gull Wing Exposed Pad
ASMT-JG11-NUW01 LED GREEN 525NM 1W Broadcom Limited	7,953	2.24	RFQ	Datasheet	Tape & Reel (TR)	-	Active	Green	525nm (515nm ~ 535nm)	350mA	3.2V	96 lm/W	500mA	108lm (87lm ~ 130lm)	25°C	165°	Surface Mount	6-SMD, Flat Lead Exposed Pad
XPEAMB-L1-0000-00201 LED XLAMP XPE AMB 590NM SMD CreeLED, Inc.	7,811	2.24	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Amber	590nm (585nm ~ 595nm)	350mA	2.1V	58 lm/W	500mA	43lm (40lm ~ 46lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPEBBL-L1-0000-00303 LED XLAMP XPE2 BLUE SMD CreeLED, Inc.	5,197	2.24	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E2	Active	Blue	-	350mA	3.1V	45 lm/W	1A	49lm (46lm ~ 52lm)	25°C	135°	Surface Mount	1414 (3535 Metric)
LY CKBP-JYKX-36-1-350-R18-Z LED OSLON SIGNAL YLW 589NM SMD ams-OSRAM USA Inc.	7,552	2.26	RFQ		Tape & Reel (TR),Cut Tape (CT)	OSLON® Signal	Active	Yellow	589nm (583nm ~ 595nm)	350mA	2.25V	81 lm/W	1A	64lm (45lm ~ 82lm)	25°C	125°	Surface Mount	1212 (3030 Metric)
XPEAMB-L1-0000-00Z03 LED XLAMP XPE AMB 593NM SMD CreeLED, Inc.	7,172	2.26	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Amber	593nm (590nm ~ 595nm)	350mA	2.1V	52 lm/W	500mA	38lm (35lm ~ 40lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
XPERED-L1-0000-00202 LED XLAMP XPE RED SMD CreeLED, Inc.	8,202	2.26	RFQ	Datasheet	Tape & Reel (TR)	XLamp® XP-E	Active	Red	-	350mA	2.1V	59 lm/W	700mA	43lm (40lm ~ 46lm)	25°C	130°	Surface Mount	1414 (3535 Metric)
