Microphones - QTreeic

Manufacturer	Packaging	Series	ProductStatus	Type	OutputType	Direction	FrequencyRange	Sensitivity	S/NRatio	Impedance	Voltage-Rated	VoltageRange	Current-Supply	PortLocation	Ratings	Termination	Size/Dimension	Height(Max)
Analog Devices Inc. BeStar Technologies, Inc. BZBGEAR Cirrus Logic Inc. CUI Devices DB Unlimited Gettop Acoustics GMEMS Technologies Goertek Microelectronics Inc. Huizhou N Acoustics Co., Ltd Infineon Technologies International Components Corp. Intervox Knowles Mallory Sonalert Products Inc. MPD (Memory Protection Devices) onsemi Panasonic Electronic Components PUI Audio, Inc. RDI, Inc. Seltech Shure Soberton Inc. STMicroelectronics TDK InvenSense Technical Pro Vesper Technologies Inc.	- Bag Box Bulk Bulk,Box Cut Tape (CT) Cut Tape (CT),Digi-Reel® Sheet Tape & Box (TB) Tape & Reel (TR) Tape & Reel (TR),Cut Tape (CT) Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT),Digi-Reel®,Digi-Reel® Tray Tube	* - ADMP404 ADMP510 ADMP621 ADMP803 ANM AOM AOW AUM Automotive, AEC-Q103, XENSIV™ BCM BEM BJ BL BT BTM BTO BU BW BXTM CMC CMEJ CMM CS7250B CS7331P CU DFG DOM DUM EA EK EL EM FB FB-AW FB-BW FB-DO FB-DR FB-DW FB-EI FB-EM FB-FO FB-MU FG FG45 FI GA HBO High-SNR SiSonic™ SPK HM ICS-40212 ICS-40300 ICS-40310 ICS-40730 ICS-40740 ICS-41352 ICS-43434 ICS-51360 INMP401 INMP404 INMP405 INMP411 INMP421 INMP441 INMP504 INMP510 INMP521 INMP522 INMP621 MB MD MEO-627-02 MEO-94P-01 MEO-96P-04 MEOB-627PN-02-583 MMIC MQM MR MVA MW NR PMM PMO PMOF PNM PNR POM POW PUM QM ROM SDM SiSonic™ SiSonic™ SP SiSonic™ SPA SiSonic™ SPH SiSonic™ SPK SiSonic™ SPM SiSonic™ SPU SiSonic™ SPV SiSonic™ SPW SiSonic™, Zero-Height Mic™, SPA SiSonic™, Zero-Height Mic™, SPH SiSonic™, Zero-Height Mic™, SPV SMO SPM T3902 T3903 T4086 T5818 T5919 TC TD TM TNM TO TOM TOS TP VEK-F VEK-H Vesper VWP WM-034C WM-52B WM-54B WM-55A103 WM-55D103 WM-56A103 WM-60A WM-61A WM-61B WM-63GN WM-63PR WM-64C WM-64K WM-64M WM-64MN WM-64PN WM-65A103 WM-E15B WM7121PE WM7132PE WM7133L WM7211E WM7216E WM7230E WM7236E WP XENSIV™	Active Discontinued at Mosen Not For New Designs Obsolete	- Boom Electret Condenser Electret Condenser, Matched Set Magnetic MEMS (Silicon) Piezo Piezo MEMS	- Analog Analog, I²S, PDM Digital Digital, I²S Digital, PDM Digital, TDM	- Cardioid Noise Cancelling Omnidirectional Unidirectional	- 0 Hz ~ 8 kHz 1 kHz ~ 5.2 kHz 1 kHz ~ 5.3 kHz 1 kHz ~ 5.4 kHz 1 kHz ~ 6 kHz 1 kHz ~ 6.4 kHz 1 kHz ~ 7 kHz 10 Hz ~ 10 kHz 10 Hz ~ 10 MHz 10 kHz ~ 10 kHz 100 Hz ~ 1 kHz 100 Hz ~ 10 kHz 100 Hz ~ 100 kHz 100 Hz ~ 12 kHz 100 Hz ~ 15 kHz 100 Hz ~ 16 kHz 100 Hz ~ 2.4 kHz 100 Hz ~ 2.5 kHz 100 Hz ~ 20 kHz 100 Hz ~ 22 kHz 100 Hz ~ 300 Hz 100 Hz ~ 4 kHz 100 Hz ~ 4.05 kHz 100 Hz ~ 4.2 kHz 100 Hz ~ 4.25 kHz 100 Hz ~ 4.5 kHz 100 Hz ~ 4.7 kHz 100 Hz ~ 4.8 kHz 100 Hz ~ 5 kHz 100 Hz ~ 5.1 kHz 100 Hz ~ 5.2 kHz 100 Hz ~ 5.4 kHz 100 Hz ~ 5.5 kHz 100 Hz ~ 5.8 kHz 100 Hz ~ 6 kHz 100 Hz ~ 6.25 kHz 100 Hz ~ 6.4 kHz 100 Hz ~ 7 kHz 100 Hz ~ 7.2 kHz 100 Hz ~ 7.4 kHz 100 Hz ~ 7.9 kHz 100 Hz ~ 8 kHz 100 Hz ~ 8.5 kHz 100 Hz ~ 80 kHz 100 Hz ~ 9.5 kHz 15 Hz ~ 16 kHz 20 Hz ~ 10 kHz 20 Hz ~ 15 kHz 20 Hz ~ 16 kHz 20 Hz ~ 18 kHz 20 Hz ~ 20 kHz 20 Hz ~ 8 kHz 20 kHz ~ 20 kHz 200 Hz ~ 1 kHz 200 Hz ~ 10 kHz 200 Hz ~ 15 kHz 25 Hz ~ 16 kHz 25 Hz ~ 20 kHz 250 Hz ~ 10 kHz 28 Hz ~ 1 kHz 28 Hz ~ 20 kHz 280 Hz ~ 5 kHz 30 Hz ~ 10 kHz 30 Hz ~ 12 kHz 30 Hz ~ 15 kHz 300 Hz ~ 4 kHz 300 Hz ~ 4.3 kHz 300 Hz ~ 4.4 kHz 300 Hz ~ 4.5 kHz 300 Hz ~ 4.7 kHz 300 Hz ~ 5 kHz 300 Hz ~ 5.1 kHz 300 Hz ~ 5.2 kHz 300 Hz ~ 5.5 kHz 300 Hz ~ 5.7 kHz 300 Hz ~ 5.8 kHz 300 Hz ~ 6 kHz 300 Hz ~ 6.2 kHz 300 Hz ~ 7.3 kHz 32 Hz ~ 20 kHz 35 Hz ~ 1.5 kHz 35 Hz ~ 13 kHz 35 Hz ~ 15 kHz 35 Hz ~ 20 kHz 40 Hz ~ 10 kHz 40 Hz ~ 15 kHz 40 Hz ~ 15000 Hz 40 Hz ~ 20 kHz 40 Hz ~ 9 kHz 45 Hz ~ 15.5 kHz 45 Hz ~ 20 kHz 50 Hz ~ 10 kHz 50 Hz ~ 12 kHz 50 Hz ~ 15 kHz 50 Hz ~ 15000 Hz 50 Hz ~ 16 kHz 50 Hz ~ 16 MHz 50 Hz ~ 16000 Hz 50 Hz ~ 20 kHz 50 Hz ~ 4.5 kHz 50 Hz ~ 40 kHz 50 Hz ~ 5.3 kHz 50 Hz ~ 80 kHz 500 Hz ~ 10 kHz 500 Hz ~ 2 kHz 500 Hz ~ 4 kHz 500 Hz ~ 6 kHz 500 MHz ~ 2.5 GHz 55 Hz ~ 12 kHz 6 Hz ~ 20 kHz 60 Hz ~ 15 kHz 60 Hz ~ 20 kHz 62 Hz ~ 12 kHz 62 Hz ~ 12.5 kHz 62 Hz ~ 13 kHz 62 Hz ~ 15 kHz 7 Hz ~ 36 kHz 70 Hz ~ 15 kHz 70 Hz ~ 20 kHz 70 Hz ~ 9.5 kHz 75 Hz ~ 20 kHz 77 Hz ~ 20 kHz 80 Hz ~ 1 kHz 80 Hz ~ 10 kHz 80 Hz ~ 20 kHz 85 Hz ~ 10.6 kHz 85 Hz ~ 15 kHz 90 Hz ~ 16 kHz 95 Hz ~ 20 kHz	- -18dB ±3dB @ 94dB SPL -20dB ±3dB @ 94dB SPL -22dB ±3dB @ 94dB SPL -22dB ±4dB @ 94dB SPL -24dB ±1dB @ 94dB SPL -24dB ±3dB -24dB ±3dB @ 94dB SPL -25dB ±3dB -25dB ±3dB @ 94dB SPL -26 ±1dB @ 94dB SPL -26dB ±1dB -26dB ±1dB @ 94dB SPL -26dB ±3dB -26dB ±3dB @ 94dB SPL -26dB ±4dB @ 94dB SPL -27dB ±3dB -28dB ±1dB -28dB ±3dB -29dB ±1dB @ 94dB SPL -30dB ±3dB -32dB @ 94dB SPL -32dB ±10dB @ 94dB SPL -32dB ±1dB -32dB ±1dB @ 94dB SPL -32dB ±3dB -32dB ±3dB @ 94dB SPL -35dB ±1dB @ 94dB SPL -35dB ±2dB -35dB ±3dB -35dB ±3dB @ 110dB SPL -35dB ±3dB @ 115dB SPL -35dB ±3dB @ 94dB SPL -35dB ±4dB -35dB ±4dB @ 94dB SPL -36dB -36dB ±1dB @ 94dB SPL -36dB ±2dB @ 94dB SPL -36dB ±3dB -36dB ±3dB @ 115dB SPL -36dB ±3dB @ 94dB SPL -37.5dB ±1dB @ 94dB SPL -37dB ±1dB @ 94dB SPL -37dB ±3dB -37dB ±3dB @ 110dB SPL -37dB ±3dB @ 94dB SPL -37dB± 3dB @ 110dB SPL -38.5dB ±4dB @ 74dB SPL -38dB -38db ±1dB -38db ±1dB @ 127dB -38db ±1dB @ 136dB -38dB ±1dB @ 94dB SPL -38dB ±2dB @ 94dB SPL -38dB ±3dB -38dB ±3dB @ 94dB SPL -38dB±1dB -39dB ± 3dB @ 94dB SPL -39dB ±2dB @ 94dB SPL -39dB ±4dB @ 94dB SPL -40dB -40dB ±1dB @ 130dB SPL -40dB ±2dB -40dB ±2dB @ 94dB SPL -40dB ±3dB -40dB ±3dB @ 100dB SPL -40dB ±3dB @ 94dB SPL -41dB ±1dB @ 94dB SPL -41dB ±3dB @ 94dB SPL -42dB -42dB ±1dB -42dB ±1dB @ 94dB SPL -42dB ±2dB -42dB ±2dB @ 94dB SPL -42dB ±3dB -42dB ±3dB @ 110dB SPL -42dB ±3dB @ 120dB SPL -42dB ±3dB @ 94dB SPL -42dB ±4dB @ 94dB SPL -43dB -43dB ±1dB @ 94dB SPL -43dB ±5dB -43dB ±5dB @ 94dB SPL -44dB -44dB ±0.5dB SPL -44dB ±1dB @ 94dB SPL -44dB ±2dB -44dB ±2dB @ 94dB SPL -44dB ±3dB -44dB ±3dB @ 110dB SPL -44dB ±3dB @ 120dB SPL -44dB ±3dB @ 94dB SPL -45dB ±2dB -45dB ±2dB @ 94dB SPL -45dB ±3dB -45dB ±3dB @ 120dB SPL -45dB ±3dB @ 94dB SPL -45dB ±4dB -45dB ±4dB @ 94dB SPL -46dB ±2dB @ 94dB SPL -46dB ±3dB -46dB ±3dB @ 120dB SPL -46dB ±3dB @ 94dB SPL -46dB ±4dB -47dB ±3dB -47dB ±3dB @ 94dB SPL -47dB ±4dB -47dB ±4dB @ 94dB SPL -48dB ±2dB @ 94dB SPL -48dB ±3dB -48dB ±3dB @ 74dB SPL -49dB ±3dB -49dB ±3dB @ 74dB SPL -50dB ±3dB -50dB ±3dB @ 74dB SPL -50dB ±4dB -50dB ±4dB @ 74dB SPL -50dB ±4dB @ 94dB SPL -51dB ±3dB @ 74dB SPL -51dB ±4dB -51dB ±4dB @ 74dB SPL -51dB ±4dB @ 94dB SPL -52.5dB ±2dB @ 74dB SPL -52.5dB ±4dB @ 74dB SPL -52.5dB ±4dB @74dB SPL -52dB ±1dB @ 74dB SPL -52dB ±2dB @ 74dB SPL -52dB ±3dB @ 74dB SPL -52dB ±4dB @ 74dB SPL -53.5dB ±3dB @ 74dB SPL -53dB -53dB +2dB, -4dB @ 74dB SPL -53dB ±2dB -53dB ±2dB @ 74dB SPL -53dB ±3dB -53dB ±3dB @ 74dB SPL -54.5dB +2dB, -4dB @ 74dB SPL -54.5dB ±3dB @ 74dB SPL -54.5dB ±4dB @ 74dB SPL -54dB ±2dB @ 74dB SPL -54dB ±3dB -54dB ±3dB @ 74dB SPL -54dB ±3dB @ 94dB SPL -54dB ±4dB -54dB ±4dB @ 94dB SPL -55.5dB ±3dB @ 74dB SPL -55dB ±2dB @ 74dB SPL -55dB ±3dB @ 74dB SPL -55dB ±4dB @ 74dB SPL -56.5dB ±3dB @ 74dB SPL -56.5dB ±3dB @74dB SPL -56dB -56dB ±2dB @ 74dB SPL -56dB ±3dB @ 74dB SPL -56dB ±4dB @ 74dB SPL -57.5dB ±3dB @ 74dB SPL -57dB ±2dB @ 74dB SPL -57dB ±3dB -57dB ±3dB @ 74dB SPL -57dB ±4dB @ 74dB SPL -57dB ±5dB @ 74dB SPL -58.5dB ±3dB @ 74dB SPL -58.5dB ±4dB @ 74dB SPL -58dB +2dB, -4dB @ 74dB SPL -58dB ±3dB -58dB ±3dB @ 74dB SPL -58dB ±4dB @ 74dB SPL -59.5dB ±3dB @ 74dB SPL -59.5dB ±4dB -59.5dB ±4dB @ 74dB SPL -59dB +4dB, -3dB @ 74dB SPL -59dB ±2.5dB @ 74dB SPL -59dB ±3dB @ 74dB SPL -59dB ±4dB @ 74dB SPL -60dB +2dB, -5dB @ 74dB SPL -60dB ±2.5dB @ 74dB SPL -60dB ±3dB -60dB ±3dB @ 100dB SPL -60dB ±3dB @ 74dB SPL -60dB ±4dB @ 74dB SPL -61.5dB ±1.5dB @ 74dB SPL -61dB +3dB, -4dB @ 74dB SPL -61dB ±3dB @ 74dB SPL -61dB ±4dB @ 74dB SPL -62dB ±4dB @ 74dB SPL -63.5dB ±3dB @ 74dB SPL -63dB ±3dB @ 74dB SPL -64.5dB ±3dB @ 74dB SPL -64dB ±3dB -64dB ±3dB @ 74dB SPL -69dB ±3dB @ 74dB SPL -69dB ±4dB @ 74dB SPL -71dB ±2dB @ 74dB SPL -71dB ±3dB -72dB ±3dB -72dB ±3dB @ 74dB SPL -73dB ±3dB @ 74dB SPL -75.5dB ±3dB @ 74dB SPL -75dB ±2.5dB @ 74dB SPL -87.5dB ±3dB @ 74dB SPL -87dB ±5dB @ 74dB SPL -90dB ±5dB @ 74dB SPL -93.5dB ±5.5dB @ 74dB SPL 12.5mV/Pa	- 25dB 36dB 38dB 40dB 45dB 48dB 50dB 55dB 56dB 57.5dB 57dB 58dB 59dB 60dB 61.5dB 61dB 62.5dB 62.6dB 62dB 63dB 64.3dB 64.5dB 64dB 65.5dB 65dB 66.5dB 66dB 67dB 68.5dB 68dB 69dB 70dB 71dB 72dB 73dB 74dB 75dB 76dB 77dB 78dB 80dB	- 1 kOhms 1.5 kOhms 1.7 kOhms 1.8 kOhms 100 Ohms 12 kOhms 13 kOhms 150 Ohms 170 Ohms 2 kOhms 2.2 kOhms 2.34 kOhms 2.5 kOhms 2.8 kOhms 2.9 kOhms 200 Ohms 250 Ohms 3 kOhms 3.5 kOhms 3.75 kOhms 3.8 kOhms 3.9 kOhms 300 Ohms 310 Ohms 315 Ohms 350 Ohms 355 Ohms 380 Ohms 4 kOhms 4.4 kOhms 4.5 kOhms 400 Ohms 450 Ohms 5.2 kOhms 5.25 kOhms 5.5 kOhms 500 Ohms 55 Ohms 6.9 kOhms 60 Ohms 600 Ohms 680 Ohms 700 Ohms 75 Ohms 750 Ohms	- 1 V 1.1 V 1.3 V 1.5 V 1.8 V 10 V 2 V 2.1 V 2.2 V 2.5 V 2.6 V 2.7 V 2.75 V 3 V 4.5 V 5 V 9 V 900 mV 930 mV	- 0 V ~ 10 V 0.3 V ~ 3.6 V 0.9 V ~ 1.3 V 0.9 V ~ 1.6 V 0.9 V ~ 1.9 V 0.9 V ~ 10 V 0.9 V ~ 3 V 1 V ~ 10 V 1 V ~ 12 V 1.1 V ~ 10 V 1.3 V ~ 1.6 V 1.3 V ~ 10 V 1.3 V ~ 3 V 1.5 V ~ 10 V 1.5 V ~ 3.3 V 1.5 V ~ 3.6 V 1.5 V ~ 3.63 V 1.5 V ~ 3.7 V 1.5 V ~ 5.5 V 1.5 V ~ 9 V 1.52 V ~ 3 V 1.52 V ~ 3.6 V 1.52 V ~ 3.63 V 1.6 V ~ 1.9 V 1.6 V ~ 3.3 V 1.6 V ~ 3.6 V 1.62 V ~ 1.98 V 1.62 V ~ 2 V 1.62 V ~ 3.6 V 1.62 V ~ 3.63 V 1.64 V ~ 3.6 V 1.64 V ~ 3.7 V 1.65 V ~ 1.98 V 1.65 V ~ 3.6 V 1.65 V ~ 3.63 V 1.71 V ~ 1.98 V 1.8 V ~ 3.3 V 1.9 V ~ 3 V 105 V ~ 3.6 V 2 V ~ 10 V 2.1 V ~ 3.6 V 2.3 V ~ 3.6 V 2.5 V ~ 10 V 2.5 V ~ 5.5 V 2.6 V ~ 3 V 3 V ~ 10 V 4.5 V ~ 10 V 5 V ~ 5 V 9 V ~ 10 V	- 0.2 mA 0.3 mA 0.5 mA 1 A 1 mA 1.025 mA 1.12 mA 1.2 mA 1.3 mA 1.4 mA 1.5 mA 1.6 mA 1.675 mA 10 mA 10 µA 100 µA 110 µA 115 µA 120 µA 140 µA 150 mA 150 µA 155 µA 160 µA 165 µA 17 µA 170 µA 175 µA 180 µA 185 µA 190 µA 2 mA 200 µA 220 µA 225 µA 240 µA 248 µA 25 µA 250 µA 260 µA 270 µA 285 µA 29 µA 300 µA 325 µA 350 µA 370 µA 375 µA 39 mA 40 µA 400 µA 450 µA 5 mA 5 µA 50 µA 500 mA 500 µA 540 µA 55 µA 550 µA 590 µA 60 µA 600 µA 640 µA 650 µA 670 µA 700 µA 725 µA 730 µA 735 µA 75 µA 750 µA 775 µA 80 µA 800 µA 850 µA 860 µA 90 µA 95 µA 980 µA	- Bottom Bottom, Side Bottom, Top Side Side, Top Top	- IP50 - Dust Protection IP54 - Dust Protected, Water Resistant IP57 - Dust Protected, Waterproof IP65 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof IP68 - Dust Tight, Waterproof Waterproof	- PC Pins Pressure Contact Screw Terminals SMD Reflow Solder Pads Solderless (Bullseye) Surface Mount Wire Leads Wire Leads with Connector	- 0.090 L x 0.050 W (2.30mm x 1.40mm) 0.098 L x 0.063 W (2.50mm x 1.60mm) 0.101 Dia (2.56mm) 0.101 Dia (2.57mm) 0.108 L x 0.073 W (2.75mm x 1.85mm) 0.114 L x 0.108 W (2.90mm x 2.76mm) 0.118 (3.00mm) Dia 0.118 Dia (3.00mm) 0.118 L x 0.079 W (3.00mm x 2.00mm) 0.118 L x 0.157 W (3.00mm x 4.00mm) 0.122 L x 0.098 W (3.10mm x 2.50mm) 0.122 L x 0.104 W (3.10mm x 2.65mm) 0.130 Dia (3.30mm) 0.130 L x 0.097 W (3.31mm x 2.46mm) 0.132 L x 0.098 W (3.35mm x 2.50mm) 0.138 L x 0.079 W (3.50mm x 2.00mm) 0.138 L x 0.104 W (3.50mm x 2.65mm) 0.141 L x 0.141 W (3.57mm x 3.57mm) 0.142 L x 0.098 W (3.60mm x 2.50mm) 0.144 L x 0.112 W (3.66mm x 2.85mm) 0.148 L x 0.088 W (3.76mm x 2.24mm) 0.148 L x 0.116 W (3.76mm x 2.95mm) 0.148 L x 0.118 W (3.76mm x 3.00mm) 0.157 Dia (4.00mm) 0.157 L x 0.079 W (4.00mm x 2.00mm) 0.157 L x 0.104 W (4.00mm x 2.65mm) 0.157 L x 0.118 W (4.00mm x 3.00mm) 0.172 L x 0.141 W (4.37mm x 3.58mm) 0.177 Dia (4.50mm) 0.177 L x 0.177 W (4.50mm x 4.50mm) 0.181 Dia (4.60mm) 0.185 Dia (4.70mm) 0.186 L x 0.148 W (4.72mm x 3.76mm) 0.197 Dia (5.00mm) 0.197 L x 0.165 W (5.00mm x 4.20mm) 0.219 L x 0.157 W (5.56mm x 3.99mm) 0.228 Dia (5.80mm) 0.236 (5.90mm) Height 0.236 Dia (6.00mm) 0.242 L x 0.148 W (6.15mm x 3.76mm) 0.276 Dia (7.00mm) 0.295 Dia (7.50mm) 0.301 L x 0.141 W (7.65mm x 3.58mm) 0.303 Dia (7.70mm) 0.310 L x 0.218 W (7.87mm x 5.54mm) 0.310 L x 0.220 W (7.87mm x 5.59mm) 0.315 Dia (8.00mm) 0.335 L x 0.335 W (8.50mm x 8.50mm) 0.339 Dia (8.60mm) 0.340 Dia (8.64mm) 0.368 L x 0.138 W (9.35mm x 3.50mm) 0.370 Dia (9.40mm) 0.382 Dia (9.70mm) 0.394 Dia (10.00mm) 0.402 Dia (10.20mm) 0.461 Dia (11.70mm) 0.500 Dia (12.70mm) 0.551 Dia (14.00mm) 0.630 Dia (16.00mm) 0.634 (16.10mm) 0.709 Dia (18.00mm) 0.748 Dia (19.00mm) 0.871 Dia (22.12mm) 0.984 Dia (25.00mm) 18.900 L x 9.500 W (480.06mm x 241.30mm) 19.000 L x 9.500 W (482.60mm x 241.30mm) 2.000 L x 2.000 W (50.80mm x 50.80mm) 4.000 L x 1.250 W (101.60mm x 31.75mm) 4.331 L x 2.874 W (110.00mm x 73.00mm) 5.500 L x 5.300 W (138.70mm x 134.62mm) 6.000 L x 4.000 W (152.40mm x 101.60mm) 8.000 L x 5.000 W (203.20mm x 127.00mm) 8.860 L x 7.480 W (225.04mm x 189.99mm) 9.200 L x 9.200 W (233.68mm x 233.68mm)	- 0.033 (0.85mm) 0.035 (0.88mm) 0.035 (0.90mm) 0.037 (0.95mm) 0.038 (0.98mm) 0.039 (0.98mm) 0.039 (0.99mm) 0.039 (1.00mm) 0.041 (1.05mm) 0.042 (1.06mm) 0.043 (1.08mm) 0.043 (1.10mm) 0.045 (1.15mm) 0.046 (1.16mm) 0.047 (1.20mm) 0.049 (1.25mm) 0.050 (1.26mm) 0.051 (1.30mm) 0.053 (1.35mm) 0.054 (1.38mm) 0.055 (1.40mm) 0.059 (1.50mm) 0.061 (1.55mm) 0.063 (1.60mm) 0.065 (1.65mm) 0.067 (1.70mm) 0.068 (1.73mm) 0.070 (1.77mm) 0.071 (1.80mm) 0.073 (1.85mm) 0.075 (1.90mm) 0.079 (2.00mm) 0.087 (2.20mm) 0.089 (2.26mm) 0.090 (2.28mm) 0.090 (2.29mm) 0.091 (2.30mm) 0.094 (2.40mm) 0.096 (2.45mm) 0.098 (2.50mm) 0.101 (2.56mm) 0.101 (2.57mm) 0.102 (2.60mm) 0.106 (2.70mm) 0.108 (2.74mm) 0.114 (2.90mm) 0.116 (2.95mm) 0.118 (3.00mm) 0.126 (3.20mm) 0.127 (3.22mm) 0.130 (3.30mm) 0.134 (3.40mm) 0.138 (3.50mm) 0.142 (3.60mm) 0.146 (3.70mm) 0.150 (3.80mm) 0.157 (4.00mm) 0.160 (4.06mm) 0.161 (4.10mm) 0.163 (4.13mm) 0.167 (4.24mm) 0.177 (4.50mm) 0.183 (4.65mm) 0.185 (4.70mm) 0.186 (4.72mm) 0.197 (5.00mm) 0.203 (5.15mm) 0.204 (5.17mm) 0.205 (5.20mm) 0.207 (5.25mm) 0.213 (5.40mm) 0.217 (5.50mm) 0.224 (5.70mm) 0.244 (6.20mm) 0.245 (6.22mm) 0.256 (6.50mm) 0.260 (6.60mm) 0.264 (6.70mm) 0.272 (6.90mm) 0.276 (7.00mm) 0.299 (7.60mm) 0.300 (7.62mm) 0.340 (8.64mm) 0.366 (9.30mm) 0.945 (24.00mm) 1.008 (25.60mm) 1.500 (38.10mm) 1.700 (43.18mm) 1.750 (44.45mm) 14.000 (355.60mm) 14.170 (359.92mm) 6.000 (152.40mm) 6.700 (170.18mm) 9.000 (228.60mm)

Reset All

Apply All

Results:

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	Direction	FrequencyRange	Sensitivity	S/NRatio	Impedance	Voltage-Rated	VoltageRange	Current-Supply	PortLocation	Ratings	Termination	Size/Dimension	Height(Max)

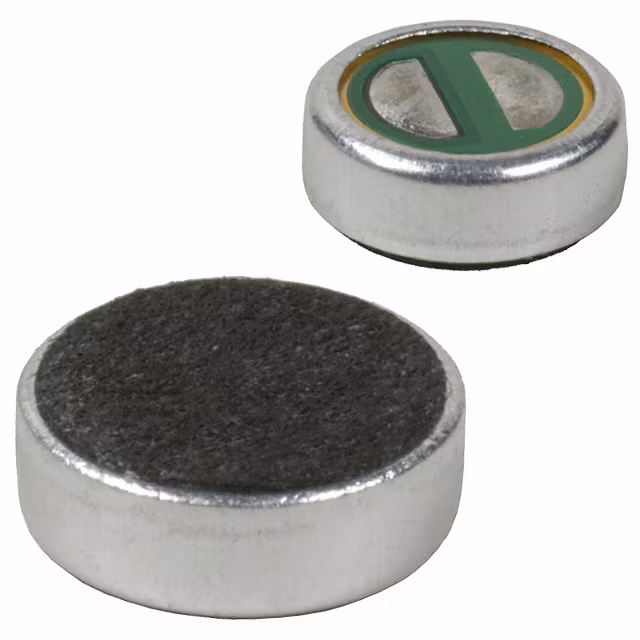

MB6022ASC-1L MIC COND ANALOG OMNI -42DB 6MM D Knowles	3,488	RFQ	Datasheet	Bulk	MB	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-42dB ±3dB @ 94dB SPL	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.094 (2.40mm)

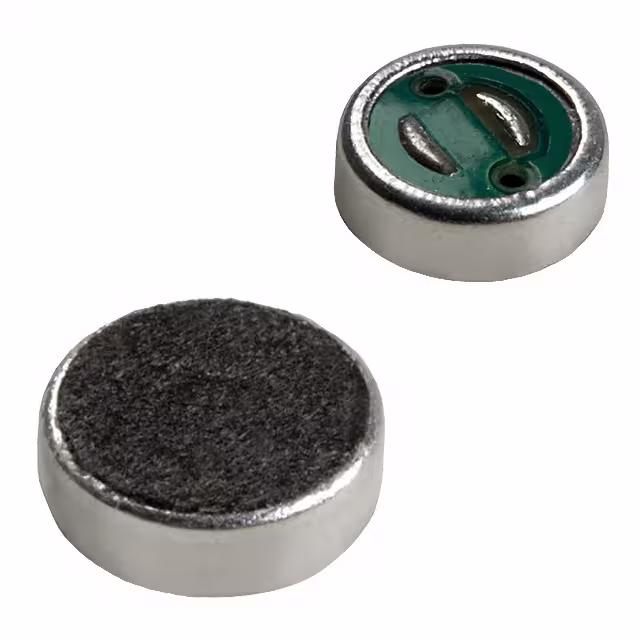

MB6022NSC-2 MIC COND ANALOG NC -44DB 6MM D Knowles	2,404	RFQ	Datasheet	Bulk	MB	Obsolete	Electret Condenser	Analog	Noise Cancelling	100 Hz ~ 10 kHz	-44dB ±3dB @ 94dB SPL	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.094 (2.40mm)

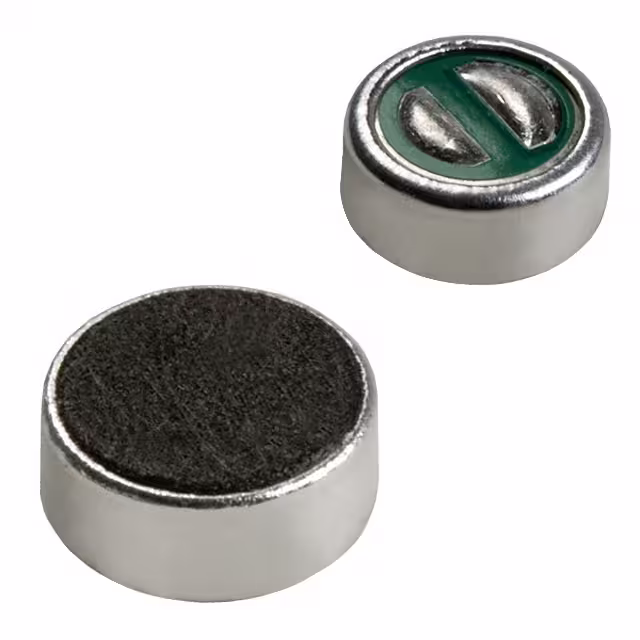

MB6027ASC-1L MIC COND ANALOG OMNI -42DB 6MM D Knowles	3,558	RFQ	Datasheet	Bulk	MB	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-42dB ±3dB @ 94dB SPL	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.114 (2.90mm)
MB6027USC-3 MIC COND ANALOG UNI -47DB 6MM D Knowles	2,576	RFQ	Datasheet	Bulk	MB	Obsolete	Electret Condenser	Analog	Unidirectional	100 Hz ~ 10 kHz	-47dB ±3dB @ 94dB SPL	50dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.114 (2.90mm)
MB6052ASC-1 MIC COND ANALOG OMNI -42DB 6MM D Knowles	2,204	RFQ	Datasheet	Bulk	MB	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-42dB ±3dB @ 94dB SPL	60dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.213 (5.40mm)
MB9750USB-4 MIC COND ANLG UNI -47DB 9.7MM D Knowles	3,295	RFQ	Datasheet	Bulk	MB	Obsolete	Electret Condenser	Analog	Unidirectional	100 Hz ~ 10 kHz	-47dB ±3dB @ 94dB SPL	55dB	2.2 kOhms	1.5 V	1.5 V ~ 10 V	500 µA	Top	-	Solder Pads	0.382 Dia (9.70mm)	0.205 (5.20mm)

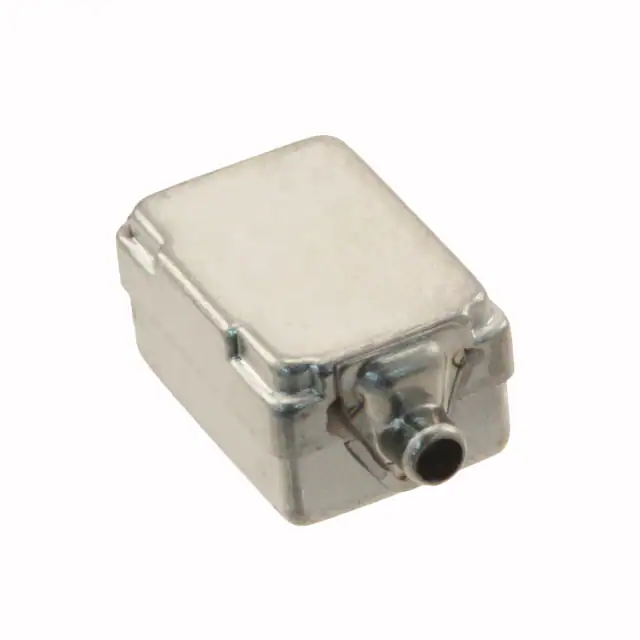

BL-21671-140 MICROPHONE PIEZO ANALOG OMNI Knowles	3,864	RFQ	Datasheet	Bulk	BL	Obsolete	Piezo	Analog	Omnidirectional	100 Hz ~ 2.5 kHz	-54.5dB ±3dB @ 74dB SPL	-	13 kOhms	1.3 V	-	50 µA	Side	-	Solder Pads	0.310 L x 0.218 W (7.87mm x 5.54mm)	0.163 (4.13mm)

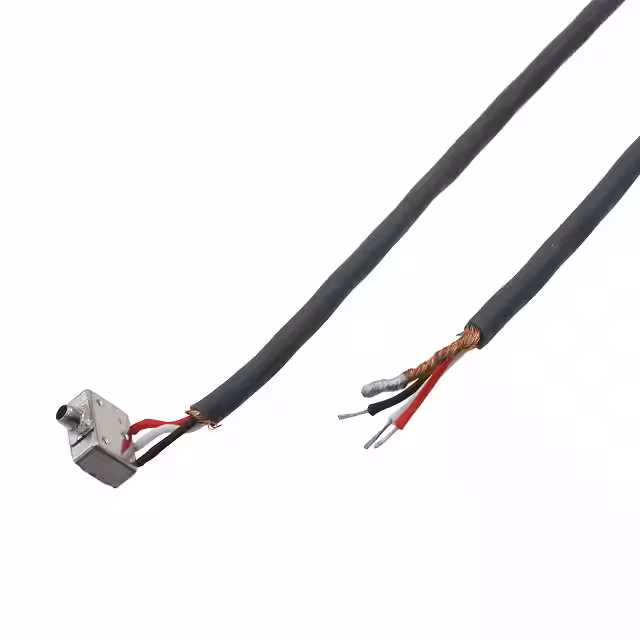

EK-23024-P07 MICROPHONE COND ANALOG OMNI Knowles	3,434	RFQ	Datasheet	Bulk	EK	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-53dB ±2dB @ 74dB SPL	-	4.4 kOhms	1.3 V	1.3 V ~ 10 V	50 µA	Side	-	Wire Leads	0.219 L x 0.157 W (5.56mm x 3.99mm)	0.089 (2.26mm)

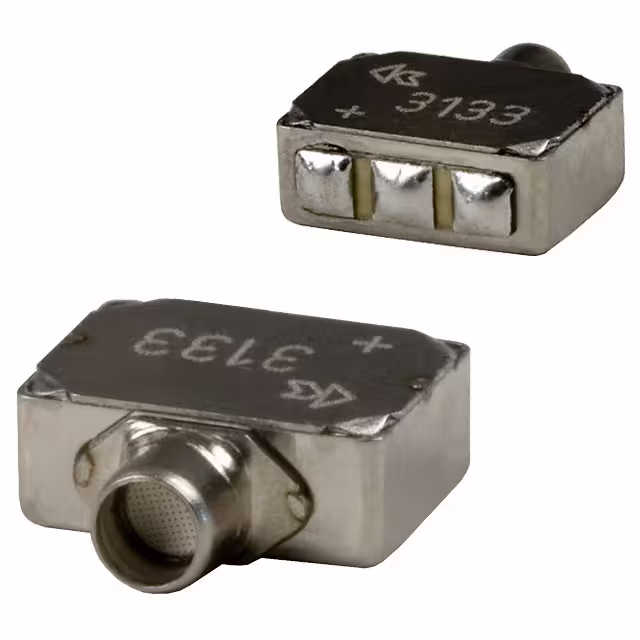

EK-23133-C36 MICROPHONE COND ANALOG OMNI Knowles	3,576	RFQ	Datasheet	Bulk	EK	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-53dB ±2dB @ 74dB SPL	-	4.4 kOhms	1.3 V	1.3 V ~ 10 V	50 µA	Top	-	Solder Pads	0.219 L x 0.157 W (5.56mm x 3.99mm)	0.089 (2.26mm)
BL-21671-000 MICROPHONE PIEZO ANALOG OMNI Knowles	3,580	RFQ	Datasheet	Bulk	BL	Obsolete	Piezo	Analog	Omnidirectional	100 Hz ~ 2.5 kHz	-54.5dB ±3dB @ 74dB SPL	-	13 kOhms	1.3 V	-	50 µA	Side	-	Solder Pads	0.310 L x 0.218 W (7.87mm x 5.54mm)	0.163 (4.13mm)
BL-27046-000 MICROPHONE PIEZO ANALOG OMNI Knowles	3,170	RFQ		Bulk	BL	Obsolete	Piezo	Analog	Omnidirectional	100 Hz ~ 10 kHz	-69dB ±3dB @ 74dB SPL	-	4 kOhms	1.3 V	-	160 µA	Side	-	Solder Pads	0.310 L x 0.218 W (7.87mm x 5.54mm)	0.090 (2.29mm)
NR-25994-000 MICROPHONE COND ANALOG NC -49DB Knowles	3,112	RFQ	Datasheet	Bulk	NR	Obsolete	Electret Condenser	Analog	Noise Cancelling	100 Hz ~ 4 kHz	-49dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	1.3 V ~ 10 V	50 µA	Bottom, Top	-	Solder Pads	0.219 L x 0.157 W (5.56mm x 3.99mm)	0.089 (2.26mm)
FB-DW-23249-000 MIC BOOM ANALOG NC -64DB 8MM D Knowles	2,049	RFQ	Datasheet	Bulk	PNR	Obsolete	Boom	Analog	Noise Cancelling	300 Hz ~ 4 kHz	-64dB ±3dB @ 74dB SPL	-	2.5 kOhms	-	1.3 V ~ 10 V	200 µA	Bottom, Top	-	Wire Leads	0.315 Dia (8.00mm)	0.185 (4.70mm)
PNR-23868-000 MIC BOOM ANALOG NC -58DB 8MM D Knowles	2,909	RFQ	Datasheet	Bulk	PNR	Obsolete	Boom	Analog	Noise Cancelling	300 Hz ~ 4 kHz	-58dB +2dB, -4dB @ 74dB SPL	-	4.4 kOhms	-	1.3 V ~ 10 V	-	Bottom, Top	-	Wire Leads	0.315 Dia (8.00mm)	0.186 (4.72mm)

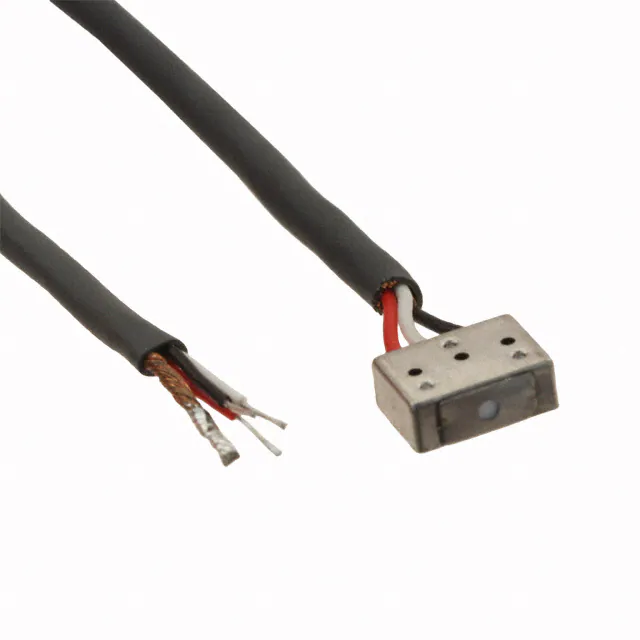

WP-23502-P07 MICROPHONE COND ANALOG OMNI Knowles	2,397	RFQ	Datasheet	Bulk	WP	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 6 kHz	-52dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	1.3 V ~ 10 V	50 µA	Top	Waterproof	Wire Leads	0.219 L x 0.157 W (5.56mm x 3.99mm)	0.089 (2.26mm)
AOM-5242L-R MICROPHONE COND ANALOG OMNI PUI Audio, Inc.	3,258	RFQ	Datasheet	Bulk	AOM	Obsolete	Electret Condenser	Analog	Omnidirectional	-	-42dB ±2dB	60dB	2.2 kOhms	2.5 V	2.5 V ~ 10 V	500 µA	Top	-	Solder Pads	0.382 Dia (9.70mm)	0.213 (5.40mm)
AOM-5538L-NF-R MIC COND ANLG OMNI -38DB 10MM D PUI Audio, Inc.	3,098	RFQ	Datasheet	Bulk	AOM	Obsolete	Electret Condenser	Analog	Omnidirectional	-	-38dB ±3dB	60dB	2.2 kOhms	1.5 V	1.5 V ~ 10 V	500 µA	Top	-	Solder Pads	0.394 Dia (10.00mm)	0.224 (5.70mm)
AUM-5047L-R MIC COND ANLG UNI -47DB 9.7MM D PUI Audio, Inc.	3,718	RFQ	Datasheet	Bulk	AUM	Obsolete	Electret Condenser	Analog	Unidirectional	-	-47dB ±4dB	55dB	680 Ohms	1.5 V	1.5 V ~ 10 V	500 µA	Top	-	Solder Pads	0.382 Dia (9.70mm)	0.205 (5.20mm)

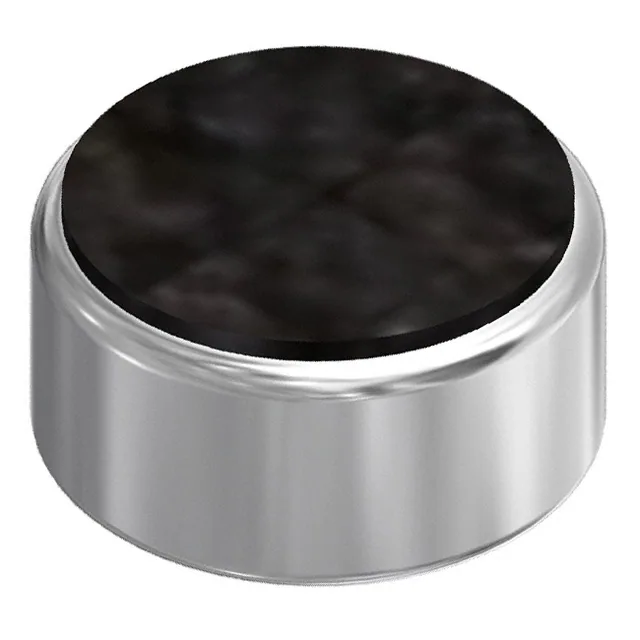

AUM-5247L-R MIC COND ANLG UNI -47DB 9.7MM D PUI Audio, Inc.	3,297	RFQ	Datasheet	Bulk	AUM	Obsolete	Electret Condenser	Analog	Unidirectional	30 Hz ~ 15 kHz	-47dB ±4dB	55dB	680 Ohms	1.5 V	1.5 V ~ 10 V	500 µA	Top	-	Solder Pads	0.382 Dia (9.70mm)	0.213 (5.40mm)
CUM-4537L-R MIC COND ANLG UNI -37DB 9.7MM D PUI Audio, Inc.	3,329	RFQ	Datasheet	Bulk	CU	Obsolete	Electret Condenser	Analog	Unidirectional	-	-37dB ±3dB	55dB	1.8 kOhms	1.5 V	1.5 V ~ 10 V	500 µA	Top	-	Solder Pads	0.382 Dia (9.70mm)	0.185 (4.70mm)
