Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	Direction	FrequencyRange	Sensitivity	S/NRatio	Impedance	Voltage-Rated	VoltageRange	Current-Supply	PortLocation	Ratings	Termination	Size/Dimension	Height(Max)
FB-DO-32103-000 MICROPHONE BOOM ASSEMBLY Knowles	3,634	RFQ		Box	FB	Obsolete	Boom	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FB-DO-32221-000 MICROPHONE BOOM ASSEMBLY Knowles	3,807	RFQ		Box	FB	Obsolete	Boom	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FB-DO-32222-000 MICROPHONE BOOM ASSEMBLY Knowles	2,134	RFQ		Box	FB	Obsolete	Boom	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MQM-31731-000 MICROPHONE MEMS OMNI Knowles	3,249	RFQ		Tray	MQM	Obsolete	MEMS (Silicon)	-	Omnidirectional	-	-	-	-	-	-	-	-	-	-	-	-
QM-31353-000 MICROPHONE MEMS ANALOG OMNI Knowles	3,843	RFQ		Tray	QM	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	100 Hz ~ 10 kHz	-56.5dB ±3dB @ 74dB SPL	-	2.9 kOhms	-	0.9 V ~ 1.6 V	55 µA	Top	-	Solder Pads	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.102 (2.60mm)
QM-31752-S27 MICROPHONE MEMS ANALOG OMNI Knowles	3,469	RFQ		Tray	QM	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	-	-	-	-	-	-	-	-	-	-	-	-
TO-24611-P16 MICROPHONE ANALOG OMNI Knowles	3,815	RFQ		Tray	TO	Obsolete	-	Analog	Omnidirectional	100 Hz ~ 5.8 kHz	-56.5dB ±3dB @ 74dB SPL	-	4.4 kOhms	1.3 V	-	50 µA	Side	-	Solder Pads	0.141 L x 0.141 W (3.57mm x 3.57mm)	0.053 (1.35mm)
TO-30079-P121 MICROPHONE ANALOG OMNI Knowles	2,670	RFQ		Tray	TO	Obsolete	-	Analog	Omnidirectional	-	-	-	-	-	-	-	Side	-	-	-	-
TP-24617-P21 MIC ANLG 0.141 L X 0.141 W Knowles	3,904	RFQ		Tray	TP	Obsolete	-	Analog	-	100 Hz ~ 8.5 kHz	-	-	4.4 kOhms	1.3 V	0.9 V ~ 1.6 V	100 µA	Side	-	Solder Pads	0.141 L x 0.141 W (3.57mm x 3.57mm)	0.106 (2.70mm)
VBU-31553-P122 MICROPHONE Knowles	3,509	RFQ		Tray	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
VEK-H-30230-000 SENSOR ASSEMBLY Knowles	3,835	RFQ		Tray	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
VWP-F-30609-000 MICROPHONE Knowles	2,647	RFQ		Tray	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
INMP401ACEZ-R0 MICROPHONE MEMS ANALOG OMNI TDK InvenSense	3,731	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	INMP401	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	60 Hz ~ 15 kHz	-42dB ±3dB @ 94dB SPL	62dB	200 Ohms	-	1.5 V ~ 3.3 V	250 µA	Bottom	-	Solder Pads	0.186 L x 0.148 W (4.72mm x 3.76mm)	0.043 (1.10mm)
INMP504ACEZ-R0 MICROPHONE MEMS ANALOG OMNI TDK InvenSense	2,713	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	INMP504	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	100 Hz ~ 20 kHz	-38dB ±3dB @ 94dB SPL	65dB	200 Ohms	-	1.6 V ~ 3.3 V	225 µA	Bottom	-	Solder Pads	0.132 L x 0.098 W (3.35mm x 2.50mm)	0.039 (0.98mm)
MP23AB02BTR MICROPHONE MEMS ANALOG OMNI STMicroelectronics	2,371	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	20 Hz ~ 20 kHz	-38dB ±3dB @ 94dB SPL	64dB	-	1.8 V	1.6 V ~ 3.6 V	220 µA	Bottom	-	Solder Pads	0.132 L x 0.098 W (3.35mm x 2.50mm)	0.043 (1.08mm)

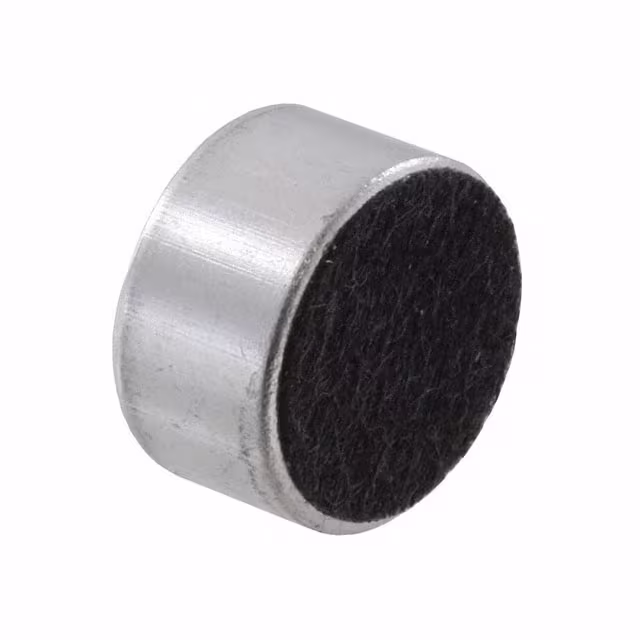

AUM-5047L-4-R MIC COND ANLG UNI -47DB 9.7MM D PUI Audio, Inc.	3,715	RFQ	Datasheet	Bulk	AUM	Obsolete	Electret Condenser	Analog	Unidirectional	-	-47dB ±3dB	55dB	680 Ohms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.382 Dia (9.70mm)	0.205 (5.20mm)

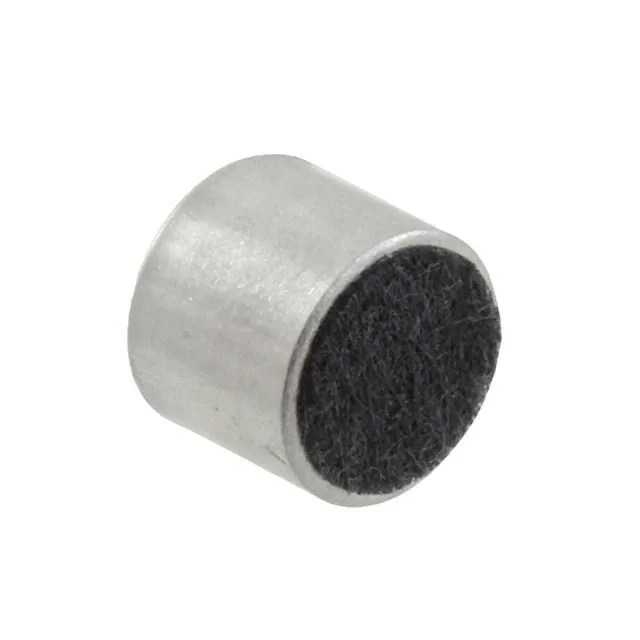

PNM-5054L-2-R MIC COND ANALOG NC -54DB 6MM D PUI Audio, Inc.	3,465	RFQ	Datasheet	Bulk	PNM	Obsolete	Electret Condenser	Analog	Noise Cancelling	-	-54dB ±3dB	56dB	2.2 kOhms	2 V	2 V ~ 10 V	500 µA	Top	-	Solder Pads	0.236 Dia (6.00mm)	0.205 (5.20mm)
EK-30436-P03 MICROPHONE COND ANALOG OMNI Knowles	2,178	RFQ	Datasheet	Bulk	EK	Obsolete	Electret Condenser	Analog	Omnidirectional	100 Hz ~ 10 kHz	-53dB ±2dB @ 74dB SPL	-	4.4 kOhms	1.3 V	0.9 V ~ 10 V	50 µA	Bottom	-	PC Pins	0.219 L x 0.157 W (5.56mm x 3.99mm)	0.089 (2.26mm)
WM7121PIMSE/RV MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	2,495	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7121PE	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	62 Hz ~ 13 kHz	-38dB ±1dB @ 94dB SPL	65dB	55 Ohms	-	1.5 V ~ 3.7 V	240 µA	Top	-	Solder Pads	0.148 L x 0.116 W (3.76mm x 2.95mm)	0.047 (1.20mm)
WM7132PIMSE/RV MICROPHONE MEMS ANALOG OMNI Cirrus Logic Inc.	3,942	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WM7132PE	Obsolete	MEMS (Silicon)	Analog	Omnidirectional	62 Hz ~ 12.5 kHz	-38dB ±1dB @ 94dB SPL	65dB	55 Ohms	2.1 V	1.5 V ~ 3.7 V	240 µA	Bottom	-	Solder Pads	0.148 L x 0.116 W (3.76mm x 2.95mm)	0.047 (1.20mm)
