| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VO0600TOPTOISO 4KV OPEN DRAIN 8SOIC |
8,196 | 2.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 4000Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL2630SDOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
9,972 | 2.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
HCPL-0601-560EOPTOISO 3.75KV OPN COLLECTOR 8SO |
5,274 | 2.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
.JPG)
|

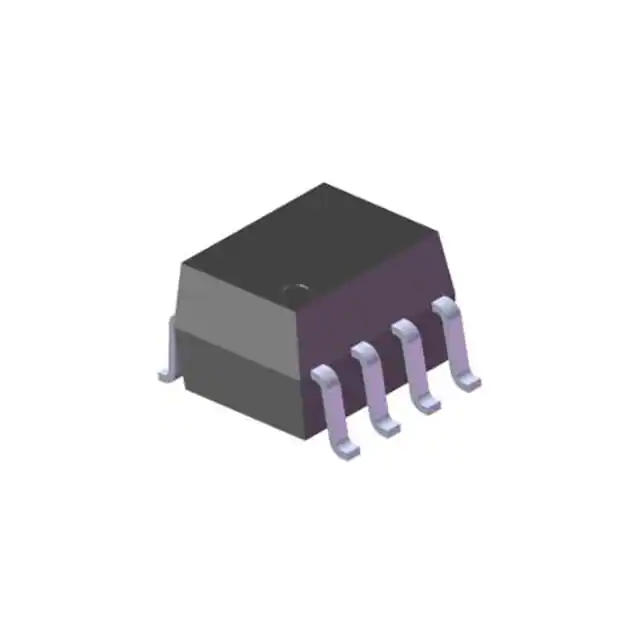

EL0631(TA)OPTOISO 3.75KV 2CH OPEN COL 8SOP |
6,454 | 2.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | -40°C ~ 100°C | Surface Mount |
|
|
VO0601TOPTOISO 4KV OPEN DRAIN 8SOIC |
6,449 | 2.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 4000Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL-4506-500EOPTOISO 3.75KV OPEN COLL 8DIP GW |
7,882 | 2.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
ACPL-061L-500EOPTOISO 3.75KV TRI-STATE 8SO |
5,063 | 2.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
VO0611TOPTOISO 4KV OPEN DRAIN 8SOIC |
6,671 | 3.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL2631SDOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
8,166 | 3.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
SFH6750-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
5,819 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5300Vrms | 100V/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
VO2630-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
9,598 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
.JPG)
|
TLX9304(TPL,FIC COUPLER; 4-PIN SO6; AECQ; ROH |
5,533 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 15 mA | - | 400ns, 550ns | - | 1.56V | 25mA | 4.5V ~ 20V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-0201-500EOPTOISO 3.75KV PUSH PULL 8SO |
8,873 | 3.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
HCPL0601R2VOPTOISO 3.75KV OPN COLLECTOR 8SO |
7,766 | 3.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
CPC5001GSTROPTOISO 3.75KV 2CH OPEN DRN 8SMD |
2,537 | 3.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 2 | 1/1 | 3750Vrms | 5kV/µs, 7kV/µs | Logic | Open Drain | - | 5MBd | 250ns, 100ns | - | - | - | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0211-500EOPTOISO 3.75KV PUSH PULL 8SO |
7,212 | 3.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
.jpg)
|
PS9313L2-AXOPTOISO 5KV OPEN COLL 6DIP GW |
7,760 | 4.31 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 25mA | 4.5V ~ 20V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL0611R2OPTOISO 3.75KV OPN COLLECTOR 8SO |
7,166 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2400-500EOPTOISO 3.75KV TRI-STATE 8DIP GW |
7,550 | 7.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount |
|
|
6N137SVMHIGH SPEED 10MBIT/S LOGIC GATE O |
12,623 | 0.72 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
