| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H11L2VMOPTOISO 4.17KV OPN COLL 6DIP |
11,035 | 0.70 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|
TLP5705H(TP4,EGATE DRIVE COUPLER; HIGH TEMP; R |
11,387 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 37ns, 50ns | 1.55V | 20mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5705H(D4TP4,EGATE DRIVE COUPLER; HIGH TEMP; R |
13,830 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 37ns, 50ns | 1.55V | 20mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
TLP250H(D4-TP1,F)X36 PB-F DRIVER COUPLER DIP8 GUL |
14,988 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP250H(TP1,F)X36 PB-F DRIVER COUPLER 8 GULL W |
9,670 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
TLP5702(D4-LF4,EOPTOCOUPLER DRIVER SO6 |
13,454 | 0.72 |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TLP5702(LF4,EOPTOCOUPLER DRIVER SO6 |
12,305 | 0.72 |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ELM600(TA)-VOPTOISO 3.75KV OPEN COLL 5SOP |
11,163 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | - | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.45V | 50mA | 7V | -40°C ~ 85°C | Surface Mount |
|
|
ELM601(TA)-VOPTOISO 3.75KV OPEN COLL 5SOP |
13,899 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.45V | 50mA | 7V | -40°C ~ 85°C | Surface Mount |
|
|
ELM611(TA)-VOPTOISO 3.75KV OPEN COLL 5SOP |
11,010 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.45V | 50mA | 7V | -40°C ~ 85°C | Surface Mount |
|
6N137TVMOPTOISO 5KV 1CH OPEN COLL 8DIP |
5,065 | 1.81 |
RFQ |
Datasheet |
Tube,Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
|
TLP2662(D4-TP1,F)HIGH SPEED LOGIC OUTPUT COUPLER; |
13,350 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10MBd | 75ns, 75ns | 12ns, 3ns | 1.55V | 20mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2710(LF4,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
13,721 | 0.75 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2710(EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
6,313 | 1.60 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2710(D4,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
13,558 | 0.75 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
TLP2710(D4-LF4,EHI SPEED LOGIC OUTPUT OPTOCOUPLE |
11,627 | 0.75 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
.JPG)
|

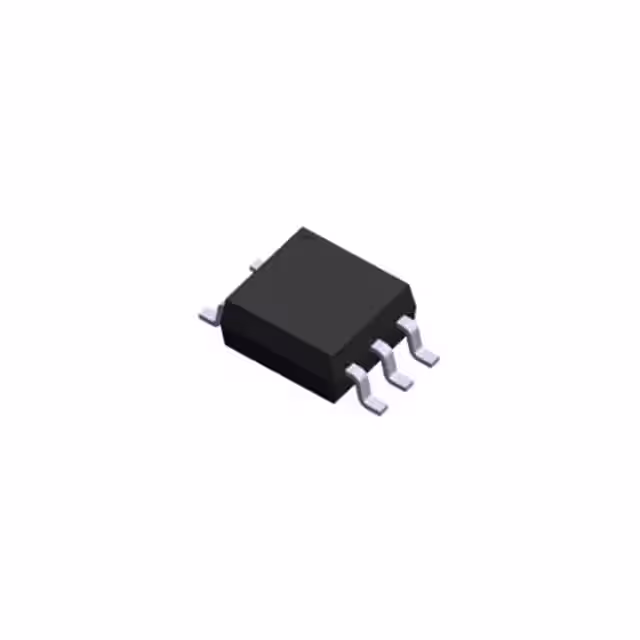

ELM611(TA)OPTOISO 3.75KV OPEN COLL 5SOP |
12,461 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.45V | 50mA | 7V | -40°C ~ 85°C | Surface Mount |
|
RV1S9060ACCSP-10YC#KC0HI-SPD OPTOCPLR LSO5 |
12,424 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 20mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
VO2601-X006OPTOISO 5.3KV OPEN DRAIN 8DIP |
14,737 | 0.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
TLP2766A(EOPTOISOLATOR SO6 |
11,414 | 0.78 |
RFQ |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 55ns, 55ns | 5ns, 4ns | 1.8V (Max) | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
