| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

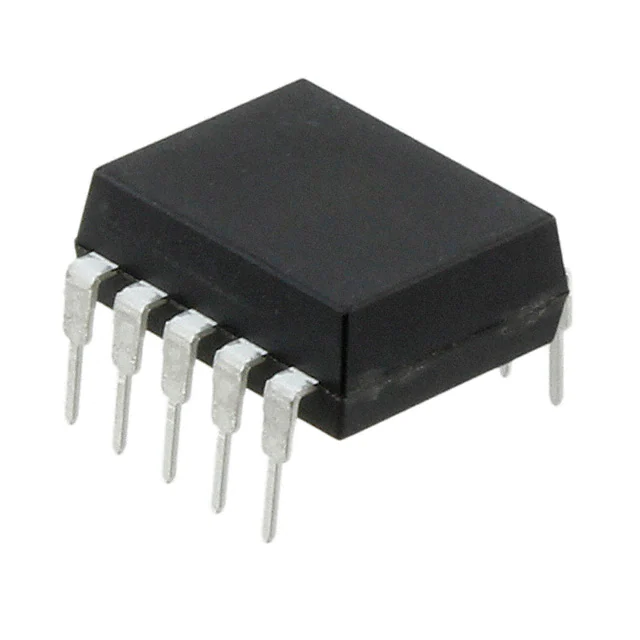

ACNV4506-000EOPTOISO 7.5KV OPEN COLL 10DIP |
6,241 | 2.97 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 7500Vrms | 30kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 105°C | Through Hole |
|
PS9587-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
9,388 | 2.97 |
RFQ |
Datasheet |
Tube | NEPOC | Preliminary | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
HCPL-263A-500EOPTOISO 3.75KV OPEN COLL 8DIP GW |
8,219 | 2.98 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ACSL-7210-56REOPTOISO 3.75KV 2CH PUSH PULL 8SO |
7,932 | 2.98 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

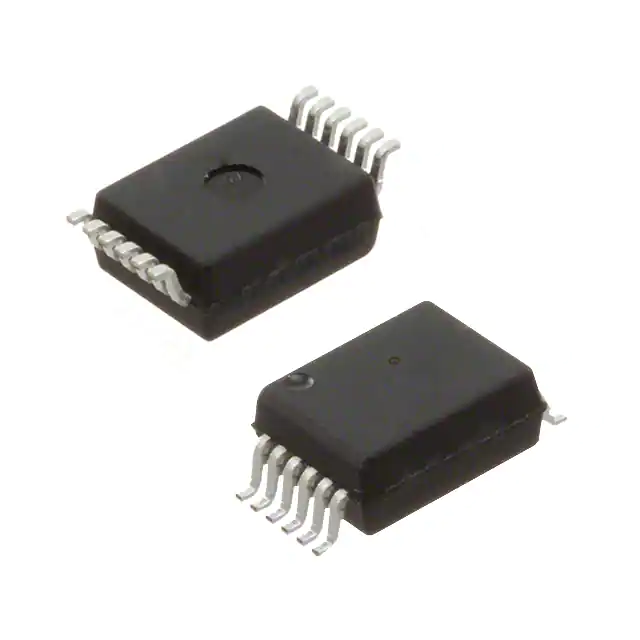

ACFL-6211U-000EOPTOISO 5KV 2CH PSH PULL SO12 |
5,005 | 2.98 |
RFQ |
Datasheet |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-6212U-000EOPTOISO 5KV 2CH PSH PULL SO12 |
6,227 | 2.98 |
RFQ |
Datasheet |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
TLP2105(F)OPTOISO 2.5KV 2CH PUSH PULL 8SO |
12,908 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.65V | 20mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
PS9351L2-E3-AXOPTOISO 5KV PUSH PULL 6SDIP |
6,123 | 3.01 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.56V | 25mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
PS9822-2-F3-AXHI-SPEED OPTOCPLR SO-8 |
6,932 | 3.01 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 2 | 2/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 1Mbps | 700ns, 500ns | - | 1.6V | 15mA | 7V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-263A-520EOPTOISO 5KV 2CH OPEN COL 8DIP GW |
6,294 | 3.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACFL-6211U-060EOPTOISO 5KV 2CH PSH PULL SO12 |
5,673 | 3.01 |
RFQ |
Datasheet |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-6212U-060EOPTOISO 5KV 2CH PSH PULL SO12 |
9,485 | 3.01 |
RFQ |
Datasheet |
Tube | R²Coupler™ | Active | 2 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
PS9822-2-V-F3-AXHI-SPD OPTOCPLR SO-8 |
5,404 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 2 | 2/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 1Mbps | 700ns, 500ns | - | 1.6V | 15mA | 7V | -40°C ~ 100°C | Surface Mount |
|
HCPL-2631OPTOISO 3.75KV 2CH OPEN COL 8DIP |
8,569 | 3.04 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
PS9822-2Y-N-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP |
6,631 | 3.05 |
RFQ |
Datasheet |
Bulk | NEPOC | Active | 2 | 2/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 1Mbps | 700ns, 500ns | - | 1.6V | 15mA | 2.7V ~ 3.6V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-2631#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
7,449 | 3.08 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2631#020OPTOISO 5KV 2CH OPEN COLL 8DIP |
7,351 | 3.08 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
PS9351L2-V-E3-AXOPTOISO 5KV PUSH PULL 6SOIC |
9,408 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.56V | 25mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-0211#500OPTOISO 3.75KV PUSH PULL 8SO |
9,989 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-263A-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
6,720 | 3.10 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
