| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-0710#500OPTOISO 3.75KV PUSH PULL 8SO |
7,963 | 4.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
ACSL-6310-56TEOPTOISO 2.5KV 3CH OPEN COLL 16SO |
7,580 | 4.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 3 | 2/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL-7723-360EOPTOISO 3.75KV PUSH PULL 8DIP GW |
9,010 | 4.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-7723-320EOPTOISO 5KV PUSH PULL 8DIP GW |
7,312 | 4.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACSL-6310-06TEOPTOISO 2.5KV 3CH OPEN COLL 16SO |
9,529 | 4.29 |
RFQ |
Datasheet |
Tube | - | Active | 3 | 2/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
PS9924-Y-F3-AXOPTOISO 7.5KV OPN COLLECTOR 8DIP |
5,709 | 4.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 7500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 25mA | 2.7V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
HCPL-263AOPTOISO 3.75KV 2CH OPEN COL 8DIP |
9,960 | 4.39 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|

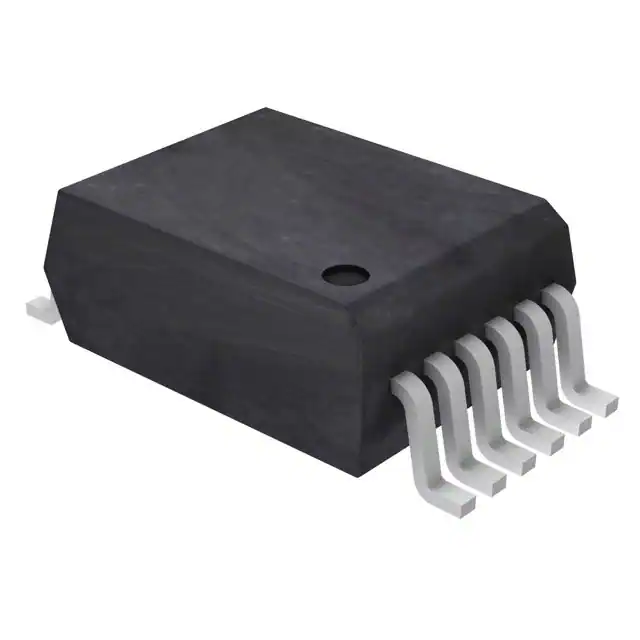

ACFL-6211T-500EOPTOISO 5KV 2CH PSH PULL SO12 |
7,673 | 4.43 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, R²Coupler™ | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-063L#500OPTOISO 3.75KV 2CH OPEN COLL 8SO |
8,485 | 4.44 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACFL-6211T-560EOPTOISO 5KV 2CH PSH PULL SO12 |
9,408 | 4.46 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, R²Coupler™ | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACFL-6211T-060EOPTOISO 5KV 2CH PSH PULL SO12 |
6,583 | 4.53 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-063L-060OPTOCOUPLER 15MBD 3.3V VDE |
9,693 | 4.54 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ACPL-M61TOPTOISO 4KV OPN COLLECTOR 5SO |
8,715 | 4.62 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-0720#560OPTOISO 3.75KV PUSH PULL 8SO |
9,498 | 4.69 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2400OPTOISO 3.75KV TRI-STATE 8DIP |
6,343 | 4.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-0723-560EOPTOISO 3.75KV PUSH PULL 8SO |
8,223 | 4.73 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2400#300OPTOISO 3.75KV TRI-STATE 8DIP GW |
7,088 | 4.77 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-7710#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
5,771 | 4.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-4661#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
7,592 | 5.08 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2411OPTOISO 2.5KV TRI-STATE 8DIP |
5,648 | 5.09 |
RFQ |
Tube | - | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | 0°C ~ 70°C | Through Hole |
