| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH617A-2XSMOPTOISOLATOR 5.3KV TRANS 4SMD |
13,638 | 0.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.65V (Max) | 50 mA | 400mV | -30°C ~ 100°C | Surface Mount |
|

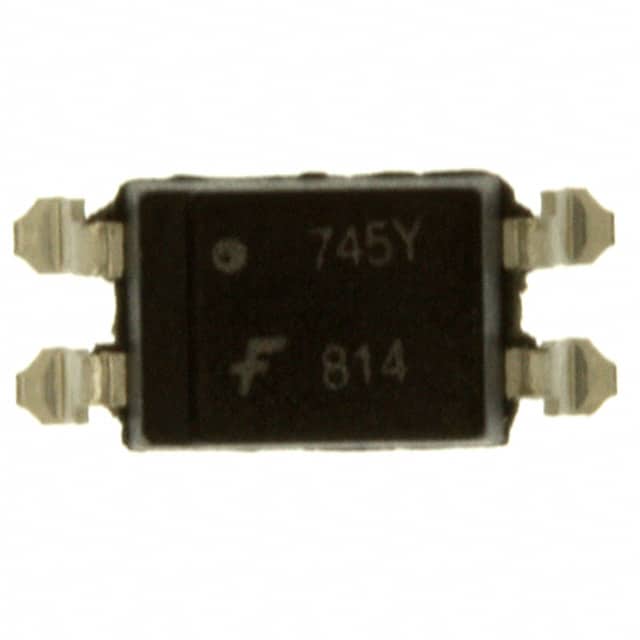

FOD814SOPTOISOLATOR 5KV TRANSISTOR 4SMD |
14,202 | 0.67 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 105°C | Surface Mount |
|
TCDT1103OPTOISOLATOR 5KV TRANS 6DIP |
10,095 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 11µs, 7µs | 7µs, 6.7µs | DC | Transistor | 32V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
TCDT1103GOPTOISOLATOR 5KV TRANS 6DIP |
12,872 | 0.68 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 11µs, 7µs | 7µs, 6.7µs | DC | Transistor | 32V | 50mA | 1.25V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
CNY17G-4OPTOISO 5KV TRANS W/BASE 6DIP |
14,074 | 0.69 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
6N139-X007TOPTOISO 5.3KV DARL W/BASE 8SMD |
5,646 | 1.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 500% @ 1.6mA | - | 600ns, 1.5µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
H11D1-X007TOPTOISO 5.3KV TRANS W/BASE 6SMD |
7,881 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5300Vrms | 20% @ 10mA | - | 5µs, 6µs | 2.5µs, 5.5µs | DC | Transistor with Base | 300V | 100mA | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
ILD615-3X009TOPTOISO 5.3KV 2CH TRANS 8SMD |
7,469 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
VO615A-3X001OPTOISOLATR 5KV TRANSISTOR 4-DIP |
11,755 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-4X009OPTOISOLTR 5KV TRANSISTOR 6-SMD |
11,553 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 160% @ 10mA | 320% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
CNY17-3X009OPTOISO 5KV TRANS W/BASE 6SMD |
12,502 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17F-2X001OPTOISOLTR 5KV TRANSISTOR 6-DIP |
12,850 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-2X006OPTOISOLTR 5KV TRANSISTOR 6-DIP |
11,744 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
CNY17F-3X007OPTOISOLTR 5KV TRANSISTOR 6-SMD |
10,172 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
4N25VMOPTOISO 4.17KV TRANS W/BASE 6DIP |
10,629 | 0.72 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | -40°C ~ 100°C | Through Hole |
|
VO615A-3X016OPTOISOLATR 5KV TRANSISTOR 4-DIP |
12,630 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.43V | 60 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
|
TCET1113OPTOISOLATOR 5KV TRANS 4DIP |
11,263 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 6µs, 5µs | 3µs, 4.7µs | DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 300mV | -40°C ~ 110°C | Through Hole |
|
MOC205MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
13,426 | 0.74 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | 40% @ 10mA | 80% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
6N135SDMOPTOISO 5KV TRANS W/BASE 8SMD |
8,702 | 1.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 7% @ 16mA | 50% @ 16mA | 230ns, 450ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -40°C ~ 100°C | Surface Mount |
|
|
ILD621GB-X007TOPTOISO 5.3KV 2CH TRANS 8SMD |
6,104 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5300Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
