| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTE3086OPTOISOLATOR/TRANS |
9,640 | 5.23 |
RFQ |
Datasheet |
Bag | - | Active | 2 | 1500Vrms | 20% @ 10mA | - | 5s, 25s | 15s, 2.4s | DC | Transistor | 30V | - | 1.1V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
PS2933-1-AXOPTOISOLATR 2.5KV DARL 4MINIFLAT |
9,674 | 5.29 |
RFQ |
Datasheet |
Strip | NEPOC | Active | 1 | 2500Vrms | 400% @ 1mA | 4500% @ 1mA | - | 20µs, 5µs | DC | Darlington | 350V | 60mA | 1.1V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
PS2802-4-V-APS28-4 |
9,450 | 7.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 2500Vrms | 200% @ 1mA | - | - | 200µs, 200µs | DC | Darlington | 40V | 100mA | 1.1V | 50 mA | 1V | -55°C ~ 100°C | Surface Mount |
|
H11F1MOPTOISOLTR 7.5KV PHOTO FET 6-DIP |
8,228 | 5.70 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 7500Vpk | - | - | 45µs, 45µs (Max) | - | DC | MOSFET | 30V | - | 1.3V | 60 mA | - | -40°C ~ 100°C | Through Hole |
|
|
PS2815-4-V-APS28-4 |
7,790 | 8.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4 | 2500Vrms | 100% @ 1mA | 400% @ 1mA | 7µs, 5µs | 4µs, 5µs | AC, DC | Transistor | 40V | 40mA | 1.15V | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
PS2561A-1-H-AOPTOISOLATOR 5KV TRANS 4DIP |
10,621 | 0.52 |
RFQ |
Tube | NEPOC | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Through Hole | |
|
|
HCPL-817-06CEOPTOISOLATOR 5KV TRANSISTOR 4DIP |
14,957 | 0.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
TLP385(D4-GRL,ETRANSISTOR OPTOCOUPLER; 4-PIN SO |
12,923 | 0.55 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
6N135LOGIC IC OUTPUT OPTOCOUPLER |
14,742 | 0.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 5300Vrms | 7% @ 16mA | - | 200ns, 200ns | - | DC | Transistor with Base | 15V | 8mA | 1.33V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
TLP183(EX36 PB-F TRANSISTOR OPTOCOUPLER |
14,944 | 0.56 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 125°C | Surface Mount |
|
|
PS2501-1-K-AOPTOISOLATOR 5KV TRANS 4DIP |
10,491 | 0.58 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 300% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
|
PS2561DL1-1Y-L-AOPTOISOLATOR 5KV TRANS 4DIP |
12,626 | 0.62 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
|
H11F1300FET OUTPUT OPTOCOUPLER |
2,502 | 0.63 |
RFQ |
Tube | - | Obsolete | 1 | 5300Vrms | - | - | 25µs, 25µs (Max) | - | DC | MOSFET | 30V | - | 1.3V | 60 mA | - | -55°C ~ 100°C | Through Hole | |
|
6N136SDVLOGIC IC OUTPUT OPTOCOUPLER |
3,156 | 0.64 |
RFQ |
Bulk | - | Obsolete | 1 | 2500Vrms | 19% @ 16mA | 50% @ 16mA | 450ns, 500ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Surface Mount | |
|

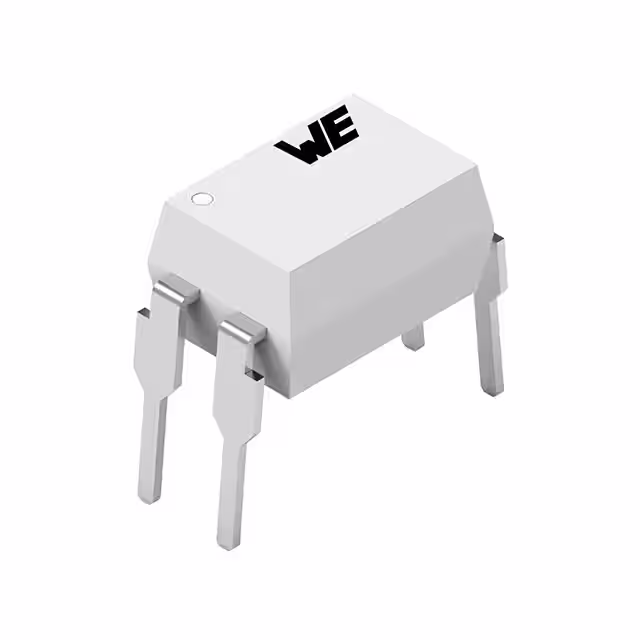

141815140010WL-OCDA - OPTOCOUPLER DARLINGTON |
11,659 | 0.71 |
RFQ |
Datasheet |
Tube | WL-OCDA | Active | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 95µs, 84µs | DC | Darlington | 40V | 80mA | 1.24V | 60 mA | 1V | -55°C ~ 110°C | Through Hole |
|

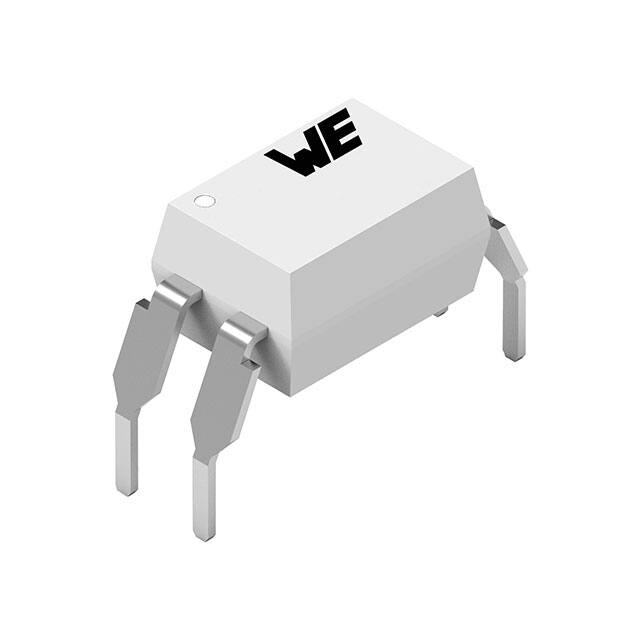

141815141010WL-OCDA - OPTOCOUPLER DARLINGTON |
10,416 | 0.71 |
RFQ |
Datasheet |
Tube | WL-OCDA | Active | 1 | 5000Vrms | 600% @ 1mA | 7500% @ 1mA | - | 95µs, 84µs | DC | Darlington | 40V | 80mA | 1.24V | 60 mA | 1V | -55°C ~ 110°C | Through Hole |
|
FODM217B4 PIN TRANSISTOR OUTPUT MFP |
12,104 | 0.74 |
RFQ |
Datasheet |
Tube | FODM217 | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
PS2561DL1-1Y-AOPTOISOLATOR 5KV TRANS 4DIP |
14,271 | 0.75 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | -55°C ~ 110°C | Through Hole |
|
PS2561DL-1Y-AOPTOISOLATOR 5KV TRANS 4SMD |
10,043 | 0.80 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
PS2561DL-1Y-V-AOPTOISOLATOR 5KV TRANS 4SMD |
12,403 | 0.80 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.2V | 40 mA | 300mV | -55°C ~ 110°C | Surface Mount |
