| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LTV-354T-AOPTOISOLATOR 3.75KV TRANS 4SOP |
12,399 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | LTV-354T | Active | 1 | 3750Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 35V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 110°C | Surface Mount |
|
TLP291(BLL,SEX36 PB-F PHOTOCOUPLER SO4 BULK |
11,664 | 0.15 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP291(GR,SEX36 PB-F PHOTOCOUPLER SO4 BULK |
11,122 | 0.15 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 150% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP291(SEX36 PB-F PHOTOCOUPLER SO4 BULK |
10,618 | 0.15 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
TLP785(TP6,F)OPTOISOLATR 5KV TRANSISTOR 4-SMD |
14,726 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOM618A-5X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
11,775 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 50% @ 1mA | 100% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM618A-7X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
14,698 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 80% @ 1mA | 160% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM618A-1X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
13,166 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 40% @ 1mA | 80% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
VOM618A-2X001TOPTOISOLATOR 3.75KV TRANS 4-SOP |
11,735 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 63% @ 1mA | 125% @ 1mA | 7µs, 6µs | 5µs, 4µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
VOS615A-2TOPTOISOLATOR 3.75KV TRANS 4SSOP |
14,180 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 40% @ 10mA | 80% @ 10mA | 5µs, 5µs | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP785(GB-TP6,FX36 PB-F PHOTOCOUPLER SURFACE MO |
10,694 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5000Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
|
TLP785(GR-TP6,FPHOTOCOUPLER |
10,932 | 0.15 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TLP785(TP6,FPHOTOCOUPLER |
12,576 | 0.15 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
VOS617A-8TSSOP-4 OPTOCPL 80-160% CTR 5MA |
10,087 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VOS615A-1TOPTOCOUPLER, PHOTOTRANSISTOR OUT |
12,706 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 40% @ 10mA | 80% @ 10mA | 5µs, 5µs | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

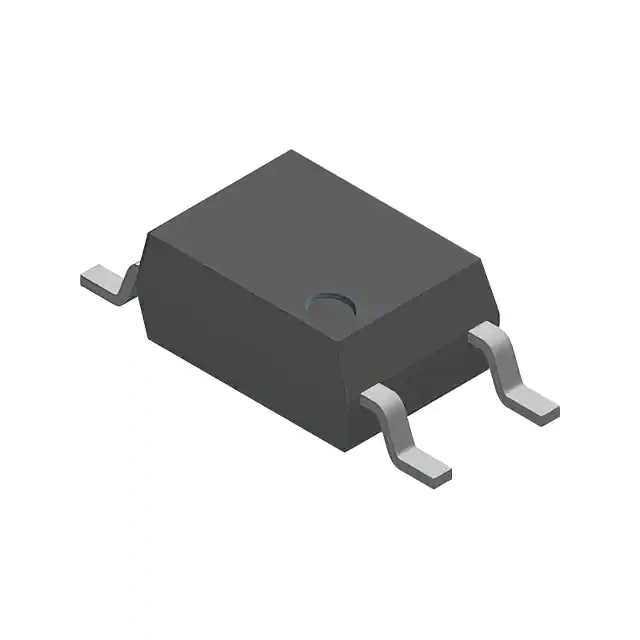

VOM617A-6X001TOPTOCOUPLER, PHOTOTRANSISTOR OUT |
13,272 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 250% @ 5mA | 500% @ 5mA | 6µs, 4µs | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.1V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
TLP185(GR,SEX36 PB PHOTOCOUPLER SO6 ROHS BUL |
13,239 | 0.16 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
EL3H4(TB)-GOPTOISOLATOR 3.75KV TRANS 4-SSOP |
11,383 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 20% @ 1mA | 300% @ 1mA | - | 6µs, 8µs | AC, DC | Transistor | 80V | - | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
|
EL3H4(TB)-VGOPTOISOLATOR 3.75KV TRANS 4-SSOP |
12,196 | 0.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 20% @ 1mA | 300% @ 1mA | - | 6µs, 8µs | AC, DC | Transistor | 80V | - | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
|
H11A5OPTOISO 5KV TRANS W/BASE 6DIP |
11,833 | 0.16 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 30% @ 10mA | - | 3µs, 3µs | - | DC | Transistor with Base | 80V | - | 1.2V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
-
