| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CNY17F2TVMOPTOISO 4.17KV TRANS 6DIP |
14,148 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
K815POPTOISO 5.3KV DARLINGTON 4DIP |
10,616 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 600% @ 1mA | - | -, 250µs | 300µs, - | DC | Darlington | 35V | 80mA | 1.2V | 60 mA | 100mV | -40°C ~ 100°C | Through Hole |
|
4N35-X001OPTOISO 5KV TRANS W/BASE 6DIP |
10,637 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Through Hole |
|
4N37-X009OPTOISO 5KV TRANS W/BASE 6SMD |
11,336 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
H11A1SMOPTOISO 4.17KV TRANS W/BASE 6SMD |
14,771 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 50% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
4N35-X007OPTOISO 5KV TRANS W/BASE 6SMD |
14,847 | 0.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | - | 10µs, 10µs | - | DC | Transistor with Base | 30V | 50mA | 1.2V | 60 mA | - | -55°C ~ 100°C | Surface Mount |
|
FOD814300WOPTOISOLATOR 5KV TRANSISTOR 4DIP |
14,920 | 0.74 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 20% @ 1mA | 300% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 105°C | Through Hole |
|
H11A1MOPTOISO 4.17KV TRANS W/BASE 6DIP |
10,063 | 0.76 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 50% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 400mV | -40°C ~ 100°C | Through Hole |
|

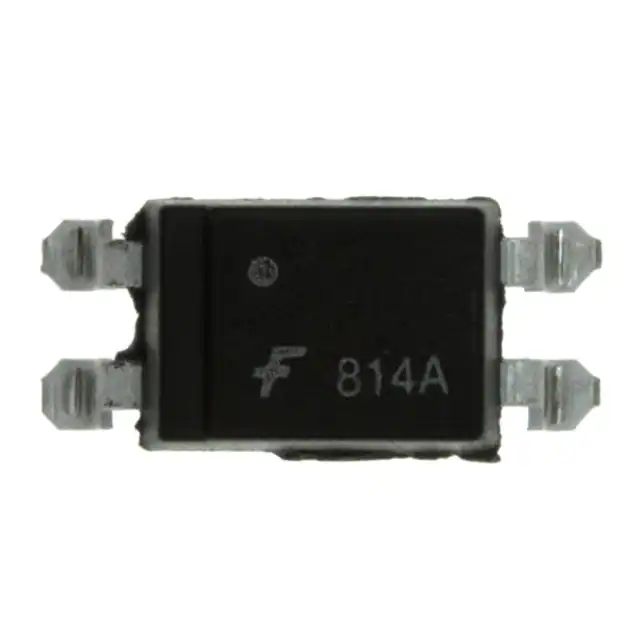

FOD814ASOPTOISOLATOR 5KV TRANSISTOR 4SMD |
10,554 | 0.76 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 105°C | Surface Mount |
|
|
CNY17F3SMOPTOISO 4.17KV TRANS 6SMD |
12,581 | 0.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 10mA | 200% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
CNY17-3X016OPTOISO 5KV TRANS W/BASE 6DIP |
11,244 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor with Base | 70V | 50mA | 1.39V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
MOC211MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
13,479 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | 20% @ 10mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
6N135OPTOISO 5KV TRANS W/BASE 8DIP |
13,664 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 7% @ 16mA | 50% @ 16mA | 90ns, 800ns | - | DC | Transistor with Base | 20V | 8mA | 1.4V | 25 mA | - | -40°C ~ 85°C | Through Hole |
|

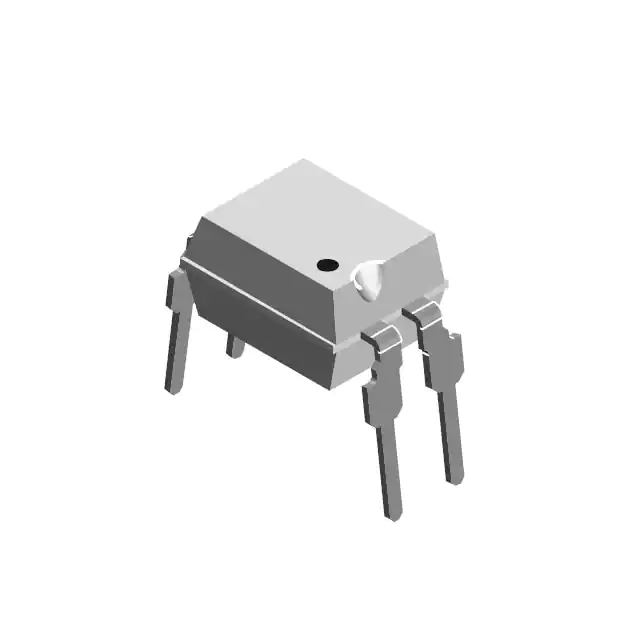

TCED1100OPTOISOLATOR 5KV TRANS 4DIP |
12,881 | 0.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 600% @ 1mA | - | - | 300µs, 250µs | DC | Transistor | 35V | 80mA | 1.15V | 60 mA | 1V | -40°C ~ 100°C | Through Hole |
|
|
SFH600-3X007OPTOISO 5.3KV TRANS W/BASE 6SMD |
5,168 | 1.01 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3.2µs, 3µs | 2µs, 2.5µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
SFH600-1OPTOISO 5.3KV TRANS W/BASE 6DIP |
5,571 | 1.01 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 125% @ 10mA | 3.2µs, 3µs | 2µs, 2.5µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH600-3OPTOISO 5.3KV TRANS W/BASE 6DIP |
7,352 | 1.01 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 160% @ 10mA | 320% @ 10mA | 3.2µs, 3µs | 2µs, 2.5µs | DC | Transistor with Base | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
SFH617A-3X001OPTOISOLATOR 5.3KV TRANS 4DIP |
5,048 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
SFH617A-3X006OPTOISOLATOR 5.3KV TRANS 4DIP |
8,185 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 100% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
SFH620A-2X007OPTOISOLATOR 5.3KV TRANS 4SMD |
5,782 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5300Vrms | 63% @ 10mA | 200% @ 10mA | 3µs, 2.3µs | 2µs, 2µs | AC, DC | Transistor | 70V | 50mA | 1.25V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
-
