| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|

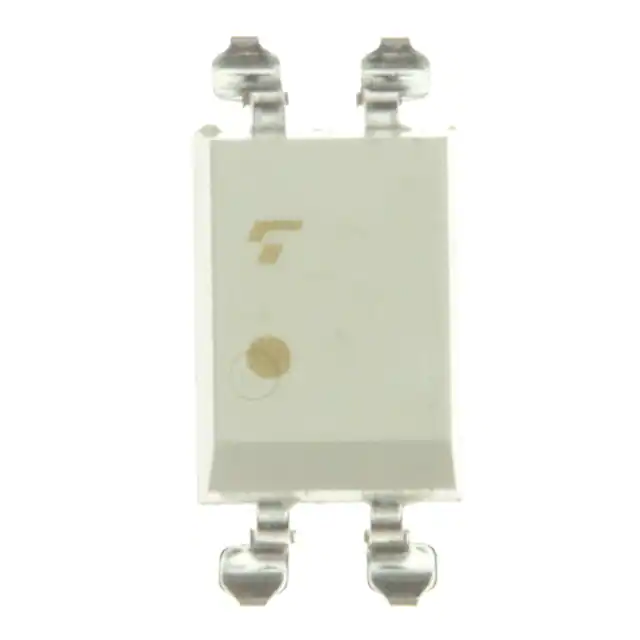

TLP627(TP1,F)OPTOISOLTR 5KV DARLINGTON 4-SMD |
2,838 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | 50µs, 15µs | 40µs, 15µs | DC | Darlington | 300V | 150mA | 1.15V | 60 mA | 1.2V | -55°C ~ 100°C | Surface Mount |
|
TLP280-4(GB-TP,J,FOPTOISO 2.5KV 4CH TRANS 16-SOP |
2,090 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | 4 | 2500Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.15V | 50 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|

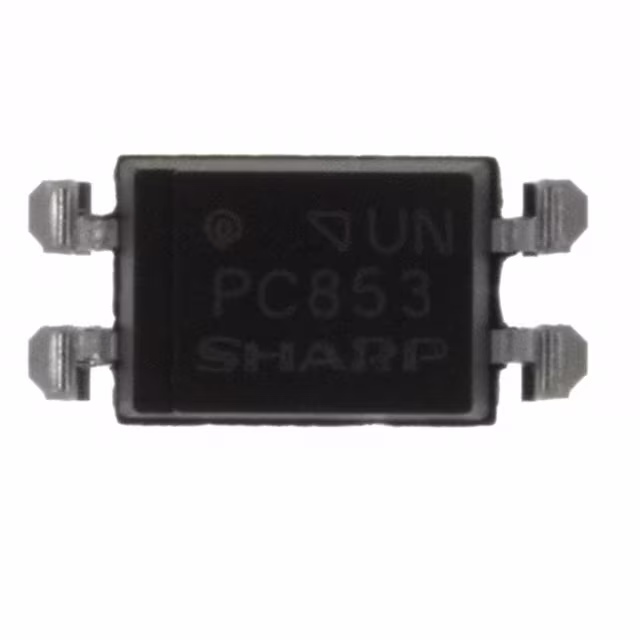

PC853XPJ000FOPTOISOLATOR 5KV DARL 4SMD |
3,936 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 5000Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | -30°C ~ 100°C | Surface Mount |
|
4N26(SHORT,F)OPTOISO 2.5KV TRANS W/BASE 6DIP |
3,413 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 2500Vrms | 20% @ 10mA | - | - | 2µs, 200µs | DC | Transistor with Base | 30V | 100mA | 1.15V | 80 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
6N138(TP1,F)OPTOISO 2.5KV DARL W/BASE 8SMD |
14,533 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 2500Vrms | 300% @ 1.6mA | - | 1µs, 4µs | - | DC | Darlington with Base | 18V | 60mA | 1.65V | 20 mA | - | 0°C ~ 70°C | Surface Mount |
|
MCT5201SR2MOPTOISO 7.5KV TRANS W/BASE 6SMD |
2,031 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 7500Vpk | 120% @ 5mA | - | - | 2.5µs, 16µs | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
MOC8021SR2MOPTOISO 4.17KV DARLINGTON 6SMD |
2,392 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 4170Vrms | 1000% @ 10mA | - | 8.5µs, 95µs | - | DC | Darlington | 50V | 150mA | 1.18V | 60 mA | - | -40°C ~ 100°C | Surface Mount |
|
TLP781(BL,F)OPTOISOLATR 5KV TRANSISTOR 4-DIP |
3,868 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 200% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
TLP781(D4-GR,F)OPTOISOLATR 5KV TRANSISTOR 4-DIP |
2,162 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 100% @ 5mA | 300% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
|
TLP781(F)OPTOISOLATR 5KV TRANSISTOR 4-DIP |
3,209 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.15V | 60 mA | 400mV | -55°C ~ 110°C | Through Hole |
|
HCPL-4502#060OPTOISOLATOR 3.75KV TRANS 8-DIP |
14,404 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
HCPL-4502#300OPTOISOLTR 3.75KV TRANS 8-DIP GW |
13,422 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-4502#020OPTOISOLATOR 5KV TRANSISTOR 8DIP |
13,898 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
6N139#320OPTOISO 5KV DARL W/BASE 8SMD |
14,223 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
6N138#300OPTOISO 3.75KV DARL W/BASE 8SMD |
14,425 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCNW4502#300OPTOISO 5KV TRANS 8DIP GULL WING |
14,455 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
|
HCNW135#300OPTOISO 5KV TRANS W/BASE 8SMD |
14,001 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 5% @ 16mA | - | 2µs, 2µs (Max) | - | DC | Transistor with Base | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
|
6N138#020OPTOISO 5KV DARL W/BASE 8DIP |
11,641 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Through Hole |
|
|
6N139#020OPTOISO 5KV DARL W/BASE 8DIP |
11,203 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 5000Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Through Hole |
|
|
HCPL-4503#060OPTOISOLATOR 3.75KV TRANS 8-DIP |
11,092 | 0.00 |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
-
