| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICPL0500SMT&ROPTOISO 3.75KV TRANS W/BASE |
2,198 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 3750Vrms | 7% @ 16mA | 50% @ 16mA | 1.5µs, 1.5µs (Max) | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
PC3H3J00000FOPTOISO 2.5KV TRANS 4-MINI-FLAT |
14,961 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Discontinued at Mosen | 1 | 2500Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount | |
|
EL817S2(A)(TA)-GOPTOISOLTR 5KV TRANSISTOR 4-SMD |
12,038 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
EL851S1(TA)OPTOISO 5KV TRANSISTOR 4-SMD |
10,305 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 5µs | DC | Transistor | 350V | 50mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
EL852S(TA)(D)-VOPTOISO 5KV DARLINGTON 4-SMD |
10,413 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Discontinued at Mosen | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 300µs, 100µs (Max) | DC | Darlington | 350V | 150mA | 1.2V | 60 mA | 1.2V | -55°C ~ 100°C | Surface Mount |
|

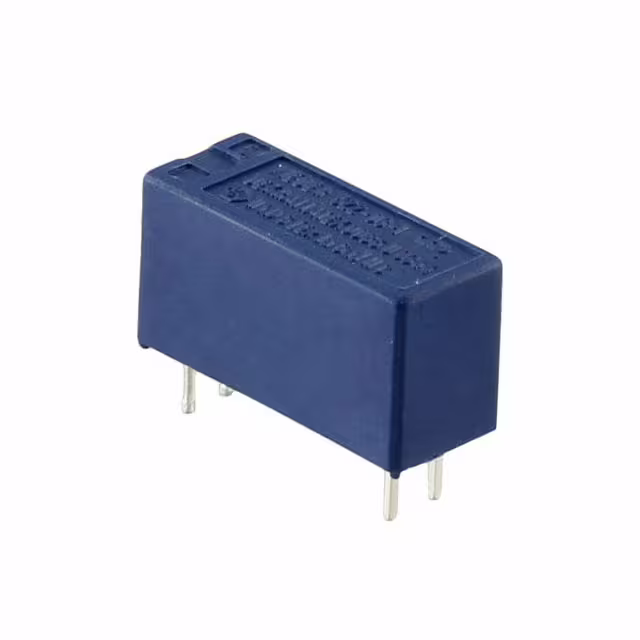

522-03-IOPTOCOUPLER MIN ATEX 4KVDC |
11,150 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 4000VDC | - | - | 5.5µs, 4.2µs | - | DC | Transistor | 32V | 50mA | - | - | - | -40°C ~ 85°C | Through Hole |
|

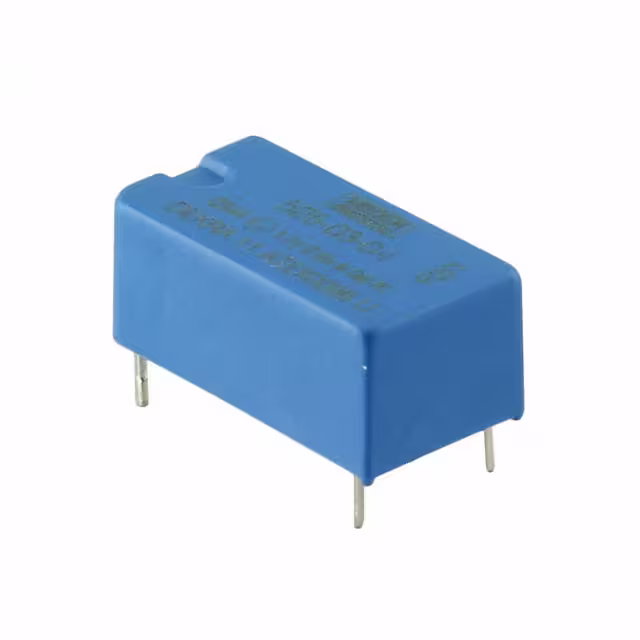

525-03-0-IOPTOISOLATOR 4KV TRANSISTOR |
14,514 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 4000VDC | - | - | 5.5µs, 4.2µs | - | DC | Transistor | 32V | 50mA | - | - | - | -40°C ~ 85°C | Through Hole |
|
|
535-04-0-IOPTOCOUPLER ATEX 4KVDC |
14,118 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 4000VDC | - | - | 19.5µs, 212µs | - | DC | Darlington | 32V | 50mA | - | - | - | -40°C ~ 85°C | Through Hole |
|
|
567-70-1-IOPTOISOLATOR 4KV TRANSISTOR |
12,048 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 4000VDC | - | - | 500ns, 500ns | - | DC | Transistor | 15V | 50mA | - | - | - | -20°C ~ 85°C | Through Hole |
|
TLP2409(TP,F)OPTOISO 3.75KV TRANS 8SO |
12,886 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 16mA | - | 800ns, 800ns (Max) | - | DC | Transistor | 20V | 16mA | 1.57V | 25 mA | - | -55°C ~ 125°C | Surface Mount |
|
|
TLP2409(F)OPTOISO 3.75KV TRANS 8SO |
13,289 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 20% @ 16mA | - | 800ns, 800ns (Max) | - | DC | Transistor | 20V | 16mA | 1.57V | 25 mA | - | -55°C ~ 125°C | Surface Mount |
|
PS2561AL2-1-V-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
12,786 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2561AL2-1-V-F3-H-AOPTOISOLATOR 5KV TRANS 4SMD |
14,063 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2561AL2-1-V-F3-W-AOPTOISOLATOR 5KV TRANS 4SMD |
11,957 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
PS2561L2-1-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
12,597 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 80% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2561L2-1-V-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
12,117 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 80% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2561L2-1-V-F3-L-AOPTOISOLATOR 5KV TRANS 4SMD |
12,791 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2581AL2-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
12,606 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 50% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2581AL2-F3-Q-AOPTOISOLATOR 5KV TRANS 4SMD |
14,656 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 100% @ 5mA | 200% @ 5mA | - | 3µs, 5µs | DC | Transistor | 70V | 30mA | 1.2V | 30 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
PS2581L2-F3-AOPTOISOLATOR 5KV TRANS 4SMD |
10,465 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Discontinued at Mosen | 1 | 5000Vrms | 80% @ 5mA | 400% @ 5mA | - | 3µs, 5µs | DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | -55°C ~ 100°C | Surface Mount |
