| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
HCNW4503-000EOPTOISOLATOR 5KV TRANSISTOR 8DIP |
5,365 | 3.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Through Hole |
|
HCNW4503-300EOPTOISO 5KV TRANS 8DIP GULL WING |
5,444 | 3.24 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|

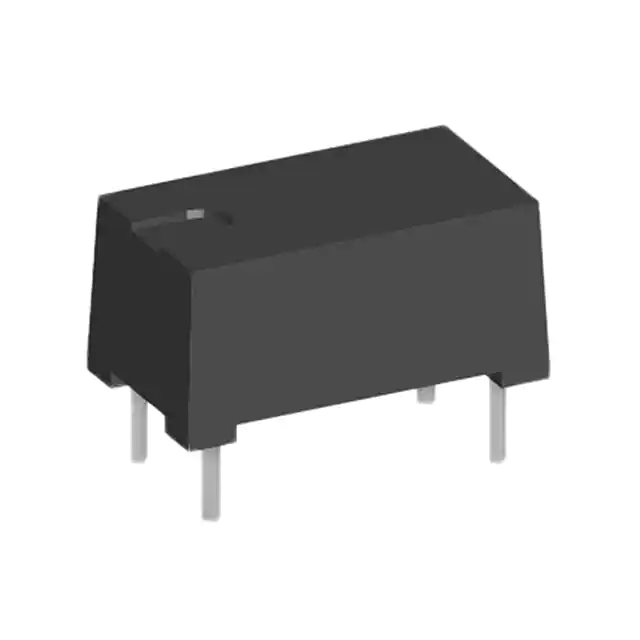

CNY66OPTOISOLATOR 13.9KV TRANS 4-DIP |
6,126 | 3.45 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 13900VDC | 50% @ 10mA | 300% @ 10mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | -55°C ~ 85°C | Through Hole |
|
HCPL0731OPTOCOUPLER DARL 2CHAN 8SOIC |
9,297 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 2 | 2500Vrms | 400% @ 500µA | 5000% @ 500µA | 300ns, 1.6µs | - | DC | Darlington | 18V | 60mA | 1.35V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
HCPL-070A-000EOPTOISO 3.75KV DARL W/BASE 8SOIC |
8,108 | 3.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington with Base | 18V | 60mA | 1.25V | 5 mA | - | 0°C ~ 70°C | Surface Mount |
|
ACPL-K376-500EOPTOISO 5KV DARL 8-SO STRETCHED |
7,650 | 7.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | - | - | 6.3µs, 6.4µs | 24µs, 0.4µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|

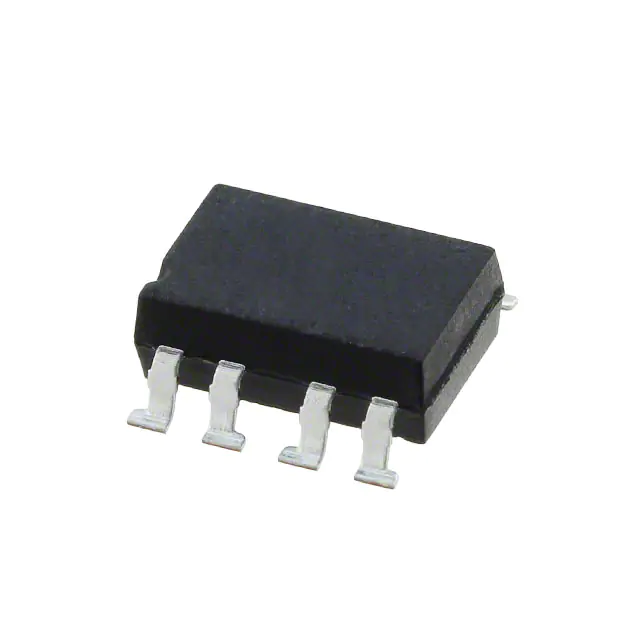

LH1262CACOPTOISO 5.3KV 2CH PHVOLT 8-SMD |
8,927 | 3.99 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5300Vrms | - | - | 35µs, 90µs | - | DC | Photovoltaic | 15V | 1µA | 1.26V | 50 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0531-000EOPTOISO 3.75KV 2CH TRANS 8SOIC |
6,685 | 4.22 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ASSR-V622-302EOPTOISO 3.75KV 2CH PHVOLT 8DIPGW |
6,646 | 4.50 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | - | - | 280µs, 30µs | - | DC | Photovoltaic | 7V | 20µA | 1.3V | 30 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCNR200-300EOPTOISO 5KV LINEAR PHVOLT 8DIPGW |
8,172 | 4.75 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 0.25% @ 10mA | 0.75% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
HCPL-3700-000EOPTOISO 3.75KV DARLINGTON 8-DIP |
5,926 | 5.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | 4µs, 10µs | 20µs, 0.3µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Through Hole |
|
|
HCPL-0731-000EOPTOISO 3.75KV 2CH DARLNG 8-SO |
5,114 | 5.84 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 5µs, 10µs | - | DC | Darlington | 18V | 60mA | 1.4V | 12 mA | 100mV | 0°C ~ 70°C | Surface Mount |
|
|
ACPL-K370-000EOPTOISO 5KV DARL 8-SO STRETCHED |
7,794 | 6.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | - | - | 3.7µs, 8.5µs | 25µs, 0.3µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
|
HCNR201-000EOPTOISO 5KV LINEAR PHVOLT 8DIP |
8,626 | 6.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|

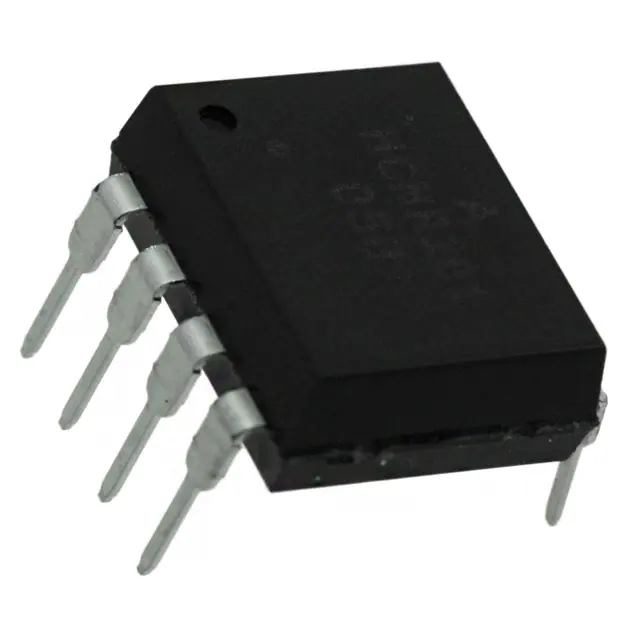

HCNR201-050EOPTOISO 5KV LINEAR PHVOLT 8DIP |
9,748 | 6.30 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
ACNT-H511-000E15MM OPTOCOUPLER (1MBD) |
7,865 | 6.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 7500Vrms | 31% @ 12mA | 80% @ 12mA | 150ns, 400ns | - | DC | Transistor | 24V | 12mA | 1.45V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-3760-300EOPTOISOLATOR 3.75KV DARL 8DIP GW |
5,079 | 6.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | 4.5µs, 8µs | 14µs, 0.4µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Surface Mount |
|
|
ACPL-K376-000EOPTOISO 5KV DARL 8-SO STRETCHED |
6,803 | 7.82 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | - | - | 6.3µs, 6.4µs | 24µs, 0.4µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
OPI120OPTOISO 15KV TRANS W/BASE AXIAL |
1,166 | 10.27 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 15000VDC | 20% @ 10mA | - | - | 2µs, 2µs | DC | Transistor with Base | 25V | - | 1.5V (Max) | 150 mA | 500mV | -55°C ~ 100°C | Through Hole |
|
|
PVI1050NPBFOPTOISO 2.5KV 2CH PHVOLT 8DIP |
4,138 | 10.89 |
RFQ |
Datasheet |
Tube | PVI | Active | 2 | 2500Vrms | - | - | 300µs, 220µs (Max) | - | DC | Photovoltaic | 5V | 5µA | - | - | - | -40°C ~ 85°C | Through Hole |
-
