Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
HIP2120FRTAZ-T IC GATE DRVR HALF-BRIDGE 10TDFN Renesas Electronics America Inc	3,439	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	3.7V, 7.93V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2120FRTBZ IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	2,184	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	3.7V, 7.93V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2120FRTBZ-T IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	2,604	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	3.7V, 7.93V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2121FRTAZ IC GATE DRVR HALF-BRIDGE 10TDFN Renesas Electronics America Inc	2,466	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2121FRTAZ-T IC GATE DRVR HALF-BRIDGE 10TDFN Renesas Electronics America Inc	2,521	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2121FRTBZ IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	3,205	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2121FRTBZ-T IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	2,465	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2122FRTAZ IC GATE DRVR HALF-BRIDGE 10TDFN Renesas Electronics America Inc	2,707	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	3.7V, 7.93V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2122FRTAZ-T IC GATE DRVR HALF-BRIDGE 10TDFN Renesas Electronics America Inc	2,141	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	3.7V, 7.93V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2122FRTBZ IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	2,585	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	3.7V, 7.93V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2122FRTBZ-T IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	2,500	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2123FRTAZ IC GATE DRVR HALF-BRIDGE 10TDFN Renesas Electronics America Inc	2,748	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2123FRTAZ-T IC GATE DRVR HALF-BRIDGE 10TDFN Renesas Electronics America Inc	2,237	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2123FRTBZ IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	2,941	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
HIP2123FRTBZ-T IC GATE DRVR HALF-BRIDGE 9TDFN Renesas Electronics America Inc	3,994	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	8V ~ 14V	1.4V, 2.2V	2A, 2A	Inverting	114 V	10ns, 10ns	-55°C ~ 150°C (TJ)	Surface Mount
IRS2509STRPBF IC GATE DRVR HALF-BRIDGE 8SOIC Infineon Technologies	3,149	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.2V	200mA, 350mA	Non-Inverting	600 V	150ns, 50ns	-40°C ~ 150°C (TJ)	Surface Mount
IRS25091STRPBF IC GATE DRVR HALF-BRIDGE 8SOIC Infineon Technologies	3,760	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.2V	200mA, 350mA	Non-Inverting	600 V	150ns, 50ns	-40°C ~ 150°C (TJ)	Surface Mount
IRS2509SPBF IC GATE DRVR HALF-BRIDGE 8SOIC Infineon Technologies	3,355	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.2V	200mA, 350mA	Non-Inverting	600 V	150ns, 50ns	-40°C ~ 150°C (TJ)	Surface Mount
IRS25091SPBF IC GATE DRVR HALF-BRIDGE 8SOIC Infineon Technologies	3,492	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.2V	200mA, 350mA	Non-Inverting	600 V	150ns, 50ns	-40°C ~ 150°C (TJ)	Surface Mount

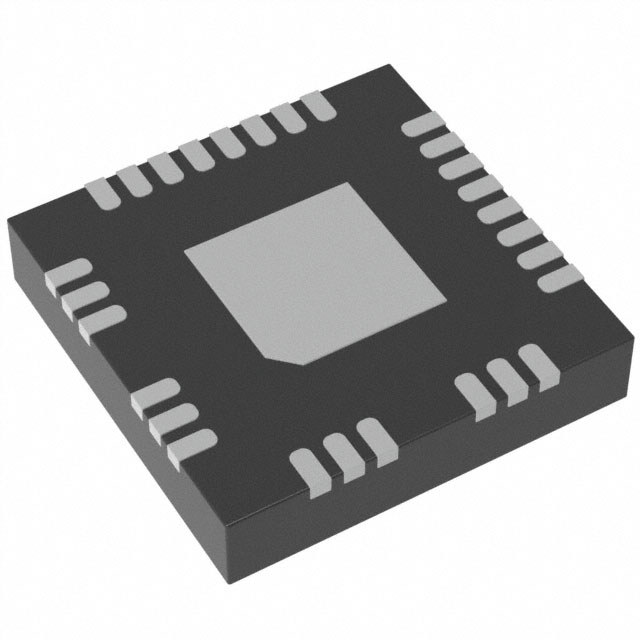

IRS2334MPBF IC GATE DRVR HALF-BRIDGE 28MLPQ Infineon Technologies	3,399	RFQ	Datasheet	Tray	-	Obsolete	Half-Bridge	3-Phase	6	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.5V	200mA, 350mA	Non-Inverting	600 V	125ns, 50ns	-40°C ~ 150°C (TJ)	Surface Mount
