Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType

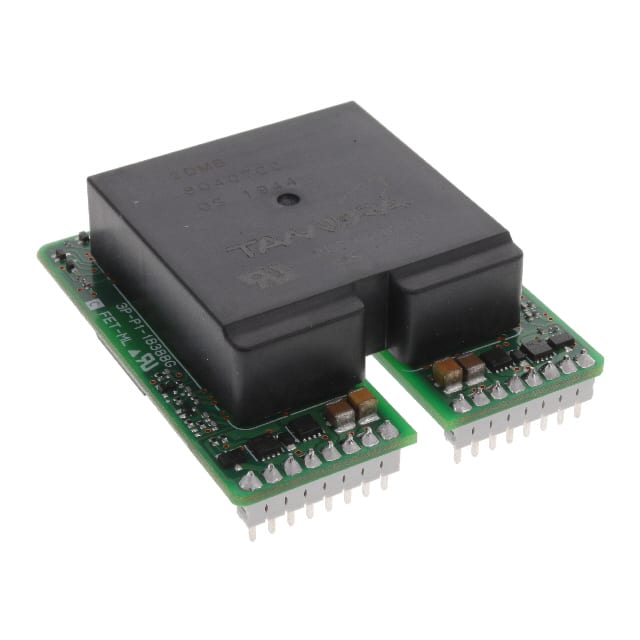

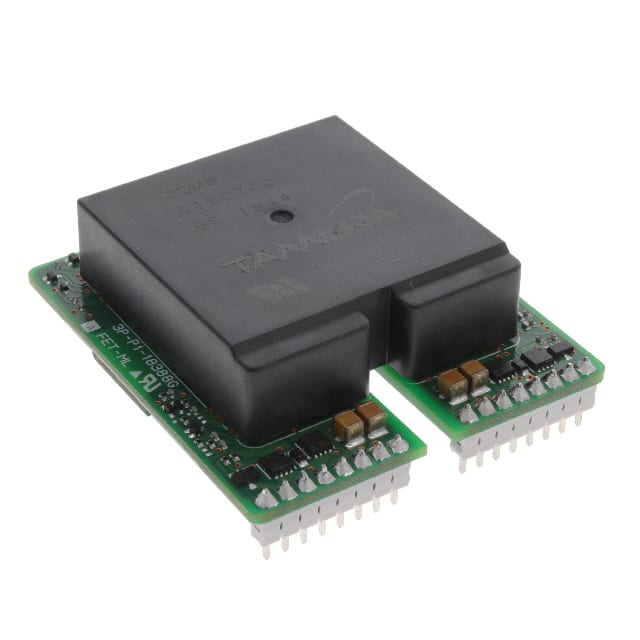

2DMB51507CC GATE DRIVER (+15V,-15V) Tamura	2,006	RFQ	Datasheet	Bulk	-	Obsolete	Half-Bridge	Independent	2	IGBT, SiC MOSFET	3V ~ 5.5V	-	5mA, -	Non-Inverting	-	500ns, 500ns	-40°C ~ 85°C	Through Hole

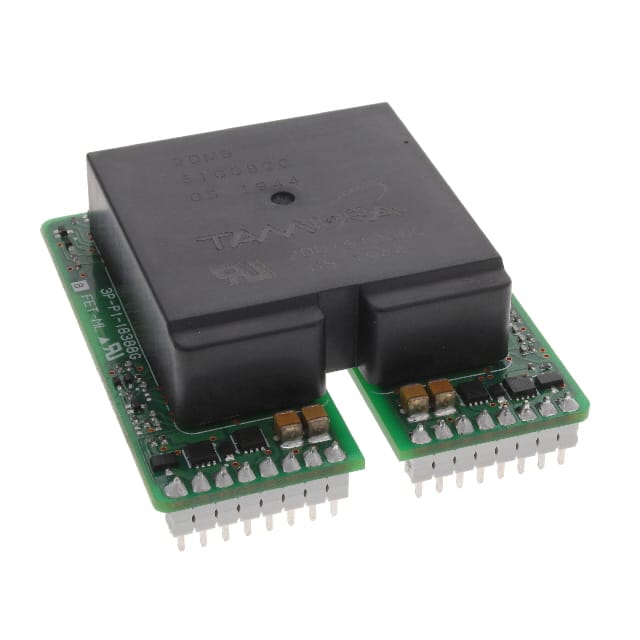

2DMB51008CC GATE DRIVER (+15V,-10V) Tamura	2,986	RFQ	Datasheet	Bulk	-	Obsolete	Half-Bridge	Independent	2	IGBT, SiC MOSFET	3V ~ 5.5V	-	5mA, -	Non-Inverting	-	500ns, 500ns	-40°C ~ 85°C	Through Hole
2DMB80407CC GATE DRIVER (+18V,-4V) Tamura	2,914	RFQ	Datasheet	Bulk	-	Obsolete	Half-Bridge	Independent	2	IGBT, SiC MOSFET	3V ~ 5.5V	-	5mA, -	Non-Inverting	-	500ns, 500ns	-40°C ~ 85°C	Through Hole
5962-9312502M2C IC GATE DRIVER MOSFET Analog Devices Inc./Maxim Integrated	3,613	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
5962-88503012C IC GATE DRIVER MOSFET Analog Devices Inc./Maxim Integrated	3,320	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
5962-9073102M2C IC GATE DRIVER MOSFET Analog Devices Inc./Maxim Integrated	3,763	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
TSC427IJA IC GATE DRIVER Analog Devices Inc./Maxim Integrated	2,854	RFQ		Tray	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
MAX8791GTA+TGC1 IC INTEGRATED CIRCUIT Analog Devices Inc./Maxim Integrated	2,983	RFQ		Tape & Reel (TR)	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
MAX8791GTA+TG51 IC INTEGRATED CIRCUIT Analog Devices Inc./Maxim Integrated	2,352	RFQ		Tape & Reel (TR)	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
IR2101C IC GATE DRIVER Infineon Technologies	2,811	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
IR2130C IC GATE DRIVER Infineon Technologies	2,999	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
IR2110CX6SA1 IC GATE DRIVER Infineon Technologies	2,564	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
IR2153C IC GATE DRIVER SMD Infineon Technologies	3,821	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
IR2132C IC GATE DRIVER Infineon Technologies	3,413	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
IR2113C IC GATE DRIVER Infineon Technologies	3,602	RFQ		Tube	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
MCP14A1201T-E/SNVAO 12.0A SINGLE INVERTING MOSFET DR Microchip Technology	10,312	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q100	Active	Low-Side	Synchronous	1	IGBT, N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	12A, 12A	Inverting	-	25ns, 25ns	-40°C ~ 125°C (TA)	Surface Mount
MCP14A1202T-E/SNVAO 12.0A SINGLE NON-INVERTING MOSFE Microchip Technology	14,792	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q100	Active	Low-Side	Synchronous	1	IGBT, N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	-	Non-Inverting	-	25ns, 25ns	-40°C ~ 125°C (TA)	Surface Mount
2SP0325V2A1-CM2500DY-24S MODULE GATE DVR P&P FIBER OPTIC Power Integrations	2,899	RFQ	Datasheet	Tray	SCALE™-2	Obsolete	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	25A, -	-	-	600ns, 750ns	-40°C ~ 85°C	Chassis Mount
2SP0325T2A1-CM2500DY-24S MODULE GATE DVR P&P ELECTRIC Power Integrations	2,371	RFQ	Datasheet	Tray	SCALE™-2	Obsolete	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	25A, -	-	-	600ns, 750ns	-40°C ~ 85°C	Chassis Mount
2SP0325T2A1-CM1800DY-34S MODULE GATE DVR P&P ELECTRIC Power Integrations	3,158	RFQ	Datasheet	Tray	SCALE™-2	Obsolete	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	25A, -	-	-	600ns, 750ns	-40°C ~ 85°C	Chassis Mount
