Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
LT1158IN#PBF IC GATE DRVR HALF-BRIDGE 16DIP Analog Devices Inc.	3,650	11.63	RFQ	Datasheet	Tube	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	5V ~ 30V	0.8V, 2V	500mA, 500mA	Inverting, Non-Inverting	56 V	130ns, 120ns	-40°C ~ 150°C (TJ)	Through Hole
UC3710N IC GATE DRVR LOW-SIDE 8DIP Texas Instruments	1,289	11.75	RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	IGBT, N-Channel MOSFET	4.7V ~ 18V	0.8V, 2V	6A, 6A	Inverting, Non-Inverting	-	85ns, 85ns	-55°C ~ 150°C (TJ)	Through Hole
TC4424MJA IC GATE DRVR LOW-SIDE 8CERDIP Microchip Technology	2,495	42.82	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	3A, 3A	Non-Inverting	-	23ns, 25ns	-55°C ~ 150°C (TJ)	Through Hole
2SP0115T2A0-06 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	3,607	95.45	RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 15A	-	600 V	5ns, 10ns	-20°C ~ 85°C (TA)	Surface Mount
2ASC-12A1HP SILICON CARBIDE GATE DRIVER Microchip Technology	828	174.00	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Synchronous	2	P-Channel MOSFET	14V ~ 16V	1.25V, 3.5V	10A, 10A	Non-Inverting	-	80ns, 90ns	-40°C ~ 85°C (TA)	Through Hole

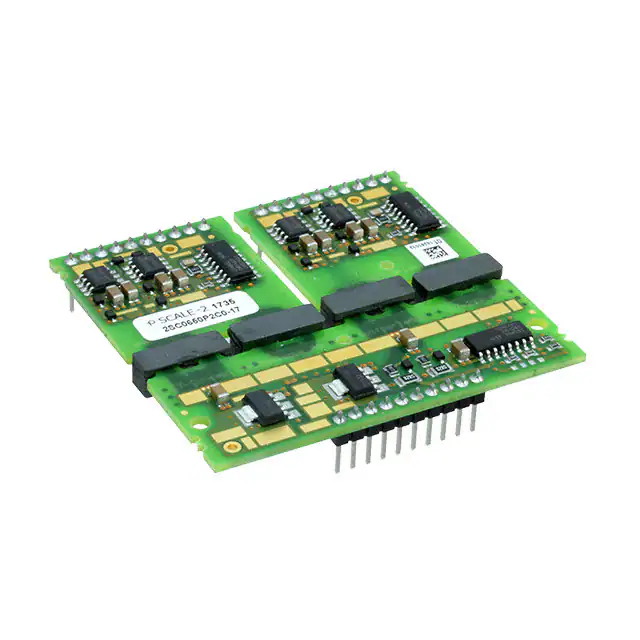

2SC0650P2C0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	612	182.53	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	50A, 50A	-	1700 V	25ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
62EM1-00001 SILICON CARBIDE GATE DRIVER Microchip Technology	975	294.68	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Single	2	N-Channel MOSFET	14V ~ 16V	4V, 1.25V, 10V, 3.5V	20A, 20A	Non-Inverting	-	80ns, 90ns	-40°C ~ 85°C (TA)	Chassis Mount
MCP14A0153-E/MS IC GATE DRVR LOW-SIDE 8MSOP Microchip Technology	7,382	1.10	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	1.5A, 1.5A	Inverting	-	11.5ns, 10ns	-40°C ~ 150°C (TJ)	Surface Mount
MIC4126YMME IC GATE DRVR LOW-SIDE 8MSOP Microchip Technology	9,816	1.13	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 20V	0.8V, 2.4V	1.5A, 1.5A	Inverting	-	20ns, 18ns	-40°C ~ 125°C (TJ)	Surface Mount
MCP14A0303-E/MS IC GATE DRVR HI/LOW SIDE 8MSOP Microchip Technology	6,933	1.14	RFQ	Datasheet	Tube	-	Active	High-Side or Low-Side	Independent	2	IGBT	4.5V ~ 18V	0.8V, 2V	3A, 3A	Inverting	-	12ns, 12ns	-40°C ~ 125°C	Surface Mount
MCP14A0155-E/SN IC GATE DRVR LOW-SIDE 8SOIC Microchip Technology	5,219	1.14	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	1.5A, 1.5A	Inverting, Non-Inverting	-	11.5ns, 10ns	-40°C ~ 150°C (TJ)	Surface Mount
MCP14A0304-E/MS IC GATE DRVR HI/LOW SIDE 8MSOP Microchip Technology	5,295	1.14	RFQ	Datasheet	Tube	-	Active	High-Side or Low-Side	Independent	2	IGBT	4.5V ~ 18V	0.8V, 2V	3A, 3A	Non-Inverting	-	12ns, 12ns	-40°C ~ 125°C	Surface Mount
MCP14A0153-E/SN IC GATE DRVR LOW-SIDE 8SOIC Microchip Technology	5,818	1.14	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	1.5A, 1.5A	Inverting	-	11.5ns, 10ns	-40°C ~ 150°C (TJ)	Surface Mount
MIC4127YMME IC GATE DRVR LOW-SIDE 8MSOP Microchip Technology	8,208	1.23	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 20V	0.8V, 2.4V	1.5A, 1.5A	Non-Inverting	-	20ns, 18ns	-40°C ~ 125°C (TJ)	Surface Mount
MIC4128YME IC GATE DRVR LOW-SIDE 8SOIC Microchip Technology	8,586	1.23	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 20V	0.8V, 2.4V	1.5A, 1.5A	Inverting, Non-Inverting	-	20ns, 18ns	-40°C ~ 125°C (TJ)	Surface Mount
MIC4128YMME IC GATE DRVR LOW-SIDE 8MSOP Microchip Technology	8,308	1.26	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	4.5V ~ 20V	0.8V, 2.4V	1.5A, 1.5A	Inverting, Non-Inverting	-	20ns, 18ns	-40°C ~ 125°C (TJ)	Surface Mount
MIC44F20YMME IC GATE DRVR LOW-SIDE 8MSOP Microchip Technology	5,780	1.38	RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	N-Channel MOSFET	4.5V ~ 13.2V	1.607V, 1.615V	6A, 6A	Inverting	-	10ns, 10ns	-40°C ~ 125°C (TJ)	Surface Mount
MCP14A0452-E/MS IC GATE DRVR LOW-SIDE 8MSOP Microchip Technology	8,977	1.43	RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	4.5A, 4.5A	Non-Inverting	-	9.5ns, 9ns	-40°C ~ 150°C (TJ)	Surface Mount
TC1411NCOA IC GATE DRVR LOW-SIDE 8SOIC Microchip Technology	7,547	1.45	RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	N-Channel, P-Channel MOSFET	4.5V ~ 16V	0.8V, 2V	1A, 1A	Non-Inverting	-	25ns, 25ns	0°C ~ 150°C (TJ)	Surface Mount
MCP1407-E/MF IC GATE DRVR LOW-SIDE 8DFN Microchip Technology	5,805	1.53	RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	6A, 6A	Non-Inverting	-	20ns, 20ns	-40°C ~ 150°C (TJ)	Surface Mount
