Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
2DU180206MR01 (ROHM: BSM180D12P3C007) Tamura	662	161.60	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Independent	2	SiC MOSFET	5V	0.8V, 2V	20mA, -	-	-	500ns, 500ns	-40°C ~ 85°C	Chassis Mount
2DU180506MR03 (ROHM: BSM080D12P2C008) Tamura	958	161.60	RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Independent	2	SiC MOSFET	5V	0.8V, 2V	20mA, -	-	-	500ns, 500ns	-40°C ~ 85°C	Chassis Mount
2DU180206MR04 (ROHM: BSM600D12P3G001) Tamura	403	161.60	RFQ		Bulk	-	Active	Half-Bridge	Independent	2	IGBT, SiC MOSFET	5V	-	-	-	-	500ns, 500ns	-40°C ~ 85°C (TA)	Chassis Mount

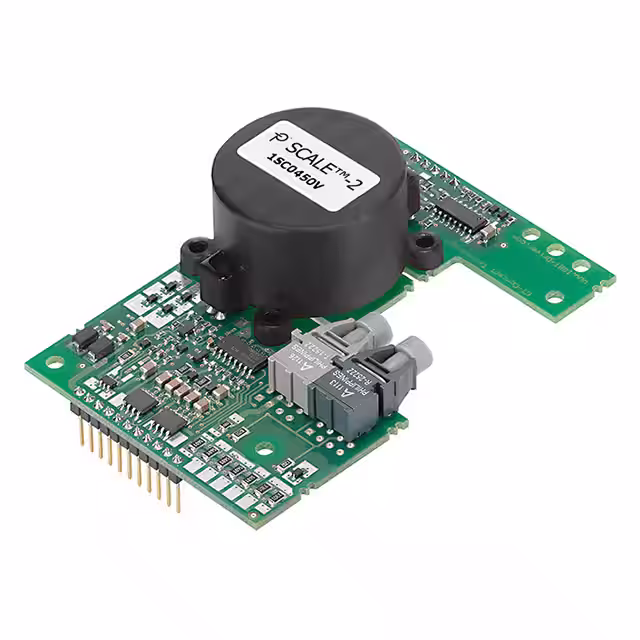

1SC0450V2B0-65 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	943	280.94	RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	50A, 50A	-	6500 V	30ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
ADP3418JR-REEL DUAL BOOSTRAPPED 12V MOSFET DRIV Analog Devices Inc.	14,800	0.23	RFQ	Datasheet	Bulk	-	Active	High-Side	Synchronous	2	N-Channel, P-Channel MOSFET	4.15V ~ 13.2V	0.8V, 2.8V	-	Inverting, Non-Inverting	-	-	0°C ~ 85°C (TA)	Surface Mount
NCP3418PDR2 HALF BRIDGE BASED MOSFET DRIVER onsemi	14,178	0.24	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
NCP3418D HALF BRIDGE BASED MOSFET DRIVER onsemi	11,491	0.24	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FAN5009M HALF BRIDGE BASED MOSFET DRIVER Fairchild Semiconductor	2,064	0.34	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	10V ~ 13.5V	0.8V, 2.5V	-	Inverting, Non-Inverting	15 V	40ns, 20ns	0°C ~ 125°C (TJ)	Surface Mount
ADP3417JR-REEL7 DUAL BOOTSTRAPPED MOSFET DRIVER Analog Devices Inc.	14,920	0.34	RFQ	Datasheet	Bulk	ADP3417	Active	High-Side	Synchronous	2	N-Channel MOSFET	4.15V ~ 13.2V	0.8V, 2.5V	-	Inverting, Non-Inverting	-	-	0°C ~ 125°C (TJ)	Surface Mount
TPS2813PWLE NAND GATE BASED MOSFET DRIVER Texas Instruments	10,128	0.37	RFQ	Datasheet	Bulk	-	Active	Low-Side	Synchronous	2	N-Channel, P-Channel MOSFET	4V ~ 14V	-	2A, 2A	Inverting, Non-Inverting	-	14ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount
NCP1053XP136 POWER SWITCHING REGULATOR onsemi	10,881	0.40	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
MIC4427CN LOW-SIDE MOSFET DRIVER Microchip Technology	3,398	0.44	RFQ	Datasheet	Tube	-	Obsolete	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	1.5A, 1.5A	Non-Inverting	-	20ns, 29ns	0°C ~ 150°C (TJ)	Through Hole
NCP4413P BUFFER/INVERTER MOSFET DRIVER onsemi	14,024	0.46	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
MIC5018BM4 HIGH-SIDE MOSFET DRIVER Micrel Inc.	12,474	0.48	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
TPS2811PWLE NAND GATE BASED MOSFET DRIVER Texas Instruments	10,299	0.54	RFQ	Datasheet	Bulk	-	Active	Low-Side	Synchronous	2	N-Channel, P-Channel MOSFET	4V ~ 14V	-	2A, 2A	Inverting	-	14ns, 15ns	-40°C ~ 125°C (TA)	Surface Mount
ISL6209CB HALF BRIDGE BASED MOSFET DRIVER Intersil	2,165	0.55	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	4.5V ~ 5.5V	1.8V, 3.1V	2A, 2A	Non-Inverting	33 V	8ns, 8ns	-10°C ~ 125°C (TJ)	Surface Mount
ISL6605IB HALF BRIDGE BASED MOSFET DRIVER Intersil	913	0.61	RFQ	Datasheet	Tube	-	Obsolete	Half-Bridge	Synchronous	2	N-Channel MOSFET	4.5V ~ 5.5V	1V, 2V	2A, 2A	Non-Inverting	33 V	8ns, 8ns	-40°C ~ 125°C (TJ)	Surface Mount
ISL6700IR-T HALF BRIDGE BASED MOSFET DRIVER Intersil	2,699	0.68	RFQ	Datasheet	Bulk	-	Obsolete	Half-Bridge	Independent	2	N-Channel MOSFET	9V ~ 15V	0.8V, 2.2V	1.4A, 1.3A	Non-Inverting	80 V	5ns, 5ns	-40°C ~ 125°C (TJ)	Surface Mount
MIC4425CWM LOW-SIDE MOSFET DRIVER Microchip Technology	2,997	0.70	RFQ	Datasheet	Bulk	-	Obsolete	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	3A, 3A	Inverting, Non-Inverting	-	28ns, 32ns	0°C ~ 150°C (TJ)	Surface Mount
ADP3416JR DUAL BOOTSTRAPPED MOSFET DRIVER Analog Devices Inc.	14,072	0.70	RFQ	Datasheet	Bulk	-	Active	High-Side and Low-Side	Synchronous	2	N-Channel MOSFET	4.15V ~ 7.5V	0.8V, 2.3V	-	Non-Inverting	-	-	0°C ~ 70°C (TA)	Surface Mount
