Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
LTC7001HMSE#PBF IC GATE DRVR HIGH-SIDE 10MSOP Analog Devices Inc.	6,170	8.93	RFQ	Datasheet	Tube	-	Active	High-Side	Single	1	N-Channel MOSFET	3.5V ~ 15V	-	-	Non-Inverting	135 V	90ns, 40ns	-40°C ~ 150°C (TJ)	Surface Mount
2ED020I12FAXUMA2 IC GATE DRVR HALF-BRIDG DSO36-58 Infineon Technologies	6,725	1.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	EiceDriver™	Not For New Designs	Half-Bridge	Independent	2	IGBT, N-Channel, P-Channel MOSFET	13V ~ 20V	1.5V, 3.5V	2.4A, 2.4A	Inverting, Non-Inverting	1200 V	30ns, 50ns	-40°C ~ 150°C (TJ)	Surface Mount
LT1160CS#PBF IC GATE DRVR HALF-BRIDGE 14SOIC Analog Devices Inc.	5,113	9.51	RFQ	Datasheet	Tube	-	Active	Half-Bridge	Independent	2	N-Channel MOSFET	10V ~ 15V	0.8V, 2V	1.5A, 1.5A	Non-Inverting	60 V	130ns, 60ns	0°C ~ 125°C (TJ)	Surface Mount
IR2214SSPBF IC GATE DRVR HALF-BRIDGE 24SSOP Infineon Technologies	5,389	8.76	RFQ	Datasheet	Bulk,Tube	-	Active	Half-Bridge	Independent	2	IGBT	11.5V ~ 20V	0.8V, 2V	2A, 3A	Non-Inverting	1200 V	24ns, 7ns	-40°C ~ 150°C (TJ)	Surface Mount

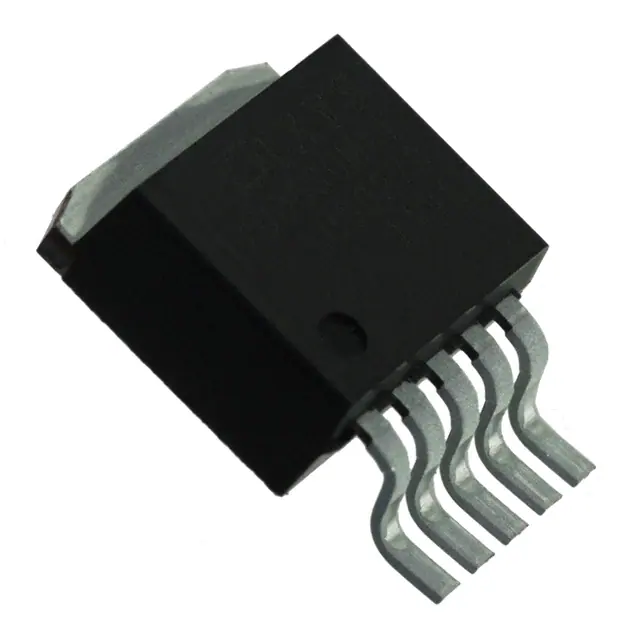

IXDD630MYI IC GATE DRVR LOW-SIDE TO263-5 IXYS Integrated Circuits Division	6,609	9.56	RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	9V ~ 35V	0.8V, 3.5V	30A, 30A	Non-Inverting	-	11ns, 11ns	-55°C ~ 150°C (TJ)	Surface Mount

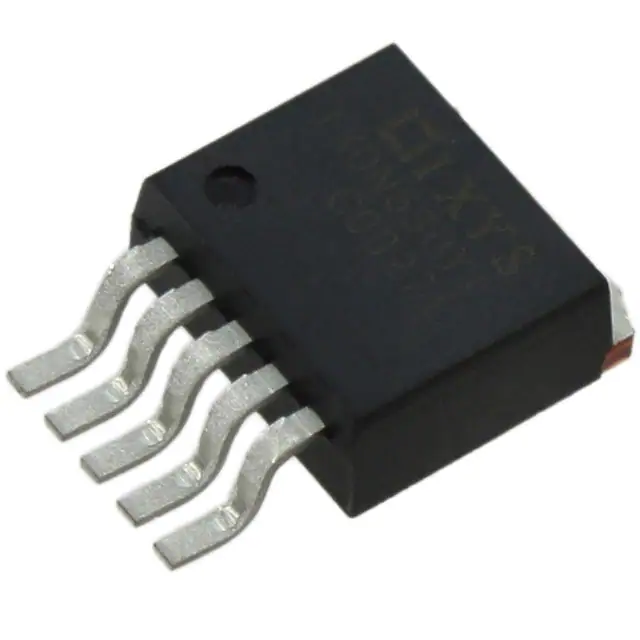

IXDN630YI IC GATE DRVR LOW-SIDE TO263-5 IXYS Integrated Circuits Division	6,879	9.56	RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	12.5V ~ 35V	0.8V, 3.5V	30A, 30A	Non-Inverting	-	11ns, 11ns	-55°C ~ 150°C (TJ)	Surface Mount
LT1161ISW#PBF IC GATE DRVR HIGH-SIDE 20SOIC Analog Devices Inc.	3,376	12.41	RFQ	Datasheet	Tube	-	Active	High-Side	Independent	4	N-Channel MOSFET	8V ~ 48V	0.8V, 2V	-	Non-Inverting	-	-	-40°C ~ 150°C (TJ)	Surface Mount
LT1158ISW#PBF IC GATE DRVR HALF-BRIDGE 16SOIC Analog Devices Inc.	4,121	11.37	RFQ	Datasheet	Tube	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	5V ~ 30V	0.8V, 2V	500mA, 500mA	Inverting, Non-Inverting	56 V	130ns, 120ns	-40°C ~ 150°C (TJ)	Surface Mount
LTC7004MPMSE#PBF IC GATE DRVR HIGH-SIDE 10MSOP Analog Devices Inc.	1,478	15.36	RFQ	Datasheet	Tube	-	Active	High-Side	Single	1	N-Channel MOSFET	3.5V ~ 15V	-	-	Non-Inverting	60 V	90ns, 40ns	-55°C ~ 150°C (TJ)	Surface Mount
LTC7001MPMSE#PBF IC GATE DRVR HIGH-SIDE 10MSOP Analog Devices Inc.	2,027	18.36	RFQ	Datasheet	Tube	-	Active	High-Side	Single	1	N-Channel MOSFET	3.5V ~ 15V	-	-	Non-Inverting	135 V	90ns, 40ns	-55°C ~ 150°C (TJ)	Surface Mount
LTC7000MPMSE#PBF IC GATE DRVR HIGH-SIDE 16MSOP Analog Devices Inc.	4,700	20.99	RFQ	Datasheet	Tube	-	Active	High-Side	Single	1	N-Channel MOSFET	3.5V ~ 135V	1.8V, 1.7V	-	Non-Inverting	135 V	90ns, 40ns	-55°C ~ 150°C (TJ)	Surface Mount
M57962L-71R-02 IC GATE DRVR PWR MGMT MOSFET Powerex Inc.	4,422	23.32	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14V ~ 15V	-	5A, 5A	Non-Inverting	-	600ns, 400ns	-20°C ~ 60°C	Through Hole
TC4427MJA IC GATE DRVR LOW-SIDE 8CERDIP Microchip Technology	3,010	41.05	RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	4.5V ~ 18V	0.8V, 2.4V	1.5A, 1.5A	Non-Inverting	-	19ns, 19ns	-55°C ~ 125°C (TA)	Through Hole
VLA502-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	4,784	55.15	RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14.2V ~ 15.8V	-	12A, 12A	Non-Inverting	-	300ns, 300ns	-20°C ~ 60°C (TA)	Through Hole
2SC0108T2F1-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	1,890	56.37	RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 8A	-	1700 V	17ns, 15ns	-40°C ~ 85°C (TA)	Surface Mount

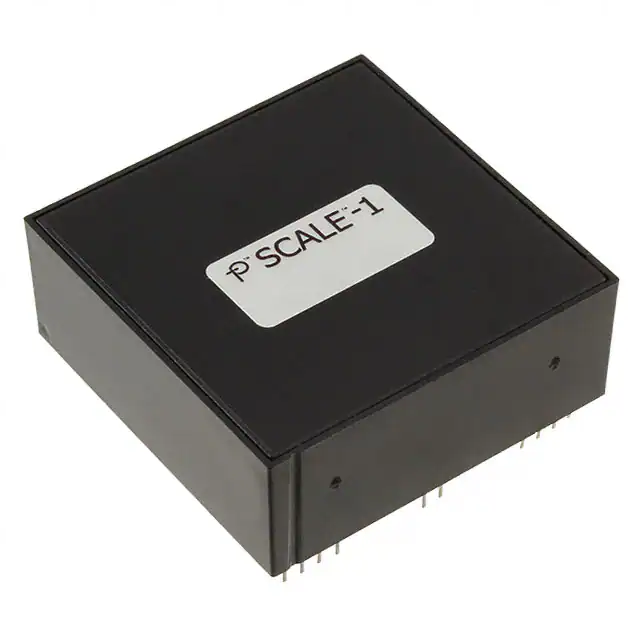

IGD515EI IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	710	187.82	RFQ	Datasheet	Bulk	SCALE™-1	Not For New Designs	High-Side or Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	12V ~ 16V	0.9V, 3.8V	15A, 15A	-	-	40ns, 40ns	-40°C ~ 85°C (TA)	Through Hole
2SC0535T2A1-33 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	712	202.93	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	3300 V	20ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
1SP0335V2M1-65 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	434	306.61	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	23.5V ~ 26.5V	-	35A, 35A	-	6500 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
1SP0635V2M1-33 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	433	347.11	RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Single	1	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	3300 V	9ns, 30ns	-40°C ~ 85°C (TA)	Surface Mount
NCP81151MNTBG IC GATE DRVR HALF-BRIDGE 8DFN onsemi	12,200	0.48	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	Half-Bridge	Synchronous	2	N-Channel MOSFET	4.5V ~ 5.5V	0.6V, 3.3V	-	Non-Inverting	40 V	16ns, 11ns	-40°C ~ 150°C (TJ)	Surface Mount
