Power Transformers

Manufacturer	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
Acme Electric Acme Electric/Amveco/Actown Allied Components International Amgis, LLC API Delevan Inc. Banner Engineering Corporation Bourns Inc. C-TON Industries COILCRAFT Eaton - Electronics Division Hammond Manufacturing Hartland Controls/Littelfuse iNRCORE, LLC Phoenix Contact Pulse Electronics Network Pulse Electronics Power Siemens Signal Transformer SolaHD Talema Group LLC Tamura TE Connectivity AMP Connectors TE Connectivity Passive Product TE Connectivity Potter & Brumfield Relays Triad Magnetics Trigon Components Zettler Magnetics	- Box Bulk Bulk,Box Bulk,Bulk Strip Tape & Reel (TR) Tape & Reel (TR),Cut Tape (CT),Digi-Reel® Tray Tube	* - 1182 160 161 162 164 165 166 167 182 183 185 186 187 197 226 227 228 229 260 261 262 263 265 266 269 270 271 272 273 274 275 276 278 279 282 290 291 300 3FD-2xx 3FD-3xx 3FD-4xx 3FD-5xx 3FL 3FS-2xx 3FS-3xx 3FS-4xx 3FS-5xx 4000 4000, Products Unlimited 4600, Products Unlimited 4700, Products Unlimited 4900 6012 6012R 6013 6013R 6014 6014R 6015 6015R 6016 6016R 6017 6017R 6022 6022R 6023 6023R 6024 6024R 6025 6025R 6026 6026R 6027 6027R 6051 6051R 6052 6052R 6053 6053R 6054 6054R 6055 6055R 62000 6443 6443R 6444 6444R 6445 6445R 6446 6446R 6447 6447R 6448 6448R 6494 6494R 6495 6495R 6496 6496R 6497 6497R 6498 6498R 700 70000 7XXXX ADH200 ADH300 ADH400 AE AEP13-3748 AEP13-3822 AEP13-3962 AH200 AH300 AH400 AHI010 AHI025 AHI050 All-4-One™ BA BC BD BE BF CE Chassis Mount: World Series™ Chassis-Tran CL2 Class 2, TCT Control Transformers CPT DMPC DMT DMTT DPC DST Dual Primary E2 EcoTran EI 30-5 EI30-10.5 EI30-15.5 Flat Pack™ HCT HPI HS1 HS5 HSZ HT1 HT3 HT5 HT6 HT7 HT8 Ice International IF International High Power International PC Plug-In L01 Low Profile Plug-In LP LPI LT M4L MD MPC MPI MPL MT MTT Multiple Secondary One-4-All™ PC PC Mount: World Series™ PC Plug-In Peter W. Dahl Design PF24 PHC PL10-xx130B PL2.5-xx-130B PL20-xx-130B PL30-xx-130B PL5.0-xx-130B PL56-xx-130B PT PW1.5 Quick Pack QUICK-CONNECT WORLD SERIES™ SBE SHE Single Primary Single Secondary SLT SMT Split Bobbin Plug-In Split Pack™ Split Pack™, Class 2/3, F Split Pack™, Class 2/3, FS ST Standard Mini TB Toroidal Medical, VPM Two-4-One™ TX Universal UWB	Active Discontinued at Mosen Obsolete	- Laminated Core Planar Semi-Toroidal Toroidal	- 100V, 110V, 120V, 200V, 220V, 240V 100V, 110V, 120V, 210V, 220V, 230V, 240V 100V, 115V, 120V 100V, 115V, 200V, 215V, 230V 100V, 115V, 215V, 230V 100V, 120V 100V, 120V, 200V, 240V 100V, 120V, 220V, 230V, 240V 100V, 120V, 220V, 240V 105V, 115V, 125V 105V, 115V, 125V, 230V 105V, 130V 115V 115V, 100V 115V, 130V 115V, 230V 117V 117V, 234V 120V 120V, 208V 120V, 208V, 240V 120V, 208V, 240V, 277V 120V, 208V, 240V, 480V 120V, 220V, 240V 120V, 240V 125V, 115V, 105V 190V, 200V, 208V, 220V, 380V, 400V, 415V, 440V 200V, 220V, 240V, 400V, 420V, 440V, 460V, 480V 200V, 230V, 400V, 460V, 575V 208V 208V, 240V 208V, 240V, 277V, 380V, 480V 208V, 240V, 415V, 480V, 600V 208V, 240V, 480V 220V 220V, 230V, 240V, 440V, 460V, 480V 220V, 380V, 440V, 550V 230V 240V 240V, 480V 240V, 575V 24V 250V, 230V, 210V 277V 347V 380V, 415V 480V 575V 600V	- 1000V, 6.3V, 5V 100V 1010V, 640V, 12V, 6.3V 1020V 10V 10V, 11V, 12V 10V, 20V, 40V 110V, 115V, 120V 110V, 220V 115V 1170V, 878V 1171V, 860V 11V 12.4V 12.5V 12.6V 120V 120V, 12.6V 120V, 12/12V 120V, 208V 120V, 240V 120V, 6.3V 1250V 12V 12V, 24V 14V 15.5V, 32V 1500V 15V 16.5V 16.6V 16V 1790V 18V 2.5V 2000V 200V 200V, 5V 2050V, 390V, 105V, 28V, 13.3V 20V 215V, 6.3V 220V, 380V 2225V 22V 240V 24V 24V, 27V, 30V, 33V, 36V 25.2V 2500V 250V, 6.3V 2570V 25V 26.8V 277V, 480V 2800V, 1800V, 50V, 44V, 22V, 5V 28V 28V, 16V 29V 3000V 300V, 6.3V 30V 330V, 41V, 6.57V 33V 3400V, 50V, 44V, 5V 3500V 356V, 100V, 6.39V 35V 35V, 16V 3600V 360V, 5V 361V, 43.3V, 7V 36V 380V, 6.3V 3V 400V, 6.3V 40V 40V, 20V, 10V 420V, 6.3V 42V 44V 450V, 6.3V 450V, 6.3V, 5V 480V, 6.3V 480V, 6.3V, 5V 48V 500V, 6.3V 500V, 6.3V, 5V 50V 520V, 6.3V 550V, 6.3V, 5V 550V, 6.3V, 6.3V 55V 560V, 6.3V, 5V 56V 580V, 6.3V, 5V 5V 5V, 12V 5V, 15V 5V, ±12V 5V, ±15V 6.3V 6.3V, 7.5V 6.5V, 13V, 19.5V, 26V 600V, 6.3V, 5V 600V, 6.3V, 5V, 2.5V, 2.5V 60V 620V, 6.3V, 5V 630V, 6.66V, 5.1V 6320V, 245V 640V, 6.3V, 5V 640V, 6.5V 64V 650V, 6.3V, 5V 660V, 6.5V 660V, 6V, 5V 690V, 6.3V 6V 7.5V 700V, 6.3V, 5V 70V 720V, 6.3V, 5V 72V 750V 750V, 6.3V, 5V 7V 8.5V 800V, 120V, 6.3V 800V, 6.3V 800V, 6.3V, 5V 800V, 6.3V, 5V, 5V 80V 850V 850V, 6.3V, 5V 8V 9.5V 90V, 5V 9V Parallel 1.25V, Series 2.5V Parallel 10V, Series 20V Parallel 110V, Series 220V Parallel 115V, Series 230V Parallel 117V, Series 234V Parallel 12.5V, Series 25V Parallel 12.6V, Series 25.2V Parallel 120V, Series 230V Parallel 120V, Series 240V Parallel 12V, Series 24V Parallel 13.4V, Series 26.8V Parallel 13V, Series 26V Parallel 14V, Series 28V Parallel 15.5V, Series 32V Parallel 15V, Series 30V Parallel 15V, Series 32V Parallel 16V, Series 28V Parallel 16V, Series 35V Parallel 17.5V, Series 31.5V Parallel 17.5V, Series 35V Parallel 17.5V, Series 37.5V Parallel 17V, Series 34V Parallel 18V, Series 36V Parallel 2.5V, Series 5V Parallel 20V, Series 40V Parallel 21V, Series 42V Parallel 22V, Series 44V Parallel 24V, Series 48V Parallel 26V, Series 13V Parallel 27V, Series 54V Parallel 28 V, Series 56V Parallel 28V, Series 56V Parallel 3.15V, Series 6.3V Parallel 30V, Series 60V Parallel 34V, Series 68V Parallel 38V, Series 76V Parallel 4.5V, Series 9V Parallel 40V, Series 80V Parallel 42V, Series 84V Parallel 44V, Series 88V Parallel 4V, Series 8V Parallel 50V, Series 100V Parallel 55V, Series 110V Parallel 58V, Series 116V Parallel 5V, Series 10V Parallel 5V, Series 12V Parallel 5V, Series 15V Parallel 6.30V, Series 12.6V Parallel 6.3V, Series 12.6V Parallel 6.4V, Series 12.8V Parallel 60V, Series 120V Parallel 6V, Series 12V Parallel 7.5V, Series 15V Parallel 7V, Series 14V Parallel 8.5V, Series 17V Parallel 84V, Series 42V Parallel 8V, Series 16V Parallel 9.3V, Series 27.5V Parallel 9V, Series 18V Parallel 9V, Series 24V	- 0.2A, 6A 0.36A 0.89A 0.99A 1.04A 1.05A 1.066A 1.06A, 12A 1.07A 1.111A 1.11A 1.1A 1.25A 1.25A, 200mA 1.25A, 250mA 1.2A 1.333A 1.389A 1.3A 1.43A 1.57A 1.5A 1.666A 1.66A 1.67A 1.75A, 175mA 1.75A, 210mA 1.777A 1.786A 1.7A 1.866A 1.8A 1.984A 1.98A 10.8A 100mA 100mA, 100mA, 2.5A 100mA, 2.25A, 3A 103mA, 3A, 2A 104A, 208A 104mA, 3.5A 104mA, 3A, 2A 108.3A 10A 110mA 111mA 112mA 115mA, 2A 115mA, 3A, 2A 116mA 11A 12.5A 12.5A, 25A 120mA 122mA 125A 125mA 126mA, 4A, 2A 126mA, 5A, 3A 127mA, 4A, 2A 127mA, 5A, 3A 128mA 12A 13.3mA 13.6A 13.6A, 27.3A 130mA, 2A 133mA 134mA 138mA, 3.5A, 3A 138mA, 3A, 3A 14.4A 140mA 140mA, 1.5A 140mA, 750mA 144mA, 4A, 3A 147mA 14mA 150mA 150mA, 100mA, 7A 150mA, 5A 150mA, 6A, 3A 154mA 155mA 155mA, 5A, 3A 15A 16.6A 16.7A 161mA, 6A, 3A 166mA 167mA 16A 170mA 172mA, 5A, 3A 173mA, 4A, 2A 173mA, 5A, 3A 175mA 178mA 18.2A 180mA 186mA 190mA 192mA 19mA 1A 2.083A 2.08A 2.08A, 4.16A 2.1A 2.2A 2.42A 2.4A 2.5A 2.666A 2.6A 2.8A 2.8A, 280mA 2.8A, 350mA 20.8A, 41.6A 200mA 201mA, 5A, 3A 201mA, 6A, 3A 207mA, 4A, 3A 208A 208mA 20A 20mA 21.7A 210mA 214mA 215mA 21A 21mA 22.7A, 45.5A 220mA 222mA 226mA 230mA, 4A, 3A 230mA, 4A,2A 230mA, 5A, 3A 230mA, 6A, 3A 230mA, 6A, 3A, 2.5A, 2.5A 233mA 237mA 23mA 250mA 256mA 25A 262mA, 3.42A, 6.8A 267mA 269mA, 4A 276mA, 3.15A 278mA 27mA, 200mA/200mA 280mA 287mA, 3A 287mA, 8A, 4A 288mA, 3A 288mA, 5A, 3A 288mA, 6A, 1.2A, 3A 288mA, 8A, 4A 28mA 29mA 2A 3.125A 3.13A 3.13A, 6.25A 3.33A 3.34A 3.57A 3.5A 3.6A 3.8A 3.97A 3.9A 300mA 300mA, 6A, 3A 30A 31.3A, 62.5A 310mA 311mA 322mA, 6A, 6A 333mA 334mA 33mA 34.1A, 68.2A 345mA, 518mA 345mA, 9A, 6A 34mA 350mA 356mA 35mA 36.1A 360mA, 150mA 360mA, 187mA 384mA 390mA 39mA 3A 3A, 250mA 3A, 300mA 4.16A 4.17A 4.17A, 8.33A 4.2A 4.5A, 9.1A 4.68A 4.6A 400mA 403mA, 9A, 6A 40mA 40mA, 1A 41.6A 41.7A 41.7A, 83.3A 410mA 416mA 417mA 419mA 420mA 420mA, 50mA, 7A 42mA 430mA 43mA, 300mA 444mA 45.5A 45.5A, 90.9A 450mA 45mA 45mA, 1A 45mA, 300mA 460mA, 9A, 6A 466mA 46mA, 1.5A, 2A 46mA, 2A, 2A 4A 4A, 500mA 4A, 600mA 5.2A 5.5A 500mA 500mA, 3A, 7.2A 50A 50mA 518mA, 5.5A 530mA 534mA 534mA, 6A 535mA, 6A 53mA, 450mA 53mA, 900mA 540mA 555mA 556mA 55mA 57.5mA, 2A, 2A 575mA, 9A, 6A 58mA 58mA, 2.5A 58mA, 2A, 2A 5A 6.25A 6.25A, 12.5A 6.3A 6.67mA 6.8A, 13.6A 600mA 60mA 62.5A 62.5A, 125A 620mA 625mA 62mA 630mA 63mA 650mA 65mA 666mA 667mA 66mA 680mA 690mA, 12A, 6A 69mA, 2.5A 69mA, 2A, 2A 6A 6A, 1A 7.2A 700mA 700mA, 500mA, 10A 71mA, 2.5A 72.2A 74mA, 2.5A 750mA 750mA, 175mA 750mA, 200mA 750mA, 250mA 75mA 75mA, 2.5A 75mA, 2.5A, 600mA 790mA 8.33A 8.33A, 16.7A 8.3A 8.7A 8.88mA 800mA 80mA 80mA, 2.4A, 2A 81mA, 2.4A, 2A 81mA, 2.5A, 2A 81mA, 2A, 2A 83.3A 83.4A 830mA 833mA 834mA 83mA 84mA 850mA 85mA 85mA, 2A, 2A 863mA, 12A, 6A 86mA, 2A 870mA 87mA, 1.2A 87mA, 600mA 888mA 8A 9.1A 9.1A, 18.2A 90A 91mA, 1A 92mA, 4A, 3A 930mA 940mA 96mA 9A Parallel 1.026A, Series 513mA Parallel 1.02A, Series 513mA Parallel 1.042A, Series 521mA Parallel 1.04A, Series 520mA Parallel 1.066A, Series 533mA Parallel 1.06A, Series 530mA Parallel 1.071A, Series 535mA Parallel 1.09A, Series 545mA Parallel 1.112A, Series 556mA Parallel 1.11A, Series 555mA Parallel 1.124A, Series 562mA Parallel 1.12A, Series 556mA Parallel 1.12A, Series 560mA Parallel 1.136A, Series 568mA Parallel 1.14A, Series 570mA Parallel 1.167A, Series 584mA Parallel 1.1A, Series 550mA Parallel 1.25A, Series 130mA Parallel 1.25A, Series 150mA Parallel 1.25A, Series 620mA Parallel 1.25A, Series 625mA Parallel 1.26A, Series 630mA Parallel 1.28A, Series 640mA Parallel 1.2A, Series 1.2A Parallel 1.2A, Series 600mA Parallel 1.2A, Series 610mA Parallel 1.32A, Series 660mA Parallel 1.332A, Series 666mA Parallel 1.33A, Series 670mA Parallel 1.368A, Series 684mA Parallel 1.36A, Series 680mA Parallel 1.37A, Series 684mA Parallel 1.388A, Series 694mA Parallel 1.389A, Series 695mA Parallel 1.38A, Series 690mA Parallel 1.3A, Series 650mA Parallel 1.428A, Series 714mA Parallel 1.44A, Series 720mA Parallel 1.454A, Series 727mA Parallel 1.458A, Series 729mA Parallel 1.45A, Series 725mA Parallel 1.45A, Series 727mA Parallel 1.4A, Series 700mA Parallel 1.52A, Series 760mA Parallel 1.54A, Series 770mA Parallel 1.59A, Series 795mA Parallel 1.5A, Series 740mA Parallel 1.5A, Series 750mA Parallel 1.64A, Series 820mA Parallel 1.664A, Series 832mA Parallel 1.666A, Series 833mA Parallel 1.667A, Series 834mA Parallel 1.668A, Series 834mA Parallel 1.66A, Series 830mA Parallel 1.66A, Series 833mA Parallel 1.67A, Series 830mA Parallel 1.67A, Series 835mA Parallel 1.6A, Series 800mA Parallel 1.75A, Series 875mA Parallel 1.776A, Series 888mA Parallel 1.786A, Series 893mA Parallel 1.7A, Series 850mA Parallel 1.7A, Series 870mA Parallel 1.86A, Series 900mA Parallel 1.86A, Series 930mA Parallel 1.88A, Series 940mA Parallel 1.8A, Series 900mA Parallel 1.92A, Series 960mA Parallel 1.944A, Series 972mA Parallel 1.9A, Series 950mA Parallel 10.22A, Series 5.11A Parallel 10.42A, Series 5.21A Parallel 10.4A, Series 5.2A Parallel 10.66A, Series 5.33A Parallel 10.8A, Series 5.4A Parallel 10.9A, Series 5.4A Parallel 100A, Series 50A Parallel 100mA, Series 25mA Parallel 100mA, Series 50mA Parallel 106mA, Series 53mA Parallel 107mA, Series 54mA Parallel 108.4A, Series 54.2A Parallel 10A, Series 5A Parallel 10mA, Series 5mA Parallel 11.12A, Series 5.56A Parallel 11.2A, Series 5.6A Parallel 11.6A, Series 5.8A Parallel 11.9A, Series 5.95A Parallel 110mA, Series 55mA Parallel 112.5A, Series 56.3A Parallel 114mA, Series 57mA Parallel 116mA, Series 58mA Parallel 12.5A, Series 6.25A Parallel 12.6A, Series 6.3A Parallel 12.8A, Series 6.4A Parallel 120mA, Series 60mA Parallel 124mA, Series 62mA Parallel 125mA, Series 62mA Parallel 128mA, Series 64mA Parallel 12A, Series 6A Parallel 13.2A, Series 6.6A Parallel 13.34A, Series 6.67A Parallel 13.6A, Series 6.8A Parallel 13.7A, Series 6.8A Parallel 13.88A, Series 6.94A Parallel 13.8A, Series 6.9A Parallel 130A, Series 65A Parallel 130mA, Series 65mA Parallel 130mA, Series 85mA Parallel 132mA, Series 66mA Parallel 133mA, Series 67mA Parallel 134mA, Series 67mA Parallel 135mA, Series 35mA Parallel 135mA, Series 40mA Parallel 135mA, Series 67mA Parallel 136mA, Series 68mA Parallel 139mA, Series 70mA Parallel 13A, Series 6.5A Parallel 13mA, Series 6.5mA Parallel 14.2A, Series 7.1A Parallel 14.6A, Series 7.3A Parallel 140mA, Series 70mA Parallel 146mA, Series 73mA Parallel 14A, Series 7A Parallel 14mA, Series 7mA Parallel 15.2A, Series 7.6A Parallel 15.46A, Series 7.73A Parallel 150A, Series 75A Parallel 150mA, Series 75mA Parallel 154mA, Series 77mA Parallel 155mA, Series 60mA Parallel 155mA, Series 65mA Parallel 159mA, Series 80mA Parallel 15A, Series 7.5A Parallel 16.2A, Series 8.1A Parallel 16.4A, Series 8.2A Parallel 16.66A, Series 8.33A Parallel 16.67A, Series 8.33A Parallel 16.6A, Series 8.3A Parallel 16.7A, Series 8.3A Parallel 160mA, Series 80mA Parallel 166mA, Series 83mA Parallel 167mA, Series 84mA Parallel 168mA, Series 84mA Parallel 16A, Series 8A Parallel 16mA, Series 8mA Parallel 17.4A, Series 8.7A Parallel 17.6A, Series 8.8A Parallel 17.9A, Series 8.9A Parallel 170mA, Series 85mA Parallel 178mA, Series 89mA Parallel 18.74A, Series 9.37A Parallel 18.76A, Series 9.38A Parallel 18.8A, Series 9.4A Parallel 180A, Series 90A Parallel 180mA, Series 90mA Parallel 186mA, Series 93mA Parallel 187mA, Series 93mA Parallel 18mA, Series 9mA Parallel 19.04A, Series 9.09A Parallel 19.04A, Series 9.52A Parallel 190mA, Series 95mA Parallel 192mA, Series 96mA Parallel 194mA, Series 97mA Parallel 195mA, Series 50mA Parallel 1A, Series 500mA Parallel 2.04A, Series 1.02A Parallel 2.082A, Series 1.041A Parallel 2.083A, Series 1.0415A Parallel 2.08A, Series 1.04A Parallel 2.12A, Series 1.06A Parallel 2.142A, Series 1.071A Parallel 2.18A, Series 1.09A Parallel 2.272A, Series 1.136A Parallel 2.28A, Series 1.14A Parallel 2.2A, Series 1.1A Parallel 2.332A, Series 1.166A Parallel 2.334A, Series 1.167A Parallel 2.3A, Series 1.15A Parallel 2.4A, Series 1.2A Parallel 2.56A, Series 1.28A Parallel 2.5A, Series 1.25A Parallel 2.666A, Series 1.333A Parallel 2.66A, Series 1.33A Parallel 2.6A, Series 1.3A Parallel 2.72A, Series 1.36A Parallel 2.754A, Series 1.377A Parallel 2.776A, Series 1.388A Parallel 2.778A, Series 1.389A Parallel 2.78A, Series 1.39A Parallel 2.8A, Series 1.4A Parallel 2.916A, Series 1.458A Parallel 2.92A, Series 1.46A Parallel 20.6A, Series 10.3A Parallel 20.82A, Series 10.41A Parallel 20.83A, Series 10.42A Parallel 20.84A, Series 10.42A Parallel 20.8A, Series 10.4A Parallel 200A, Series 100A Parallel 200mA, Series 100mA Parallel 208mA, Series 104mA Parallel 20A, Series 10A Parallel 20mA, Series 10mA Parallel 21.4A, Series 10.7A Parallel 21.66A, Series 10.83A Parallel 21.74A, Series 10.87A Parallel 21.8A, Series 10.4A Parallel 21.8A, Series 10.9A Parallel 210mA, Series 105mA Parallel 214mA, Series 107mA Parallel 22.2A, Series 11.1A Parallel 22.6A, Series 11.3A Parallel 220mA, Series 1.5A Parallel 220mA, Series 110mA Parallel 222mA, Series 111mA Parallel 224mA, Series 112mA Parallel 227mA, Series 113mA Parallel 228mA, Series 114mA Parallel 229mA, Series 115mA Parallel 22A, Series 11A Parallel 23.4A, Series 11.7A Parallel 23.8A, Series 11.9A Parallel 232mA, Series 116mA Parallel 233mA, Series 117mA Parallel 240mA, Series 120mA Parallel 24A, Series 12A Parallel 24mA, Series 12mA Parallel 250mA, Series 125mA Parallel 256mA, Series 128mA Parallel 25A, Series 12.5A Parallel 26.04A, Series 13.02A Parallel 26.66A, Series 13.33A Parallel 26.6A, Series 13.3A Parallel 260mA, Series 130mA Parallel 264mA, Series 132mA Parallel 266mA, Series 133mA Parallel 268mA, Series 134mA Parallel 26A, Series 13A Parallel 26mA, Series 13mA Parallel 27.08A, Series 13.54A Parallel 27.1A, Series 13.5A Parallel 27.26A, Series 13.63A Parallel 27.5A, Series 13.7A Parallel 27.6A, Series 13.8A Parallel 270mA, Series 135mA Parallel 270mA, Series 70mA Parallel 270mA, Series 85mA Parallel 272mA, Series 136mA Parallel 278mA, Series 139mA Parallel 28.6A, Series 14.3A Parallel 280mA, Series 140mA Parallel 284mA, Series 142mA Parallel 287mA, Series 100mA Parallel 28A, Series 14A Parallel 28mA, Series 14mA Parallel 292mA, Series 146mA Parallel 2A, Series 1A Parallel 2A, Series 250mA Parallel 2A, Series 300mA Parallel 3.08A, Series 1.54A Parallel 3.12A, Series 1.56A Parallel 3.17A, Series 1.58A Parallel 3.2A, Series 1.6A Parallel 3.32A, Series 1.66A Parallel 3.332A, Series 1.666A Parallel 3.33A, Series 1.67A Parallel 3.34A, Series 1.67A Parallel 3.3A, Series 1.6A Parallel 3.4A, Series 1.7A Parallel 3.571A, Series 1.7855A Parallel 3.57A, Series 1.785A Parallel 3.5A, Series 500mA Parallel 3.5A, Series 600mA Parallel 3.64A, Series 1.82A Parallel 3.6A, Series 1.8A Parallel 3.888A, Series 1.944A Parallel 3.8A, Series 1.9A Parallel 30.4A, Series 15.2A Parallel 300mA, Series 150mA Parallel 30A, Series 15A Parallel 30mA, Series 15mA Parallel 31.26A, Series 15.63A Parallel 31.2A, Series 15.6A Parallel 310mA, Series 155mA Parallel 312mA, Series 156mA Parallel 318mA, Series 159mA Parallel 32.6A, Series 16.3A Parallel 320mA, Series 160mA Parallel 32A, Series 16A Parallel 32mA, Series 16mA Parallel 33.32A, Series 16.66A Parallel 33.33A, Series 16.67A Parallel 33.3A, Series 16.7A Parallel 33.4A, Series 16.7A Parallel 332mA, Series 166mA Parallel 333mA, Series 166mA Parallel 334mA, Series 167mA Parallel 340mA, Series 170mA Parallel 340mA, Series 2.2A Parallel 341mA, Series 170mA Parallel 35.7A, Series 17.85A Parallel 350mA, Series 175mA Parallel 356mA, Series 178mA Parallel 357mA, Series 179mA Parallel 35A, Series 17.5A Parallel 36.2A, Series 18.1A Parallel 36.36A, Series 18.18A Parallel 360mA, Series 130mA Parallel 360mA, Series 180mA Parallel 360mA, Series 50mA Parallel 360mA, Series 60mA Parallel 36mA, Series 18mA Parallel 37.5A, Series 18.7A Parallel 37.5A, Series 18.8A Parallel 37.6A, Series 18.8A Parallel 375mA, Series 187mA Parallel 376mA, Series 188mA Parallel 380mA, Series 190mA Parallel 384mA, Series 192mA Parallel 388mA, Series 194mA Parallel 389mA, Series 195mA Parallel 38mA, Series 19mA Parallel 3A, Series 1.5A Parallel 4.166A, Series 2.083A Parallel 4.16A, Series 2.08A Parallel 4.17A, Series 2.08A Parallel 4.28A, Series 2.14A Parallel 4.34A, Series 2.17A Parallel 4.44A, Series 2.22A Parallel 4.4A, Series 2.2A Parallel 4.54A, Series 2.27A Parallel 4.5A, Series 2.25A Parallel 4.66A, Series 2.33A Parallel 4.6A, Series 2.3A Parallel 4.8A, Series 2.4A Parallel 400mA, Series 200mA Parallel 40A, Series 20A Parallel 40mA, Series 20mA Parallel 41.66A, Series 20.83A Parallel 41.67A, Series 20.83A Parallel 41.6A, Series 20.8A Parallel 41.7A, Series 20.8A Parallel 416mA, Series 208mA Parallel 417mA, Series 209mA Parallel 420mA, Series 210mA Parallel 425mA, Series 210mA Parallel 428mA, Series 214mA Parallel 42mA, Series 21mA Parallel 430mA, Series 215mA Parallel 440mA, Series 220mA Parallel 444mA, Series 222mA Parallel 44mA, Series 22mA Parallel 450mA, Series 225mA Parallel 454mA, Series 227mA Parallel 458mA, Series 229mA Parallel 45A, Series 22.5A Parallel 46.4A, Series 23.2A Parallel 466mA, Series 233mA Parallel 46mA, Series 23mA Parallel 47.6A, Series 23.8A Parallel 476mA, Series 238mA Parallel 4A, Series 1A Parallel 4A, Series 2A Parallel 5.2A, Series 2.6A Parallel 5.32A, Series 2.66A Parallel 5.34A, Series 2.67A Parallel 5.42A, Series 2.71A Parallel 5.46A, Series 2.73A Parallel 5.4A, Series 2.7A Parallel 5.54A, Series 2.77A Parallel 5.554A, Series 2.777A Parallel 5.56A, Series 2.78A Parallel 5.68A, Series 2.84A Parallel 5.6A, Series 2.8A Parallel 5.7A, Series 2.85A Parallel 5.8A, Series 2.9A Parallel 500mA, Series 125mA Parallel 500mA, Series 250mA Parallel 50A, Series 25A Parallel 50mA, Series 25mA Parallel 50mA, Series 26mA Parallel 520mA, Series 260mA Parallel 528mA, Series 264mA Parallel 530mA, Series 265mA Parallel 534mA, Series 267mA Parallel 53mA, Series 27mA Parallel 54.2A, Series 27.1A Parallel 54A, Series 27A Parallel 55.44A, Series 27.77A Parallel 550mA, Series 275mA Parallel 554mA, Series 277mA Parallel 556mA, Series 278mA Parallel 56.2A, Series 28.1A Parallel 560mA, Series 280mA Parallel 568mA, Series 284mA Parallel 56mA, Series 28mA Parallel 584mA, Series 292mA Parallel 58mA, Series 29mA Parallel 5A, Series 2.5A Parallel 6.33A, Series 3.17A Parallel 6.3A, Series 1.8A Parallel 6.42A, Series 3.21A Parallel 6.66A, Series 13.32A Parallel 6.66A, Series 3.33A Parallel 6.67A, Series 3.33A Parallel 6.6A, Series 3.3A Parallel 6.82A, Series 3.41A Parallel 6.8A, Series 3.4A Parallel 600mA, Series 300mA Parallel 60A, Series 30A Parallel 60mA, Series 20mA Parallel 60mA, Series 30mA Parallel 62.4A, Series 31.2A Parallel 62.5mA, Series 31.3mA Parallel 620mA, Series 310mA Parallel 625mA, Series 312mA Parallel 62mA, Series 31mA Parallel 64.2A, Series 32.1A Parallel 640mA, Series 320mA Parallel 650mA, Series 325mA Parallel 65A, Series 32.5A Parallel 66.6A, Series 33.3A Parallel 666mA, Series 333mA Parallel 66mA, Series 33mA Parallel 670mA, Series 335mA Parallel 670mA, Series 340mA Parallel 67mA, Series 34mA Parallel 680mA, Series 340mA Parallel 680mA, Series 4A Parallel 682mA, Series 341mA Parallel 684mA, Series 342mA Parallel 694mA, Series 347mA Parallel 6A, Series 3A Parallel 7.142A, Series 3.571A Parallel 7.26A, Series 3.63A Parallel 7.28A, Series 3.64A Parallel 7.2A, Series 3.6A Parallel 7.3A, Series 3.65A Parallel 7.4A, Series 3.7A Parallel 7.5A, Series 3.75A Parallel 7.6A, Series 3.8A Parallel 7.8A, Series 3.9A Parallel 700mA, Series 350mA Parallel 70mA, Series 35mA Parallel 714mA, Series 357mA Parallel 72.8A, Series 36.4A Parallel 720mA, Series 300mA Parallel 720mA, Series 360mA Parallel 720mA, Series 375mA Parallel 728mA, Series 364mA Parallel 72mA, Series 36mA Parallel 730mA, Series 360mA Parallel 73mA, Series 37mA Parallel 750mA, Series 375mA Parallel 75A, Series 37.5A Parallel 76mA, Series 38mA Parallel 778mA, Series 389mA Parallel 795mA, Series 397mA Parallel 7A, Series 3.5A Parallel 8.2A, Series 4.1A Parallel 8.32A, Series 4.16A Parallel 8.33A, Series 4.17A Parallel 8.34A, Series 4.17A Parallel 8.3A, Series 4.2A Parallel 8.4A, Series 4.2A Parallel 8.6A, Series 4.3A Parallel 8.7A, Series 4.35A Parallel 8.7A, Series 4.3A Parallel 8.88A, Series 4.44A Parallel 8.8A, Series 4.4A Parallel 800mA, Series 400mA Parallel 80A, Series 40A Parallel 80mA, Series 40mA Parallel 81.2A, Series 40.6A Parallel 82mA, Series 41mA Parallel 83.2A, Series 41.6A Parallel 83.3A, Series 41.7A Parallel 830mA, Series 415mA Parallel 830mA, Series 420mA Parallel 832mA, Series 416mA Parallel 833mA, Series 416mA Parallel 834mA, Series 417mA Parallel 835mA, Series 150mA Parallel 840mA, Series 420mA Parallel 84mA, Series 42mA Parallel 850mA, Series 425mA Parallel 850mA, Series 430mA Parallel 856mA, Series 428mA Parallel 857mA, Series 429mA Parallel 860mA, Series 430mA Parallel 880mA, Series 440mA Parallel 882mA, Series 441mA Parallel 888mA, Series 444mA Parallel 88mA, Series 44mA Parallel 89mA, Series 45mA Parallel 8A, Series 4A Parallel 8mA, Series 4mA Parallel 9.2A, Series 4.6A Parallel 9.36A, Series 4.68A Parallel 9.52A, Series 4.76A Parallel 9.6A, Series 4.8A Parallel 900mA, Series 450mA Parallel 90A, Series 45A Parallel 90mA, Series 45mA Parallel 910mA, Series 450mA Parallel 92mA, Series 46mA Parallel 940mA, Series 470mA Parallel 94mA, Series 47mA Parallel 950mA, Series 475mA Parallel 96mA, Series 48mA Parallel 972mA, Series 486mA Parallel 9A, Series 4.5A	- Dual Dual, Multiple Taps Multiple, Single Tap Single Single, Multiple Taps	- Dual Dual, Multiple Taps Five Four Single Single, Multiple Taps Triple	- No Yes	- 0.08VA 0.35VA 0.54VA 0.5VA 0.63VA 0.6VA 0.95VA 1.1VA 1.25VA 1.2VA 1.5VA 1.6VA 1.89VA 1.8VA 10.0VA 10.5VA 10.8VA 100.8VA 10000VA 1000VA 100VA 101VA 102.4VA 102VA 105VA 1080VA 108VA 10VA 110VA 112.5VA 112VA 116VA 118VA 119VA 11VA 12.3VA 12.5VA 12.6VA 12.8VA 1200VA 120VA 122VA 123VA 1250VA 125VA 126VA 127VA 1280VA 128VA 12VA 130VA 132VA 133VA 136VA 137VA 138VA 14.4VA 1400VA 140VA 140W 141VA 144VA 146VA 14VA 15000VA 1500VA 150VA 152VA 153.6VA 157.5VA 157VA 159VA 15VA 16.8VA 1600VA 160VA 165VA 167VA 16VA 17.5VA 1700VA 170VA 171VA 174VA 1750VA 175VA 176VA 17VA 18.9VA 1800VA 180VA 182VA 186VA 187.5VA 187VA 188VA 18VA 19.63VA 191VA 192VA 193VA 197VA 198VA 1VA 2.04VA 2.1VA 2.34VA 2.3VA 2.4VA 2.5VA 2.8VA 2000VA 200VA 20VA 210VA 216VA 22.4VA 224VA 225VA 229VA 22VA 230VA 235VA 236VA 237VA 2400VA 240VA 243VA 248VA 24VA 25.0VA 25.2VA 25.5VA 25.6VA 25000VA 2500VA 250VA 250W 252VA 259VA 25VA 26.5VA 26.8VA 264VA 26VA 27.5VA 270VA 272VA 273VA 2750VA 27VA 280VA 283VA 288VA 28VA 29VA 2VA 3.2VA 3.5VA 3.6VA 3.75VA 3.78VA 3.8VA 30.6VA 30000VA 3000VA 300VA 300W 30VA 31.5VA 311VA 312VA 320VA 32VA 330VA 336VA 33VA 340VA 345VA 34VA 35.2VA 3500VA 350VA 35VA 360VA 369VA 36VA 37.5VA 37.8VA 370VA 3750VA 386VA 38VA 39VA 3VA 4.02VA 4.2VA 4.4VA 4.5VA 4.8VA 4.9VA 4000VA 400VA 403VA 408VA 40VA 41VA 42VA 432VA 43VA 440VA 448VA 44VA 45.6VA 45000VA 450VA 454VA 45VA 465VA 480VA 48VA 49VA 4VA 5.0VA 5.4VA 5.6VA 50.0VA 50.4VA 5000VA 500VA 50VA 51.2VA 510VA 52.5VA 520VA 53VA 544VA 54VA 55VA 56.0VA 56VA 57.6VA 59VA 5VA 6.12VA 6.16VA 6.25VA 6.3VA 6.4VA 6.6VA 6000VA 600VA 60VA 625VA 63VA 640VA 64VA 650VA 65VA 66VA 672VA 6750VA 68VA 6VA 7.2VA 7.56VA 7.5VA 7.6VA 70.56VA 71VA 720VA 72VA 735VA 74VA 75.6VA 75000VA 7500VA 750VA 75VA 76.8VA 760VA 76VA 78VA 7VA 8.4VA 8.5VA 800VA 80VA 816VA 83VA 84VA 86VA 8750VA 88VA 8VA 9.6VA 9000VA 900VA 90VA 940VA 95VA 960VA 96VA 98VA 9VA Varies	- Chassis Mount DIN Rail PCB Surface Mount Through Hole	- PC Pin Solder Lug Solder Pad Solder, Quick Connect Solder, Quick Connect - 0.187 (4.7mm) Surface Mount Terminal Block Through Hole Wire Leads Wire Leads, Quick Connect	- 10.00mm L x 9.00mm W 101.30mm L x 76.50mm W 101.60mm Dia 101.60mm L x 50.80mm W 101.60mm L x 52.37mm W 101.60mm L x 56.13mm W 101.60mm L x 57.15mm W 101.60mm L x 58.42mm W 101.60mm L x 62.74mm W 101.60mm L x 63.50mm W 101.60mm L x 76.20mm W 101.60mm L x 95.25mm W 102.36mm L x 57.15mm W 102.36mm L x 63.50mm W 102.36mm L x 65.02mm W 102.36mm L x 66.68mm W 102.36mm L x 67.31mm W 102.39mm L x 57.15mm W 102.40mm L x 58.50mm W 103.00mm Dia x 48.00mm W 104.14mm L x 85.85mm W 104.77mm L x 78.94mm W 104.78mm L x 82.55mm W 104.80mm L x 104.90mm W 104.80mm L x 113.10mm W 104.80mm L x 128.10mm W 104.80mm L x 82.60mm W 104.80mm L x 85.70mm W 104.80mm L x 95.30mm W 104.80mm L x 98.40mm W 104.90mm L x 95.25mm W 106.32mm L x 79.38mm W 106.38mm L x 95.25mm W 106.68mm L x 103.51mm W 107.95mm L x 95.25mm W 11.68mm L x 13.50mm W 110.49mm Dia 110.70mm L x 86.10mm W 111.13mm L x 104.78mm W 111.13mm L x 114.30mm W 111.13mm L x 88.90mm W 111.25mm L x 152.40mm W 111.25mm L x 95.25mm W 111.51mm L x 119.38mm W 112.00mm Dia x 54.00mm W 112.67mm L x 95.25mm W 113.00mm Dia 113.28mm L x 110.00mm W 113.28mm L x 129.03mm W 114.30mm Dia 114.30mm L x 101.60mm W 114.30mm L x 113.80mm W 114.30mm L x 114.30mm W 114.30mm L x 136.50mm W 114.30mm L x 63.50mm W 114.30mm L x 82.55mm W 114.30mm L x 88.90mm W 114.30mm L x 95.25mm W 114.30mm L x 95.30mm W 116.84mm Dia 117.00mm Dia x 56.00mm W 117.00mm Dia x 61.00mm W 117.00mm L x 91.00mm W 117.10mm L x 86.10mm W 117.60mm L x 95.25mm W 12.70mm L x 7.11mm W 12.83mm L x 7.11mm W 121.70mm L x 114.30mm W 121.92mm L x 79.25mm W 123.00mm Dia 123.09mm L x 111.13mm W 123.19mm L x 87.63mm W 123.19mm L x 91.69mm W 123.70mm L x 114.30mm W 124.20mm L x 144.78mm W 125.37mm L x 96.25mm W 126.00mm L x 136.00mm W 127.00mm Dia 127.00mm Dia x 62.00mm W 127.00mm L x 133.35mm W 127.00mm L x 152.40mm W 127.00mm L x 177.80mm W 127.00mm L x 193.80mm W 129.44mm L x 111.13mm W 13.00mm L x 12.00mm W 13.00mm L x 14.50mm W 13.46mm L x 13.01mm W 13.46mm L x 13.50mm W 132.00mm Dia x 58.00mm W 132.00mm Dia x 64.00mm W 132.30mm L x 114.30mm W 133.30mm L x 119.40mm W 133.30mm L x 139.70mm W 133.35mm L x 127.00mm W 133.35mm L x 132.21mm W 133.35mm L x 95.25mm W 133.40mm L x 108.00mm W 133.40mm L x 120.70mm W 133.40mm L x 127.00mm W 133.40mm L x 128.80mm W 133.40mm L x 139.70mm W 133.40mm L x 142.90mm W 133.40mm L x 152.40mm W 134.00mm Dia x 70.00mm W 134.92mm L x 50.80mm W 136.65mm L x 95.25mm W 137.20mm L x 101.60mm W 137.20mm L x 127.00mm W 137.20mm L x 152.40mm W 139.70mm Dia 14.60mm L x 10.50mm W 140.00mm Dia x 60.00mm W 142.14mm L x 111.13mm W 142.20mm L x 144.78mm W 142.24mm Dia 146.05mm L x 160.66mm W 147.00mm Dia 149.23mm L x 111.13mm W 150.00mm Dia x 70.00mm W 150.37mm L x 133.35mm W 152.40mm Dia 152.40mm L x 127.00mm W 152.40mm L x 158.75mm W 154.00mm L x 189.71mm W 157.00mm Dia x 70.00mm W 158.75mm Dia 16.50mm L x 18.00mm W 160.00mm Dia x 71.00mm W 162.00mm L x 133.40mm W 162.00mm L x 136.50mm W 162.00mm L x 146.10mm W 162.00mm L x 152.40mm W 162.00mm L x 158.80mm W 162.00mm L x 181.00mm W 162.00mm L x 184.20mm W 162.10mm L x 152.40mm W 162.56mm L x 139.89mm W 163.83mm L x 111.25mm W 165.00mm Dia x 72.00mm W 167.54mm L x 134.14mm W 167.64mm Dia 168.00mm Dia x 80.00mm W 168.91mm L x 146.05mm W 171.50mm L x 162.10mm W 175.00mm Dia x 68.00mm W 176.00mm L x 162.10mm W 177.80mm L x 127.00mm W 179.30mm L x 129.60mm W 179.30mm L x 139.70mm W 179.30mm L x 149.70mm W 179.40mm L x 198.76mm W 181.74mm L x 190.50mm W 182.12mm L x 133.35mm W 183.00mm Dia 183.00mm Dia x 81.00mm W 187.96mm Dia 190.50mm L x 133.70mm W 190.50mm L x 149.70mm W 190.50mm L x 165.10mm W 190.50mm L x 177.60mm W 190.50mm L x 177.80mm W 190.50mm L x 190.50mm W 193.80mm L x 127.00mm W 195.60mm L x 139.70mm W 195.60mm L x 152.40mm W 195.60mm L x 165.10mm W 195.60mm L x 177.80mm W 196.85mm L x 158.75mm W 196.90mm L x 162.10mm W 200.00mm Dia x 90.00mm W 206.00mm Dia x 94.00mm W 208.00mm Dia x 112.00mm W 208.28mm Dia 215.00mm Dia 215.00mm Dia x 105.00mm W 22.00mm L x 23.00mm W 22.00mm L x 25.00mm W 22.61mm L x 72.97mm W 22.80mm L x 21.00mm W 222.00mm Dia 228.60mm Dia 23.37mm L x 21.59mm W 235.00mm Dia 24.50mm L x 24.50mm W 240.00mm Dia x 115.00mm W 25.40mm L x 23.88mm W 25.40mm L x 34.92mm W 25.40mm L x 34.93mm W 25.40mm L x 35.05mm W 254.00mm L x 177.80mm W 265.00mm Dia x 120.00mm W 277.00mm Dia 28.70mm L x 28.70mm W 29.46mm L x 25.40mm W 29.46mm L x 28.45mm W 29.47mm L x 26.67mm W 295.25mm L x 82.55mm W 310.00mm Dia 32.50mm L x 27.50mm W 32.80mm L x 27.80mm W 330.00mm Dia 335.00mm Dia 34.90mm L x 28.60mm W 34.93mm L x 28.56mm W 34.93mm L x 28.58mm W 35.05mm L x 28.70mm W 35.05mm L x 30.23mm W 35.10mm L x 30.00mm W 35.2mm L x 29.8mm W 35.31mm L x 39.67mm W 35.56mm L x 31.00mm W 35.5mm L x 30mm W 355.60mm L x 228.60mm W 36.52mm L x 60.33mm W 36.52mm L x 71.44mm W 36.60mm L x 39.60mm W 37.50mm Dia 39.60mm L x 39.60mm W 39.62mm L x 47.75mm W 39.67mm L x 35.31mm W 4.06mm L x 3.18mm W 40.64mm L x 39.62mm W 406.40mm L x 228.60mm W 41.28mm L x 30.15mm W 41.28mm L x 31.75mm W 41.28mm L x 33.32mm W 41.28mm L x 36.37mm W 41.28mm L x 36.45mm W 41.28mm L x 36.50mm W 41.28mm L x 57.15mm W 41.2mm L x 33.3mm W 41.30mm L x 57.20mm W 41.30mm L x 31.80mm W 41.30mm L x 33.30mm W 41.30mm L x 36.50mm W 41.30mm L x 57.20mm W 41.40mm L x 33.27mm W 41.40mm L x 36.58mm W 41.40mm L x 57.15mm W 41.50mm L x 34.83mm W 41.8mm L x 34mm W 416.00mm Dia 42.00mm Dia 42.00mm L x 35.50mm W 42.93mm L x 31.75mm W 43.94mm L x 34.29mm W 432.00mm L x 318.00mm W 44.70mm L x 44.70mm W 45.50mm L x 38.50mm W 47.00mm Dia 47.24mm L x 39.62mm W 47.50mm L x 39.60mm W 47.60mm L x 36.50mm W 47.60mm L x 39.60mm W 47.60mm L x 39.70mm W 47.62mm L x 39.68mm W 47.63mm L x 36.53mm W 47.63mm L x 39.67mm W 47.75mm L x 39.62mm W 47.75mm L x 55.63mm W 47.75mm L x 61.98mm W 47.80mm L x 39.60mm W 48.00mm L x 40.00mm W 48.50mm L x 41.00mm W 48.50mm L x 41.52mm W 49.26mm L x 36.58mm W 49.28mm L x 36.58mm W 49.70mm L x 49.70mm W 50.50mm L x 42.50mm W 50.80mm L x 33.27mm W 50.80mm L x 49.28mm W 50.80mm L x 50.80mm W 50.80mm L x 63.50mm W 508.00mm L x 279.40mm W 51.31mm L x 41.40mm W 52.32mm L x 30.23mm W 52.32mm L x 30.99mm W 52.32mm L x 31.75mm W 52.32mm L x 35.02mm W 52.32mm L x 35.05mm W 52.32mm L x 36.45mm W 52.37mm L x 34.93mm W 52.37mm L x 44.45mm W 52.40mm L x 27.94mm W 52.60mm L x 29.60mm W 53.00mm L x 44.00mm W 53.32mm L x 31.75mm W 53.32mm L x 35.05mm W 53.50mm Dia 53.98mm L x 82.55mm W 54.10mm L x 79.50mm W 55.00mm L x 37.00mm W 55.00mm L x 55.00mm W 55.63mm L x 60.45mm W 55.63mm L x 63.50mm W 55.63mm L x 66.80mm W 57.00mm L x 47.60mm W 57.00mm L x 48.00mm W 57.15mm L x 101.6mm W 57.15mm L x 38.10mm W 57.15mm L x 41.28mm W 57.15mm L x 47.24mm W 57.15mm L x 47.63mm W 57.15mm L x 47.75mm W 57.15mm L x 72.90mm W 57.20mm L x 47.60mm W 57.50mm Dia 58.00mm Dia 58.67mm L x 50.80mm W 58.67mm L x 93.73mm W 59.18mm L x 56.39mm W 59.18mm L x 59.44mm W 59.18mm L x 66.04mm W 60.00mm L x 42.50mm W 60.00mm L x 60.00mm W 60.20mm L x 41.28mm W 60.20mm L x 42.10mm W 60.30mm L x 33.30mm W 60.32mm L x 31.75mm W 60.32mm L x 34.93mm W 60.32mm L x 38.10mm W 60.33mm L x 31.75mm W 60.33mm L x 34.93mm W 60.33mm L x 36.50mm W 60.33mm L x 38.10mm W 60.45mm L x 34.29mm W 60.45mm L x 35.05mm W 60.45mm L x 37.59mm W 60.45mm L x 38.10mm W 60.45mm L x 40.64mm W 60.45mm L x 60.45mm W 60.45mm L x 68.33mm W 63.49mm L x 50.80mm W 63.50mm L x 50.80mm W 63.50mm L x 58.67mm W 63.50mm L x 60.33mm W 63.50mm L x 61.90mm W 63.50mm L x 63.50mm W 63.50mm L x 64.30mm W 63.50mm L x 66.29mm W 63.50mm L x 69.85mm W 63.50mm L x 71.55mm W 63.50mm L x 74.68mm W 63.50mm L x 76.20mm W 63.50mm L x 77.47mm W 63.50mm L x 79.25mm W 63.50mm L x 82.55mm W 63.50mm L x 95.25mm W 635.00mm L x 304.80mm W 65.00mm L x 51.00mm W 65.07mm L x 31.75mm W 66.00mm L x 55.00mm W 66.04mm L x 59.18mm W 66.67mm L x 55.56mm W 66.68mm L x 55.55mm W 66.68mm L x 63.50mm W 66.68mm L x 65.09mm W 66.70mm L x 55.50mm W 66.70mm L x 55.60mm W 66.80mm L x 55.55mm W 66.80mm L x 55.60mm W 66.80mm L x 55.63mm W 67.60mm L x 57.00mm W 68.00mm L x 57.50mm W 69.85mm L x 56.64mm W 69.85mm L x 63.50mm W 71.00mm Dia x 32.00mm W 71.37mm L x 38.10mm W 71.37mm L x 40.64mm W 71.37mm L x 41.40mm W 71.37mm L x 43.82mm W 71.37mm L x 56.39mm W 71.37mm L x 57.15mm W 71.37mm L x 68.33mm W 71.37mm L x 72.39mm W 71.37mm L x 77.72mm W 71.37mm L x 77.98mm W 71.37mm L x 82.55mm W 71.37mm L x 92.20mm W 71.38mm L x 38.10mm W 71.40mm L x 36.30mm W 71.40mm L x 54.40mm W 71.40mm L x 76.20mm W 71.42mm L x 34.93mm W 71.42mm L x 36.50mm W 71.42mm L x 37.29mm W 71.42mm L x 38.10mm W 71.42mm L x 41.28mm W 71.42mm L x 52.37mm W 71.42mm L x 58.72mm W 71.42mm L x 63.50mm W 71.42mm L x 66.68mm W 71.42mm L x 71.42mm W 71.42mm L x 73.02mm W 71.42mm L x 76.20mm W 71.42mm L x 85.85mm W 71.44mm L x 47.63mm W 71.44mm L x 68.26mm W 71.44mm L x 73.03mm W 71.45mm L x 103.20mm W 71.45mm L x 41.28mm W 71.63mm L x 42.93mm W 71.70mm L x 58.00mm W 72.00mm Dia 72.00mm L x 58.00mm W 72.00mm L x 72.00mm W 72.90mm L x 57.15mm W 72.90mm L x 57.20mm W 73.00mm L x 44.50mm W 73.00mm L x 50.80mm W 73.02mm L x 44.45mm W 73.02mm L x 57.15mm W 73.03mm L x 41.28mm W 73.03mm L x 44.45mm W 73.03mm L x 71.42mm W 73.03mm L x 71.44mm W 73.15mm L x 43.94mm W 73.15mm L x 44.20mm W 73.15mm L x 48.26mm W 73.15mm L x 88.90mm W 73.80mm L x 58.00mm W 736.60mm L x 304.80mm W 74.68mm L x 50.80mm W 76.20mm Dia 76.20mm L x 101.60mm W 76.20mm L x 63.50mm W 76.20mm L x 64.00mm W 76.20mm L x 69.90mm W 76.20mm L x 72.97mm W 76.20mm L x 73.00mm W 76.20mm L x 77.72mm W 77.77mm L x 71.42mm W 78.00mm Dia 78.7mm L x 66mm W 79.20mm L x 63.50mm W 79.25mm L x 56.39mm W 79.25mm L x 63.50mm W 79.25mm L x 81.28mm W 79.37mm L x 63.5mm W 79.38mm L x 103.20mm W 79.38mm L x 50.80mm W 79.38mm L x 52.39mm W 79.38mm L x 63.50mm W 79.38mm L x 68.25mm W 79.38mm L x 71.37mm W 79.38mm L x 71.42mm W 79.38mm L x 73.03mm W 79.38mm L x 74.60mm W 79.38mm L x 75.39mm W 79.38mm L x 82.55mm W 79.38mm L x 88.90mm W 79.38mm L x 95.25mm W 79.40mm L x 53.90mm W 79.40mm L x 54.40mm W 79.40mm L x 57.20mm W 79.40mm L x 79.70mm W 79.50mm L x 101.60mm W 79.50mm L x 107.95mm W 79.50mm L x 50.04mm W 79.50mm L x 50.80mm W 79.50mm L x 71.37mm W 79.50mm L x 72.64mm W 79.50mm L x 77.72mm W 79.50mm L x 88.90mm W 79.50mm L x 90.42mm W 79.50mm L x 95.25mm W 79.50mm L x 96.77mm W 8.00mm L x 8.60mm W 8.15mm L x 9.90mm W 80.00mm Dia x 33.00mm W 80.56mm L x 50.80mm W 80.95mm L x 60.33mm W 80.95mm L x 71.42mm W 80.95mm L x 74.60mm W 80.95mm L x 79.38mm W 80.95mm L x 80.95mm W 81.00mm Dia x 38.00mm W 82.40mm L x 82.40mm W 82.55mm Dia 82.55mm L x 35.56mm W 82.55mm L x 40.77mm W 82.55mm L x 40.89mm W 82.55mm L x 41.15mm W 82.55mm L x 41.28mm W 82.55mm L x 41.40mm W 82.55mm L x 41.91mm W 82.55mm L x 42.67mm W 82.55mm L x 42.85mm W 82.55mm L x 44.07mm W 82.55mm L x 44.45mm W 82.55mm L x 47.63mm W 82.55mm L x 47.75mm W 82.55mm L x 48.26mm W 82.55mm L x 49.28mm W 82.55mm L x 50.80mm W 82.55mm L x 52.20mm W 82.55mm L x 52.32mm W 82.55mm L x 52.83mm W 82.55mm L x 53.97mm W 82.55mm L x 54.61mm W 82.55mm L x 57.15mm W 82.55mm L x 71.42mm W 82.60mm L x 44.30mm W 83.33mm L x 104.77mm W 84.00mm Dia 84.07mm L x 71.37mm W 84.12mm L x 44.45mm W 84.12mm L x 50.80mm W 85.55mm L x 50.80mm W 85.70mm L x 69.90mm W 85.70mm L x 73.00mm W 85.70mm L x 74.60mm W 85.70mm L x 77.70mm W 85.70mm L x 79.40mm W 85.73mm L x 79.38mm W 85.73mm L x 85.73mm W 86.36mm L x 68.28mm W 86.36mm L x 76.2mm W 87.00mm Dia x 47.00mm W 87.27mm L x 79.38mm W 87.30mm L x 88.90mm W 87.30mm L x 90.47mm W 87.30mm L x 95.25mm W 87.30mm L x 98.43mm W 87.33mm L x 103.20mm W 87.33mm L x 94.82mm W 87.38mm L x 75.69mm W 87.38mm L x 90.42mm W 87.38mm L x 91.44mm W 87.38mm L x 91.95mm W 88.90mm Dia 88.90mm L x 79.38mm W 88.90mm L x 79.50mm W 88.90mm L x 85.73mm W 89.56mm L x 50.80mm W 90.00mm L x 106.00mm W 90.42mm L x 55.88mm W 90.42mm L x 57.15mm W 90.47mm L x 54.61mm W 90.47mm L x 55.37mm W 90.47mm L x 55.58mm W 90.47mm L x 61.21mm W 90.47mm L x 63.50mm W 90.47mm L x 63.75mm W 90.47mm L x 66.55mm W 90.50mm L x 60.30mm W 92.00mm Dia 92.07mm L x 60.32mm W 92.46mm L x 56.67mm W 92.46mm L x 59.44mm W 92.46mm L x 66.04mm W 92.46mm L x 69.60mm W 92.46mm L x 76.20mm W 93.47mm L x 45.97mm W 93.47mm L x 55.50mm W 93.65mm L x 46.02mm W 93.65mm L x 49.0mm W 93.65mm L x 49.20mm W 93.65mm L x 50.80mm W 93.65mm L x 57.15mm W 93.70mm L x 49.20mm W 93.72mm L x 54.10mm W 93.73mm L x 46.99mm W 93.73mm L x 47.75mm W 93.73mm L x 50.04mm W 93.73mm L x 50.80mm W 93.73mm L x 54.10mm W 93.73mm L x 55.88mm W 93.73mm L x 57.15mm W 93.73mm L x 58.67mm W 95.25mm L x 101.60mm W 95.25mm L x 104.77mm W 95.25mm L x 104.90mm W 95.25mm L x 106.43mm W 95.25mm L x 107.95mm W 95.25mm L x 108.46mm W 95.25mm L x 111.25mm W 95.25mm L x 114.30mm W 95.25mm L x 117.60mm W 95.25mm L x 119.13mm W 95.25mm L x 127.00mm W 95.25mm L x 133.35mm W 95.25mm L x 136.65mm W 95.25mm L x 139.70mm W 95.25mm L x 47.63mm W 95.25mm L x 53.97mm W 95.25mm L x 53.98mm W 95.25mm L x 79.38mm W 95.25mm L x 79.50mm W 95.25mm L x 82.55mm W 95.25mm L x 86.11mm W 95.25mm L x 88.90mm W 95.25mm L x 90.42mm W 95.30mm L x 113.30mm W 95.30mm L x 79.40mm W 95.30mm L x 82.60mm W 95.30mm L x 89.00mm W 95.50mm L x 101.09mm W 96.00mm Dia 96.01mm L x 102.87mm W 96.01mm L x 76.20mm W 96.52mm Dia 96.82mm L x 71.42mm W 96.82mm L x 92.07mm W 99.00mm Dia x 41.00mm W 99.82mm L x 79.50mm W 99.95mm L x 95.25mm W	- 0.235 (5.97mm) 1.161 (29.50mm) 10.00mm 10.20mm 10.38mm 10.40mm 100.33mm 101.60mm 103.12mm 104.14mm 104.77mm 104.90mm 106.00mm 106.35mm 106.38mm 107.00mm 107.19mm 107.95mm 109.22mm 11.50mm 11.90mm 111.10mm 111.13mm 113.54mm 114.30mm 115.06mm 115.10mm 115.82mm 115.87mm 115.90mm 116.00mm 116.84mm 117.48mm 117.80mm 12.00mm 12.50mm 12.57mm 12.70mm 12.90mm 120.00mm 120.0mm 120.65mm 120.70mm 124.50mm 13.00mm 130.00mm 133.00mm 133.35mm 133.40mm 134.62mm 134.90mm 135.20mm 136.53mm 139.70mm 14.00mm 140.00mm 141.20mm 143.00mm 144.53mm 147.00mm 15.00mm 15.40mm 152.40mm 154.90mm 158.75mm 158.80mm 16.50mm 16.51mm 16.80mm 161.54mm 162.00mm 162.56mm 165.10mm 166.50mm 168.27mm 168.40mm 17.00mm 17.50mm 17.60mm 18.00mm 18.30mm 18.50mm 180.98mm 184.15mm 19.00mm 19.50mm 19.60mm 20.32mm 21.08mm 21.34mm 21.50mm 21.59mm 21.60mm 22.00mm 22.22mm 22.23mm 22.30mm 22.60mm 22.70mm 23.10mm 23.50mm 23.60mm 23.80mm 23.86mm 24.00mm 24.30mm 24.60mm 241.30mm 248.13mm 25.40mm 254.00mm 26.00mm 26.30mm 26.60mm 26.67mm 26.92mm 26.97mm 27.00mm 27.05mm 27.10mm 27.18mm 27.40mm 27.60mm 27.94mm 28.00mm 28.58mm 28.60mm 28.70mm 29.00mm 29.50mm 29.97mm 3.18mm 30.00mm 30.15mm 30.18mm 30.20mm 30.23mm 30.26mm 30.61mm 30.80mm 30.99mm 304.80mm 31.20mm 31.30mm 31.70mm 31.74mm 31.75mm 31.80mm 32.00mm 32.10mm 32.95mm 33.00mm 33.27mm 33.30mm 33.32mm 33.40mm 33.50mm 330.20mm 34.00mm 34.0mm 34.50mm 34.55mm 34.60mm 34.80mm 34.90mm 34.92mm 34.93mm 35.00mm 35.05mm 35.30mm 35.56mm 35.60mm 35.80mm 35.81mm 36.0mm 36.20mm 36.32mm 36.45mm 36.50mm 36.52mm 36.58mm 36.83mm 36.90mm 37.00mm 37.50mm 37.75mm 38.00mm 38.10mm 38.80mm 39.00mm 39.62mm 39.67mm 39.68mm 39.70mm 40.40mm 40.64mm 41.00mm 41.10mm 41.15mm 41.27mm 41.28mm 41.30mm 41.38mm 41.40mm 41.70mm 42.67mm 42.80mm 42.93mm 43.94mm 431.80mm 44.45mm 45.72mm 45.97mm 46.00mm 46.02mm 46.48mm 46.50mm 47.63mm 47.75mm 48.26mm 48.50mm 49.02mm 49.20mm 49.22 mm 49.53mm 49.66mm 49.80mm 49.93mm 5.630 (143.00mm) 50.29mm 50.67mm 50.80mm 51.0mm 52.00mm 52.0mm 52.37mm 54.10mm 54.76mm 55.30mm 55.57mm 55.58mm 55.88mm 56.13mm 56.39mm 57.00mm 57.15mm 57.40mm 57.66mm 57.80mm 57.94mm 58.0mm 58.67mm 58.70mm 58.72mm 58.74mm 59.44mm 59.69mm 59.94mm 6.22mm 6.25mm 60.00mm 60.20mm 60.32mm 60.33mm 60.45mm 60.96mm 61.47mm 610.00mm 62.23mm 63.50mm 64.00mm 64.26mm 65.02mm 65.07mm 65.09mm 65.15mm 65.41mm 65.86mm 66.04mm 66.0mm 66.55mm 66.68mm 66.80mm 67.70mm 68.07mm 68.20mm 68.26mm 68.33mm 68.58mm 69.10mm 69.60mm 69.85mm 69.90mm 70.34mm 71.12mm 71.37mm 71.40mm 71.42mm 73.02mm 73.15mm 73.66mm 736.60mm 74.00mm 74.42mm 74.68mm 75.20mm 76.0mm 76.20mm 762.00mm 77.70mm 77.72mm 77.79mm 77.80mm 78.74mm 78.77mm 79.25mm 79.38mm 79.40mm 79.50mm 8.60mm 81.10mm 81.86mm 82.55mm 82.80mm 83.31mm 83.82mm 84.15mm 85.60mm 85.67mm 85.70mm 85.73mm 85.85mm 86.51mm 86.61mm 86.89mm 87.30mm 87.33mm 87.38mm 87.63mm 87.88mm 88.90mm 89.66mm 9.10mm 9.50mm 9.70mm 90.50mm 91.26mm 93.10mm 93.73mm 95.25mm 95.30mm 96.00mm 96.39mm 96.52mm 96.77mm 96.82mm 96.85mm 97.54mm 97.92mm 98.20mm 98.43mm 98.55mm 98.80mm 99.00mm 99.06mm	- 1500VAC 1500Vrms 1750VDC 1750Vrms 2000Vrms 2250VDC 2500V 2500VAC 2500VDC 2500Vrms 2800Vrms 3000Vrms 3125Vrms 3500Vrms 3750Vrms 4000VAC 4000Vrms 4200V 4200VAC 4200Vrms 5000Vrms 500VDC

Reset All

Apply All

Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
B612846 AE030100, AE SERIES TRANSFORMER Acme Electric	795	118.87	RFQ		Box	AE	Active	-	240V, 480V	-	-	-	-	-	-	-	-	-	-	-
VPP12-200 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	6,439	8.82	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 400mA, Series 200mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	28.58mm	4000Vrms
VPP28-090 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	8,984	8.82	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 180mA, Series 90mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	28.58mm	4000Vrms
VPP12-400 PWR XFMR LAMINATED 5VA TH Triad Magnetics	5,605	9.37	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 800mA, Series 400mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
3FD-436 PWR XFMR LAMINATED 6VA TH Tamura	6,075	9.50	RFQ	Datasheet	Tube	3FD-4xx	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.50mm L x 34.83mm W	34.55mm	2500Vrms
3FD-416 PWR XFMR LAMINATED 6VA TH Tamura	8,559	9.50	RFQ	Datasheet	Tube	3FD-4xx	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 800mA, Series 400mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.50mm L x 34.83mm W	38.00mm	2500Vrms
3FD-424 PWR XFMR LAMINATED 6VA TH Tamura	9,571	9.50	RFQ	Datasheet	Tube	3FD-4xx	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.50mm L x 34.83mm W	38.00mm	2500Vrms
FS24-250-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	7,177	9.87	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms

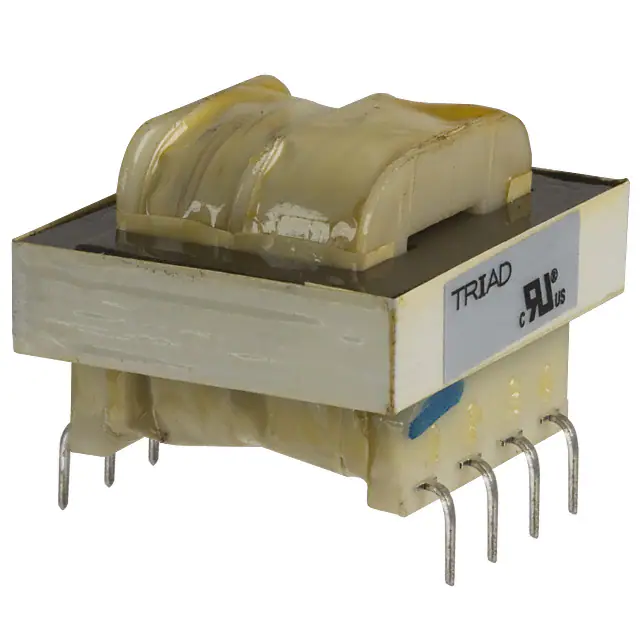

FS12-090 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	7,172	9.90	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 180mA, Series 90mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
FS10-250 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	1,975	10.66	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms
3FD-516 PWR XFMR LAMINATED 12VA TH Tamura	3,243	12.67	RFQ	Datasheet	Tube	3FD-5xx	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.6A, Series 800mA	Dual	Dual	No	12VA	Through Hole	PC Pin	48.50mm L x 41.52mm W	38.00mm	2500Vrms
3FD-524 PWR XFMR LAMINATED 12VA TH Tamura	1,293	12.67	RFQ	Datasheet	Tube	3FD-5xx	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 1A, Series 500mA	Dual	Dual	No	12VA	Through Hole	PC Pin	48.50mm L x 41.52mm W	38.00mm	2500Vrms
DST-4-12 PWR XFMR LAMINATED 6VA TH Signal Transformer	3,735	13.32	RFQ	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1A, Series 500mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms

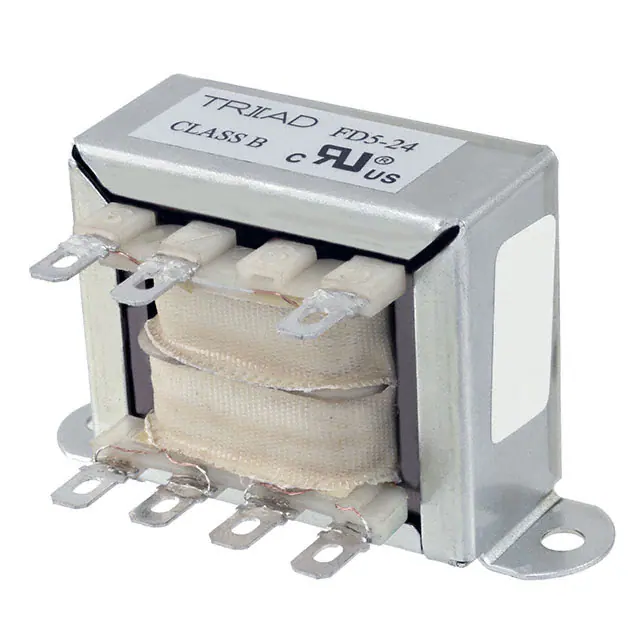

FD5-24 PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics	1,795	13.55	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	24V	500mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	71.42mm L x 34.93mm W	41.28mm	2500VAC
14A-20-20 PWR XFMR LAMINATED 20VA TH Signal Transformer	4,773	16.65	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 2A, Series 1A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms
LP-24-500 PWR XFMR SEMI-TORO 12VA TH Signal Transformer	1,481	17.52	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 1A, Series 500mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms
187D12 PWR XFMR LAMINATED 31.5VA CHAS Hammond Manufacturing	4,086	18.73	RFQ	Datasheet	Box	187	Active	Laminated Core	115V	12.6V	2.5A	Single	Single	Yes	31.5VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 52.20mm W	49.02mm	2000Vrms
LP-24-1000 PWR XFMR SEMI-TORO 24VA TH Signal Transformer	2,989	19.60	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 2A, Series 1A	Dual	Dual	No	24VA	Through Hole	PC Pin	72.90mm L x 57.20mm W	31.80mm	1500Vrms
PL30-24-130B PWR XFMR LAMINATED 30VA TH Tamura	1,687	20.96	RFQ	Datasheet	Bulk	PL30-xx-130B	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.70mm L x 55.60mm W	41.00mm	3500Vrms
70060K XFRMR TOROIDAL 25VA THRU HOLE Talema Group LLC	2,468	24.32	RFQ	Datasheet	Tray	7XXXX	Active	Toroidal	115V, 230V	Parallel 7V, Series 14V	Parallel 3.57A, Series 1.785A	Dual	Dual	No	25VA	Through Hole	PC Pin	60.00mm L x 60.00mm W	37.50mm	4000Vrms
