| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBT71210SURELAY REED SPST-NC 2A 12V |
3,888 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71210TURELAY REED SPST-NC 2A 12V |
4,455 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72410PURELAY REED SPST-NC 2A 24V |
1,614 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72410SURELAY REED SPST-NC 2A 24V |
1,705 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72410TURELAY REED SPST-NC 2A 24V |
2,685 | 80.85 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT70515TRELAY REED HV 15KV N/O 5VDC PCB |
3,310 | 82.40 |
RFQ |
Datasheet |
Bulk | D | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 312.5 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71215TRELAY REED HV 15KV N/O 12VDC PCB |
3,494 | 82.40 |
RFQ |
Datasheet |
Bulk | D | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 126.3 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT72415TRELAY REED HV 15KV N/O 24VDC PCB |
2,541 | 82.40 |
RFQ |
Datasheet |
Bulk | D | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 68.6 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT72415F-HRRELAY REED SPST-NO 2A 24V |
1,225 | 90.21 |
RFQ |
Datasheet |
Tray | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
6HV1A100HV REED RELAY SPST NO 10KV 6V |
317 | 107.41 |
RFQ |
Datasheet |
Bulk | XXHV | Active | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 3 A | 5000VDC - Max | 240 mA | Non Latching | - | Solder Turret | - | 5 VDC | 0.5 VDC | - | - | - |
|

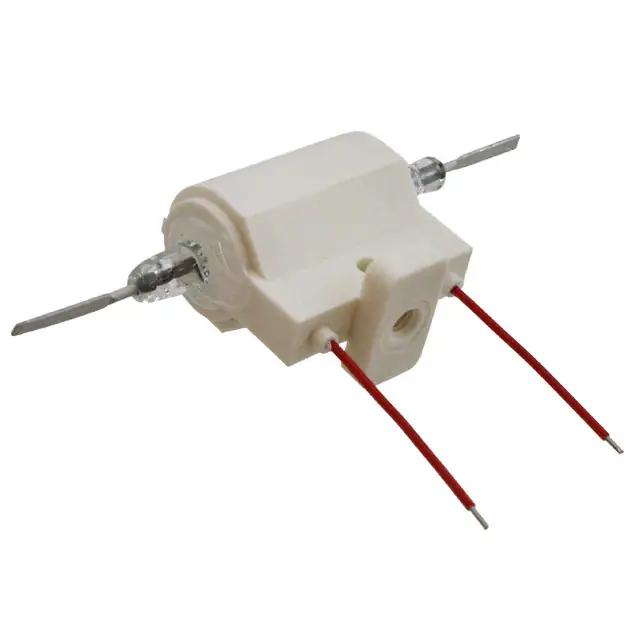

H24-1A83RELAY REED SPST 3A 24V |
473 | 110.28 |
RFQ |
Datasheet |
Bulk | H | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 18 VDC | 2 VDC | 3.2 ms | 1.5 ms | -20°C ~ 70°C |
|
|
6HV1B100HV REED RELAY SPST NC 10KV 6V |
413 | 140.83 |
RFQ |
Datasheet |
Bulk | XXHV | Active | Chassis Mount | 6VDC | SPST-NC (1 Form B) | 3 A | 5000VDC - Max | 240 mA | Non Latching | - | Solder Turret | - | 5 VDC | 0.5 VDC | - | - | - |
|
|
R1343L13REED RELAY 1NO/5000VDC/50W=121R2 |
350 | 153.55 |
RFQ |
Datasheet |
Box | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 200 mA | 5000VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 17.6 VDC | 2 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C |
|
|
R1329L87REED RELAY 1NO/7500VDC/50W=121R1 |
910 | 154.55 |
RFQ |
Datasheet |
Box | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 200 mA | 7500VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C |
|
|
R1329L00REED RELAY 1NO/7500VDC/50W=121R1 |
399 | 160.58 |
RFQ |
Datasheet |
Box | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 200 mA | 7500VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 8.8 VDC | 1 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C |
|
|
R1343L00REED RELAY 1NO/7500VDC/50W=121R2 |
368 | 160.58 |
RFQ |
Datasheet |
Box | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 200 mA | 7500VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 17.6 VDC | 2 VDC | 4 ms | 0.5 ms | -25°C ~ 70°C |
|
1393763-4V23100V4005A10 |
9,852 | 5.63 |
RFQ |
Datasheet |
Box | V23100-V4, AXICOM | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C |
|
1-1393763-6V23100V4024A 10 |
8,020 | 7.68 |
RFQ |
Datasheet |
Box | V23100-V4, AXICOM | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C |
|
1393771-8JWD-171-12=REED RELAYS |
1,503 | 10.04 |
RFQ |
Datasheet |
Box | JWD | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C |
|
|
1-1393771-5JWD-171-23=REED RELAYS |
2,841 | 11.38 |
RFQ |
Datasheet |
Box | JWD | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C |
