Mfr. Part #	Availability	Quantity	Packaging	Series	ProductStatus	TipType	TipShape	Height	Width	Length	Diameter	TipChipSize	TemperatureRange
EPM8C001 CONICAL BENT 30 DEGREE 0.10MM MENDA/EasyBraid	12,816	RFQ	Bulk	*	Discontinued at Mosen	-	-	-	-	-	-	-	-
EPM8C002 CONICAL BENT 30 DEGREE 0.20MM MENDA/EasyBraid	11,042	RFQ	Bulk	*	Discontinued at Mosen	-	-	-	-	-	-	-	-
EPM8CH006 CHISEL 30DEG .6MM MENDA/EasyBraid	11,762	RFQ	Bulk	*	Discontinued at Mosen	-	-	-	-	-	-	-	-
EPM8CH008 CHISEL 30DEG .8 MM MENDA/EasyBraid	10,685	RFQ	Bulk	*	Discontinued at Mosen	-	-	-	-	-	-	-	-

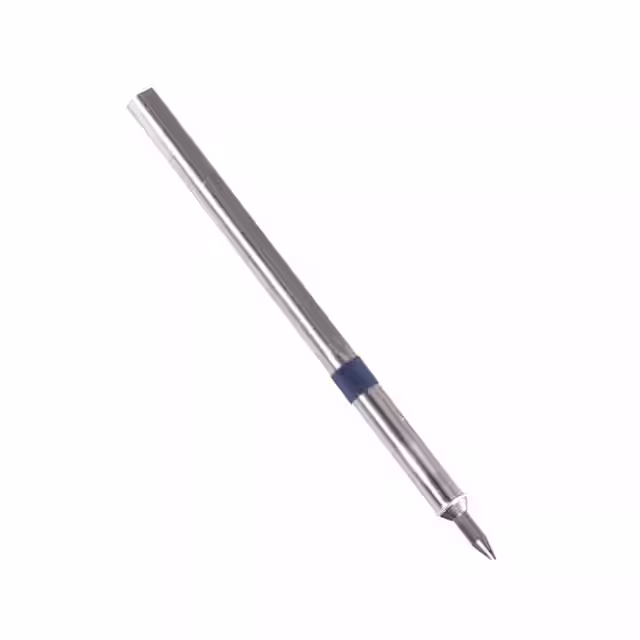

ES60BV007 BEVEL .7MM MENDA/EasyBraid	13,141	RFQ	Bulk	*	Discontinued at Mosen	-	-	-	-	-	-	-	-

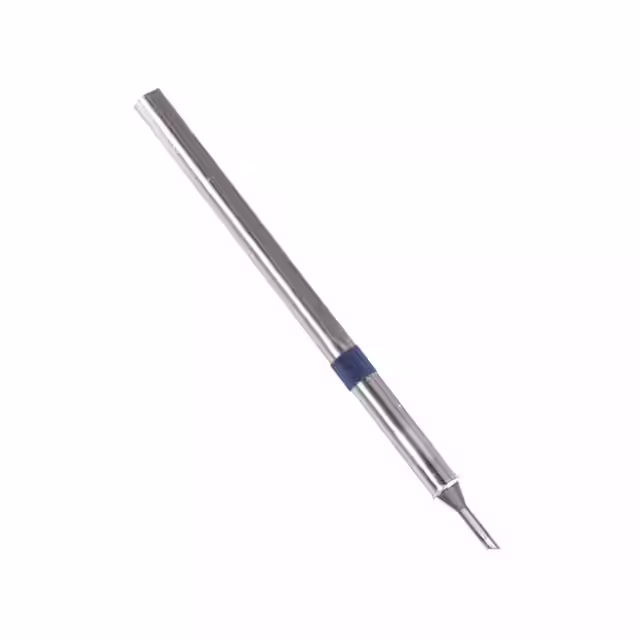

ES60BV020 BEVEL 1.00MM MENDA/EasyBraid	13,647	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.080 (2.03mm)	0.670 (17.02mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

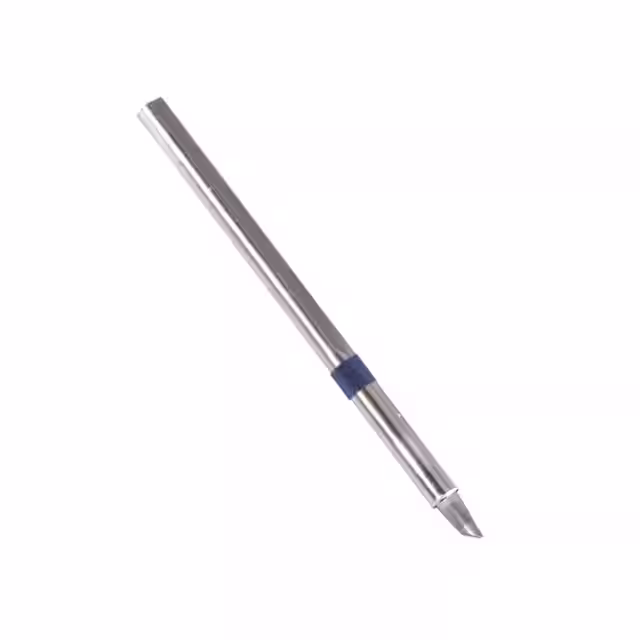

ES60BV030 BEVEL 3.00MM MENDA/EasyBraid	13,816	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	0.130 (3.30mm)	0.118 (3.00mm)	0.510 (12.95mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)
ES60BV040 BEVEL 4.00MM MENDA/EasyBraid	13,138	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.160 (4.06mm)	0.670 (17.02mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

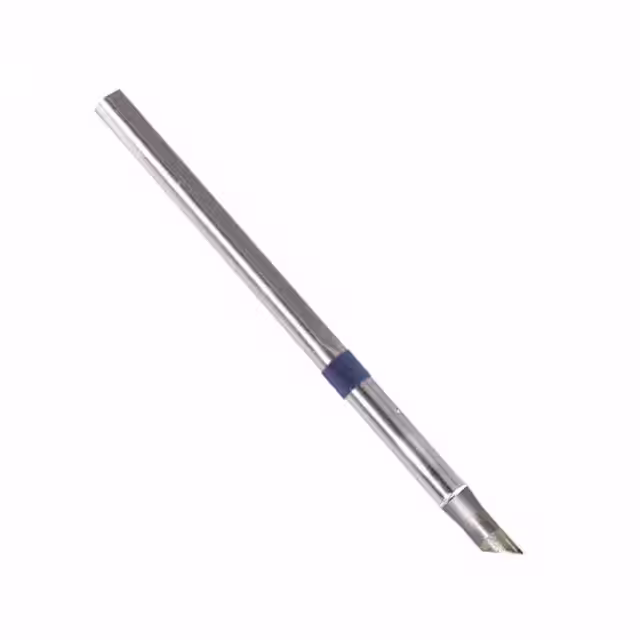

ES60BV050 BEVEL 5.00MM MENDA/EasyBraid	14,242	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.200 (5.08mm)	0.590 (14.99mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

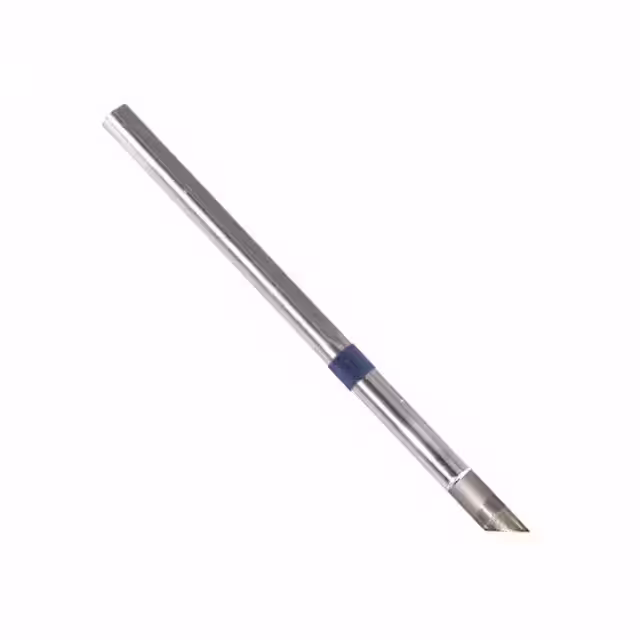

ES60BV060 BEVEL 6.00MM MENDA/EasyBraid	11,798	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.240 (6.10mm)	0.590 (14.99mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

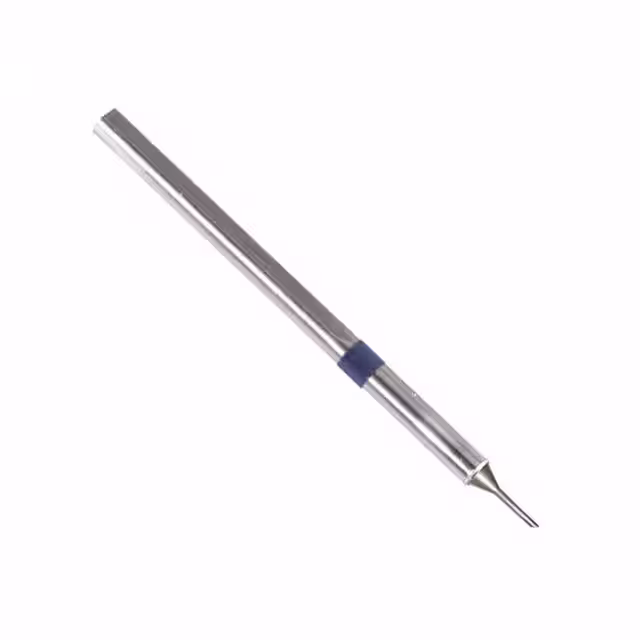

ES60BVF010 BEVEL 1.00MM MENDA/EasyBraid	11,263	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 60°	-	0.040 (1.02mm)	0.590 (14.99mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

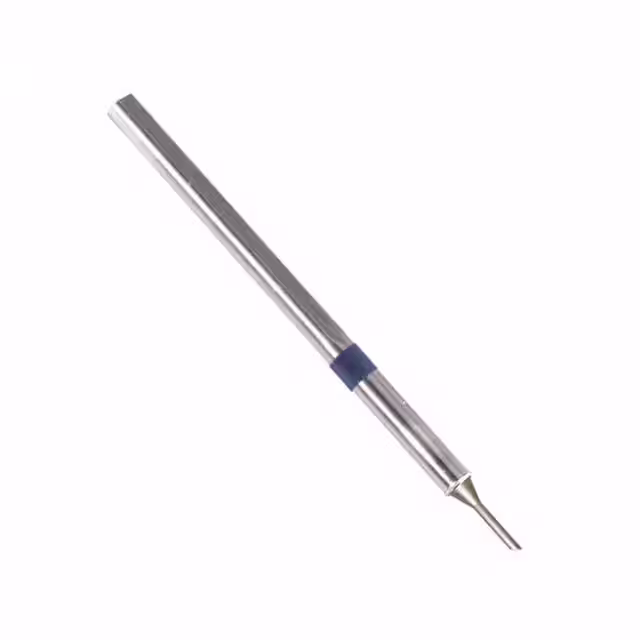

ES60BVF020 BEVEL 2.00MM MENDA/EasyBraid	10,922	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.080 (2.03mm)	0.670 (17.02mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

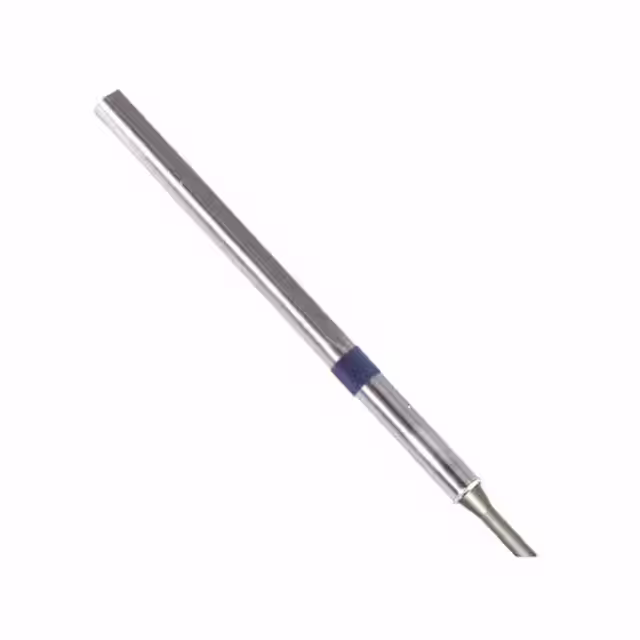

ES60BVF030 BEVEL 3.00MM MENDA/EasyBraid	10,823	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.120 (3.05mm)	0.670 (17.02mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

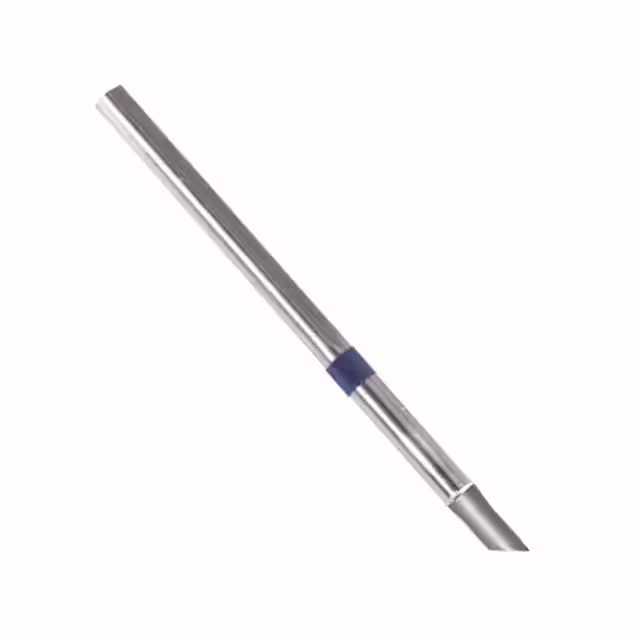

ES60BVF050 BEVEL 5.00MM MENDA/EasyBraid	11,350	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.200 (5.08mm)	0.590 (14.99mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

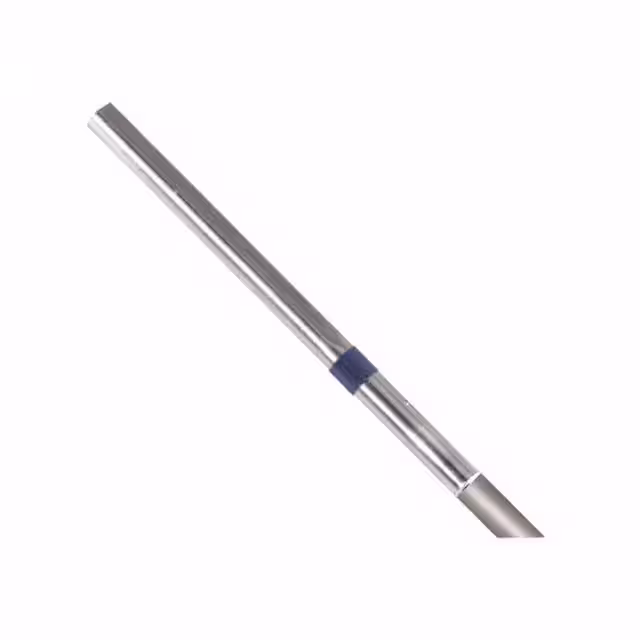

ES60BVF060 BEVEL 6.00MM MENDA/EasyBraid	14,279	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Bevel 45°	-	0.240 (6.10mm)	0.590 (14.99mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

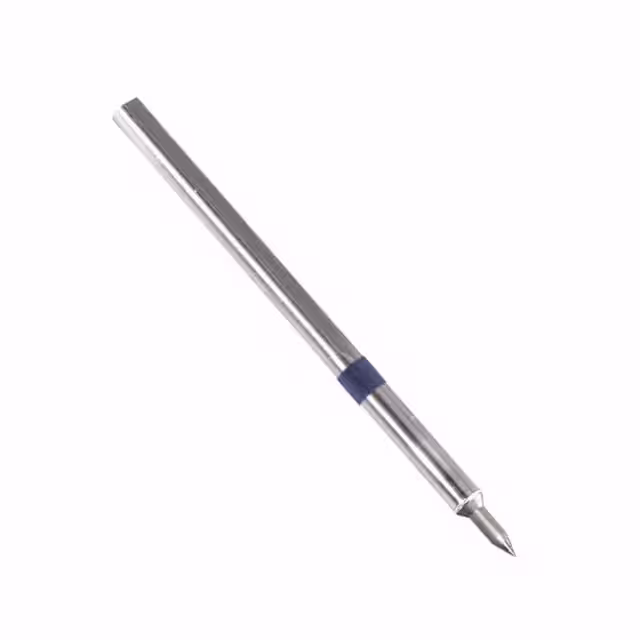

ES60C001 CONICAL BENT 30 DEGREE 0.10MM MENDA/EasyBraid	12,345	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Conical	-	0.004 (0.10mm)	0.510 (12.95mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)
ES60C002 CONICAL BENT 30 DEGREE 0.20MM MENDA/EasyBraid	13,891	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Conical	-	0.008 (0.20mm)	0.510 (12.95mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

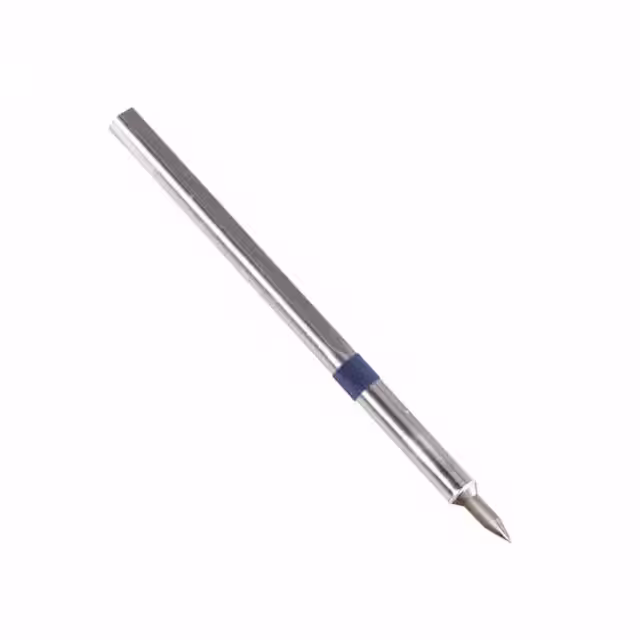

ES60C004 CONICAL BENT 30 DEGREE 0.40MM MENDA/EasyBraid	12,417	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Conical	-	0.016 (0.40mm)	0.510 (12.95mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

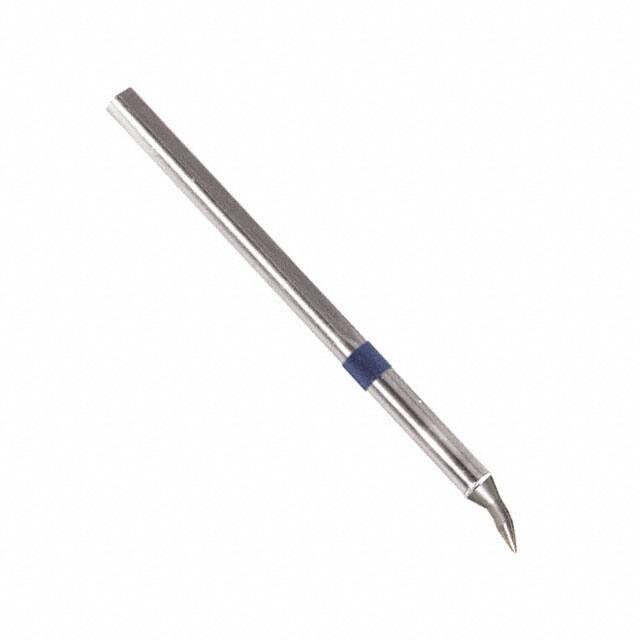

ES60CB012 CHISEL 30DEG 1.20MM MENDA/EasyBraid	10,416	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Chisel, Bent 30°	-	0.050 (1.27mm)	0.470 (11.94mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)

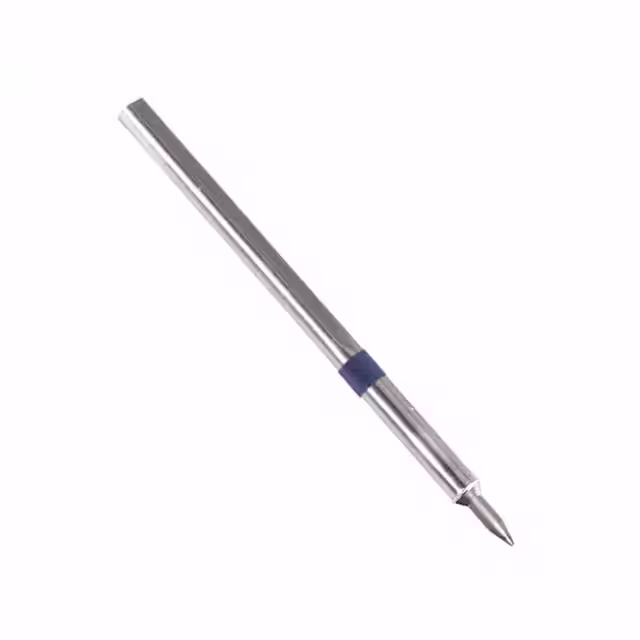

ES60CH006 CHISEL 30DEG .6MM MENDA/EasyBraid	14,827	RFQ	Bulk	ES	Discontinued at Mosen	Soldering	Chisel 30°	-	0.024 (0.60mm)	0.510 (12.95mm)	-	-	617°F ~ 676°F (325°C ~ 358°C)
