| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

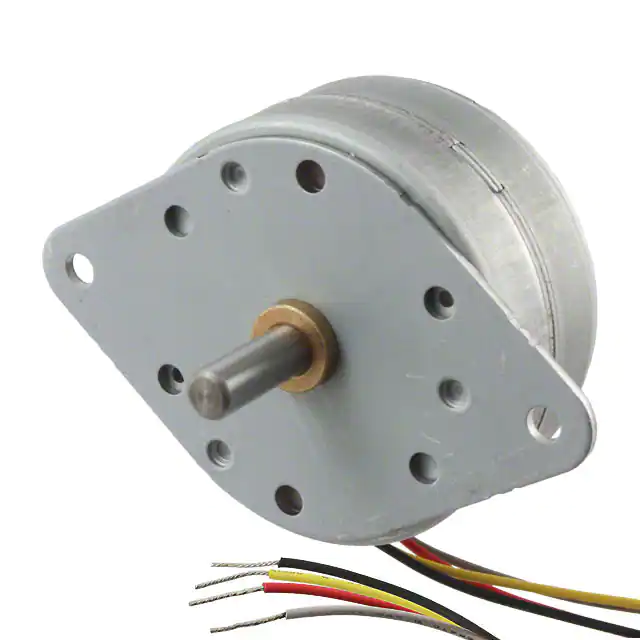

55M048D1BSTEPPER MOTOR PM BIPOLAR 5V |
2,445 | 0.00 |
RFQ |
Datasheet |
Bulk | 55M | Obsolete | Permanent Magnet | Bipolar | 5VDC | 960 mA | 48 | 7.5° | ±15% | 27.6 / 195 | Round - 2.170 Dia (55.12mm) | - | 0.250 (6.35mm) | 0.750 (19.05mm) | 2.630 (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms |
|

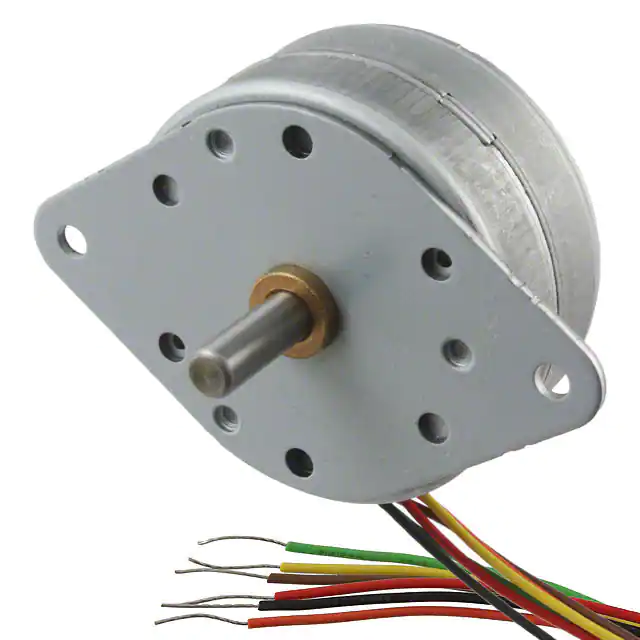

55M048D2USTEPPER MOTOR PM UNIPOLAR 12V |
3,419 | 0.00 |
RFQ |
Datasheet |
Bulk | 55M | Obsolete | Permanent Magnet | Unipolar | 12VDC | 400 mA | 48 | 7.5° | ±15% | 23 / 163 | Round - 2.170 Dia (55.12mm) | - | 0.250 (6.35mm) | 0.750 (19.05mm) | 2.630 (66.68mm) | Wire Leads | -20°C ~ 70°C | 30 Ohms |
|

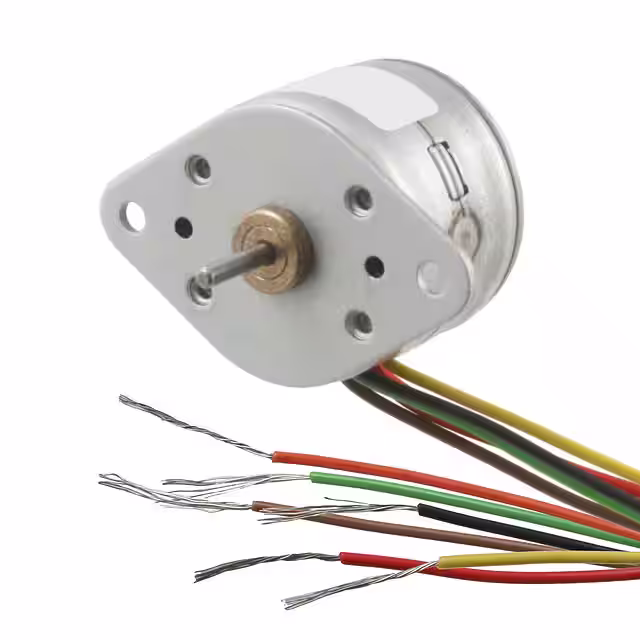

20M024D1USTEPPER MOTOR PM UNIPOLAR 5V |
10,109 | 0.00 |
RFQ |
Datasheet |
Bulk | 20M | Active | Permanent Magnet | Unipolar | 5VDC | 250 mA | 24 | 15° | ±15% | 1.1 / 7.77 | Round - 0.807 Dia (20.50mm) | - | 0.059 (1.50mm) | 0.335 (8.50mm) | 0.984 (25.00mm) | Wire Leads | -20°C ~ 70°C | 20 Ohms |
|

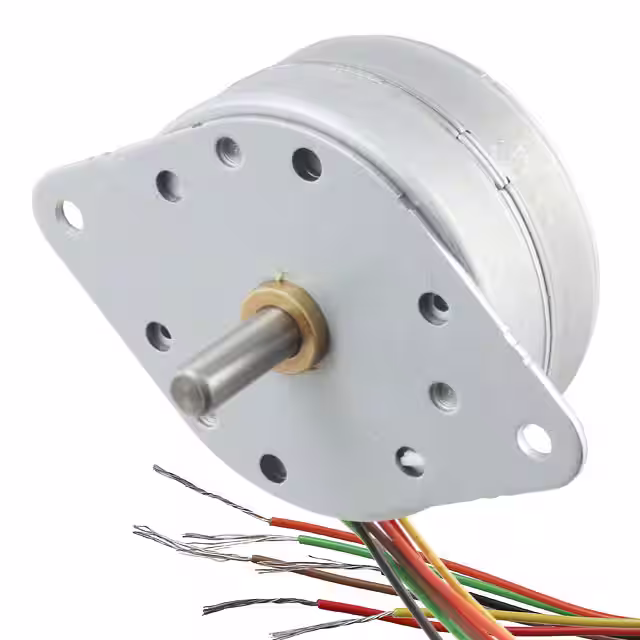

55M048D1USTEPPER MOTOR PM UNIPOLAR 5V |
2,534 | 0.00 |
RFQ |
Datasheet |
Bulk | 55M | Obsolete | Permanent Magnet | Unipolar | 5VDC | 960 mA | 48 | 7.5° | ±15% | 23 / 163 | Round - 2.170 Dia (55.12mm) | - | 0.250 (6.35mm) | 0.750 (19.05mm) | 2.630 (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms |
|

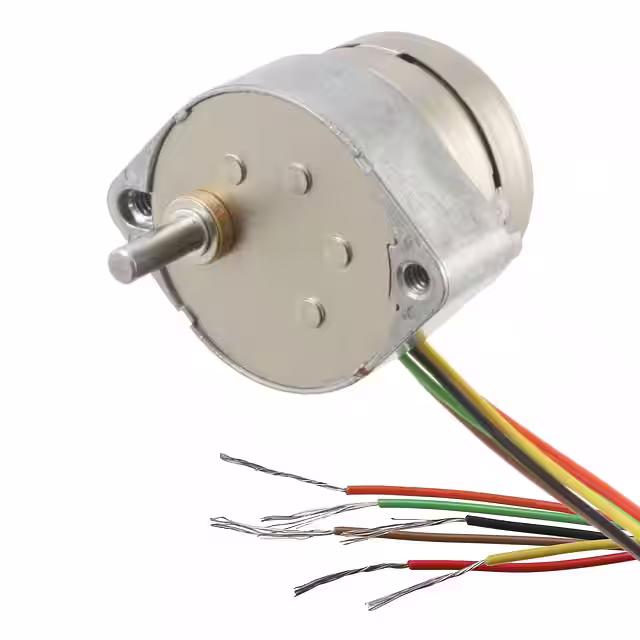

26M048B2U-V31STEPPER MOTOR PM GEARED UNI 12V |
14,846 | 0.00 |
RFQ |
Datasheet |
Bulk | 26M-V | Active | Permanent Magnet Gear Motor | Unipolar | 12VDC | 110 mA | 1440 | 0.25° | - | 1.3 / 9.2 | Round - 1.030 Dia (26.16mm) | - | 0.125 (3.18mm) | 0.432 (10.97mm) | 1.180 (29.87mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms |
|

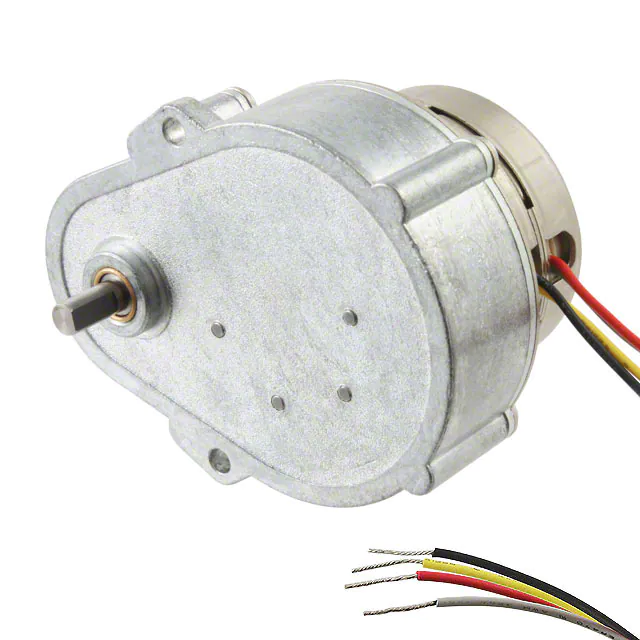

42M048C1B-Z36STEP MOTOR PM GEARED BIPOLAR 5V |
3,375 | 0.00 |
RFQ |
Datasheet |
Bulk | 42M-Z | Obsolete | Permanent Magnet Gear Motor | Bipolar | 5VDC | 550 mA | 2400 | 0.15° | - | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.188 (4.77mm) | 0.500 (12.70mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|
17H018D10BSTEP MOTOR HYBRID BIPOLAR 3.3V |
2,689 | 0.00 |
RFQ |
Datasheet |
Bulk | H3 | Obsolete | Hybrid | Bipolar | 3.3VDC | 1 A | 200 | 1.8° | ±5% | 30 / 212 | Square - 1.680 x 1.680 (42.67mm x 42.67mm) | 17 | 0.197 (5.00mm) | 0.790 (20.07mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 40°C | 3.32 Ohms |
|

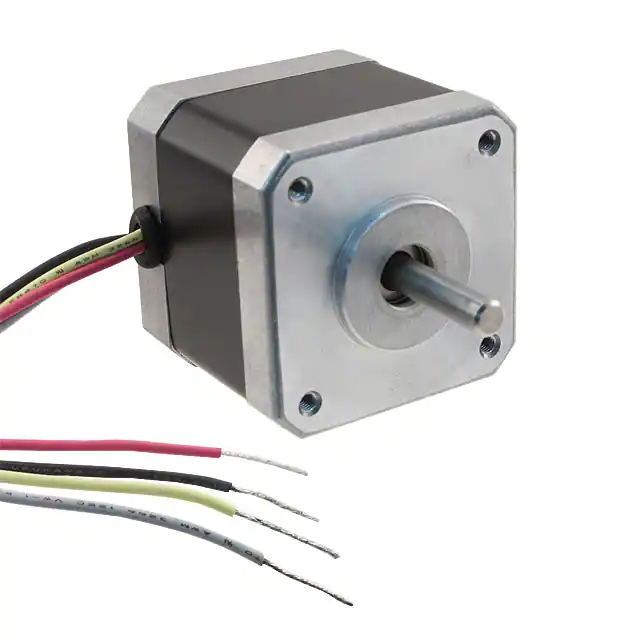

17H118D10BSTEP MOTOR HYBRID BIPOLAR 4.1V |
3,321 | 0.00 |
RFQ |
Datasheet |
Bulk | H3 | Obsolete | Hybrid | Bipolar | 4.1VDC | 1 A | 200 | 1.8° | ±5% | 51 / 360 | Square - 1.680 x 1.680 (42.67mm x 42.67mm) | 17 | 0.197 (5.00mm) | 0.790 (20.07mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 40°C | 4.12 Ohms |
|

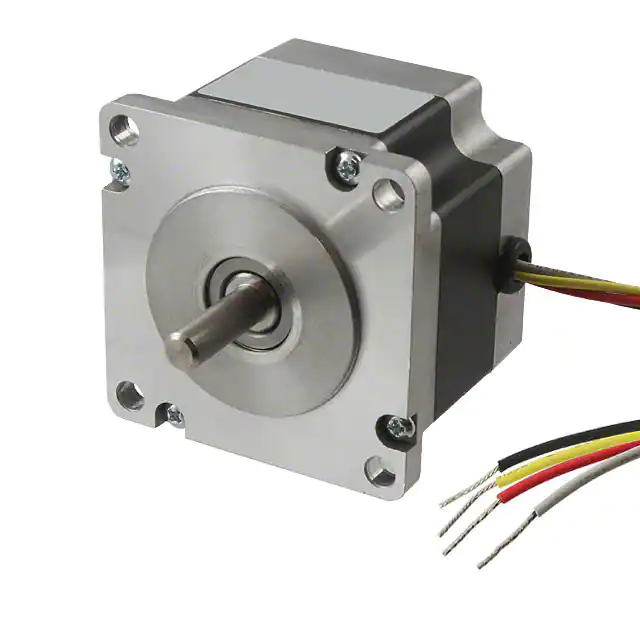

23H018D10BSTEP MOTOR HYBRID BIPOLAR 5.7V |
2,538 | 0.00 |
RFQ |
Datasheet |
Bulk | H3 | Obsolete | Hybrid | Bipolar | 5.7VDC | 1 A | 200 | 1.8° | ±5% | 75 / 530 | Square - 2.250 x 2.250 (57.15mm x 57.15mm) | 23 | 0.250 (6.35mm) | 0.810 (20.57mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 40°C | 5.7 Ohms |
|

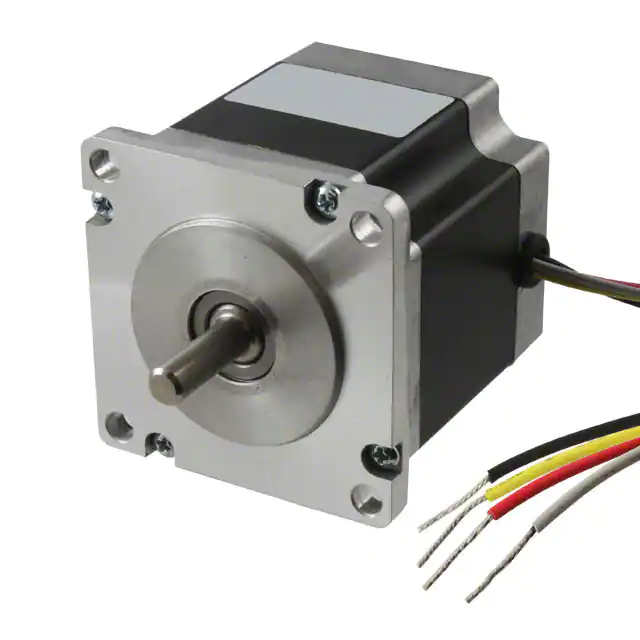

23H118D10BSTEP MOTOR HYBRID BIPOLAR 6.84V |
2,727 | 0.00 |
RFQ |
Datasheet |
Bulk | H3 | Obsolete | Hybrid | Bipolar | 6.84VDC | 1 A | 200 | 1.8° | ±5% | 180 / 1271 | Square - 2.250 x 2.250 (57.15mm x 57.15mm) | 23 | 0.250 (6.35mm) | 0.810 (20.57mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 40°C | 6.84 Ohms |
|
42M048C1B-R16STEP MOTOR PM GEARED BIPOLAR 5V |
13,904 | 0.00 |
RFQ |
Datasheet |
Bulk | 42M-R | Active | Permanent Magnet Gear Motor | Bipolar | 5VDC | 550 mA | 240 | 1.5° | - | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.093 (2.36mm) | 0.469 (11.92mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|
829102A00000RSTEPPER MOTOR BI 9OHM PAL 9.52A |
14,983 | 0.00 |
RFQ |
Bulk | 82910 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

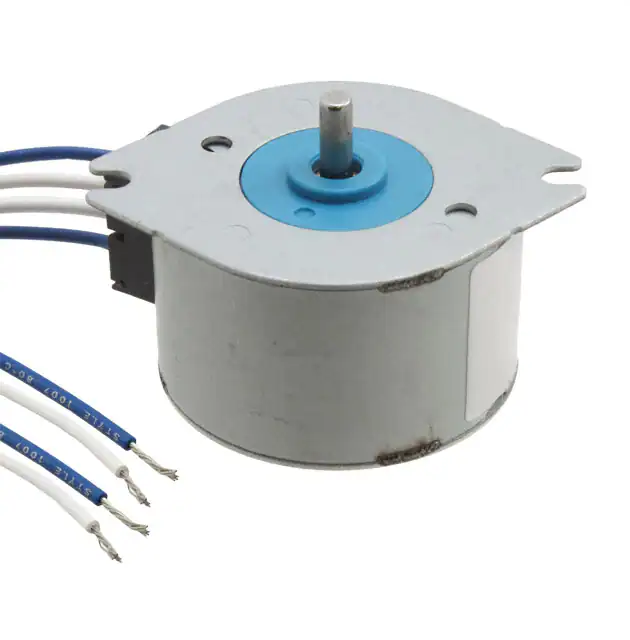

829102B00000RSTEPPER MOTOR BI 66OHM 7.5 PAL 9 |
13,204 | 0.00 |
RFQ |
Bulk | 82910 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
829144A00050PSTEPPER MOTOR UNI 15.5OHM 50:1 |
11,069 | 0.00 |
RFQ |
Bulk | 82914 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
829144A00240HSTEPPER MOTOR UNI 15.5OHM 240:1 |
10,736 | 0.00 |
RFQ |
Bulk | 82914 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
829148B00060DSTEPPER MOTOR UNI 15DEG 66OHM |
10,471 | 0.00 |
RFQ |
Bulk | 82914 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
82910020STEPPER MOTOR 4PH 165OHM PAL 9AX |
10,148 | 0.00 |
RFQ |
Bulk | 82910 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
82910036STEPPER MOTOR 4PH 66OHM 330MM |
14,327 | 0.00 |
RFQ |
Bulk | 82910 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
82910054STEPPER MOTOR 4PH 66OHM PAL 9.52 |
11,193 | 0.00 |
RFQ |
Bulk | 82910 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
82910400STEPPER MOTOR 4PH 165OHM PAL 9AX |
12,982 | 0.00 |
RFQ |
Bulk | 82910 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
-
