| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

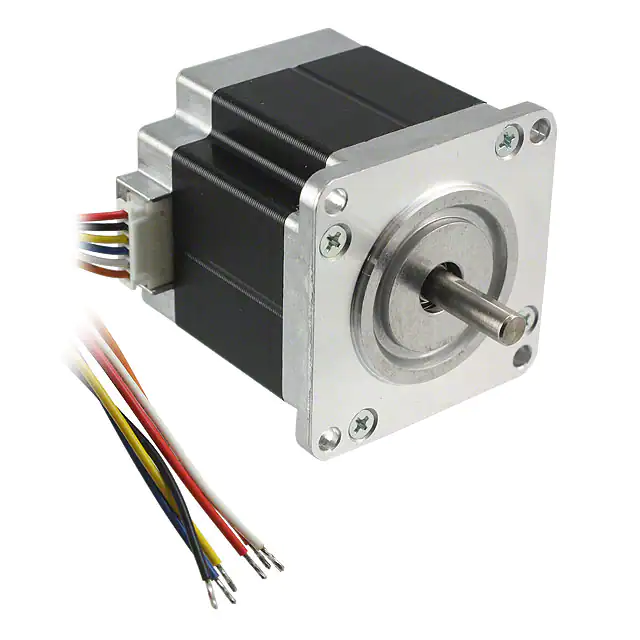

23KM-K066-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
2,988 | 69.02 |
RFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 7 Ohms |
|

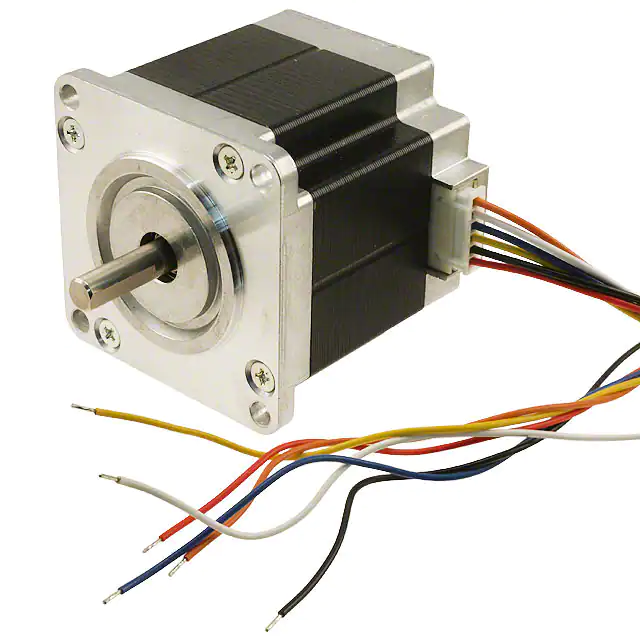

23KM-K044-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
3,342 | 69.02 |
RFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 0.85 Ohms |
|

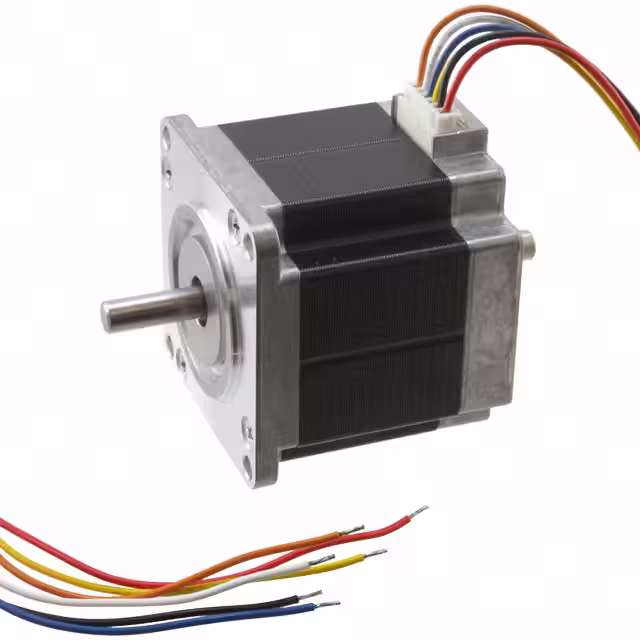

23KM-K066-99VSTEP MOTOR HYBRID DUAL SHAFT 24V |
2,744 | 71.95 |
RFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 7 Ohms |
|

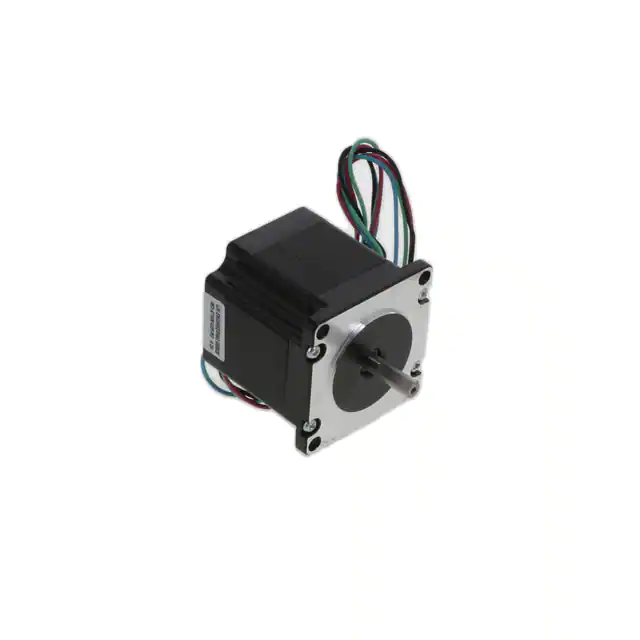

WO-5718M-02P-ROSTEPPER MOTOR |
2,696 | 72.80 |
RFQ |
Datasheet |
Bulk | - | Active | - | Bipolar | 24VDC | 4.2 A | 200 | 1.8° | - | 173 / 1222 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 0.5 Ohms |
|

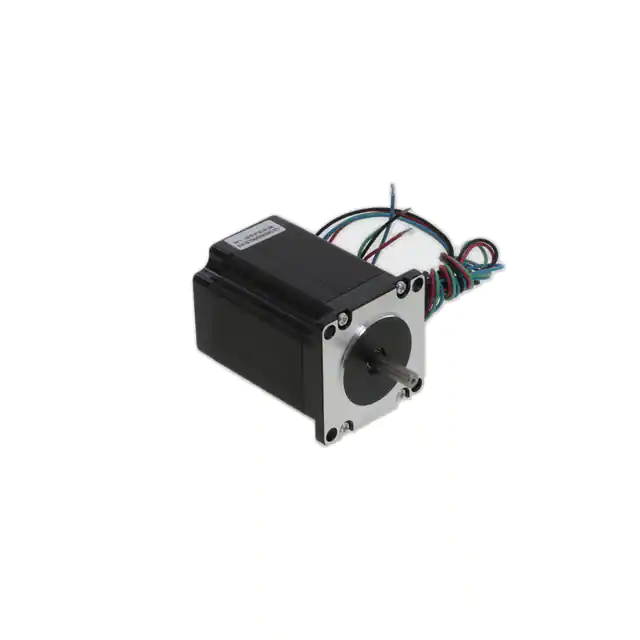

WO-5718L-01S-ROSTEPPER MOTOR |
4,249 | 77.68 |
RFQ |
Datasheet |
Bulk | - | Active | - | Bipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 294 / 2076 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms |
|

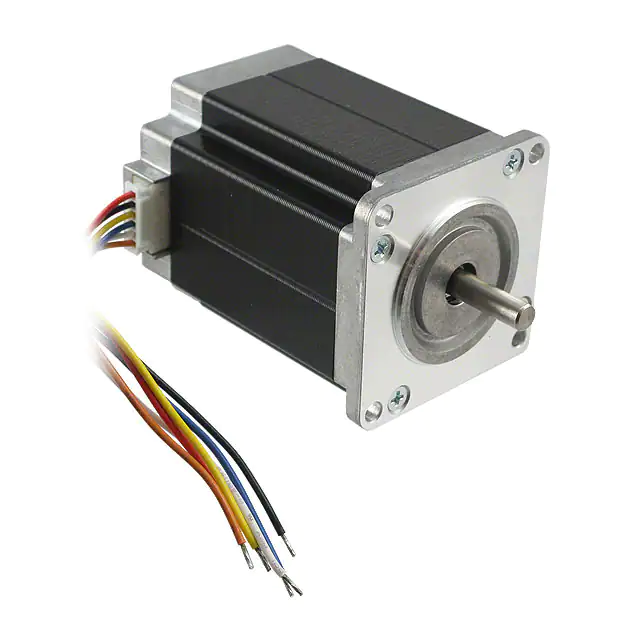

23KM-K743-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
4,159 | 83.55 |
RFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.1 Ohms |
|

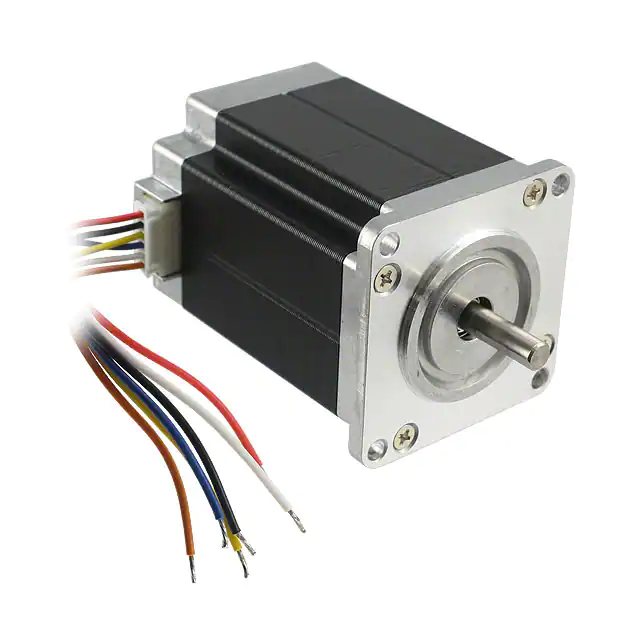

23KM-K762-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
3,046 | 83.55 |
RFQ |
Datasheet |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 1 A | 200 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 8.6 Ohms |
|
NEMA14-10-04D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
829 | 103.73 |
RFQ |
Datasheet |
Box | NEMA14-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 450 mA | 200 | 1.8° | ±0.2% | 7.5 / 52.96 | Square - 1.390 x 1.390 (35.30mm x 35.30mm) | 14 | 0.197 (5.00mm) | 0.602 (15.30mm) | 1.023 (26.00mm) | Connector | -20°C ~ 50°C | 3.8 Ohms |
|
|
NEMA14-10-08D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
594 | 103.73 |
RFQ |
Datasheet |
Box | NEMA14-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 350 mA | 200 | 1.8° | ±0.2% | 7.5 / 52.96 | Square - 1.390 x 1.390 (35.30mm x 35.30mm) | 14 | 0.197 (5.00mm) | 0.602 (15.30mm) | 1.023 (26.00mm) | Connector | -20°C ~ 50°C | 8.5 Ohms |
|
NEMA17-13-04SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
885 | 105.58 |
RFQ |
Datasheet |
Box | NEMA17-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 670 mA | 200 | 1.8° | ±0.2% | 42 / 296.59 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 9.9 Ohms |
|

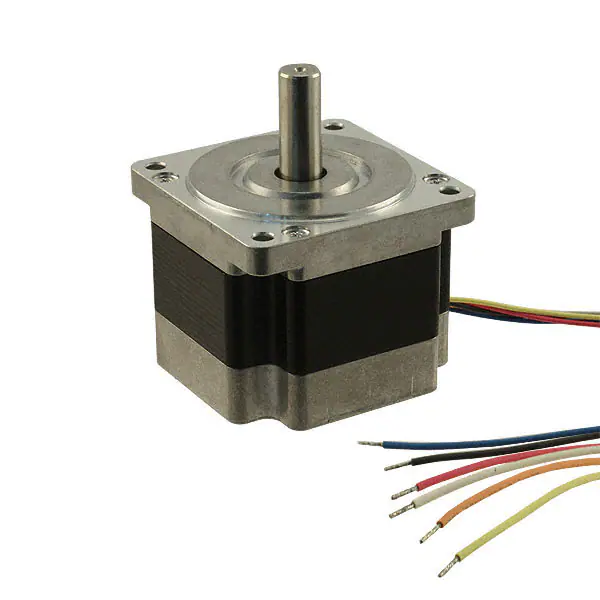

34KM-K023-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
945 | 133.92 |
RFQ |
Datasheet |
Bulk | 34KM | Active | Hybrid | Unipolar | 24VDC | 1.9 A | 200 | 1.8° | ±5% | 354.07 / 2500 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | 34 | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 2.8 Ohms |
|
NEMA23-31-01PD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
371 | 135.60 |
RFQ |
Datasheet |
Box | NEMA23-AMT112S | Active | - | Bipolar | 24 ~ 80VDC | 2.8 A | 200 | 1.8° | ±0.2% | 270 / 1906.62 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.819 (46.20mm) | Connector | -20°C ~ 50°C | 1.1 Ohms |
|

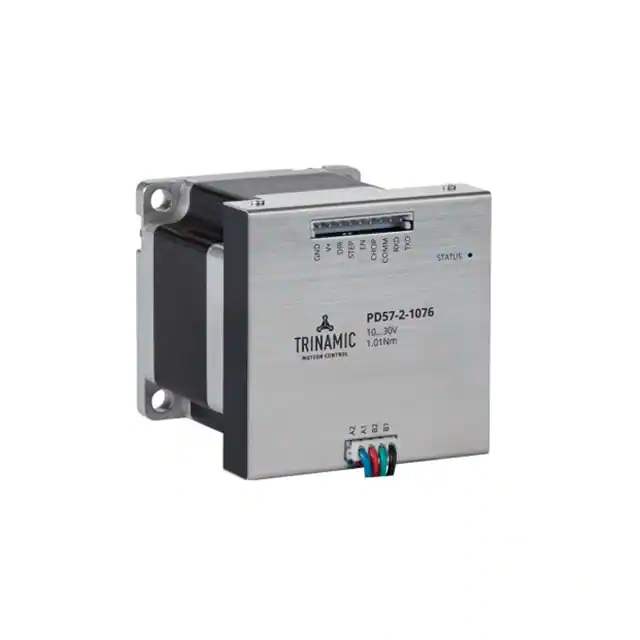

PD57-2-1076STEPPER MOTOR HYBRID BIPOLAR 24V |
819 | 182.97 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.8 Ohms |
|

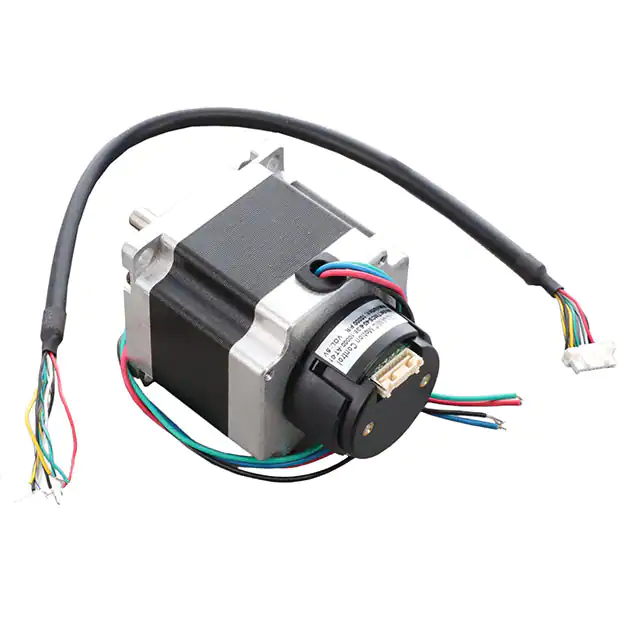

QSH5718-51-28-101-10KSTEP MOTOR HYBRID NEMA23 ENC 100 |
584 | 192.04 |
RFQ |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.03 / 1010 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.8 Ohms | |
|

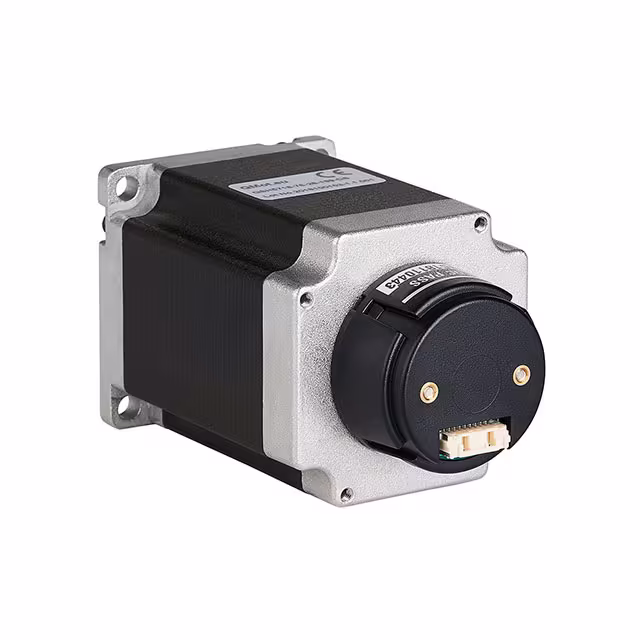

QSH5718-76-28-189-10KSTEP MOTOR HYBRID NEMA23 ENC 100 |
864 | 230.68 |
RFQ |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 3.2VDC | 2.8 A | 200 | 1.8° | ±5% | 267.6 / 1890 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.13 Ohms | |
|

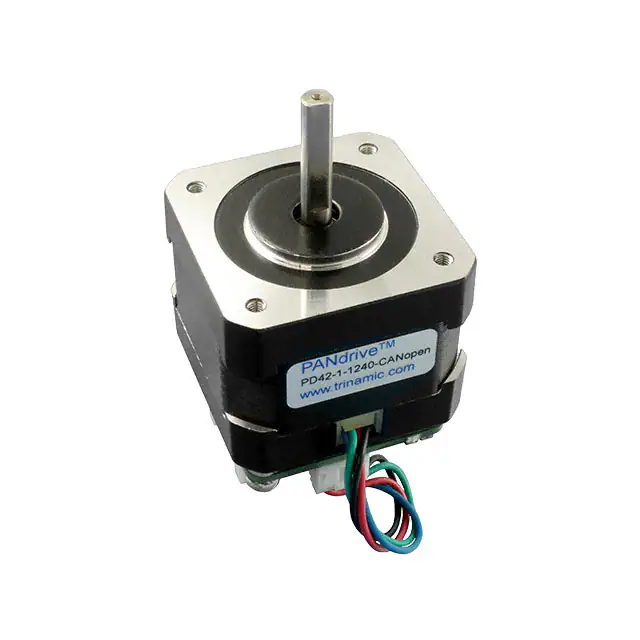

PD42-1-1240-CANOPENPANDRIVE NEMA17, 24V, 0.22NM |
866 | 231.72 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2VDC | 2 A | 200 | 1.8° | ±5% | 31.15 / 220 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1 Ohms |
|
PD42-2-1240-TMCLPANDRIVE NEMA17, 24V, 0.36NM |
738 | 233.90 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 50.98 / 360 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1.2 Ohms | |
|

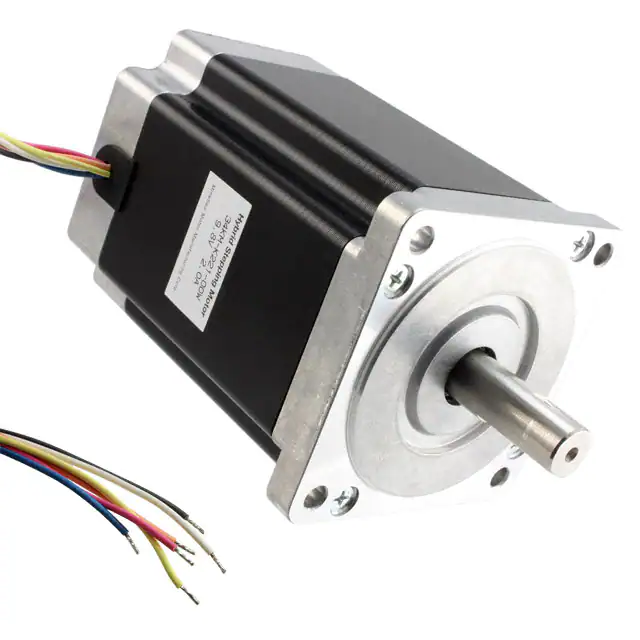

34KM-K221-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
792 | 247.93 |
RFQ |
Datasheet |
Bulk | 34KM | Active | Hybrid | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 948.92 / 6700 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | 34 | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 4.9 Ohms |
|
PD86-3-1278-CANOPENPANDRIVE NEMA34, 48V, 7NM |
746 | 510.24 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.45 Ohms | |
|

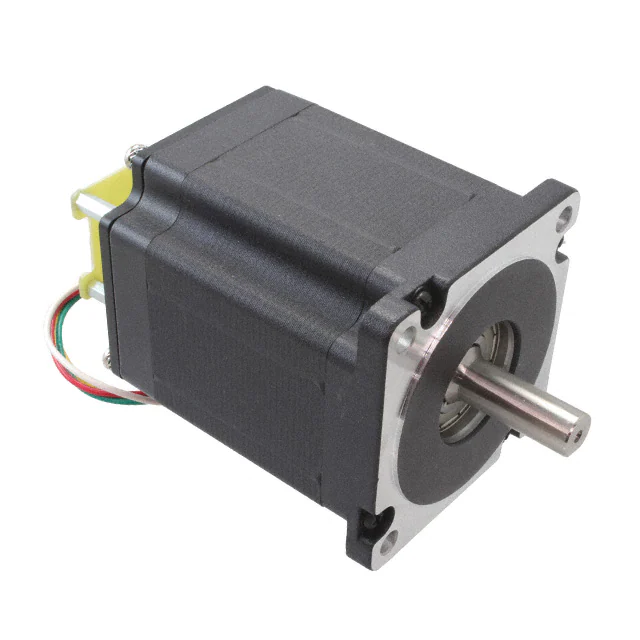

PD86-3-1260-TMCLPANDRIVE NEMA34, 48V, 7.0NM |
357 | 562.20 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 48VDC | 5.5 A | 200 | 1.8° | - | 991.28 / 7000 | Square - 3.382 x 3.382 (85.90mm x 85.90mm) | 34 | 0.500 (12.70mm) | 1.310 (33.27mm) | 2.740 (69.60mm) | Wire Leads with Connector | - | 0.45 Ohms |
