Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

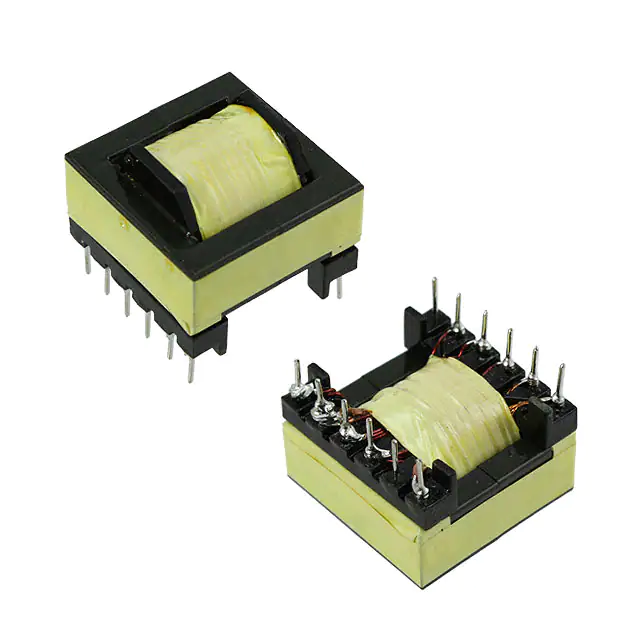

750811630 TRANS OFF LINE POWER PI TOP258 Würth Elektronik	4,574	11.68	RFQ	Datasheet	Tray	WE-UNIT, MID-OLPI	Active	For AC/DC Converters	Flyback Converters	TOP258	Power Integrations	120 ~ 375V	-	4000Vrms	1.04mH @ 10kHz	132kHz	-40°C ~ 125°C	Through Hole	1.220 L x 1.220 W (31.00mm x 31.00mm)	0.989 (25.12mm)	1.220 L x 1.220 W (31.00mm x 31.00mm)

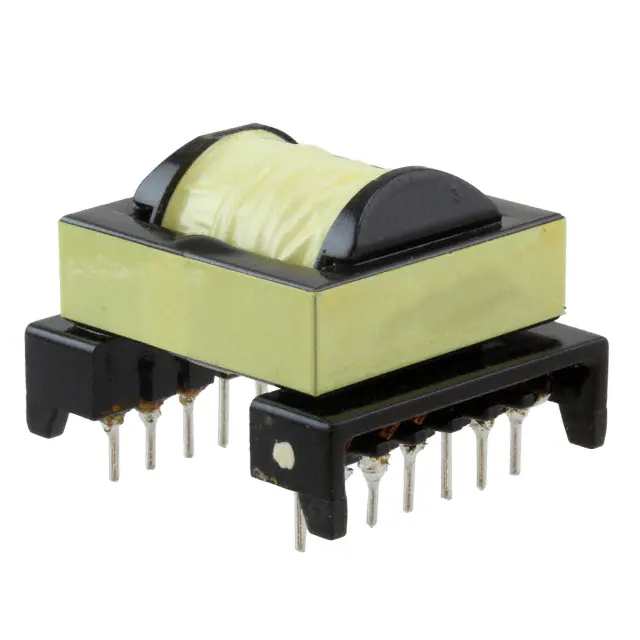

750811351 OFFLINE XFRM WE-UNIT LT3799 Würth Elektronik	4,335	13.93	RFQ	Datasheet	Tray	WE-UNIT, MID-OLLT	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	25V @ 10mA	4500Vrms	180µH @ 10kHz	75kHz	-	Through Hole	1.559 L x 1.700 W (39.60mm x 43.18mm)	1.205 (30.61mm)	1.559 L x 1.700 W (39.60mm x 43.18mm)

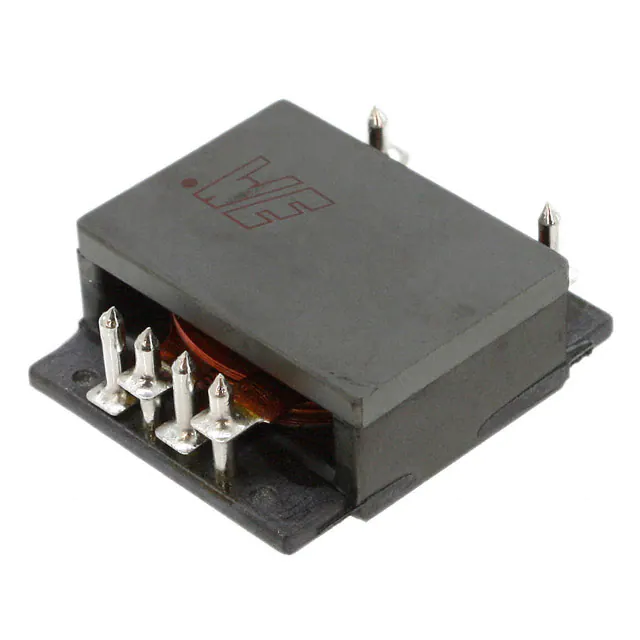

750341136 TRANSFORMER PLANAR 300UH SMD Würth Elektronik	2,954	19.32	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	300µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)
750341138 TRANSFORMER PLANAR 300UH SMD Würth Elektronik	4,766	19.32	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	65µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)

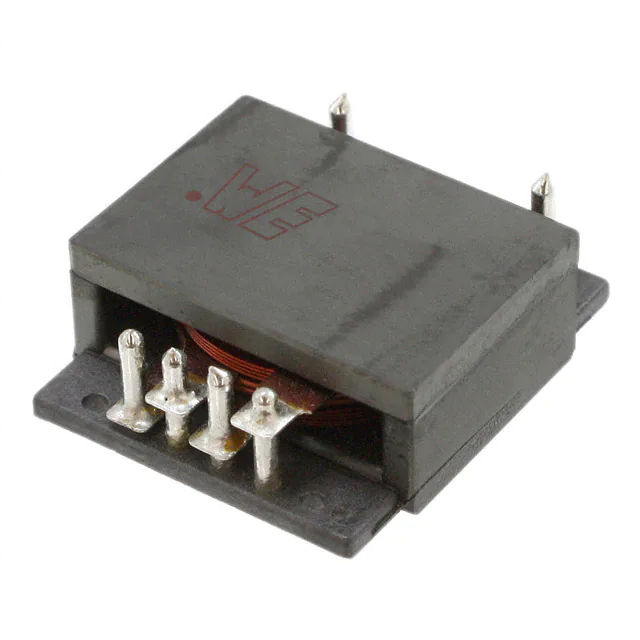

750341145 TRANSFORMER PLANAR 480UH SMD Würth Elektronik	1,968	25.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	410µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)
750315826 FLYBACK TRANSFORMER WE-FB Würth Elektronik	9,215	2.96	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	-	-
B82802A0012A215 TRANSFORMER FLYBACK 36-60V SMD EPCOS - TDK Electronics	8,209	4.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82802A	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	100µH @ 100kHz	100kHz	-40°C ~ 125°C	Surface Mount	0.650 L x 0.681 W (16.50mm x 17.30mm)	0.341 (8.65mm)	0.650 L x 0.902 W (16.50mm x 22.90mm)
SIT1217I DC-DC TRANSFORMER, FOR SCALE-IDR Power Integrations	8,399	9.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SIT12xxI	Active	For DC/DC Converters	Flexible	SCALE-iDriver™ Ics	-	-	-	-	170µH @ 100kHz	-	-40°C ~ 105°C	Surface Mount	1.030 L x 0.925 W (26.15mm x 23.50mm)	0.650 (16.50mm)	1.043 L x 0.925 W (26.50mm x 23.50mm)
VP5-0083TR-R PULSE XFMR 5.3UH SMD Eaton - Electronics Division	2,541	10.18	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.827 L x 1.122 W (21.00mm x 28.50mm)	0.425 (10.80mm)	-

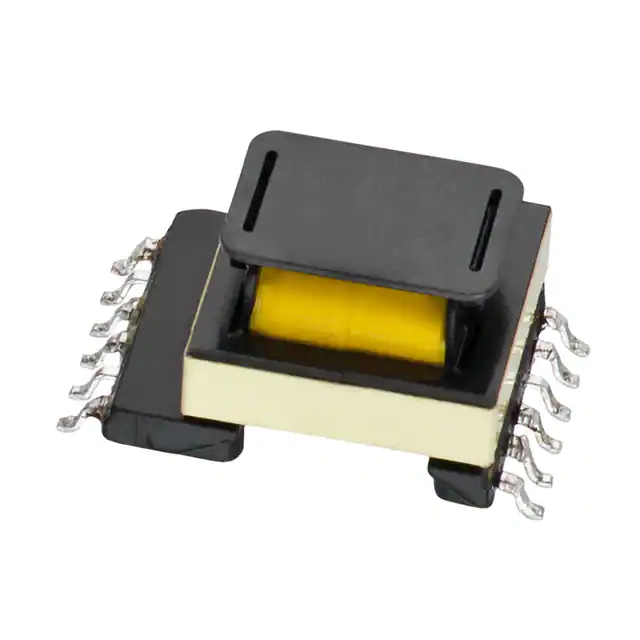

760875131 TRANSFORMER OFFLINE 1.5MH 4000V Würth Elektronik	7,367	9.86	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UOST	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	85 ~ 265V	14V	4000Vrms	1.5mH @ 100kHz	60 ~ 150kHz	-40°C ~ 125°C	Surface Mount	0.654 L x 0.790 W (16.60mm x 20.06mm)	0.551 (14.00mm)	0.654 L x 1.016 W (16.60mm x 25.81mm)
PAD002-T764113S PUSH-PULL FUNC-INSULTN 5V 1:1.3 Bourns Inc.	6,640	2.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PAD00x-T764	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.280 L x 0.258 W (7.10mm x 6.55mm)	0.157 (3.99mm)	0.388 L x 0.258 W (9.85mm x 6.55mm)
750315829 FLYBACK TRANSFORMER WE-FB Würth Elektronik	6,101	2.31	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	-	-
PA5099.004NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	5,583	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
PA5099.002NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	9,612	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
PA5099.001NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	6,314	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
PA5099.005NLT TRANSFORMER, CM, FLYBACK, EP7 PL Pulse Electronics Power	7,732	2.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5099.XXXNLT	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250VDC	-	200kHz	-40°C ~ 125°C	Surface Mount	0.535 L x 0.433 W (13.60mm x 11.00mm)	0.610 (15.50mm)	0.535 L x 0.433 W (13.60mm x 11.00mm)
750317331 PUSH-PULL TRANSFORMER Würth Elektronik	9,719	3.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	24V	-	2500Vrms	1mH @ 10kHz	300 ~ 620kHz	-40°C ~ 125°C	Surface Mount	0.281 L x 0.265 W (7.14mm x 6.73mm)	0.165 (4.19mm)	0.402 L x 0.265 W (10.20mm x 6.73mm)

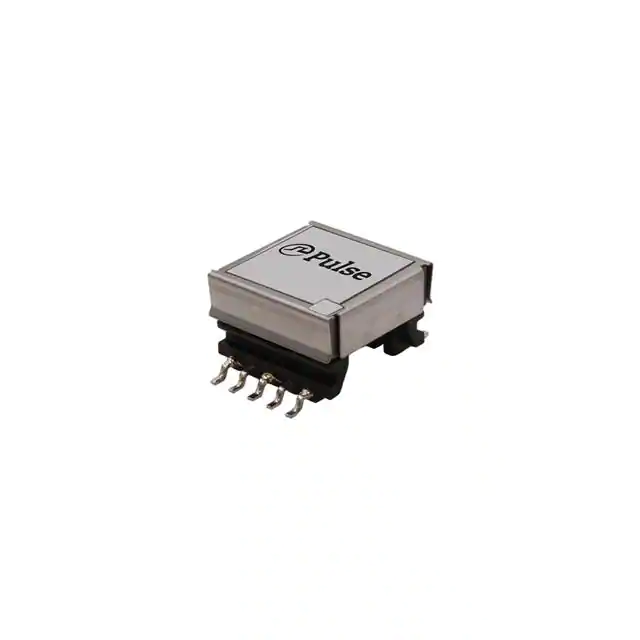

PGT6466NLT TRANSF FLYBACK 6-28V IN TO 5V/15 Pulse Electronics Power	5,402	3.75	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	6 ~ 28V	-	3000VDC	1.8µH @ 100kHz	500kHz	-40°C ~ 130°C	Surface Mount	0.650 L x 0.642 W (16.50mm x 16.30mm)	0.433 (11.00mm)	0.862 L x 0.650 W (21.90mm x 16.50mm)
750313638 TRANSFORMER SMD Würth Elektronik	7,850	3.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-PP, MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6501	Texas Instruments	-	-	5000Vrms	340µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.360 L x 0.315 W (9.14mm x 8.00mm)	0.305 (7.75mm)	0.360 L x 0.500 W (9.14mm x 12.70mm)
PA3855.002NLT TRANSFORMER FLYBACK 48UH SMD Pulse Electronics Power	8,047	3.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13Plus	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
