Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
C8140 VOIP FLYBACK XFORMER Sumida America Components Inc.	5,225	1.61	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750315830 FLYBACK TRANSFORMER WE-FB Würth Elektronik	6,427	1.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	-	-
750315833 FLYBACK TRANSFORMER WE-FB Würth Elektronik	6,462	1.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	-	-
750315834 FLYBACK TRANSFORMER WE-FB Würth Elektronik	8,032	1.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	-	-
750315832 FLYBACK TRANSFORMER WE-FB Würth Elektronik	5,771	1.69	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	9 ~ 36V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	-	-
PA3965.002NLT XFMR FLYBACK 7W REINFORCED NPB Pulse Electronics Power	9,762	1.80	RFQ	Datasheet	Tape & Reel (TR)	PA3965.XXXNLT	Active	-	-	-	-	-	-	-	-	-	-	-	0.657 L x 0.500 W (16.70mm x 12.70mm)	0.557 (14.15mm)	0.657 L x 0.650 W (16.70mm x 16.50mm)
750318463 FLYBACK TRANSFORMER EP7 SMT; UI Würth Elektronik	6,497	2.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	ADP1032	Analog Devices, Inc	18 ~ 32V	-	1500Vrms	470µH @ 10kHz	250kHz	-40°C ~ 125°C	Surface Mount	-	0.384 (9.76mm)	0.526 L x 0.425 W (13.35mm x 10.80mm)
PA3964.001NLT XFMR AC FORWARD 7W REINFOR NPB Pulse Electronics Power	8,198	1.97	RFQ	Datasheet	Tape & Reel (TR)	PA3964.XXXNLT	Active	-	-	-	-	-	-	-	-	-	-	-	0.614 L x 0.591 W (15.60mm x 15.00mm)	0.291 (7.40mm)	0.614 L x 0.650 W (15.60mm x 16.50mm)
PA3964.002NLT XFMR PUSHPULL 7W REINFORCE NPB Pulse Electronics Power	6,501	1.97	RFQ	Datasheet	Tape & Reel (TR)	PA3964.XXXNLT	Active	-	-	-	-	-	-	-	-	-	-	-	0.614 L x 0.591 W (15.60mm x 15.00mm)	0.291 (7.40mm)	0.614 L x 0.650 W (15.60mm x 16.50mm)

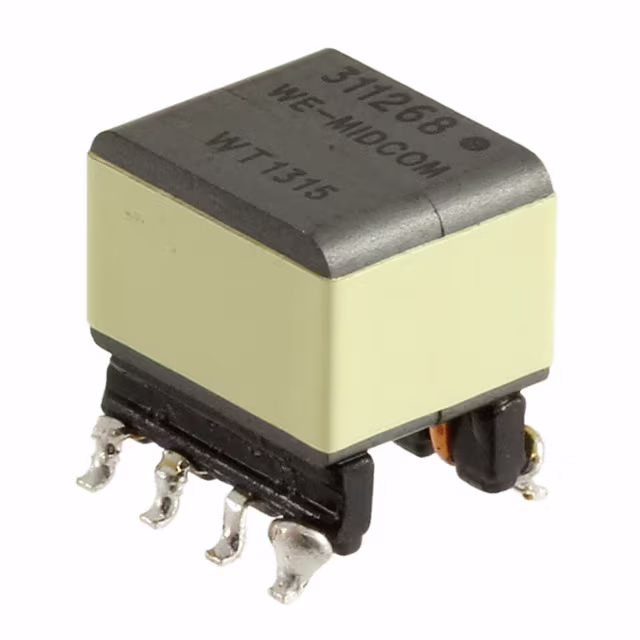

750311268 FLYBACK XFRM WE-FB BROADCOM Würth Elektronik	7,910	1.77	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 16V	-	500Vrms	5µH @ 100kHz	391kHz	-40°C ~ 125°C	Surface Mount	-	0.420 (10.69mm)	0.385 L x 0.360 W (9.78mm x 9.14mm)

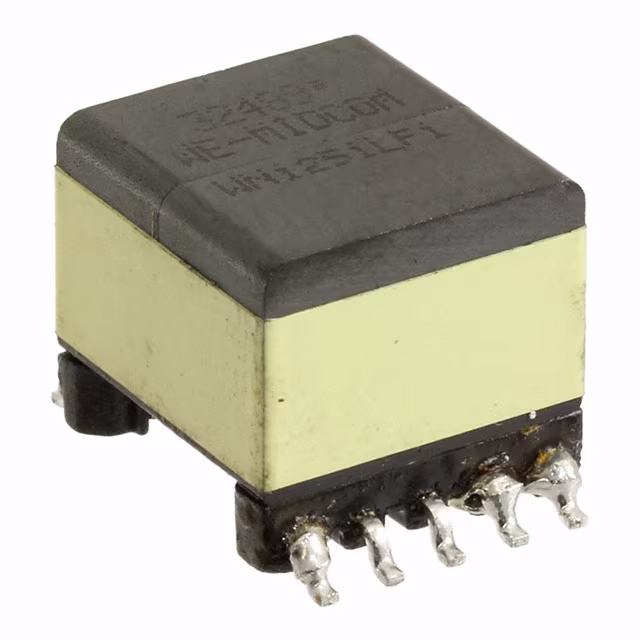

750032489 FLYBACK XFRM WE-FB BROADCOM Würth Elektronik	5,050	1.77	RFQ	Datasheet	Tape & Reel (TR)	WE-FB	Active	For DC/DC Converters	Flyback Converters	-	-	15V	-	500Vrms	5µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	-	0.505 (12.83mm)	0.530 L x 0.699 W (13.46mm x 17.75mm)
750314743 FLYBACK TRANSFORMER WE-FB Würth Elektronik	6,518	2.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Isolated Buck Converters	-	-	36 ~ 72V	-	-	22µH @ 100kHz	200 ~ 350kHz	-40°C ~ 125°C	Surface Mount	-	0.307 (7.80mm)	-

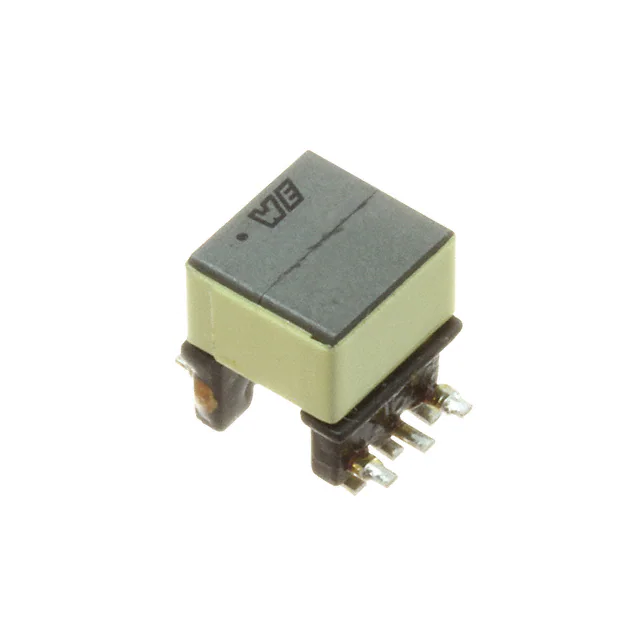

750314744 FLYBACK TRANSFORMER WE-FB Würth Elektronik	7,442	2.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Isolated Buck Converters	-	-	36 ~ 72V	-	-	33µH @ 100kHz	200 ~ 350kHz	-40°C ~ 125°C	Surface Mount	-	0.307 (7.80mm)	-
750314745 FLYBACK TRANSFORMER WE-FB Würth Elektronik	7,658	2.24	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Isolated Buck Converters	-	-	36 ~ 72V	-	-	47µH @ 100kHz	200 ~ 350kHz	-40°C ~ 125°C	Surface Mount	-	0.307 (7.80mm)	-
PA5130.006NLT TRANSFORMER, CM FLYBACK, EP10 PL Pulse Electronics Power	5,963	3.92	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5130XXXNL	Active	For DC/DC Converters	Flyback Converters	-	-	9 ~ 57V	-	2250V	-	200kHz	-40°C ~ 125°C	Surface Mount	0.610 L x 0.512 W (15.50mm x 13.00mm)	0.610 (15.50mm)	0.610 L x 0.512 W (15.50mm x 13.00mm)
PA3855.001NLT TRANSFORMER FLYBACK 54UH SMD Pulse Electronics Power	6,842	2.33	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13Plus	Active	For DC/DC Converters	Flyback Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
PA1032NL XFRMR FLYBACK 5W 46.6UH SMD Pulse Electronics Power	6,322	2.43	RFQ	Datasheet	Tray	-	Active	For DC/DC Converters	Flyback Converters	-	-	30 ~ 57V	10V @ 15mA	1500Vrms	-	250kHz	-40°C ~ 125°C	Surface Mount	0.450 L x 0.366 W (11.43mm x 9.30mm)	0.260 (6.60mm)	0.450 L x 0.500 W (11.43mm x 12.70mm)
PA3856.001NLT TRANSFORMER FORWARD 100UH SMD Pulse Electronics Power	6,085	2.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13Plus	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	33 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
PA3856.006NLT TRANSFORMER FORWARD 128UH SMD Pulse Electronics Power	6,458	2.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13Plus	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	9 ~ 57V	10V @ 50mA	2250VDC	-	200kHz	-40°C ~ 130°C	Surface Mount	0.571 L x 0.526 W (14.50mm x 13.36mm)	0.551 (14.00mm)	0.571 L x 0.695 W (14.50mm x 17.65mm)
PGT6465NL XFMR FLYBACK EFD15 SM 8 PIN NPB Pulse Electronics Power	9,034	2.46	RFQ	Datasheet	Tape & Reel (TR)	-	Active	For DC/DC Converters	Flyback Converters	-	-	70 ~ 820V	-	4000Vrms	205µH	133kHz	-40°C ~ 130°C	Surface Mount	0.650 L x 0.642 W (16.50mm x 16.30mm)	0.433 (11.00mm)	0.862 L x 0.650 W (21.90mm x 16.50mm)
