Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

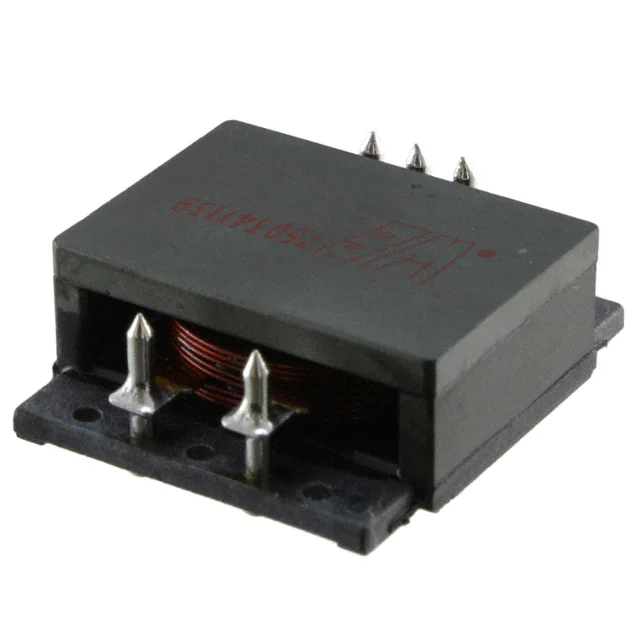

750341139 TRANSFORMER PLANAR 170UH SMD Würth Elektronik	1,732	12.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	170µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)
750341135 TRANSFORMER PLANAR 170UH SMD Würth Elektronik	2,190	14.29	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	170µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)
AEE16-2621 1000uH 10% High Freq Transformer Allied Components International	12,203	0.00	RFQ	Datasheet	Box	-	Active	-	Flyback Converters	-	-	100 ~ 430V	12V @ 10mA	4000Vrms	1mH	40kHz ~ 130kHz	-40°C ~ 130°C	Through Hole	0.716 L x 0.630 W (18.19mm x 16.00mm)	0.708 (17.98mm)	0.716 L x 0.630 W (18.19mm x 16.00mm)
AEE16-4642 1200UH10% (@60KHZ/1V) FLYBACK Allied Components International	5,264	4.25	RFQ	Datasheet	Tray	-	Active	-	-	-	-	-	-	3000VAC	1200µH	-	-	Through Hole	0.750 L x 0.670 W (19.05mm x 17.02mm)	0.708 (17.98mm)	-
AEE16-2531 4.5uH 12% High Freq Transformer Allied Components International	7,935	4.25	RFQ	Datasheet	Box	-	Active	-	Flyback Converters	-	-	12V	-	4000Vrms	4.5µH	300kHz	-40°C ~ 130°C	Through Hole	0.716 L x 0.630 W (18.19mm x 16.00mm)	0.708 (17.98mm)	0.716 L x 0.630 W (18.19mm x 16.00mm)
AEE16-3662 3-phase 3.3V, 1.2A EE16 Trans. Allied Components International	8,883	4.25	RFQ	Datasheet	Tray	-	Active	-	-	-	-	-	-	3000VAC	-	-	-	Through Hole	0.807 L x 0.710 W (20.50mm x 18.03mm)	0.630 (16.00mm)	-
AEI12-3777 EI12 TRANSFORMER Allied Components International	5,610	4.95	RFQ	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	-	-	-	Through Hole	0.508 L x 0.500 W (12.90mm x 12.70mm)	0.378 (9.60mm)	-

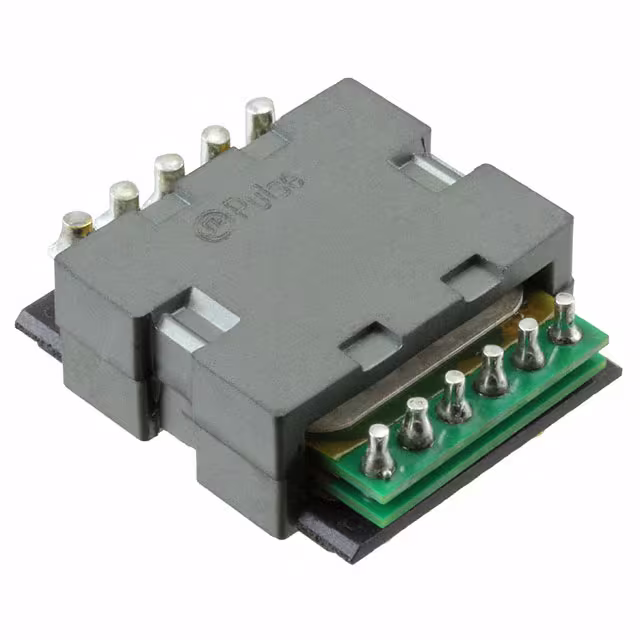

PA0907NL XFMER, 7TP:7TP:4TS:3TPAUX NPB Pulse Electronics Power	13,238	0.00	RFQ	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	-	-	-	Surface Mount	1.160 L x 1.000 W (29.46mm x 25.40mm)	0.402 (10.20mm)	1.000 L x 1.160 W (25.40mm x 29.46mm)

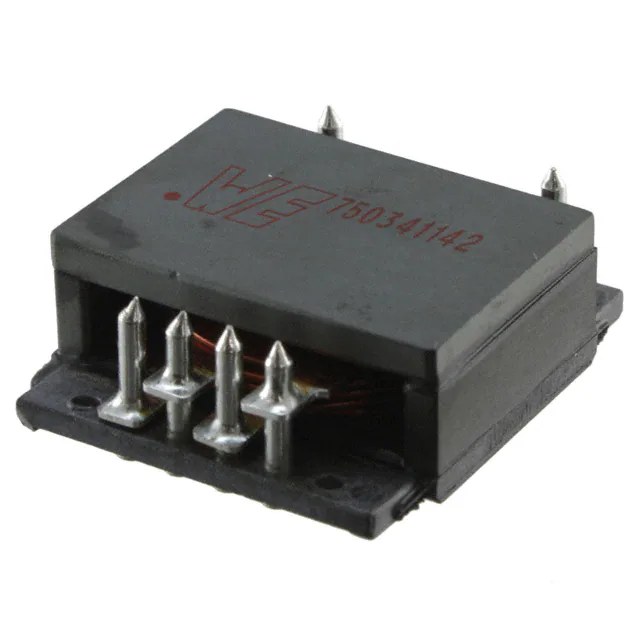

750341142 TRANSFORMER PLANAR 70UH SMD Würth Elektronik	4,754	23.66	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	70µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)

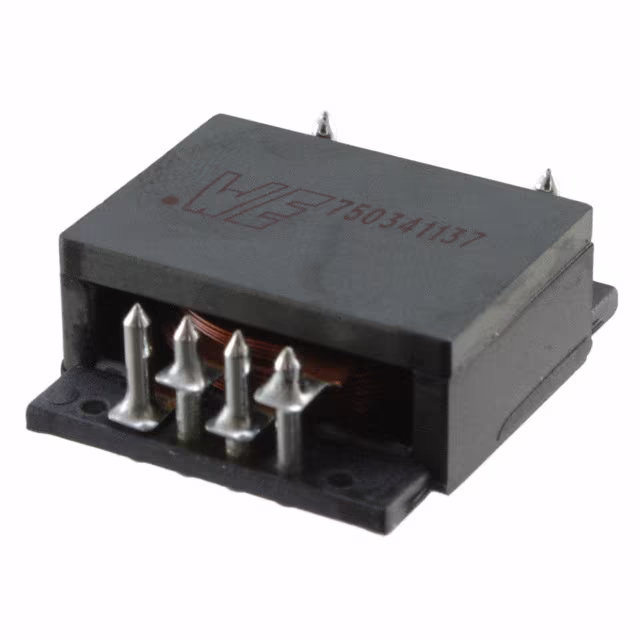

750341137 TRANSFORMER PLANAR 480UH SMD Würth Elektronik	4,201	15.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	480µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)

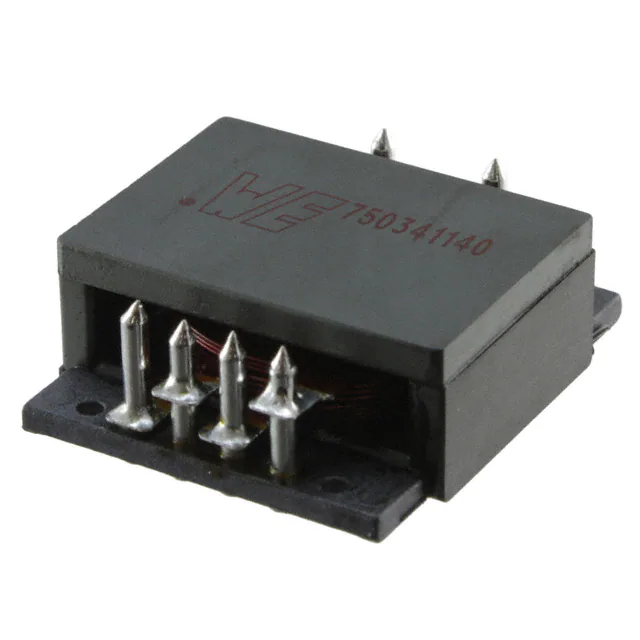

750341140 TRANSFORMER PLANAR 300UH SMD Würth Elektronik	1,744	15.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	300µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)

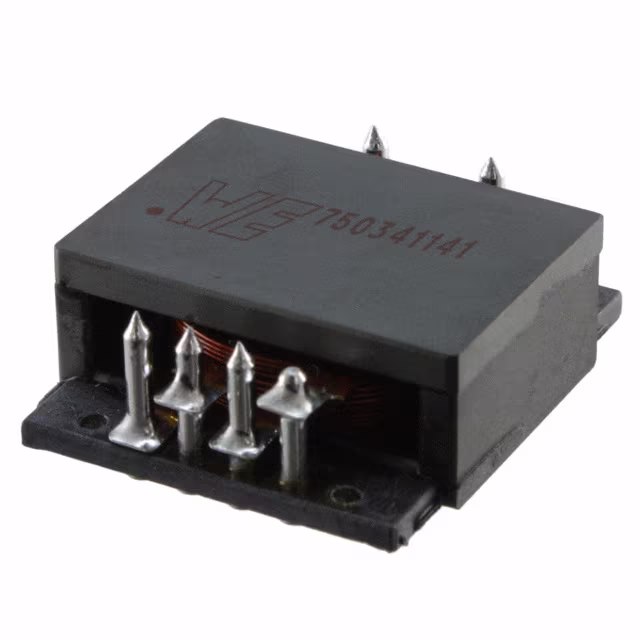

750341141 TRANSFORMER PLANAR 480UH SMD Würth Elektronik	3,119	17.20	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FW, MID-PLN	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VDC	480µH @ 100kHz	200 ~ 700kHz	-40°C ~ 125°C	Surface Mount	1.050 L x 1.154 W (26.67mm x 29.30mm)	0.418 (10.62mm)	1.050 L x 1.154 W (26.67mm x 29.30mm)
PLA32PA44 SFERNICE INDUCTIVES Vishay Sfernice	1,361	26.37	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PLA32PD41 SFERNICE INDUCTIVES Vishay Sfernice	4,450	26.37	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PLA32PB43 SFERNICE INDUCTIVES Vishay Sfernice	1,165	26.37	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PLA32PC42 SFERNICE INDUCTIVES Vishay Sfernice	3,478	26.37	RFQ		Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DECO2017SEO-00001 AC/DC CONVERTER TDK Corporation	4,896	40.00	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DECO2017SEO-00002 AC/DC CONVERTER TDK Corporation	1,045	40.00	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DECO2017SEO-00003 AC/DC CONVERTER TDK Corporation	1,537	40.00	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DECO2017SEO-00004 AC/DC CONVERTER TDK Corporation	3,551	40.00	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
