| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

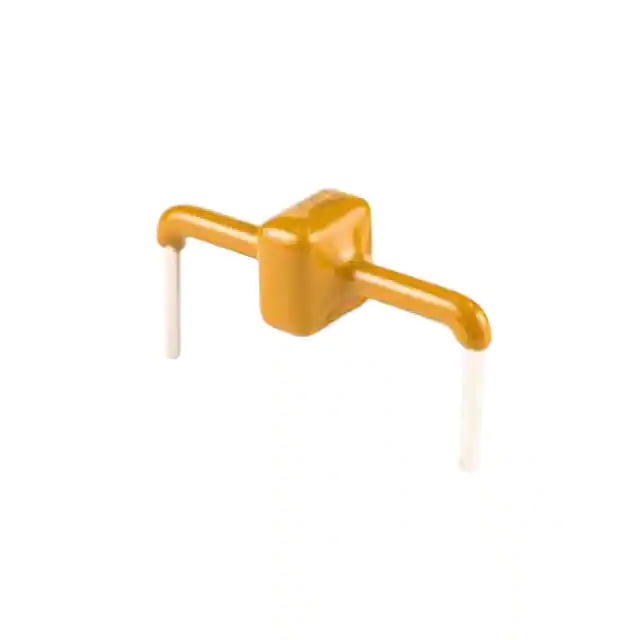

PTVS3-015C-THTVS DIODE 15VWM 28VC AXIAL |
2,392 | 13.63 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 15V | 16V | 28V | 3000A (3kA) (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | Through Hole |
|
AK3-030CTVS DIODE 30VWM 90VC AXIAL |
4,481 | 16.21 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Bulk | AK3 | Active | Zener | - | 1 | 30V | 32V | 90V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 11000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
AK3-015C-YTVS DIODE 15VWM 28VC AXIAL |
2,229 | 16.21 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Bulk | AK3-Y | Active | Zener | - | 1 | 15V | 16V | 28V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 9000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
30KPA48CA-BTVS DIODE 48VWM 81.6VC P600 |
4,703 | 20.78 |
RFQ |
Datasheet |
P600, Axial | Bulk | 30KPA | Active | Zener | - | 1 | 48V | 53.6V | 81.6V | 371.3A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Through Hole |
|
|
AK3-076CTVS DIODE 76VWM 140VC AXIAL |
3,828 | 21.28 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Bulk | AK3 | Active | Zener | - | 1 | 76V | 85V | 140V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 6000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
|
AK3-066CTVS DIODE 66VWM 120VC AXIAL |
4,033 | 23.41 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Bulk | AK3 | Active | Zener | - | 1 | 66V | 72V | 120V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 6000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
AK1-430CTVS DIODE 430VWM 625VC AXIAL |
3,680 | 34.05 |
RFQ |
Axial, Right Angle Bend (24.15mm Center) | Bulk | AK1 | Active | Zener | - | 1 | 430V | 440V | 625V | 1000A (1kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole | |
|

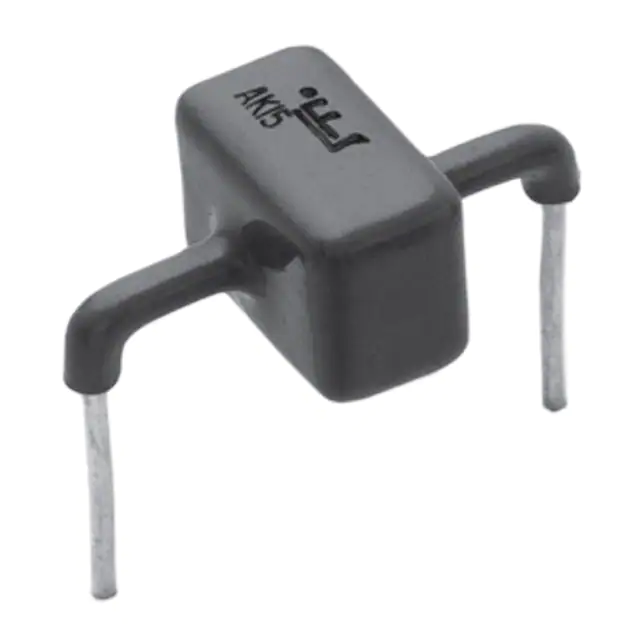

AK15-058CTVS DIODE 58VWM 110VC AXIAL |
1,303 | 39.47 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | AK15 | Active | Zener | - | 1 | 58V | 64V | 110V | 15000A (15kA) (8/20µs) | - | No | General Purpose | 12000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
|
AK15-076CTVS DIODE 76VWM 150VC AXIAL |
2,476 | 43.42 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | AK15 | Active | Zener | - | 1 | 76V | 85V | 150V | 15000A (15kA) (8/20µs) | - | No | General Purpose | 10000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
|
AK3-430C-YTVS DIODE 430VWM 625VC AXIAL |
3,470 | 54.57 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Bulk | AK3-Y | Active | Zener | - | 1 | 430V | 440V | 625V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
PTVS3-380C-THTVS DIODE 380VWM 520VC |
4,925 | 56.64 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | - | Active | Zener | - | 1 | 380V | 401V | 520V | 3000A (3kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | Through Hole |
|
AK6-240CTVS DIODE 240VWM 340VC AXIAL |
1,214 | 62.15 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Tray | AK6 | Active | Zener | - | 1 | 240V | 250V | 340V | 6000A (6kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
AK6-240C-YTVS DIODE 240VWM 340VC AXIAL |
2,294 | 62.15 |
RFQ |
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | Bulk | AK6-Y | Active | Zener | - | 1 | 240V | 250V | 340V | 6000A (6kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | Through Hole |
|
ESD230B1W0201E6327XTSA1TVS DIODE 5.5VWM 14VC WLL-2-1 |
10,872 | 0.21 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Zener | - | 1 | 5.5V (Max) | 6.05V | 14V | 3A (8/20µs) | 56W | - | General Purpose | 7pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
DF3A5.6FV,L3FTVS DIODE VESM |
12,395 | 0.24 |
RFQ |
Datasheet |
SOT-723 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | - | 5.3V | - | - | - | No | General Purpose | 65pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
SZMMBZ20VALT1GTVS DIODE 17VWM 28VC SOT23-3 |
14,361 | 0.26 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 17V | 19V | 28V | 1.4A | 40W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SZMMBZ12VALT1GTVS DIODE 8.5VWM 17VC SOT23-3 |
14,618 | 0.31 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 8.5V | 11.4V | 17V | 2.35A | 40W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
VESD16A2-03G-G3-08TVS DIODE 16VWM 28VC SOT323 |
10,009 | 0.39 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 16V (Max) | 17V | 28V | 3.6A (8/20µs) | 100W | No | Automotive | 27pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
VESD26A2-03G-G3-08TVS DIODE 26VWM 48VC SOT323 |
11,190 | 0.39 |
RFQ |
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | - | 26V (Max) | 27.6V | 48V | 2.1A (8/20µs) | 100W | No | Automotive | 17.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
MMBZ33VCL,215TVS DIODE 26VWM 46VC TO236AB |
10,926 | 0.35 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 26V (Max) | 31.35V | 46V | 870mA | 40W | No | Automotive | 45pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
