| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJSD15TM_R1_00001ESD PROTECTION DIODES |
10,756 | 0.27 |
RFQ |
SOD-923 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 15V (Max) | 17V | 30V | 2A | 40W | No | General Purpose | 15pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
PJSD05LFN2_R1_00001ESD PROTECTION DIODES |
14,647 | 0.28 |
RFQ |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 6.2V | 9.8V | 4A (8/20µs) | 40W | No | General Purpose | 35pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
PEC2305M1Q_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
10,969 | 0.34 |
RFQ |
2-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 15V | 2A (8/20µs) | - | No | General Purpose | 3.5pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|

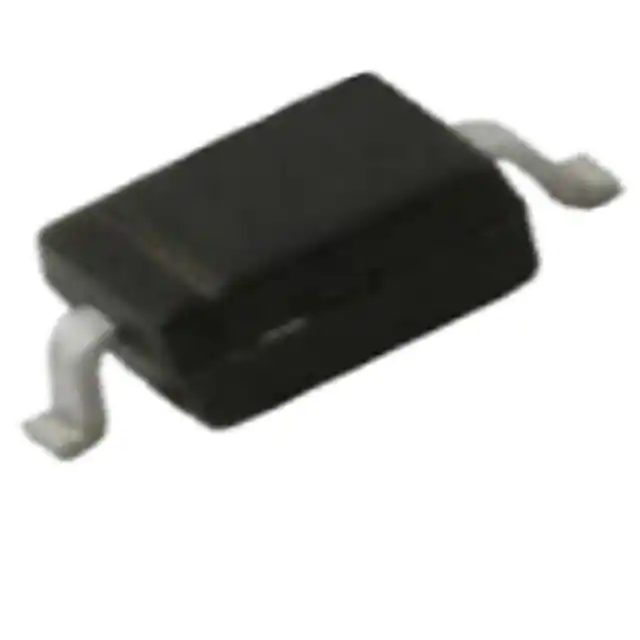

SD05CTVS DIODE 5VWM 14.5VC SOD323 |
10,903 | 0.04 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR) | - | Active | Zener | - | 1 | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount |
|
ESD7501MUT5GTVS DIODE 5VWM 11.5VC 2X3DFN |
11,608 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 5V (Max) | 5.5V | 11.5V | - | - | No | USB | 0.45pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESDU3121MXT5GTVS DIODE 12VWM 22VC 2X2DFN |
10,334 | 0.31 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 12V (Max) | 14.1V | 22V | 8.5A (8/20µs) | - | No | General Purpose | 55pF @ 1MHz | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
PEC3112M1Q_R1_00001ESD PROTECTION |
11,846 | 0.37 |
RFQ |
2-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 12V (Max) | 13V | 25V | 2.5A (8/20µs) | - | No | General Purpose | 10pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
CEZ8V2,L3FTVS DIODE 8.2VWM 16.5VC ESC |
13,230 | 0.32 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | CEZ | Active | Zener | 1 | - | 8.2V | 7.7V | 16.5V (Typ) | 8.5A (8/20µs) | 200W | No | General Purpose | 67pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
|
CEZ6V8,L3FTVS DIODE 6.8VWM 13VC ESC |
10,610 | 0.32 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | CEZ | Active | Zener | 1 | - | 6.8V | 6.4V | 13V (Typ) | 10A (8/20µs) | 180W | No | General Purpose | 88pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
|
CEZ16V,L3FTVS DIODE 16VWM 27VC ESC |
13,359 | 0.32 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | CEZ | Active | Zener | 1 | - | 16V | 15.3V | 27V (Typ) | 5.5A (8/20µs) | 200W | No | General Purpose | 35pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
VBUS03B1-SD0-G4-08TVS DIODE 3.3VWM 29VC CLP0603 |
14,968 | 0.39 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 6V | 29V | 2.5A (8/20µs) | 45W | No | General Purpose | 0.29pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
PESD1IVN27LS-QYLAUTOMOTIVE IN-VEHICLE NETWORK PR |
14,764 | 0.41 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 27V (Max) | 28V | 45V | 3A (8/20µs) | - | No | Automotive, CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
PESD1IVN24LS-QYLAUTOMOTIVE IN-VEHICLE NETWORK PR |
13,916 | 0.41 |
RFQ |
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 24V (Max) | 25.5V | 42V | 3.5A (8/20µs) | - | No | Automotive, CAN | 14pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
|
FC09B1606NLLED ESD PROTECTION FC BI-DIRECTI |
10,286 | 0.05 |
RFQ |
- | Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PJSD07TS-AU_R1_000A1SINGLE LINE TVS DIODE FOR ESD PR |
14,685 | 0.35 |
RFQ |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 7V (Max) | 7.5V | 22.7V | 8.8A (8/20µs) | 120W | No | Automotive | 85pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | Surface Mount | |
|

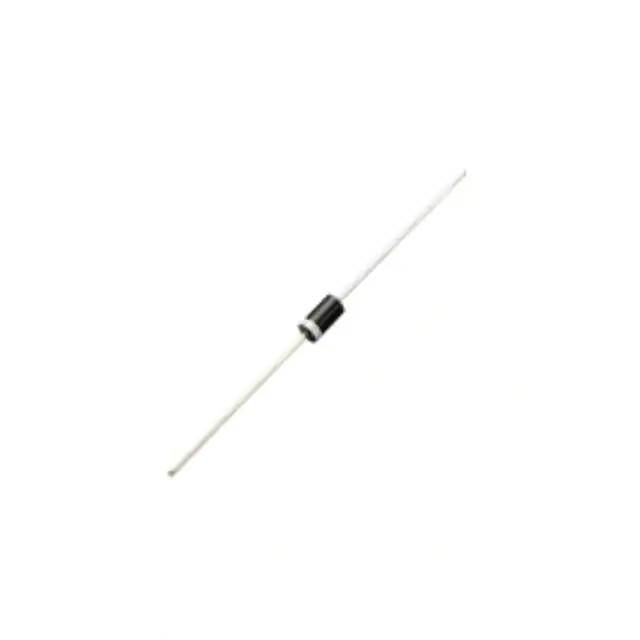

P6KE68CA-TTVS DIODE 58.1VWM 92VC DO15 |
12,566 | 0.06 |
RFQ |
Datasheet |
DO-204AC, DO-15, Axial | Tape & Reel (TR) | P6KE | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Through Hole |
|
SZMMBZ15VDLT1GTVS DIODE 12.8VWM 21.2VC SOT23-3 |
13,776 | 0.31 |
RFQ |
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 2 | 1 | 12.8V | 14.3V | 21.2V | 1.9A | 40W | No | Automotive | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
SD18TVS ARRAY 18V SOD-323 |
11,181 | 0.32 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | SDxx | Active | Zener | 1 | - | 18V (Max) | 20V | 40V | 24A (8/20µs) | 350W | No | General Purpose | 120pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
SD12TVS ARRAY 12V SOD-323 |
14,578 | 0.32 |
RFQ |
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | SDxx | Active | Zener | 1 | - | 12V (Max) | 13.3V | 25V | 15A (8/20µs) | 350W | No | General Purpose | 150pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
LXES03TAA1-199C-NEWTF-ESD |
14,346 | 0.44 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | LXESxxT | Active | Zener | - | 1 | 5.5V | 7V | - | 1.5A (8/20µs) | - | No | General Purpose | 1pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
