Wireless Charging Coils

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature
AWCCA-26R26H08-C01-B RX 1 COIL 1 LAYER 10UH Abracon LLC	8,756	3.69	RFQ	Datasheet	Box	AWCCA	Not For New Designs	Receiver	1 Coil, 1 Layer	10µH	±10%	320mOhm	18.5 @ 100kHz	-	-	-	-25°C ~ 85°C
IWTX47R0EBEB240JF1 IWTX-47R0EB-F1 24 5% EB E2 Vishay Dale	7,710	3.79	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	24µH	±5%	75mOhm	200 @ 200kHz	6A	20A	-	-40°C ~ 105°C
SWC4242KB120-100 RX 1 COIL 1 LAYER 12.5UH Laird-Signal Integrity Products	7,282	4.11	RFQ	Datasheet	Box	SWC	Active	Receiver	1 Coil, 1 Layer	12.5µH	±10%	240mOhm Max	20 @ 100kHz	-	-	-	-40°C ~ 85°C
IWTX4646DCEB240JF1 IWTX-4646DC-F1 24 5% EB E2 Vishay Dale	8,283	4.38	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	24µH	±5%	75mOhm	185 @ 200kHz	6A	20A	-	-40°C ~ 105°C
AWCCA-50N50H35-C01-B RX TX 1 COIL 1 LAYER 24UH 5.4A Abracon LLC	9,568	4.47	RFQ	Datasheet	Box	AWCCA-50N50	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	160 @ 100kHz	5.4A	21A	3MHz	-25°C ~ 85°C
AWCCA-12R12H11-C01-B RX 1 COIL 1 LAYER 8UH Abracon LLC	14,269	0.00	RFQ	Datasheet	Box	AWCCA	Active	Receiver	1 Coil, 1 Layer	8µH	±10%	520mOhm	10 @ 100kHz	-	-	-	-25°C ~ 85°C
AWCCA-18R18H10-C01-B RX 1 COIL 1 LAYER 10.5UH Abracon LLC	14,094	0.00	RFQ	Datasheet	Box	AWCCA	Active	Receiver	1 Coil, 1 Layer	10.5µH	±10%	330mOhm	17 @ 100kHz	-	-	-	-25°C ~ 85°C
AWCCA-50N50H30-C21-B RX TX 1 COIL 1 LAYER 6.3UH Abracon LLC	12,667	0.00	RFQ	Datasheet	Box	AWCCA	Active	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	38mOhm	90 @ 100kHz	-	-	-	-25°C ~ 85°C
1461791001 RX 1 COIL 1 LAYER 11.6UH Molex	2,014	0.00	RFQ	Datasheet	Bulk	NuCurrent, PowerLife, 146179	Obsolete	Receiver	1 Coil, 1 Layer	11.6µH	±2%	520mOhm	23 @ 200kHz	-	-	-	-
IWTX47R0BEEB6R3J11 WIRELESS CHARGING COIL Vishay Dale	3,335	0.00	RFQ	Datasheet	Bulk	-	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	38mOhm	190 @ 200kHz	7A	22A	22MHz	-55°C ~ 105°C

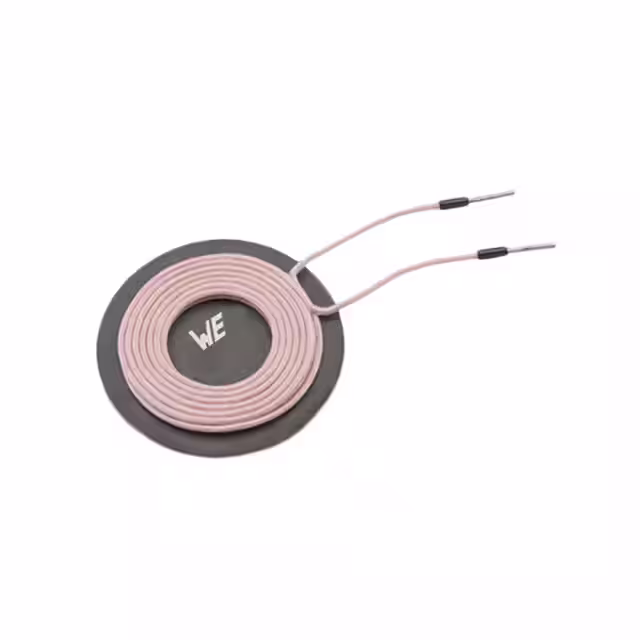

760308101141 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	1,813	18.28	RFQ	Datasheet	Bulk	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	220 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C
760308103305 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,715	14.24	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	2 Coil, 1 Layer	8.8µH, 1.4µH	±10%	220mOhm Max, 100mOhm Max	30 @ 125Khz, 47 @ 125kHz	2.6A, 5A	5A, 5A	22MHz, 16MHz	-20°C ~ 105°C
760308101304 TX 1 COIL 1 LAYER 6.3UH 6A Würth Elektronik	4,137	18.76	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	48mOhm Max	115 @ 125kHz	6A	10A	16MHz	-20°C ~ 105°C
AWCCA-RX404012-101 RX COIL 1 LAYER 8.0UH Abracon LLC	7,992	1.31	RFQ		Tray	AWCCA	Not For New Designs	Receiver	1 Coil, 1 Layer	8µH	±10%	80mOhm Max	-	-	-	-	-
IWTX5050CZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	6,255	1.38	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	120 @ 100kHz	5A	-	-	-40°C ~ 85°C
IWAS3010AZEB130KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	7,303	1.59	RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	12.9µH	±10%	780mOhm Max	11 @ 100kHz	800mA	-	-	-40°C ~ 85°C
IWTX55R0DZEB8R9KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	7,747	2.00	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	8.9µH	±10%	55mOhm Max	98.5 @ 100kHz	6A	-	-	-40°C ~ 125°C
AWCCA-RX350300-101 RX COIL, 1 COIL 25UH Abracon LLC	6,827	2.11	RFQ	Datasheet	Tray	AWCCA	Not For New Designs	Receiver	1 Coil, 2 Layer	25µH	±10%	170mOhm	85 @ 100kHz	-	-	-	-25°C ~ 85°C
AWCCA-38R32H09-C01-B RX 1 COIL 1 LAYER 11.1UH 2.1A Abracon LLC	5,895	2.31	RFQ	Datasheet	Box	AWCCA-38R32	Not For New Designs	Receiver	1 Coil, 1 Layer	11.1µH	±10%	260mOhm	22 @ 100kHz	2.1A	12A	11MHz	-25°C ~ 85°C
IWTX5555DEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	8,994	2.32	RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	80mOhm Max	99 @ 100kHz	6A	-	-	-40°C ~ 85°C

Total 263 Records«Prev 1... 4 5 6 789 10 11...14 Next»
