Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature

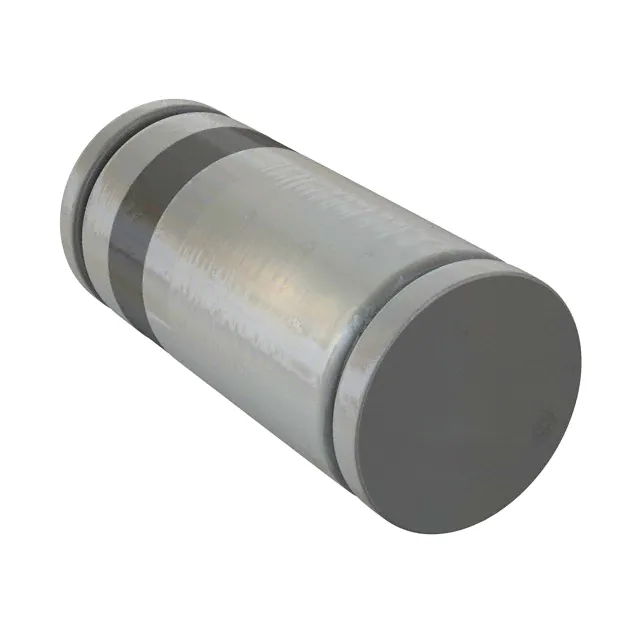

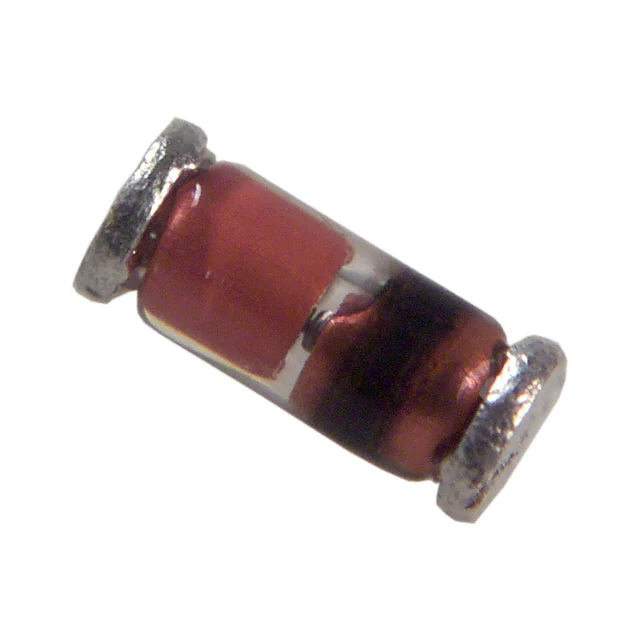

BA679S-GS08 RF DIODE PIN 30V SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	12,793	0.53	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA679-GS08 RF DIODE PIN 30V SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	13,502	0.50	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA679-GS18 RF DIODE PIN 30V SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	11,933	0.50	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)

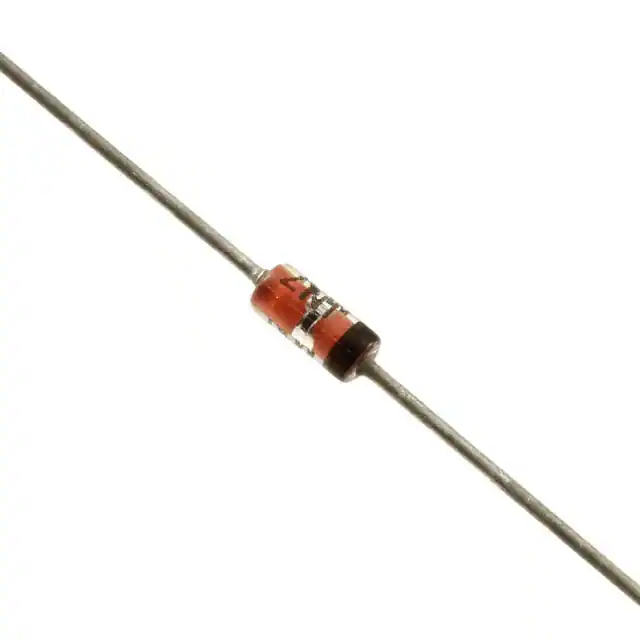

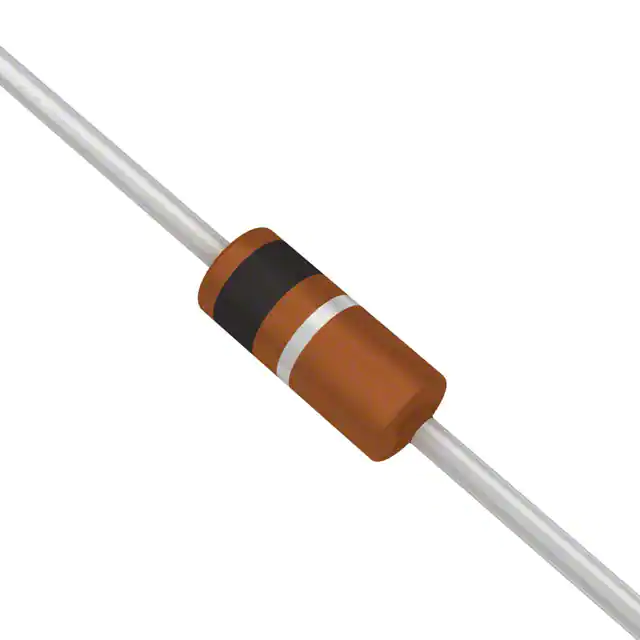

BA479G-TR RF DIODE PIN 30V DO35 Vishay General Semiconductor - Diodes Division	12,558	0.42	FFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA679-M-18 RF DIODE SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	13,054	0.13	FFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	125°C (TJ)
BA679-M-08 RF DIODE PIN 30V SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	14,231	0.13	FFQ	Datasheet	Tape & Reel (TR)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA679S-GS18 RF DIODE PIN 30V SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	14,924	0.14	FFQ	Datasheet	Tape & Reel (TR)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA679S-M-18 RF DIODE SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	12,634	0.14	FFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	125°C (TJ)
BA679S-M-08 RF DIODE SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	13,397	0.14	FFQ	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	125°C (TJ)
BA479G-TAP RF DIODE PIN 30V DO35 Vishay General Semiconductor - Diodes Division	14,086	0.15	FFQ	Datasheet	Tape & Box (TB)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA479S-TAP RF DIODE PIN 30V DO35 Vishay General Semiconductor - Diodes Division	10,241	0.16	FFQ	Datasheet	Tape & Box (TB)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA479S-TR RF DIODE PIN 30V DO35 Vishay General Semiconductor - Diodes Division	13,945	0.16	FFQ	Datasheet	Tape & Reel (TR)	-	Active	PIN - Single	30V	50 mA	0.5pF @ 0V, 100MHz	50Ohm @ 1.5mA, 100MHz	-	125°C (TJ)
BA282-TAP RF DIODE STANDARD 35V DO35 Vishay General Semiconductor - Diodes Division	3,254	0.00	FFQ	Datasheet	Tape & Box (TB)	-	Obsolete	Standard - Single	35V	100 mA	1.25pF @ 3V, 100MHz	500mOhm @ 10mA, 200MHz	-	125°C (TJ)
BA283-TAP RF DIODE STANDARD 35V DO35 Vishay General Semiconductor - Diodes Division	2,974	0.00	FFQ	Datasheet	Tape & Box (TB)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 3V, 100MHz	900mOhm @ 10mA, 200MHz	-	125°C (TJ)
BA282-TR RF DIODE STANDARD 35V DO35 Vishay General Semiconductor - Diodes Division	3,533	0.00	FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Standard - Single	35V	100 mA	1.25pF @ 3V, 100MHz	500mOhm @ 10mA, 200MHz	-	125°C (TJ)
BA283-TR RF DIODE STANDARD 35V DO35 Vishay General Semiconductor - Diodes Division	2,743	0.00	FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 3V, 100MHz	900mOhm @ 10mA, 200MHz	-	125°C (TJ)
BA682-GS18 RF DIODE PIN 35V SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	3,118	0.00	FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	PIN - Single	35V	100 mA	1.25pF @ 3V, 100MHz	500mOhm @ 10mA, 200MHz	-	150°C (TJ)
BA682-M-18 RF DIODE SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	3,360	0.00	FFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-
BA683-GS18 RF DIODE PIN 35V SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	3,445	0.00	FFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	PIN - Single	35V	100 mA	1.2pF @ 3V, 100MHz	900mOhm @ 10mA, 200MHz	-	150°C (TJ)
BA683-M-18 RF DIODE SOD80 MINIMELF Vishay General Semiconductor - Diodes Division	3,145	0.00	FFQ		Tape & Reel (TR)	-	Obsolete	-	-	-	-	-	-	-
