| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E36D500LPN104TEA5UCAP ALUM 100000UF 50V SCREW |
1,544 | 43.17 |
RFQ |
Bulk | U36D | Active | 100000 µF | -10%, +50% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount | |
|
ALS70A102KF630CAP ALUM 1000UF 20% 630V SCREW |
2,135 | 44.86 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 1000 µF | ±20% | 630 V | 140mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 100 Hz | 13.8 A @ 10 kHz | 97 mOhms | 0.874 (22.20mm) | 2.008 Dia (51.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|

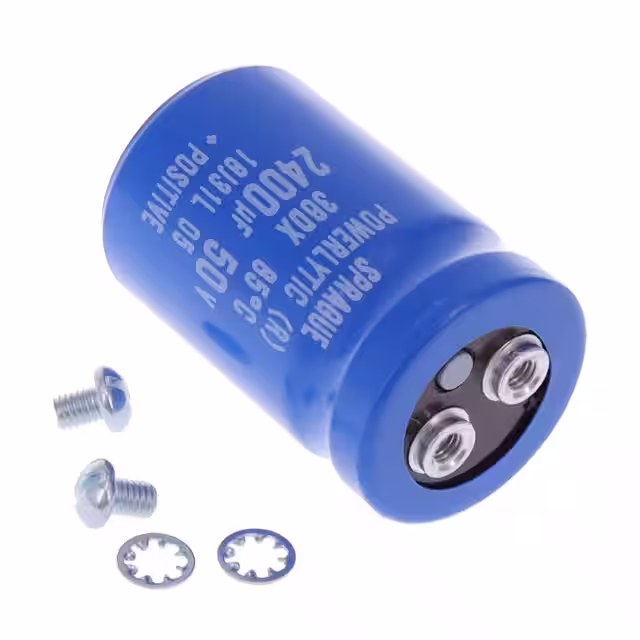

36DX242G050AA2ACAP ALUM 2400UF 50V SCREW |
1,041 | 45.85 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 2400 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.453 Dia (36.90mm) | 2.252 (57.20mm) | - | Chassis Mount |
|
B43456A9158M000CAP ALUM 1500UF 20% 400V SCREW |
1,802 | 49.29 |
RFQ |
Datasheet |
Bulk | B43456 | Not For New Designs | 1500 µF | ±20% | 400 V | 45mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 100 Hz | - | 46 mOhms | 0.874 (22.20mm) | 2.032 Dia (51.60mm) | 3.177 (80.70mm) | - | Chassis Mount |
|

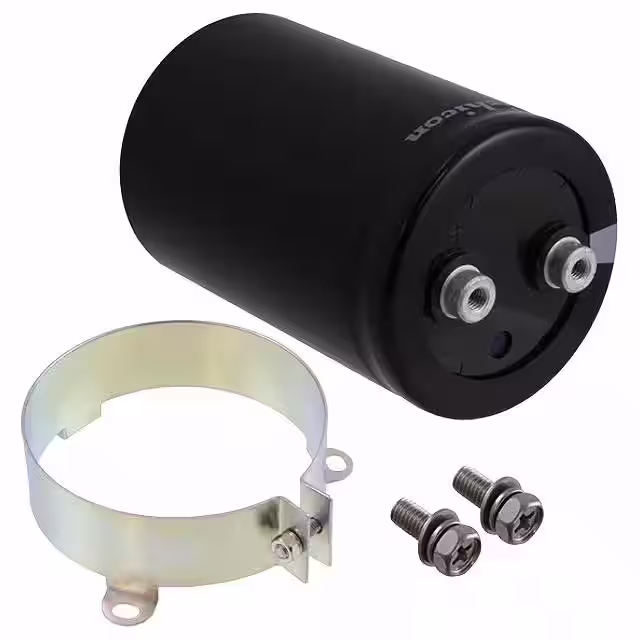

LNY2G332MSEGCAP ALUM 3300UF 20% 400V SCREW |
4,889 | 49.42 |
RFQ |
Datasheet |
Bulk | LNY | Active | 3300 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 18.2 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 3.740 (95.00mm) | - | Chassis Mount |
|

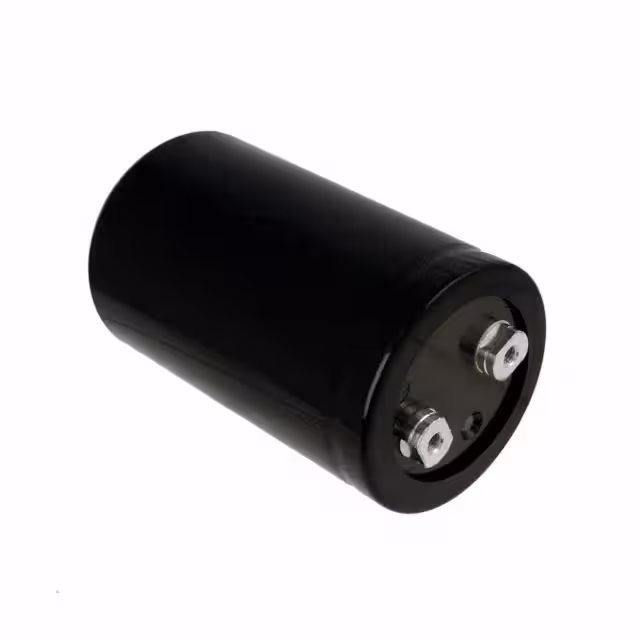

ALS30A222MF400CAP ALUM 2200UF 20% 400V SCREW |
2,040 | 50.85 |
RFQ |
Datasheet |
Bulk | ALS30 | Active | 2200 µF | ±20% | 400 V | 62mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | 18.8 A @ 10 kHz | 44 mOhms | 1.122 (28.50mm) | 2.598 Dia (66.00mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
MAL210118223E3CAP ALUM 22000UF 20% 63V SCREW |
2,534 | 53.05 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 22000 µF | ±20% | 63 V | 19mOhm | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 14.43 A @ 10 kHz | 15 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 3.299 (83.80mm) | - | Chassis Mount |
|
PEH200MJ5220MU2CAP ALUM 22000UF 20% 63V SCREW |
1,550 | 55.56 |
RFQ |
Datasheet |
Box | PEH200 | Active | 22000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 A @ 100 Hz | 30.9 A @ 10 kHz | - | 1.122 (28.50mm) | 2.031 Dia (51.60mm) | 3.760 (95.50mm) | - | Chassis Mount |
|
LNT1K333MSECAP ALUM 33000UF 20% 80V SCREW |
3,148 | 55.90 |
RFQ |
Datasheet |
Bulk | LNT | Active | 33000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.9 A @ 120 Hz | 11.385 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.055 (103.00mm) | - | Chassis Mount |
|
|
E36D201HPN183MEB7UCAP ALUM 18000UF 20% 200V SCREW |
2,092 | 56.51 |
RFQ |
Bulk | U36D | Active | 18000 µF | ±20% | 200 V | 12.4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.64 A @ 120 Hz | 27.496 A @ 3 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 4.625 (117.48mm) | - | Chassis Mount | |
|
ALS31A222NF450CAP ALUM 2200UF 20% 450V SCREW |
4,016 | 60.58 |
RFQ |
Datasheet |
Box | ALS31 | Active | 2200 µF | ±20% | 450 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 100 Hz | 21.1 A @ 10 kHz | 41 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
ECA-0JM221BCAP ALUM 220UF 20% 6.3V RADIAL |
14,317 | 0.05 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 408 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1AM101BCAP ALUM 100UF 20% 10V RADIAL |
13,715 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 255 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM2R2BCAP ALUM 2.2UF 20% 50V RADIAL |
10,627 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 34 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM100BCAP ALUM 10UF 20% 50V RADIAL |
11,991 | 0.05 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1AM101ICAP ALUM 100UF 20% 10V RADIAL |
13,071 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 255 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM2R2ICAP ALUM 2.2UF 20% 50V RADIAL |
14,386 | 0.05 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 34 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ALS31A332NF450CAP ALUM 3300UF 20% 450V SCREW |
4,803 | 65.56 |
RFQ |
Datasheet |
Box | ALS31 | Active | 3300 µF | ±20% | 450 V | 40mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | 21.2 A @ 10 kHz | 30 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
LNK2G332MSEHCAP ALUM 3300UF 20% 400V SCREW |
2,967 | 53.64 |
RFQ |
Datasheet |
Bulk | LNK | Active | 3300 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12 A @ 120 Hz | 16.8 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 3.543 (90.00mm) | - | Chassis Mount |
|
LNU2W272MSEGCAP ALUM 2700UF 20% 450V SCREW |
3,426 | 67.95 |
RFQ |
Datasheet |
Bulk | LNU | Active | 2700 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.1 A @ 120 Hz | 18.34 A @ 10 kHz | - | 1.126 (28.60mm) | 2.500 Dia (63.50mm) | 4.055 (103.00mm) | - | Chassis Mount |
