| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS30A332NF400CAP ALUM 3300UF 20% 400V SCREW |
3,229 | 69.40 |
RFQ |
Datasheet |
Box | ALS30 | Active | 3300 µF | ±20% | 400 V | 49mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | 21.3 A @ 10 kHz | 36 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
B41560A8479M000CAP ALUM 47000UF 20% 63V SCREW |
4,867 | 71.72 |
RFQ |
Datasheet |
Bulk | B41560 | Active | 47000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 100 Hz | - | 9.4 mOhms | 1.122 (28.50mm) | 2.532 Dia (64.30mm) | 4.161 (105.70mm) | - | Chassis Mount |
|
ALS31A332NP450CAP ALUM 3300UF 20% 450V SCREW |
1,648 | 73.42 |
RFQ |
Datasheet |
Box | ALS31 | Active | 3300 µF | ±20% | 450 V | 39mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.1 A @ 100 Hz | 25.1 A @ 10 kHz | 27 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|

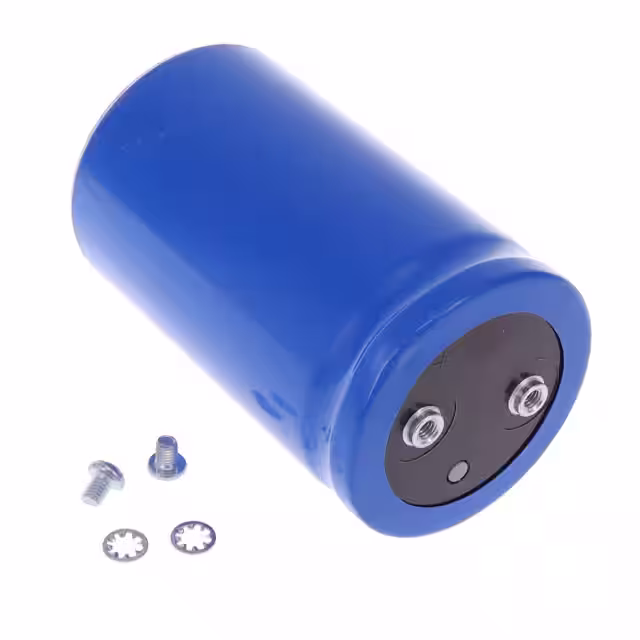

36DX342F200CC2ACAP ALUM 3400UF 200V SCREW |
4,639 | 78.78 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 3400 µF | -10%, +50% | 200 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126 (28.60mm) | 2.579 Dia (65.50mm) | 4.252 (108.00mm) | - | Chassis Mount |
|
PEH169UV447BQB2CAP ALUM 4700UF 350V SCREW |
1,251 | 79.40 |
RFQ |
Datasheet |
Bulk | PEH169 | Active | 4700 µF | -10%, +30% | 350 V | - | - | - | Polar | - | General Purpose | - | - | - | 1.260 (32.00mm) | 2.953 Dia (75.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
ECA-1EM470BCAP ALUM 47UF 20% 25V RADIAL |
12,714 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 221 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1VM330BCAP ALUM 33UF 20% 35V RADIAL |
10,415 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 187 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM220BCAP ALUM 22UF 20% 50V RADIAL |
13,934 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 170 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1VM330ICAP ALUM 33UF 20% 35V RADIAL |
13,424 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 187 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM220ICAP ALUM 22UF 20% 50V RADIAL |
10,320 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 170 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM330ICAP ALUM 33UF 20% 50V RADIAL |
11,326 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ERHB701LGC122MDC5UCAP ALUM 1200UF 20% 700V SCREW |
3,342 | 90.75 |
RFQ |
Datasheet |
Bulk | RHB | Active | 1200 µF | ±20% | 700 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 7.56 A @ 3 kHz | - | 1.102 (28.00mm) | 2.500 Dia (63.50mm) | 5.079 (129.00mm) | - | Chassis Mount |
|
ALS70A272NJ630CAP ALUM 2700UF 20% 630V SCREW |
3,954 | 91.01 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 2700 µF | ±20% | 630 V | 61mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 100 Hz | 22.2 A @ 10 kHz | 42 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 4.528 (115.00mm) | - | Chassis Mount |
|

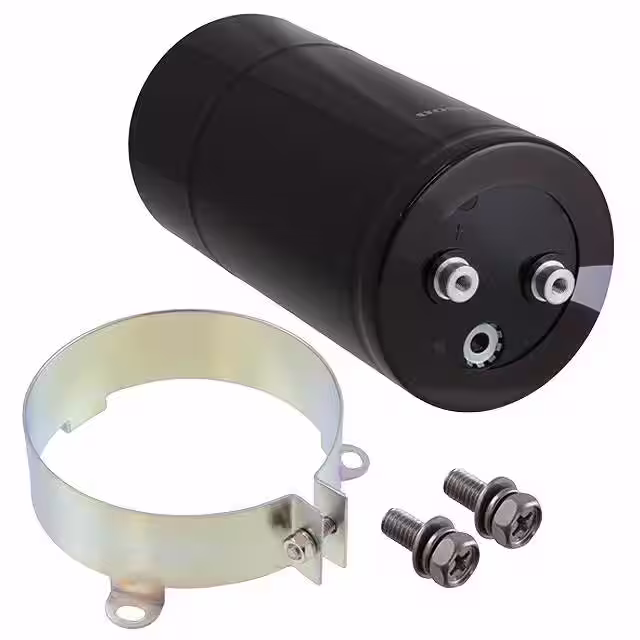

LQR2G682MSEHCAP ALUM 6800UF 20% 400V SCREW |
4,745 | 91.19 |
RFQ |
Datasheet |
Bulk | LQR | Active | 6800 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 25.4 A @ 120 Hz | 35.56 A @ 10 kHz | - | 1.252 (31.80mm) | 3.000 Dia (76.20mm) | 6.024 (153.00mm) | - | Chassis Mount |
|
B43704B5338M000CAP ALUM 3300UF 20% 450V SCREW |
808 | 102.33 |
RFQ |
Datasheet |
Bulk | B43704 | Active | 3300 µF | ±20% | 450 V | 30mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 45 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 3.846 (97.70mm) | - | Chassis Mount |
|
|
ALS70A332NP630CAP ALUM 3300UF 20% 630V SCREW |
496 | 108.59 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 3300 µF | ±20% | 630 V | 51mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.4 A @ 100 Hz | 24.7 A @ 10 kHz | 35 mOhms | 1.252 (31.80mm) | 3.031 Dia (77.00mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
UVR1C330MDD1TDCAP ALUM 33UF 20% 16V RADIAL |
10,671 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
UVR1V4R7MDD1TDCAP ALUM 4.7UF 20% 35V RADIAL |
14,376 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
B43727A9109M600CAP ALUM 10000UF 20% 400V SCREW |
453 | 117.10 |
RFQ |
Datasheet |
Bulk | B43727 | Active | 10000 µF | ±20% | 400 V | 12mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.9 A @ 100 Hz | - | 20 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis, Stud Mount |
|
|
UVR1A101MDD1TDCAP ALUM 100UF 20% 10V RADIAL |
14,870 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 217.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
