| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860040881010CAP ALUM 390UF 20% 100V RADIAL |
9,357 | 5.03 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATUL | Active | 390 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.305 A @ 120 Hz | 1.74 A @ 100 kHz | 54 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
MAL213658471E3CAP ALUM 470UF 20% 63V RADIAL |
5,138 | 3.99 |
RFQ |
Datasheet |
Bulk | 136 RVI | Active | 470 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 100 Hz | - | 55 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

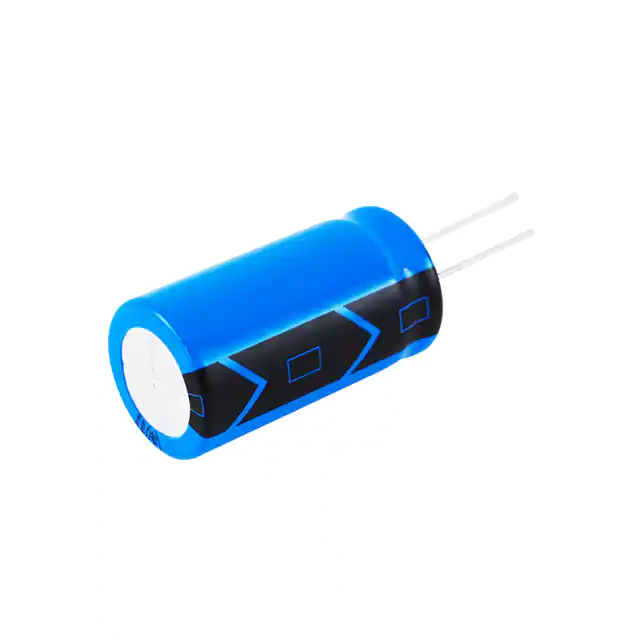

NEV6800M25HACAP ALUM 6800UF 20% 25V RADIAL |
7,616 | 3.99 |
RFQ |
Datasheet |
Bag | NEV | Active | 6800 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.496 (38.00mm) | - | Through Hole |
|
MAL212027681E3CAP ALUM 680UF 20% 40V AXIAL |
7,669 | 6.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 120 ATC | Active | 680 µF | ±20% | 40 V | 75mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.84 A @ 10 kHz | 55 mOhms | - | 0.591 Dia x 1.181 L (15.00mm x 30.00mm) | - | - | Through Hole |
|
TE1402-E3CAP ALUM 3UF 100V AXIAL |
5,498 | 4.05 |
RFQ |
Datasheet |
Bulk | TE | Active | 3 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
|
NEHH33M350FECAP ALUM 33UF 350V AXIAL |
9,481 | 4.05 |
RFQ |
Datasheet |
Bag | NEHH | Active | 33 µF | -10%, +75% | 350 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.181 L (16.00mm x 30.00mm) | - | - | Through Hole |
|
420HXW100MEFR14.5X35CAP ALUM 100UF 20% 420V RADIAL |
5,913 | 4.08 |
RFQ |
Datasheet |
Bulk | HXW | Active | 100 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
109CKS025MCAP ALUM 10000UF 20% 25V RADIAL |
6,121 | 4.09 |
RFQ |
Datasheet |
Bulk | CKS | Active | 10000 µF | ±20% | 25 V | 53mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.92 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.634 (41.50mm) | - | Through Hole |
|

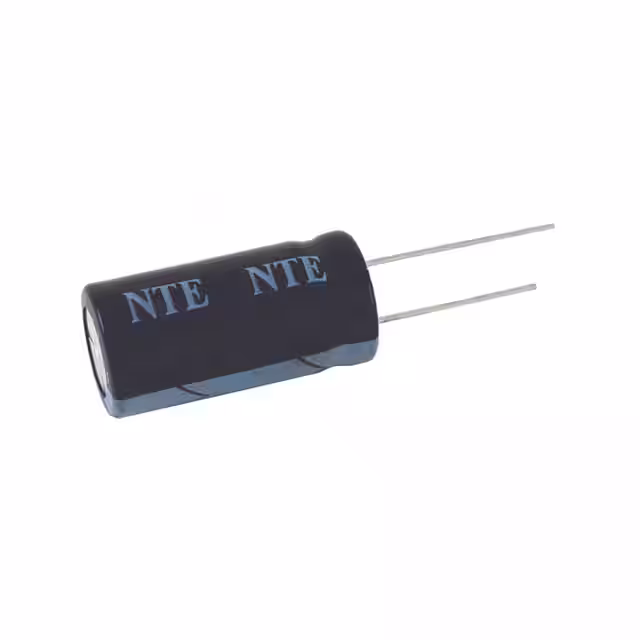

VHT4700M63CAP ALUM 4700UF 20% 63V RADIAL |
7,868 | 4.10 |
RFQ |
Datasheet |
Bag | VHT | Active | 4700 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.732 (44.00mm) | - | Through Hole |
|

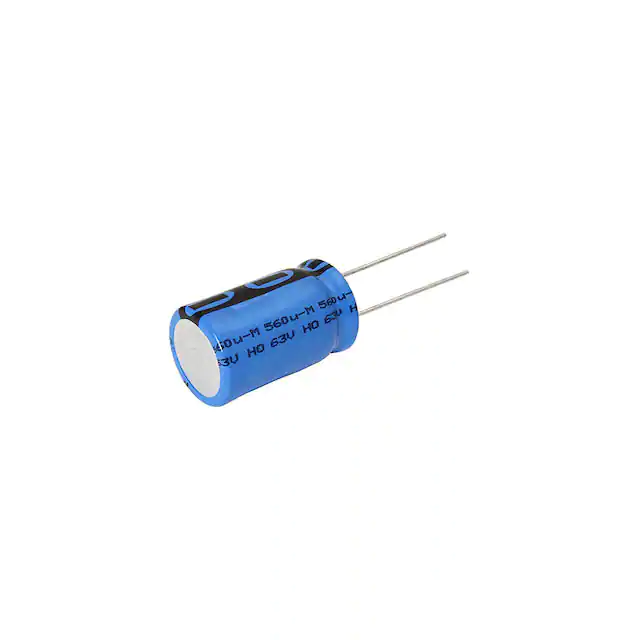

MAL224650182E3CAP ALUM 1800UF 20% 35V RADIAL |
5,976 | 4.10 |
RFQ |
Datasheet |
Box | 246 RTI-V | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.625 A @ 100 Hz | 2.5 A @ 100 kHz | 24 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL226051681E3CAP ALUM 680UF 20% 50V RADIAL |
6,278 | 4.11 |
RFQ |
Box | 260 RLA-V | Active | 680 µF | ±20% | 50 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 350 mA @ 100 Hz | 700 mA @ 100 kHz | 69 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
|
MAL226056471E3CAP ALUM 470UF 20% 25V RADIAL |
8,461 | 4.11 |
RFQ |
Box | 260 RLA-V | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 560 mA @ 100 Hz | 800 mA @ 100 kHz | 29 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
|
MAL226055102E3CAP ALUM 1000UF 20% 16V RADIAL |
8,472 | 4.11 |
RFQ |
Box | 260 RLA-V | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 560 mA @ 100 Hz | 800 mA @ 100 kHz | 29 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
MAL215098685E3CAP ALUM 680UF 20% 63V RADIAL |
6,979 | 4.20 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 680 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.14 A @ 100 Hz | - | 54 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL215051102E3CAP ALUM 1000UF 20% 50V RADIAL |
9,481 | 4.20 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 1000 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.368 A @ 100 Hz | - | 34 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL211892689E3CAP ALUM 68UF 20% 200V AXIAL |
6,465 | 7.58 |
RFQ |
Datasheet |
Bulk | 118 AHT | Active | 68 µF | ±20% | 200 V | 1.02Ohm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 700 mA @ 10 kHz | 420 mOhms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole |
|

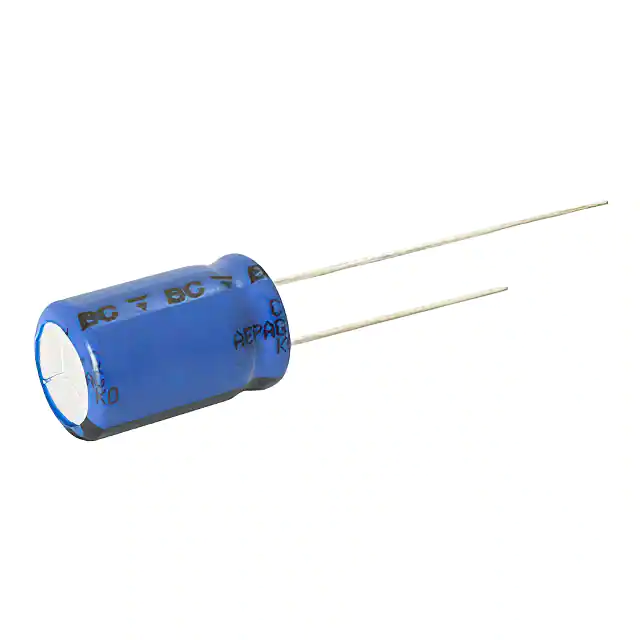

MAL217250222E32200UF 35V 16X25MM 105C 10000H |
8,882 | 4.27 |
RFQ |
Datasheet |
Bulk | 172 RLX | Active | 2200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.8956 A @ 100 Hz | 3.81 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL217251122E31200UF 50V 16X25MM 105C 10000H |
5,019 | 4.27 |
RFQ |
Datasheet |
Bulk | 172 RLX | Active | 1200 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.6676 A @ 100 Hz | 3.51 A @ 100 kHz | 22 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL217256392E33900UF 25V 16X25MM 105C 10000H |
8,447 | 4.27 |
RFQ |
Datasheet |
Bulk | 172 RLX | Active | 3900 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.8956 A @ 100 Hz | 3.81 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

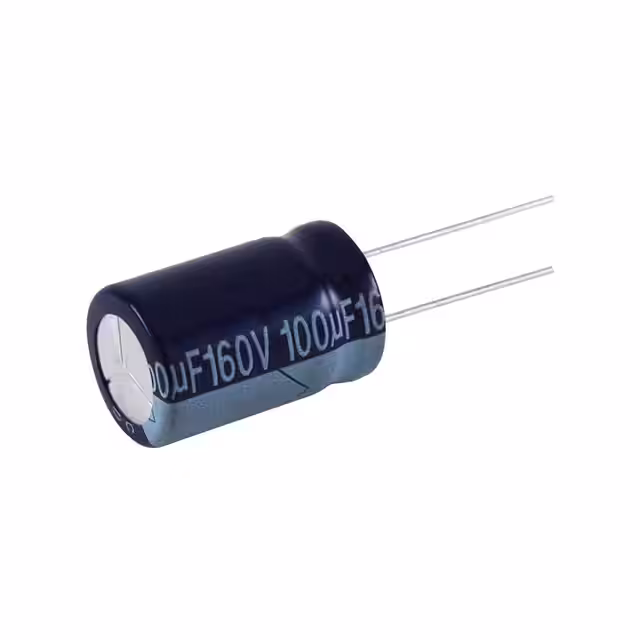

NEVH100M350HACAP ALUM 100UF 350V RADIAL |
7,180 | 4.28 |
RFQ |
Datasheet |
Bag | NEVH | Active | 100 µF | -10%, +75% | 350 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
