| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

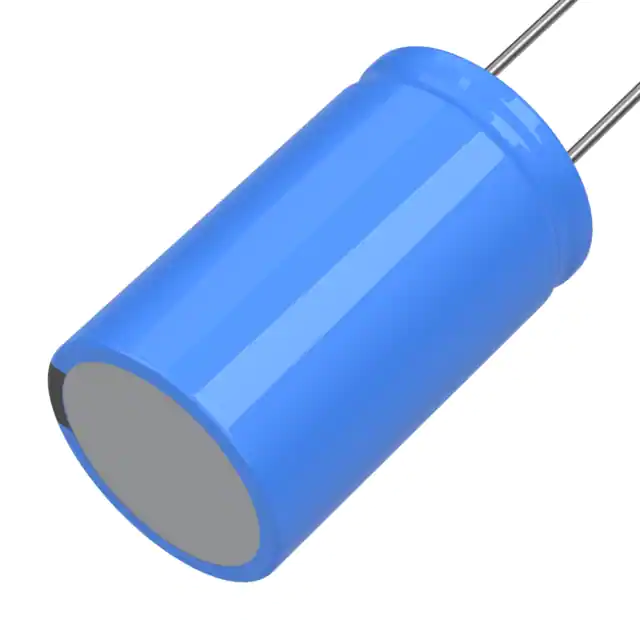

MAL225058102E3CAP ALUM 1000UF 20% 63V RADIAL |
8,017 | 4.46 |
RFQ |
Datasheet |
Box | 250 RMI-V | Active | 1000 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 1.444 A @ 100 Hz | 1.9 A @ 100 kHz | 42 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
NEVH330M160HACAP ALUM 330UF 160V RADIAL |
8,369 | 4.46 |
RFQ |
Datasheet |
Bag | NEVH | Active | 330 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
420HXW120MEFR18X25CAP ALUM 120UF 20% 420V RADIAL |
7,793 | 4.47 |
RFQ |
Datasheet |
Bulk | HXW | Active | 120 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.17 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
TE1090-E3CAP ALUM 20UF 6V AXIAL |
8,859 | 4.48 |
RFQ |
Datasheet |
Bulk | TE | Active | 20 µF | -10%, +75% | 6 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.512 L (6.30mm x 13.00mm) | - | - | Through Hole |
|
|
TE1300-E3CAP ALUM 1UF 50V AXIAL |
5,915 | 4.48 |
RFQ |
Datasheet |
Bulk | TE | Active | 1 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.512 L (6.30mm x 13.00mm) | - | - | Through Hole |
|
|
TE1129-E3CAP ALUM 15UF 12V AXIAL |
8,000 | 4.48 |
RFQ |
Datasheet |
Bulk | TE | Active | 15 µF | -10%, +75% | 12 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.512 L (6.30mm x 13.00mm) | - | - | Through Hole |
|
TE1302.1-E3CAP ALUM 4UF 50V AXIAL |
7,255 | 4.48 |
RFQ |
Datasheet |
Bulk | TE | Active | 4 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.512 L (6.30mm x 13.00mm) | - | - | Through Hole |
|
450HXW120MEFR14.5X50CAP ALUM 120UF 20% 450V RADIAL |
7,276 | 4.48 |
RFQ |
Datasheet |
Bulk | HXW | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.395 A @ 10 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
TE1400-E3CAP ALUM 1UF 100V AXIAL |
9,616 | 4.48 |
RFQ |
Datasheet |
Bulk | TE | Active | 1 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.512 L (6.30mm x 13.00mm) | - | - | Through Hole |
|
|
TE1500-E3CAP ALUM 1UF 150V AXIAL |
6,254 | 4.48 |
RFQ |
Datasheet |
Bulk | TE | Active | 1 µF | -10%, +50% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.512 L (6.30mm x 13.00mm) | - | - | Through Hole |
|

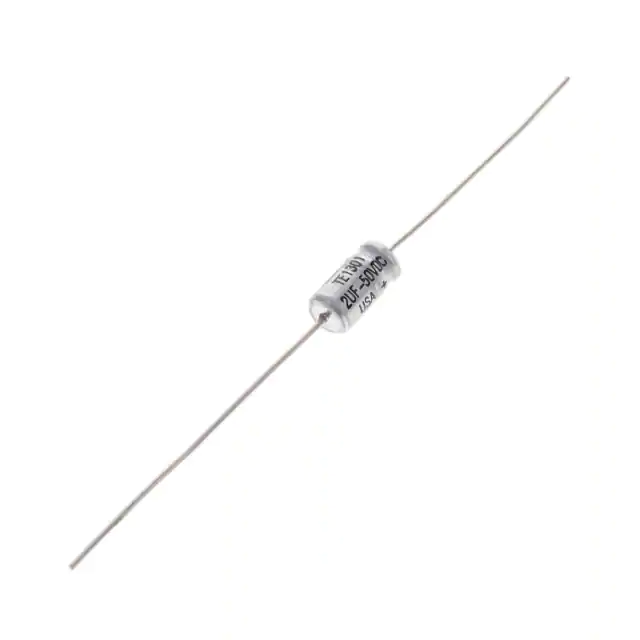

TE1301-E3CAP ALUM 2UF 50V AXIAL |
7,419 | 4.48 |
RFQ |
Datasheet |
Bulk | TE | Active | 2 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.512 L (6.30mm x 13.00mm) | - | - | Through Hole |
|
420HXW150MEFR16X40CAP ALUM 150UF 20% 420V RADIAL |
8,335 | 4.49 |
RFQ |
Datasheet |
Bulk | HXW | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.86 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
400LXW100MEFR14.5X35CAP ALUM 100UF 20% 400V RADIAL |
9,418 | 4.50 |
RFQ |
Datasheet |
Bulk | LXW | Active | 100 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.56 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL225615103E3CAP ALUM 10000UF 20% 16V SNAP |
7,084 | 4.50 |
RFQ |
Datasheet |
Bulk | 256 PMG-SI | Active | 10000 µF | ±20% | 16 V | 66mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

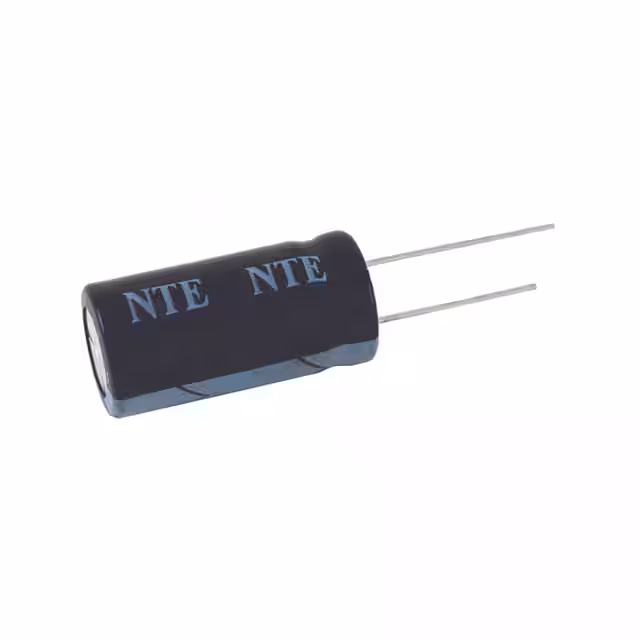

VHT47M450CAP ALUM 47UF 20% 450V RADIAL |
7,169 | 4.51 |
RFQ |
Datasheet |
Bag | VHT | Active | 47 µF | ±20% | 450 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.417 (36.00mm) | - | Through Hole |
|
|
450HXW100MEFR14.5X40CAP ALUM 100UF 20% 450V RADIAL |
9,595 | 4.52 |
RFQ |
Datasheet |
Bulk | HXW | Active | 100 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.185 A @ 10 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.654 (42.00mm) | - | Through Hole |
|

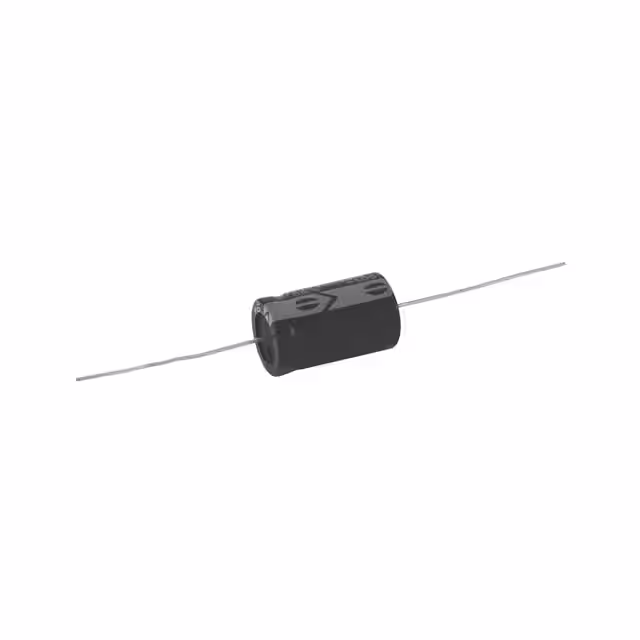

NEHH22M450FECAP ALUM 22UF 450V AXIAL |
6,466 | 4.52 |
RFQ |
Datasheet |
Bag | NEHH | Active | 22 µF | -10%, +75% | 450 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.300 L (16.00mm x 33.00mm) | - | - | Through Hole |
|
|
TE1157-E3CAP ALUM 20UF 16V AXIAL |
8,545 | 4.55 |
RFQ |
Datasheet |
Bulk | TE | Active | 20 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.689 L (6.30mm x 17.50mm) | - | - | Through Hole |
|

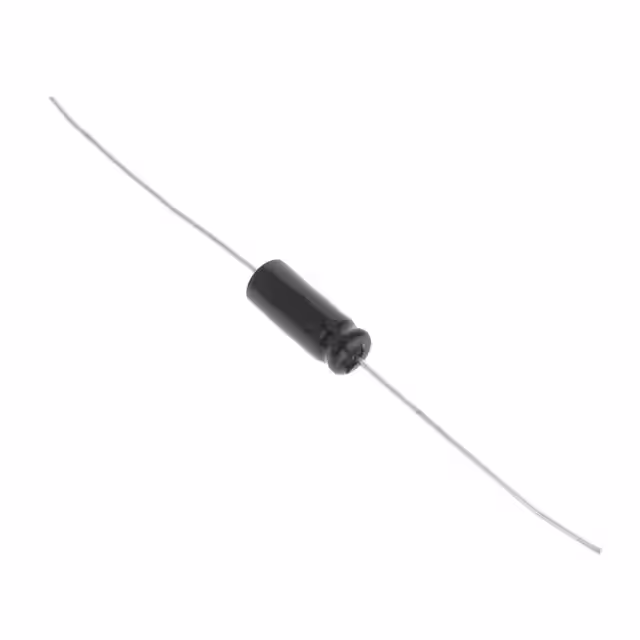

TVA1305-E3CAP ALUM 15UF 50V AXIAL |
8,327 | 4.55 |
RFQ |
Datasheet |
Bulk | TVA ATOM® | Active | 15 µF | - | 50 V | - | - | -40°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.250 Dia x 0.687 L (6.35mm x 17.45mm) | - | - | Through Hole |
|
|
TE1303.3-E3CAP ALUM 8UF 50V AXIAL |
6,003 | 4.55 |
RFQ |
Datasheet |
Bulk | TE | Active | 8 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248 Dia x 0.689 L (6.30mm x 17.50mm) | - | - | Through Hole |
