| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400HXW180MEFR16X45CAP ALUM 180UF 20% 400V RADIAL |
7,843 | 4.71 |
RFQ |
Datasheet |
Bulk | HXW | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.8 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UVZ2A332MRDCAP ALUM 3300UF 20% 100V RADIAL |
8,100 | 7.98 |
RFQ |
Datasheet |
Bulk | UVZ | Not For New Designs | 3300 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 2.3805 A @ 10 kHz | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
420LXW120MEFR18X30CAP ALUM 120UF 20% 420V RADIAL |
6,972 | 4.72 |
RFQ |
Datasheet |
Bulk | LXW | Active | 120 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.62 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

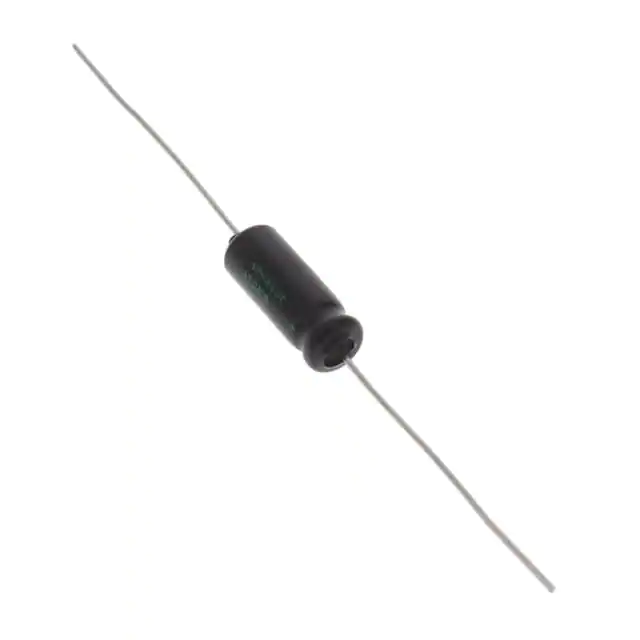

TVA1403-E3CAP ALUM 5UF 150V AXIAL |
5,561 | 4.74 |
RFQ |
Datasheet |
Bulk | TVA ATOM® | Active | 5 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.312 Dia x 0.812 L (7.92mm x 20.62mm) | - | - | Through Hole |
|
500LXW56MEFR16X35CAP ALUM 56UF 20% 500V RADIAL |
6,888 | 4.74 |
RFQ |
Datasheet |
Bulk | LXW | Active | 56 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 120 Hz | 1.298 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL214699712E3CAP ALUM 470UF 20% 80V SMD |
7,758 | 6.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 146 CTI | Active | 470 µF | ±20% | 80 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 660 mA @ 100 Hz | 1.1 A @ 100 kHz | 110 mOhms | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.709 L x 0.709 W (18.00mm x 18.00mm) | Surface Mount |
|
MAL215055472E3CAP ALUM 4700UF 20% 16V RADIAL |
8,125 | 4.75 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.196 A @ 100 Hz | - | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL215051152E3CAP ALUM 1500UF 20% 50V RADIAL |
7,354 | 4.75 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 1500 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.672 A @ 100 Hz | - | 27 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL215266479E3CAP ALUM 47UF 20% 400V RADIAL |
7,394 | 4.78 |
RFQ |
Datasheet |
Bulk | 152 RMH | Active | 47 µF | ±20% | 400 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 240 mA @ 100 Hz | - | 2 Ohms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
380LQ331M250H022CAP ALUM 330UF 20% 250V SNAP |
9,907 | 4.78 |
RFQ |
Datasheet |
Bulk | 380LQ | Active | 330 µF | ±20% | 250 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.32 A @ 20 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
MAL215068102E3CAP ALUM 1000UF 20% 63V RADIAL |
7,356 | 4.79 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 1000 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.444 A @ 100 Hz | - | 42 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL216050471E3CAP ALUM 470UF 20% 35V RADIAL |
7,057 | 4.81 |
RFQ |
Datasheet |
Bulk | 160 RLA | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | - | 35 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
400HXW150MEFR16X35CAP ALUM 150UF 20% 400V RADIAL |
8,221 | 4.81 |
RFQ |
Datasheet |
Bulk | HXW | Active | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

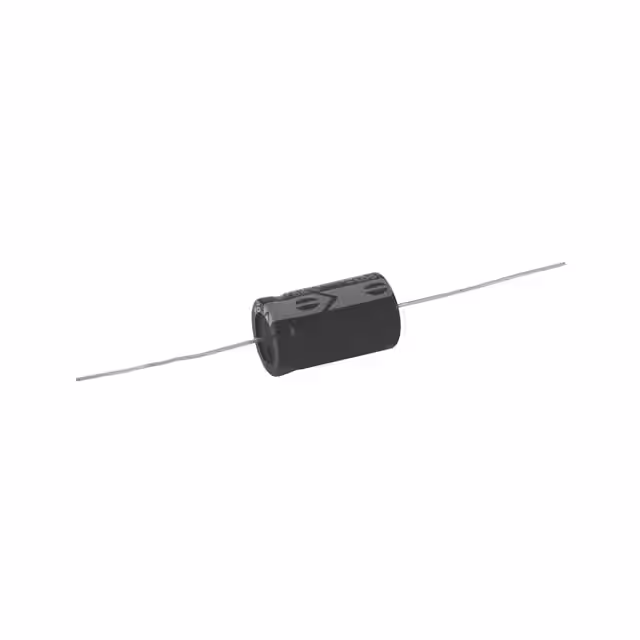

NEHH47M350EGCAP ALUM 47UF 350V AXIAL |
9,932 | 4.81 |
RFQ |
Datasheet |
Bag | NEHH | Active | 47 µF | -10%, +75% | 350 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.575 L (16.00mm x 40.00mm) | - | - | Through Hole |
|
159LBB025M2CECAP ALUM 15000UF 20% 25V SNAP |
9,997 | 4.83 |
RFQ |
Datasheet |
Bulk | LBB | Active | 15000 µF | ±20% | 25 V | 33.16mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.45 A @ 120 Hz | 4.3125 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
450HXW150MEFR16X40CAP ALUM 150UF 20% 450V RADIAL |
5,191 | 4.86 |
RFQ |
Datasheet |
Bulk | HXW | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.455 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL205658102E3CAP ALUM 1000UF 20% 63V SNAP |
5,963 | 6.85 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 056 PSM-SI | Active | 1000 µF | ±20% | 63 V | 148mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.46 A @ 100 Hz | - | 104 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
B41690A7108Q001CAP ALUM 1000UF 35V AXIAL |
9,244 | 4.89 |
RFQ |
Datasheet |
Bulk | B41690 | Active | 1000 µF | -10%, +30% | 35 V | 125mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.4 A @ 10 kHz | 63 mOhms | - | 0.551 Dia x 0.984 L (14.00mm x 25.00mm) | - | - | Through Hole |
|
|
450LXW82MEFR14.5X35CAP ALUM 82UF 20% 450V RADIAL |
8,330 | 4.89 |
RFQ |
Datasheet |
Bulk | LXW | Active | 82 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 1.474 A @ 100 kHz | - | 0.295 (7.50mm) | 0.571 Dia (14.50mm) | 1.457 (37.00mm) | - | Through Hole |
|
NEH3300M35GFCAP ALUM 3300UF 20% 35V AXIAL |
8,920 | 4.90 |
RFQ |
Datasheet |
Bag | NEH | Active | 3300 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.709 Dia x 1.417 L (18.00mm x 36.00mm) | - | - | Through Hole |
