| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS632T300W5LCAP ALUM 6300UF 300V SCREW |
478 | 159.74 |
RFQ |
Datasheet |
Bulk | CGS | Active | 6300 µF | -10%, +50% | 300 V | 18mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.3 A @ 120 Hz | 19.95 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
CGS143T200X5LCAP ALUM 14000UF 200V SCREW |
474 | 159.85 |
RFQ |
Datasheet |
Bulk | CGS | Active | 14000 µF | -10%, +50% | 200 V | 15mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.1 A @ 120 Hz | 24.15 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
E37X501CPN682MFF5UCAP ALUM 6800UF 20% 500V SCREW |
636 | 127.30 |
RFQ |
Bulk | U37X | Active | 6800 µF | ±20% | 500 V | 18mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 20.4 A @ 120 Hz | 28.764 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 6.142 (156.00mm) | - | Chassis Mount | |
|

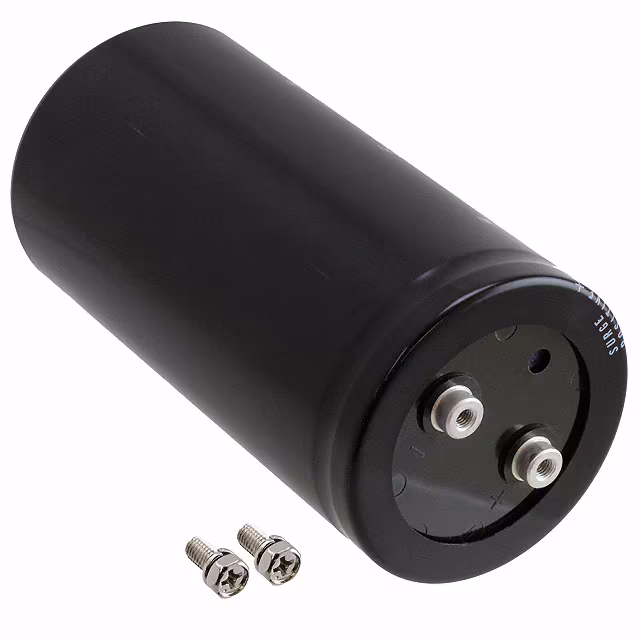

400LSQ10000MEFC90X151CAP ALUM 10000UF 20% 400V SCREW |
758 | 159.99 |
RFQ |
Datasheet |
Bulk | LSQ | Active | 10000 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.5 A @ 120 Hz | 24.19 A @ 10 kHz | - | 1.236 (31.40mm) | 3.543 Dia (90.00mm) | 6.063 (154.00mm) | - | Chassis Mount |
|
HES172G450W4CCAP ALUM 1700UF 450V SCREW |
883 | 160.19 |
RFQ |
Datasheet |
Bulk | HES | Active | 1700 µF | 0%, +50% | 450 V | 51mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 8.733 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
400LSG6800M77X171CAP ALUM 6800UF 20% 400V SCREW |
442 | 127.43 |
RFQ |
Datasheet |
Bulk | LSG | Active | 6800 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.236 (31.40mm) | 3.031 Dia (77.00mm) | 6.850 (174.00mm) | - | Chassis Mount |
|
|
450LSU8200M77X186CAP ALUM 8200UF 20% 450V SCREW |
662 | 127.45 |
RFQ |
Datasheet |
Bulk | LSU | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.236 (31.40mm) | 3.031 Dia (77.00mm) | 7.441 (189.00mm) | - | Chassis Mount |
|
|
550C472M450DP5HPCAP ALUM 4700UF 20% 450V SCREW |
986 | 160.69 |
RFQ |
Datasheet |
Bulk | 550C | Active | 4700 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.937 (150.80mm) | - | Chassis Mount |
|
|
LNX2L682MSEJBBCAP ALUM 6800UF 20% 550V SCREW |
541 | 161.00 |
RFQ |
Datasheet |
Bulk | LNX | Active | 6800 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.5 A @ 120 Hz | 27.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNX2L682MSEJBNCAP ALUM 6800UF 20% 550V SCREW |
851 | 161.00 |
RFQ |
Datasheet |
Bulk | LNX | Active | 6800 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.5 A @ 120 Hz | 27.3 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNC2W153MSEJBBCAP ALUM 15000UF 20% 450V SCREW |
930 | 161.05 |
RFQ |
Datasheet |
Bulk | LNC | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 43.1 A @ 120 Hz | 60.34 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.583 (218.00mm) | - | Chassis Mount |
|
|
LNC2W153MSEJBNCAP ALUM 15000UF 20% 450V SCREW |
397 | 161.05 |
RFQ |
Datasheet |
Bulk | LNC | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 43.1 A @ 120 Hz | 60.34 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.583 (218.00mm) | - | Chassis Mount |
|
|
LNC2W153MTEJCAP ALUM 15000UF 20% 450V SCREW |
995 | 161.05 |
RFQ |
Datasheet |
Bulk | LNC | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 43.1 A @ 120 Hz | 60.34 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.583 (218.00mm) | - | Chassis Mount |
|
|
LNK2W153MSEJBBCAP ALUM 15000UF 20% 450V SCREW |
684 | 161.11 |
RFQ |
Datasheet |
Bulk | LNK | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.9 A @ 120 Hz | 50.26 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
|
LNK2W153MSEJBNCAP ALUM 15000UF 20% 450V SCREW |
837 | 161.11 |
RFQ |
Datasheet |
Bulk | LNK | Active | 15000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.9 A @ 120 Hz | 50.26 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 9.370 (238.00mm) | - | Chassis Mount |
|
|
CGS622T300W5LCAP ALUM 6200UF 300V SCREW |
433 | 161.22 |
RFQ |
Datasheet |
Bulk | CGS | Active | 6200 µF | -10%, +50% | 300 V | 29mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 15.9 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
LNT2W103MSEJBBCAP ALUM 10000UF 20% 450V SCREW |
755 | 161.57 |
RFQ |
Datasheet |
Bulk | LNT | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 35.1 A @ 120 Hz | 49.14 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNT2W103MSEJBNCAP ALUM 10000UF 20% 450V SCREW |
777 | 161.57 |
RFQ |
Datasheet |
Bulk | LNT | Active | 10000 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 35.1 A @ 120 Hz | 49.14 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
MLSG952M010JK0CCAP ALUM 9500UF 20% 10V FLATPACK |
621 | 161.62 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 9500 µF | ±20% | 10 V | 96mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 6.9 A @ 120 Hz | 7.1 A @ 20 kHz | - | 0.500 (12.70mm) | 1.500 L x 1.000 W (38.10mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
MLSG462M020JK0CCAP ALUM 4600UF 20% 20V FLATPACK |
475 | 161.62 |
RFQ |
Datasheet |
Bulk | MLSG Slimpack | Active | 4600 µF | ±20% | 20 V | 102mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Bi-Polar | - | General Purpose | 6.6 A @ 120 Hz | 6.8 A @ 20 kHz | - | 0.500 (12.70mm) | 1.500 L x 1.000 W (38.10mm x 25.40mm) | 0.500 (12.70mm) | - | Through Hole |
