| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL250159562E3CAP ALUM 5600UF 20% 500V SCREW |
437 | 130.42 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 5600 µF | ±20% | 500 V | 45mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | 24.45 A @ 10 kHz | 37 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.780 (146.80mm) | - | Chassis Mount |
|
|
MAL250119562E3CAP ALUM 5600UF 20% 500V SCREW |
461 | 130.42 |
RFQ |
Datasheet |
Box | 501 PGM-ST | Active | 5600 µF | ±20% | 500 V | 45mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | 24.45 A @ 10 kHz | 37 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.780 (146.80mm) | - | Chassis Mount |
|
B43743C9478M007CAP ALUM 4700UF 20% 400V SCREW |
694 | 130.48 |
RFQ |
Bulk | B43743 | Active | 4700 µF | ±20% | 400 V | 20mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.5 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 3.858 (98.00mm) | - | Chassis Mount | |
|
CGS784U010X5CCAP ALUM 780000UF 10V SCREW |
388 | 165.91 |
RFQ |
Datasheet |
Bulk | CGS | Active | 780000 µF | -10%, +75% | 10 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.4 A @ 120 Hz | 30.42 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
36DX372F350DF2ACAP ALUM 3700UF 350V SCREW |
960 | 130.62 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 3700 µF | -10%, +50% | 350 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 5.752 (146.10mm) | - | Chassis Mount |
|

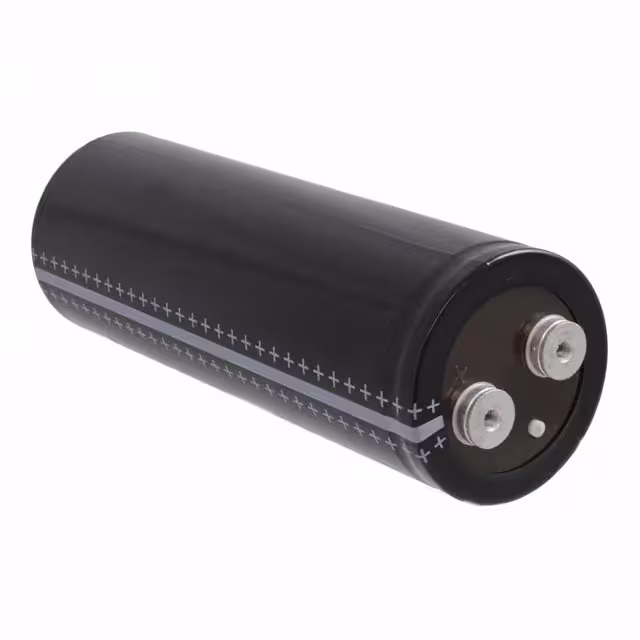

B43564A5688M000CAP ALUM 6800UF 20% 450V SCREW |
534 | 166.12 |
RFQ |
Datasheet |
Bulk | B43564 | Active | 6800 µF | ±20% | 450 V | 24mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.1 A @ 100 Hz | - | 19 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 8.728 (221.70mm) | - | Chassis Mount |
|
|
B43733A4129M000CAP ALUM 12000UF 20% 350V SCREW |
891 | 130.69 |
RFQ |
Bulk | B43733 | Active | 12000 µF | ±20% | 350 V | 11mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 28.5 A @ 100 Hz | - | 18 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 6.189 (157.20mm) | - | Chassis Mount | |
|
|
LNT2V153MSEJBBCAP ALUM 15000UF 20% 350V SCREW |
454 | 166.17 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 42.9 A @ 120 Hz | 60.06 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNT2V153MSEJBNCAP ALUM 15000UF 20% 350V SCREW |
700 | 166.17 |
RFQ |
Datasheet |
Bulk | LNT | Active | 15000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 42.9 A @ 120 Hz | 60.06 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
B43713A4688M000CAP ALUM 6800UF 20% 350V SCREW |
435 | 130.88 |
RFQ |
Datasheet |
Bulk | B43713 | Active | 6800 µF | ±20% | 350 V | 18mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.027 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount |
|
|
B43763B5478M000CAP ALUM 4700UF 20% 450V SCREW |
477 | 131.30 |
RFQ |
Bulk | B43763 | Active | 4700 µF | ±20% | 450 V | 19mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.9 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.028 Dia (76.90mm) | 4.201 (106.70mm) | - | Chassis Mount | |
|
|
B43763A5568M000CAP ALUM 5600UF 20% 450V SCREW |
782 | 131.32 |
RFQ |
Bulk | B43763 | Active | 5600 µF | ±20% | 450 V | 16mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 24 mOhms | 1.122 (28.50mm) | 2.531 Dia (64.30mm) | 5.677 (144.20mm) | - | Chassis Mount | |
|
B43704B6478M050CAP ALUM 4700UF 20% 500V SCREW |
779 | 131.45 |
RFQ |
Bulk | B43704 | Active | 4700 µF | ±20% | 500 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 4.764 (121.00mm) | - | Chassis Mount | |
|
|
B43704B6478M007CAP ALUM 4700UF 20% 500V SCREW |
551 | 131.45 |
RFQ |
Bulk | B43704 | Active | 4700 µF | ±20% | 500 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 4.764 (121.00mm) | - | Chassis Mount | |
|
|
B43704B6478M000CAP ALUM 4700UF 20% 500V SCREW |
817 | 131.45 |
RFQ |
Bulk | B43704 | Active | 4700 µF | ±20% | 500 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.7 A @ 100 Hz | - | 30 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 4.764 (121.00mm) | - | Chassis Mount | |
|
|
MAL250037562E3CAP ALUM 5600UF 20% 450V SCREW |
732 | 131.46 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 5600 µF | ±20% | 450 V | 23mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.6 A @ 120 Hz | - | 18 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL250077562E3CAP ALUM 5600UF 20% 450V SCREW |
910 | 131.46 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 5600 µF | ±20% | 450 V | 23mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.6 A @ 120 Hz | - | 18 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
MAL210435472E3CAP ALUM 4700UF 20% 350V SCREW |
653 | 131.48 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 4700 µF | ±20% | 350 V | 32mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 18.9 A @ 10 kHz | 21 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 4.378 (111.20mm) | - | Chassis Mount |
|
|
MAL210445472E3CAP ALUM 4700UF 20% 350V SCREW |
938 | 131.48 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 4700 µF | ±20% | 350 V | 30mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 20.55 A @ 10 kHz | 19 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.953 (151.20mm) | - | Chassis Mount |
|
|
MAL210446332E3CAP ALUM 3300UF 20% 400V SCREW |
329 | 131.48 |
RFQ |
Datasheet |
Bulk | 104 PHL-ST | Active | 3300 µF | ±20% | 400 V | 38mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 17.4 A @ 10 kHz | 23 mOhms | 1.252 (31.80mm) | 3.008 Dia (76.40mm) | 5.953 (151.20mm) | - | Chassis Mount |
