| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210277472E3CAP ALUM 4700UF 20% 450V SCREW |
426 | 155.85 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 4700 µF | ±20% | 450 V | 26mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.4 A @ 100 Hz | - | 17 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
|
MAL210286682E3CAP ALUM 6800UF 20% 400V SCREW |
860 | 155.85 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 6800 µF | ±20% | 400 V | 22mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.3 A @ 100 Hz | - | 15 mOhms | 1.252 (31.80mm) | 2.992 Dia (76.00mm) | 5.972 (151.70mm) | - | Chassis Mount |
|
B43713B5568M000CAP ALUM 5600UF 20% 450V SCREW |
623 | 155.87 |
RFQ |
Datasheet |
Bulk | B43713 | Active | 5600 µF | ±20% | 450 V | 22mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.5 A @ 100 Hz | - | 34 mOhms | 1.248 (31.70mm) | 3.543 Dia (90.00mm) | 5.728 (145.50mm) | - | Chassis Mount |
|
36DY563F100DJ2ACAP ALUM 56000UF 100V SCREW |
935 | 155.92 |
RFQ |
Datasheet |
Bulk | 36DY | Active | 56000 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
MAL250037682E3CAP ALUM 6800UF 20% 450V SCREW |
405 | 156.00 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 6800 µF | ±20% | 450 V | 17mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 44.8 A @ 120 Hz | - | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
MAL250077682E3CAP ALUM 6800UF 20% 450V SCREW |
319 | 156.00 |
RFQ |
Datasheet |
Bulk | 500 PGP-ST | Active | 6800 µF | ±20% | 450 V | 17mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 44.8 A @ 120 Hz | - | 13 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|

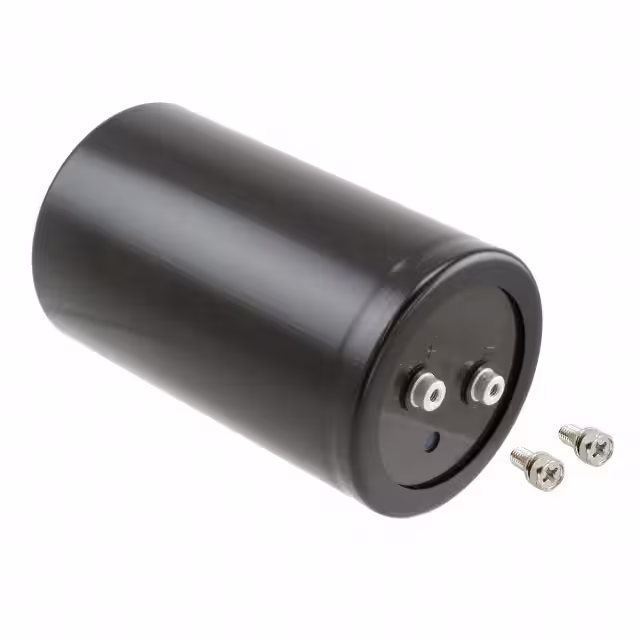

580LSU3900MNB77X171CAP ALUM 3900UF 20% 580V SCREW |
784 | 156.44 |
RFQ |
Datasheet |
Bulk | LSU | Active | 3900 µF | ±20% | 580 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11 A @ 120 Hz | 14.3 A @ 10 kHz | - | 1.236 (31.40mm) | 3.032 Dia (77.00mm) | 6.850 (174.00mm) | - | Chassis Mount |
|
CGH272T500W5LCAP ALUM 2700UF 500V SCREW |
564 | 212.36 |
RFQ |
Datasheet |
Bulk | CGH | Active | 2700 µF | -10%, +50% | 500 V | 93.9mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.9 A @ 120 Hz | - | - | - | 2.500 Dia (63.50mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
36DX304G015DJ2ACAP ALUM 300000UF 15V SCREW |
866 | 156.68 |
RFQ |
Datasheet |
Bulk | 36DX | Active | 300000 µF | -10%, +75% | 15 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252 (31.80mm) | 3.079 Dia (78.20mm) | 8.752 (222.30mm) | - | Chassis Mount |
|
CGS642T350X5CCAP ALUM 6400UF 350V SCREW |
939 | 212.81 |
RFQ |
Datasheet |
Bulk | CGS | Active | 6400 µF | -10%, +50% | 350 V | 25mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.2 A @ 120 Hz | 18.3 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
LNT2H822MSEJBBCAP ALUM 8200UF 20% 500V SCREW |
397 | 212.89 |
RFQ |
Datasheet |
Bulk | LNT | Active | 8200 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 25.5 A @ 120 Hz | 35.7 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
LNT2H822MSEJBNCAP ALUM 8200UF 20% 500V SCREW |
968 | 212.89 |
RFQ |
Datasheet |
Bulk | LNT | Active | 8200 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 25.5 A @ 120 Hz | 35.7 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.780 (223.00mm) | - | Chassis Mount |
|
|
E37X451CPN123MFM9UCAP ALUM 12000UF 20% 450V SCREW |
549 | 156.71 |
RFQ |
Bulk | U37X | Active | 12000 µF | ±20% | 450 V | 9mOhm @ 120Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | - | 32.2 A @ 120 Hz | 42.441 A @ 10 kHz | - | 1.252 (31.80mm) | 3.504 Dia (89.00mm) | 8.661 (220.00mm) | - | Chassis Mount | |
|
|
CGS832T300X5CCAP ALUM 8300UF 300V SCREW |
944 | 213.17 |
RFQ |
Datasheet |
Bulk | CGS | Active | 8300 µF | -10%, +50% | 300 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.1 A @ 120 Hz | 19.65 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
LNT2E333MSEBCAP ALUM 33000UF 20% 250V SCREW |
674 | 213.25 |
RFQ |
Datasheet |
Bulk | LNT | Active | 33000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 20.4 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
|
LNT2E333MSENCAP ALUM 33000UF 20% 250V SCREW |
936 | 213.25 |
RFQ |
Datasheet |
Bulk | LNT | Active | 33000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 20.4 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 10.000 (254.00mm) | - | Chassis Mount |
|
|
LNR2A224MSENCAP ALUM 220000UF 20% 100V SCREW |
959 | 213.53 |
RFQ |
Datasheet |
Bulk | LNR | Active | 220000 µF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 32.7 A @ 120 Hz | 37.605 A @ 10 kHz | - | 1.634 (41.50mm) | 3.937 Dia (100.00mm) | 9.961 (253.00mm) | - | Chassis Mount |
|
|
CGS352T450W5LCAP ALUM 3500UF 450V SCREW |
987 | 213.74 |
RFQ |
Datasheet |
Bulk | CGS | Active | 3500 µF | -10%, +50% | 450 V | 42mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 120 Hz | 13.2 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
MAL210242223E3CAP ALUM 22000UF 20% 200V SCREW |
360 | 157.35 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 22000 µF | ±20% | 200 V | 8mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.1 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
|
|
MAL210282223E3CAP ALUM 22000UF 20% 200V SCREW |
640 | 157.35 |
RFQ |
Datasheet |
Bulk | 102 PHR-ST | Active | 22000 µF | ±20% | 200 V | 8mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.1 A @ 100 Hz | - | 6 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.118 (155.40mm) | - | Chassis Mount |
